2007 FORD FREESTAR Owners Manual

Page 233 of 312

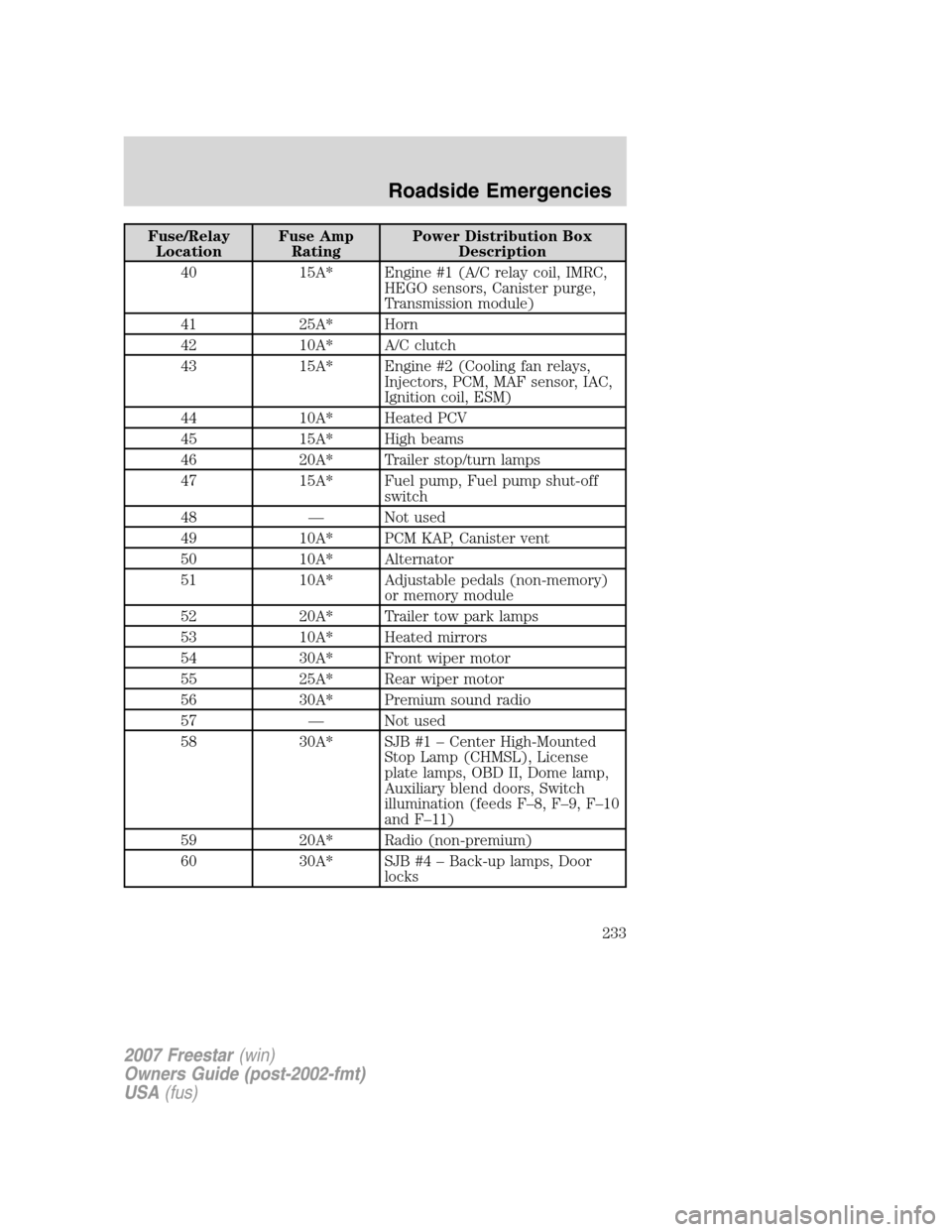

FORD FREESTAR 2007 1.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
40 15A* Engine #1 (A/C relay coil, IMRC,
HEGO sensors, Canister purge,
Transmission module)
41 25A* Horn
42 10A* A/C clutch
43 15A*

Page 234 of 312

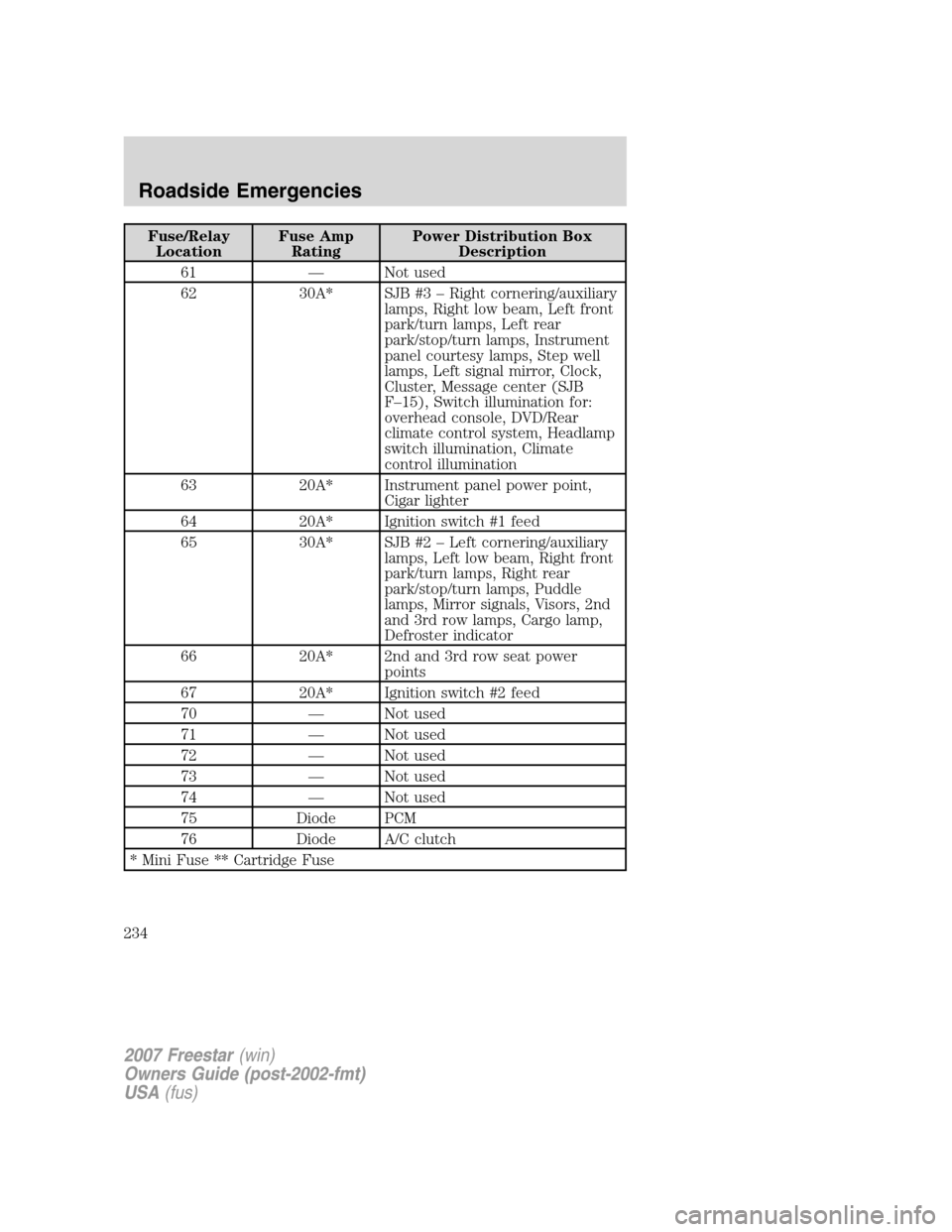

FORD FREESTAR 2007 1.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
61 — Not used
62 30A* SJB #3 – Right cornering/auxiliary
lamps, Right low beam, Left front
park/turn lamps, Left rear
park/stop

Page 235 of 312

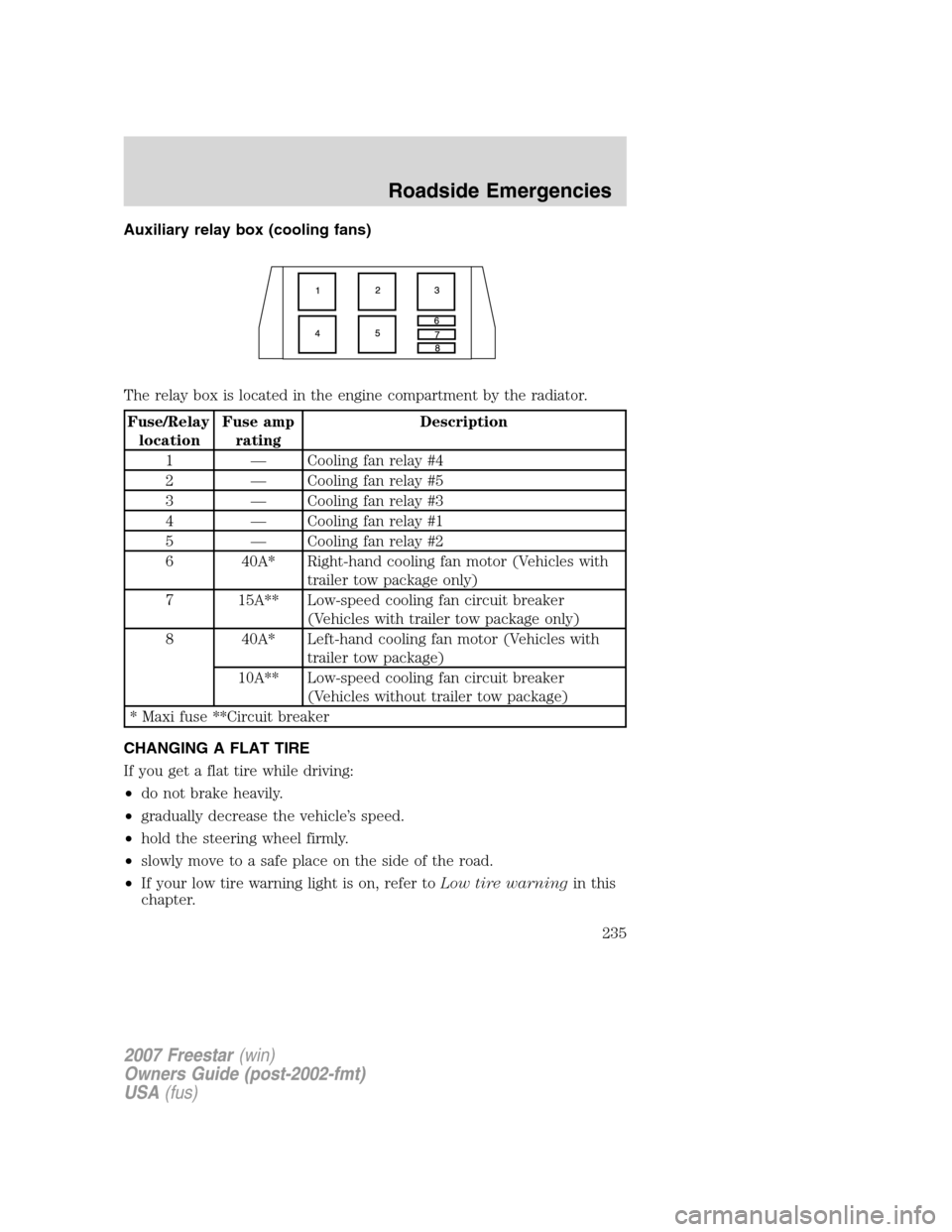

FORD FREESTAR 2007 1.G Owners Manual Auxiliary relay box (cooling fans)
The relay box is located in the engine compartment by the radiator.
Fuse/Relay
locationFuse amp
ratingDescription
1 — Cooling fan relay #4
2 — Cooling fan relay

Page 236 of 312

FORD FREESTAR 2007 1.G Owners Manual The use of tire sealants may damage your tires. The use of tire
sealants may also damage your Tire Pressure Monitoring System
and should not be used.
Your vehicle is equipped with a Tire Pressure Moni

Page 237 of 312

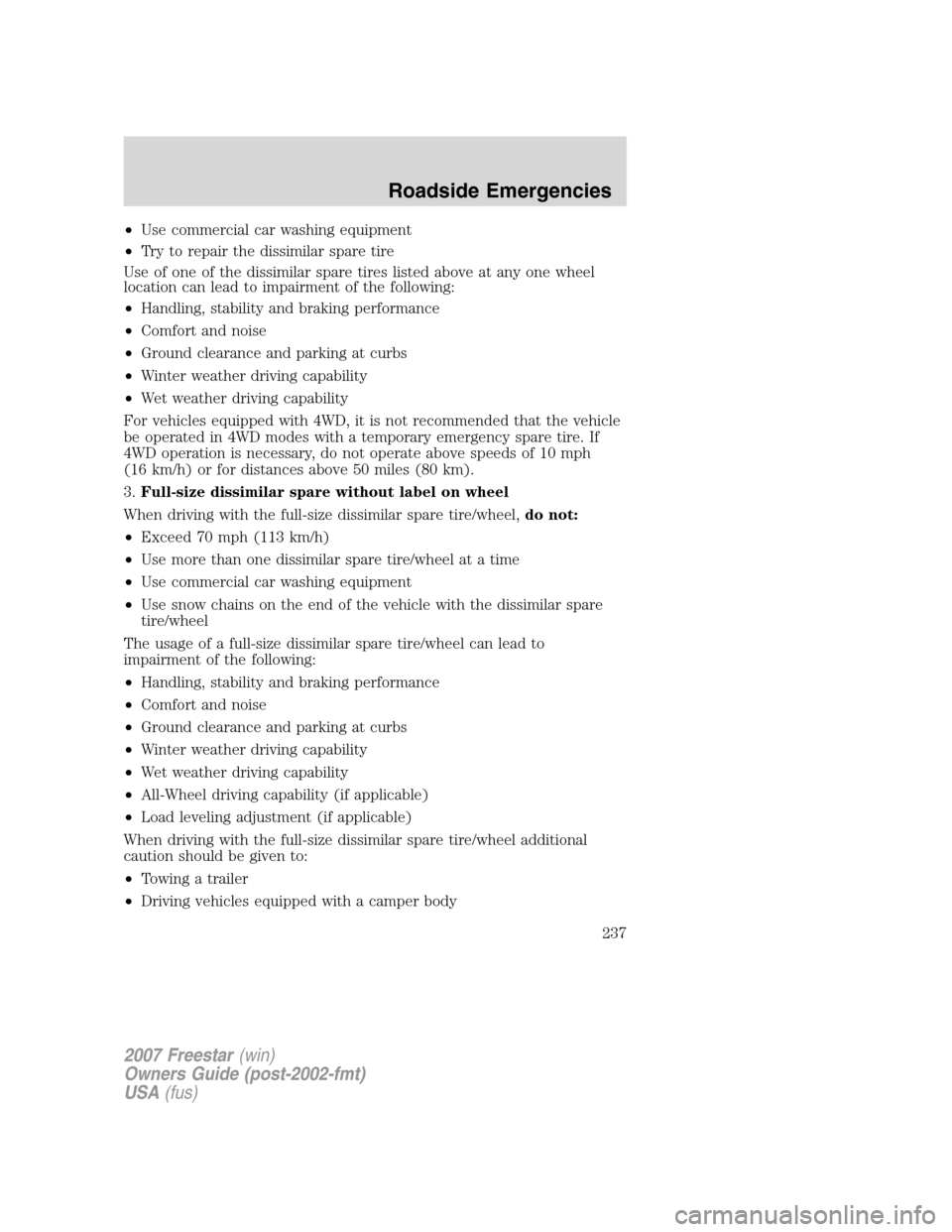

FORD FREESTAR 2007 1.G Owners Manual •Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the followi

Page 238 of 312

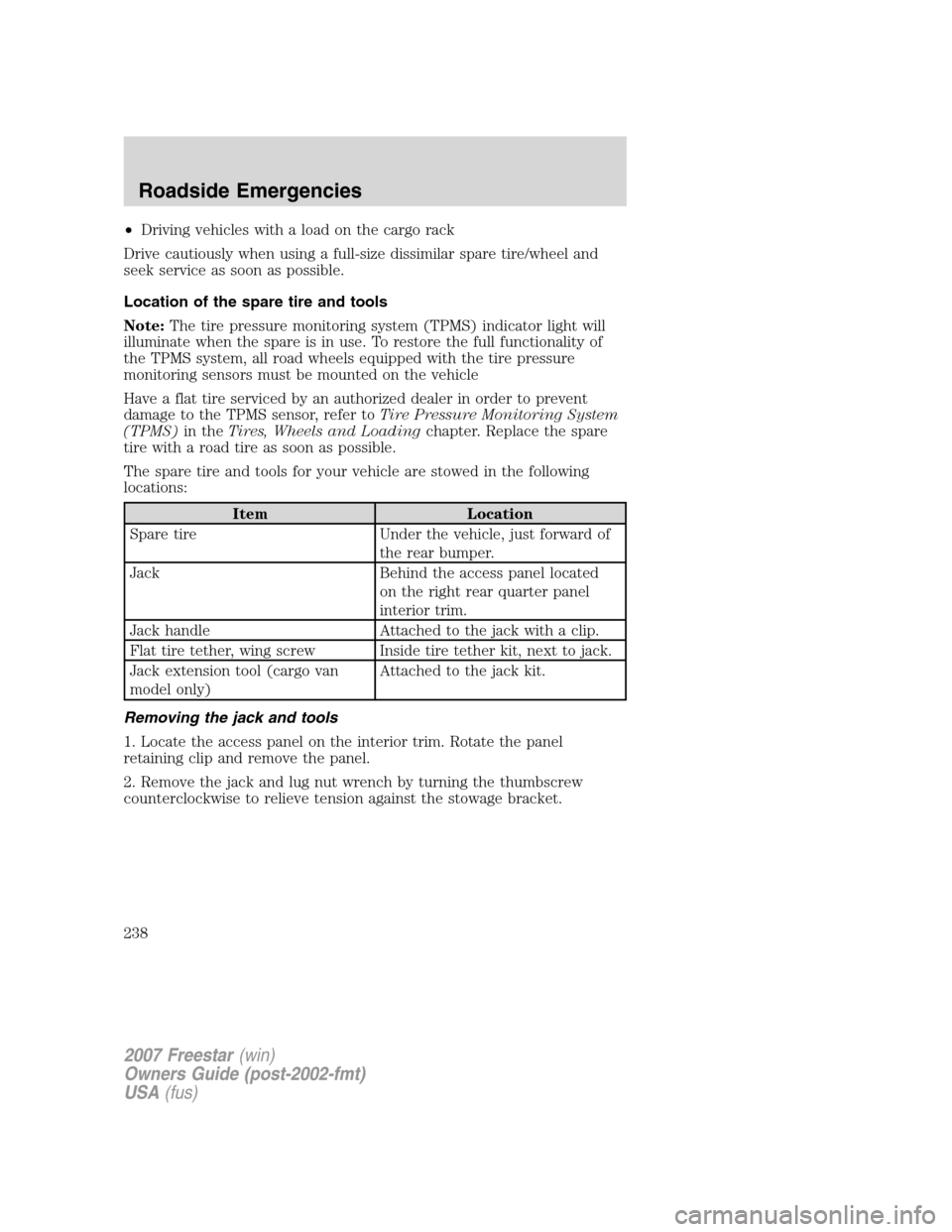

FORD FREESTAR 2007 1.G Owners Manual •Driving vehicles with a load on the cargo rack
Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.
Location of the spare tire and tools
Note:Th

Page 239 of 312

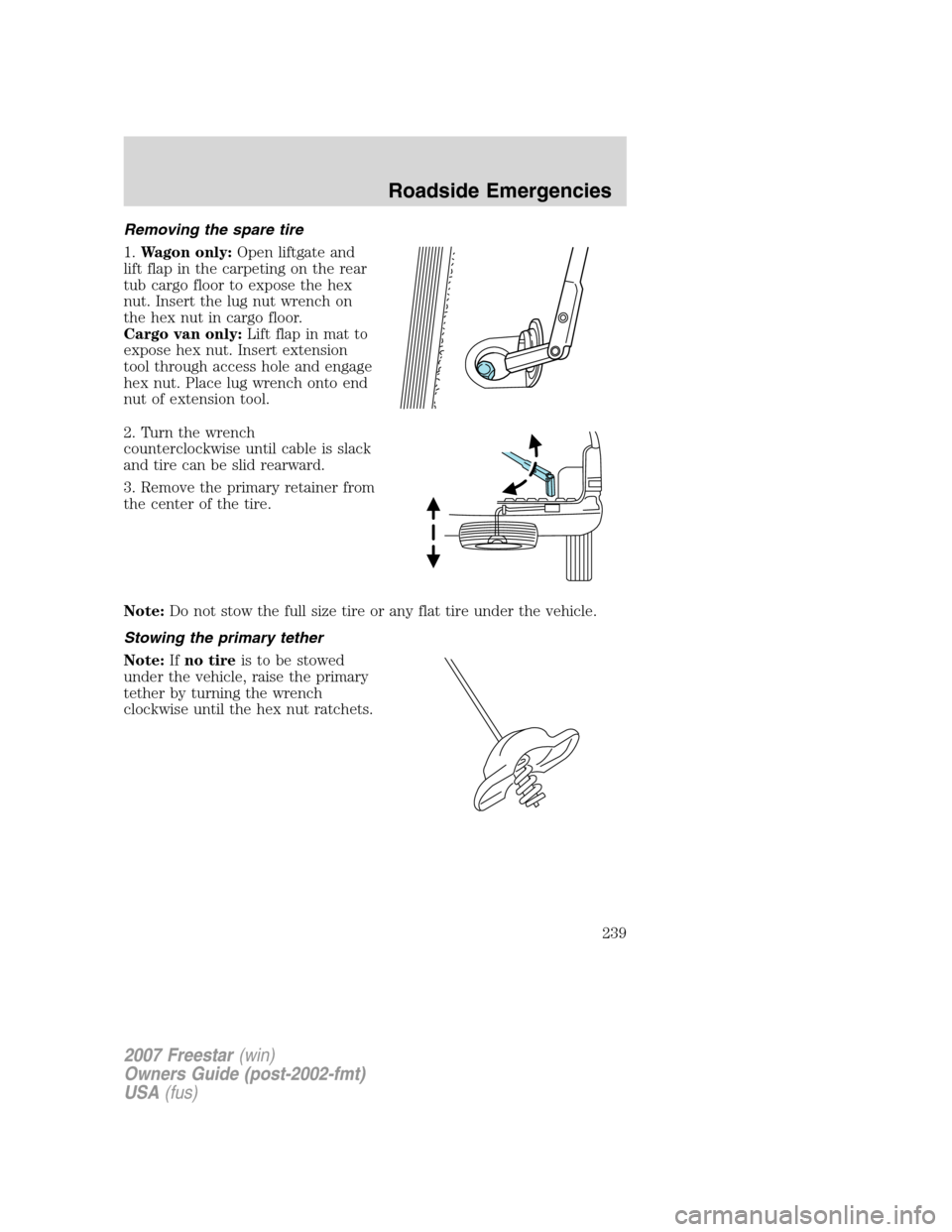

FORD FREESTAR 2007 1.G Owners Manual Removing the spare tire
1.Wagon only:Open liftgate and
lift flap in the carpeting on the rear
tub cargo floor to expose the hex
nut. Insert the lug nut wrench on
the hex nut in cargo floor.
Cargo van

Page 240 of 312

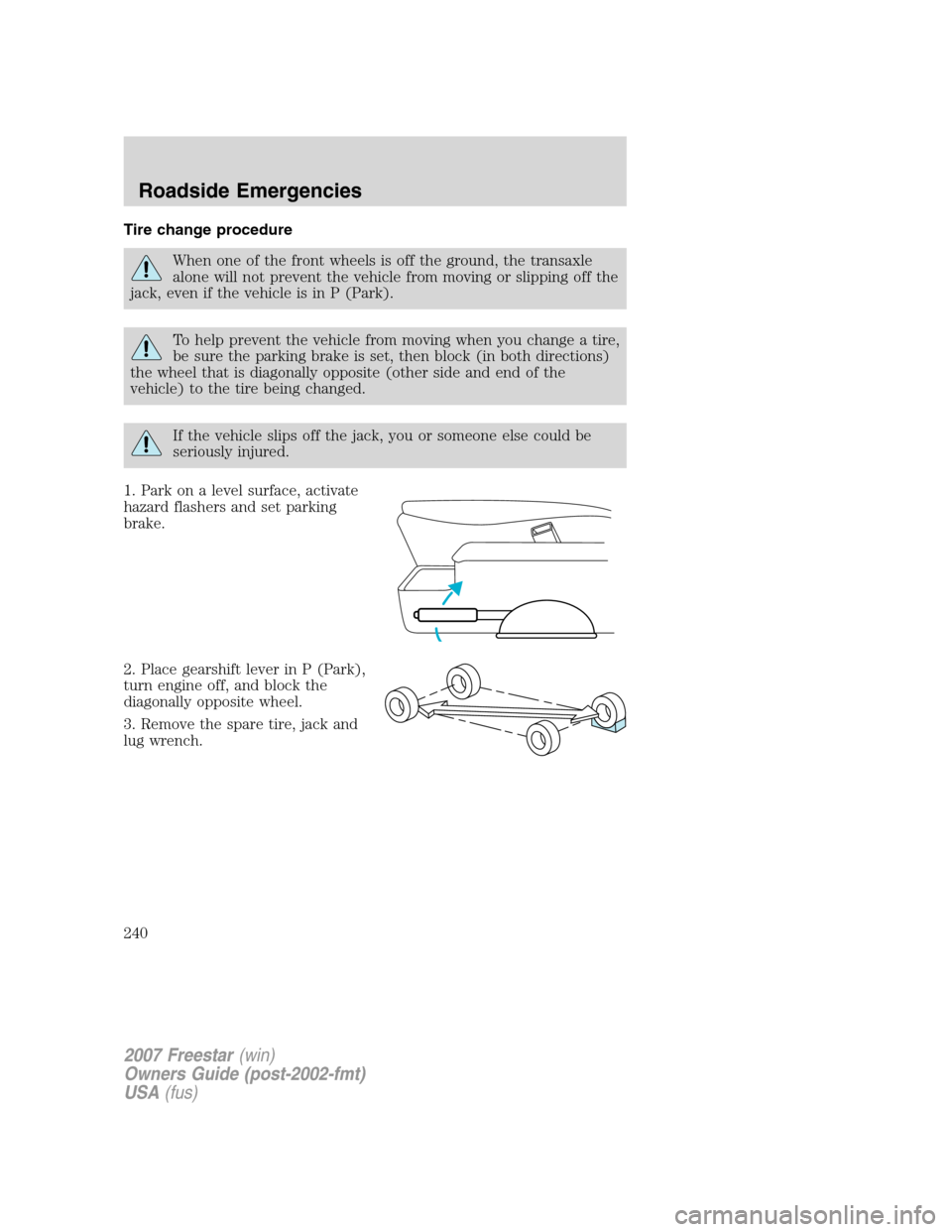

FORD FREESTAR 2007 1.G Owners Manual Tire change procedure
When one of the front wheels is off the ground, the transaxle
alone will not prevent the vehicle from moving or slipping off the
jack, even if the vehicle is in P (Park).
To help
