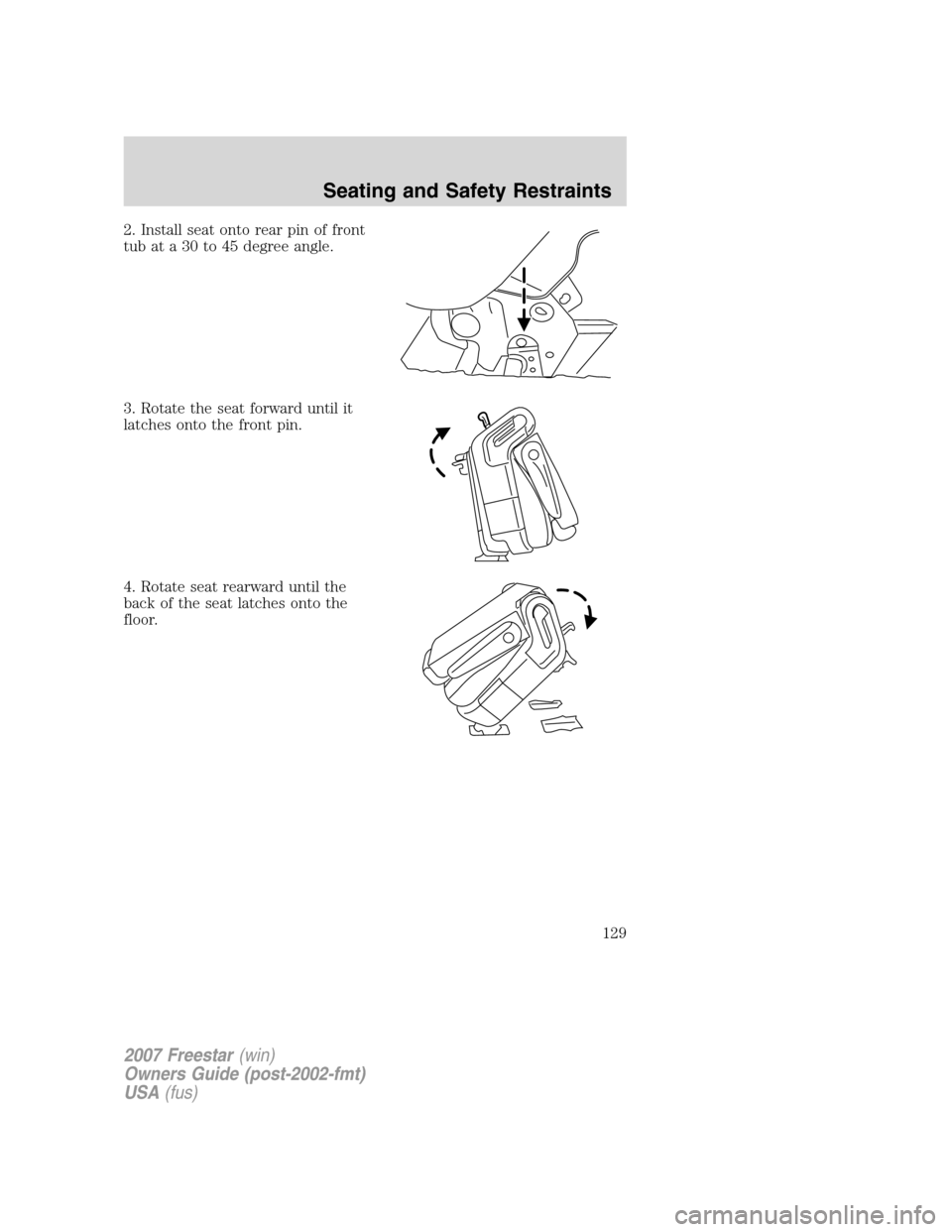

Page 129 of 312
2. Install seat onto rear pin of front
tub at a 30 to 45 degree angle.
3. Rotate the seat forward until it
latches onto the front pin.
4. Rotate seat rearward until the
back of the seat latches onto the
floor.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
129

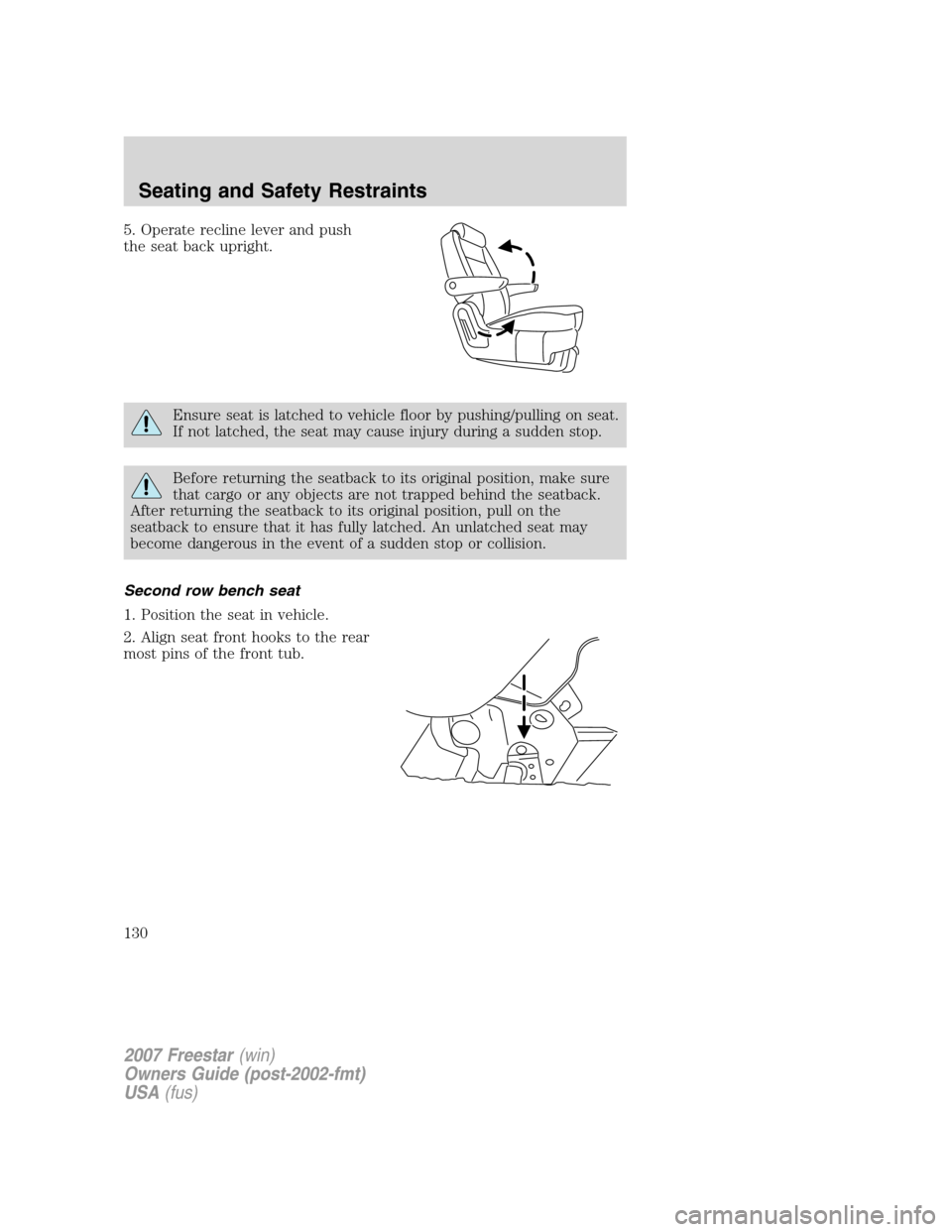

Page 130 of 312
5. Operate recline lever and push
the seat back upright.
Ensure seat is latched to vehicle floor by pushing/pulling on seat.
If not latched, the seat may cause injury during a sudden stop.
Before returning the seatback to its original position, make sure
that cargo or any objects are not trapped behind the seatback.
After returning the seatback to its original position, pull on the
seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.
Second row bench seat
1. Position the seat in vehicle.
2. Align seat front hooks to the rear
most pins of the front tub.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
130

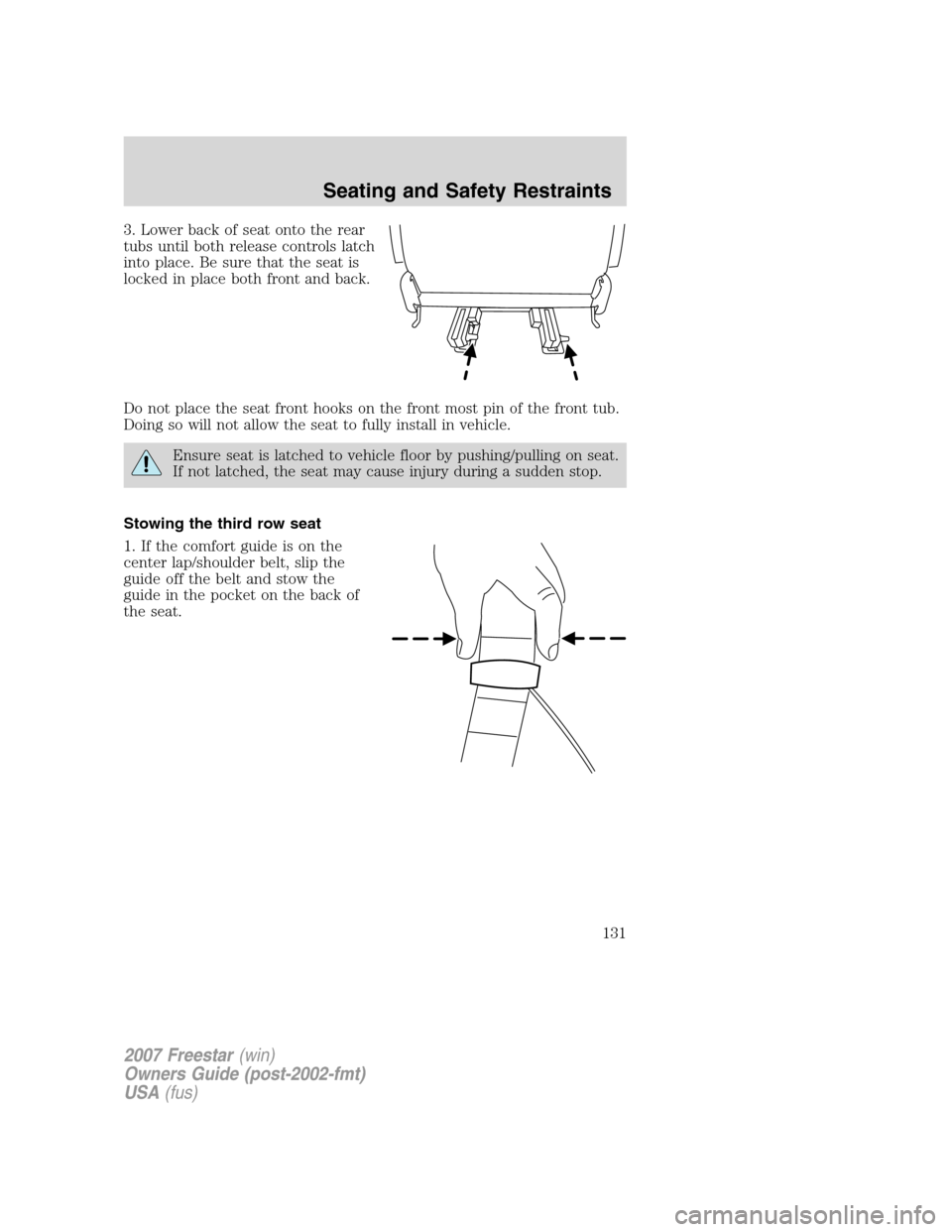

Page 131 of 312
3. Lower back of seat onto the rear
tubs until both release controls latch
into place. Be sure that the seat is
locked in place both front and back.
Do not place the seat front hooks on the front most pin of the front tub.
Doing so will not allow the seat to fully install in vehicle.
Ensure seat is latched to vehicle floor by pushing/pulling on seat.
If not latched, the seat may cause injury during a sudden stop.
Stowing the third row seat
1. If the comfort guide is on the
center lap/shoulder belt, slip the
guide off the belt and stow the
guide in the pocket on the back of
the seat.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
131

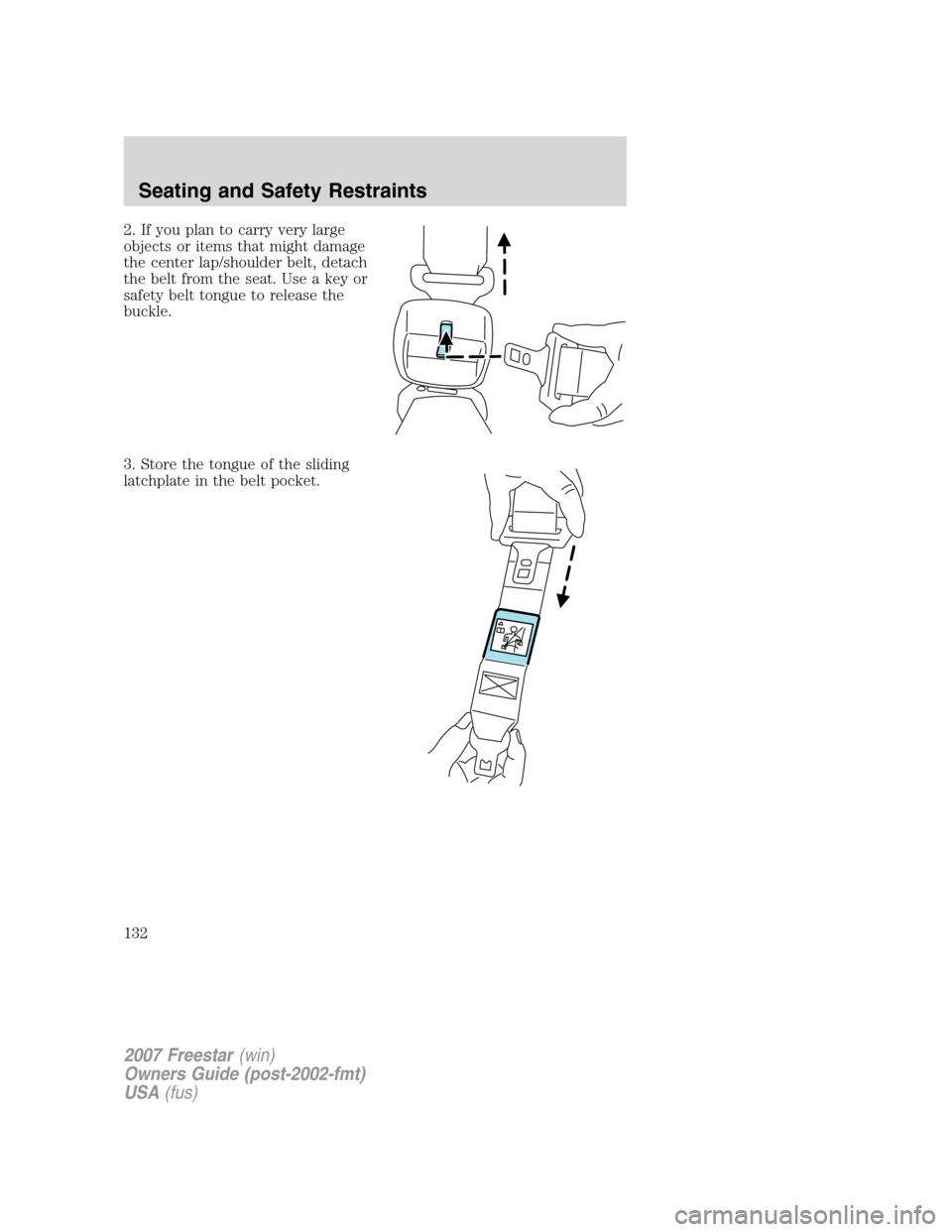

Page 132 of 312
2. If you plan to carry very large
objects or items that might damage
the center lap/shoulder belt, detach
the belt from the seat. Use a key or
safety belt tongue to release the
buckle.
3. Store the tongue of the sliding
latchplate in the belt pocket.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
132
Page 133 of 312
4. Store the belt in the housing
found on the ceiling by inserting the
smaller tongue in the slot provided.
Note:The seat can be stowed with
the safety belt connected if desired.
Store the tongue of the sliding
latchplate in the belt pocket to
avoid potential damage to the seat.
5. Push the head restraint release buttons and move the head restraints
fully down. Remove all objects from the seat and stowage tub.
6. From the rear of the vehicle, fold seat back bypulling and releasing
the number 1 strap.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
133

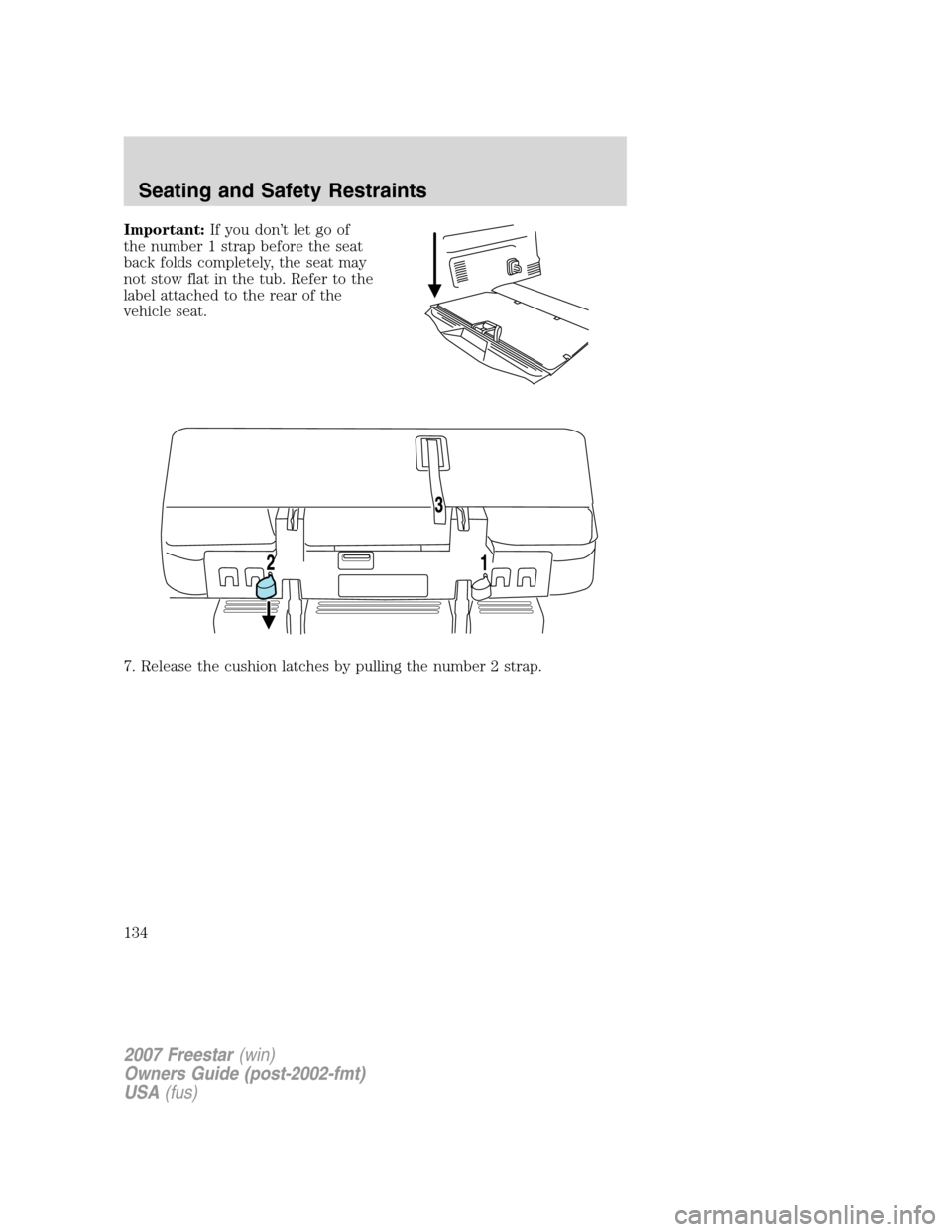

Page 134 of 312
Important:If you don’t let go of
the number 1 strap before the seat
back folds completely, the seat may
not stow flat in the tub. Refer to the
label attached to the rear of the
vehicle seat.
7. Release the cushion latches by pulling the number 2 strap.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
134

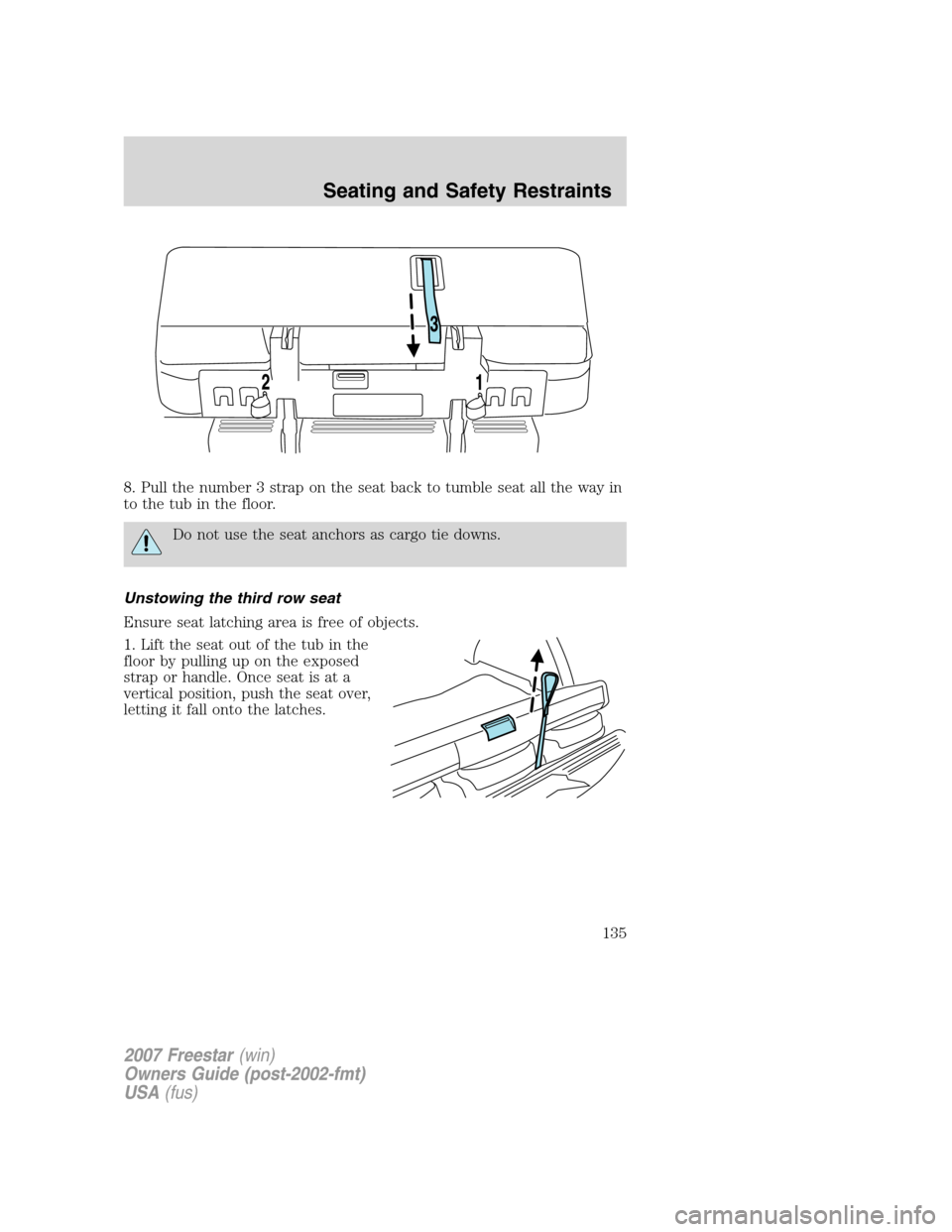

Page 135 of 312
8. Pull the number 3 strap on the seat back to tumble seat all the way in
to the tub in the floor.
Do not use the seat anchors as cargo tie downs.
Unstowing the third row seat
Ensure seat latching area is free of objects.
1. Lift the seat out of the tub in the
floor by pulling up on the exposed
strap or handle. Once seat is at a
vertical position, push the seat over,
letting it fall onto the latches.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
135

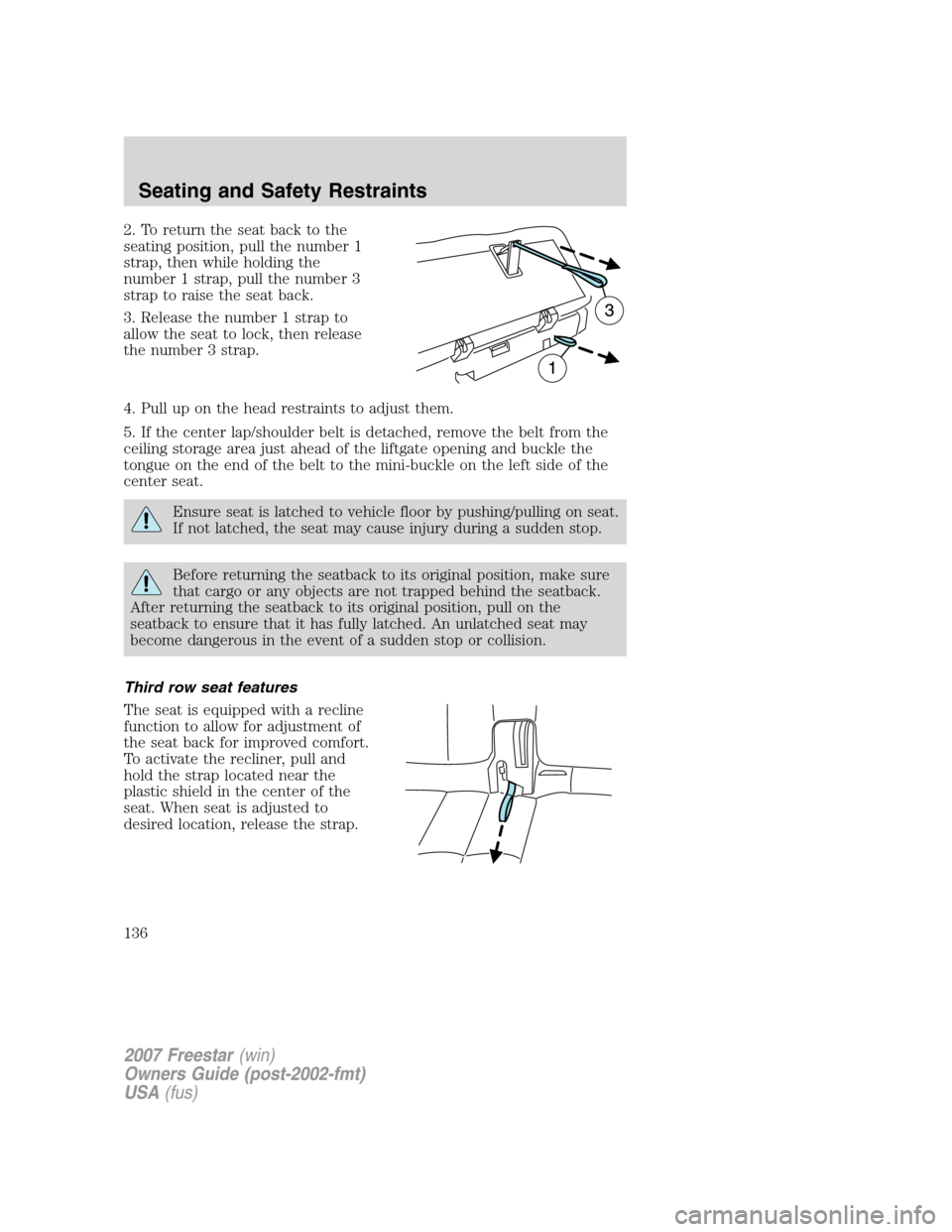

Page 136 of 312

2. To return the seat back to the
seating position, pull the number 1
strap, then while holding the
number 1 strap, pull the number 3
strap to raise the seat back.
3. Release the number 1 strap to
allow the seat to lock, then release
the number 3 strap.
4. Pull up on the head restraints to adjust them.
5. If the center lap/shoulder belt is detached, remove the belt from the
ceiling storage area just ahead of the liftgate opening and buckle the
tongue on the end of the belt to the mini-buckle on the left side of the
center seat.
Ensure seat is latched to vehicle floor by pushing/pulling on seat.
If not latched, the seat may cause injury during a sudden stop.
Before returning the seatback to its original position, make sure
that cargo or any objects are not trapped behind the seatback.
After returning the seatback to its original position, pull on the
seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.
Third row seat features
The seat is equipped with a recline
function to allow for adjustment of
the seat back for improved comfort.
To activate the recliner, pull and
hold the strap located near the
plastic shield in the center of the
seat. When seat is adjusted to
desired location, release the strap.
2007 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
136
