296 Practical hintsDisplay messages
5
N
Engine oil level
Stop, turn engine
off
There is insufficient or no oil in the en-
gine. There is a risk of engine damage.
\1Stop your vehicle as soon as it is safe to
do so.
\1Switch off the engine.
\1Check the engine oil level using the dip-
stick (\2page 189).
\1If the oil level is correct, have the mal-
function rectified immediately at an au-
thorized Sprinter Dealer.
\1If there is insufficient or no oil in the en-
gine, have the vehicle towed to an autho-
rized Sprinter Dealer.
Engine oil level
Check
oil level
The engine oil level has dropped to a crit-
ical level.
\1Check the engine oil level (\2page 188)
and add oil as necessary.
\1Have the engine checked for possible
leaks if you are having to add engine oil
more frequently than normal.
Engine oil
Add
1.0 quart(Canada:
liter
)
The engine oil level is too low.
\1Check the engine oil level (\2page 189)
the next time you refuel and add oil if
necessary.
Display symbol
Display message
Possible cause / result
Possible solution

297 Practical hints
Display messages
5
N
Engine oil level
Reduce
oil level
You have added too much engine oil.
There is a risk of damage to the engine or
the catalytic converter.
\1Check the engine oil level and have any
excess oil siphoned off at the nearest re-
fueling station (\2page 190).
The engine or the catalytic converter could
be damaged.
\1If the oil level is correct, have the mal-
function rectified as soon as possible at
an authorized Sprinter Dealer.
Oil sensor
Visit
workshop
The measuring system is malfunctioning.
\1Have the measuring system checked at
an authorized Sprinter Dealer.
Engine oil level
Not when eng. run-
ning
You are attempting to check the engine
oil level even though the engine is run-
ning.
\1Switch off the engine.
\1Check the engine oil level (\2page 187).
W
Reserve fuel
Drive to a
gas station
The fuel level has fallen into the reserve
range.
\1Refuel at the nearest gas station
(\2page 184).
Tank open
Check

filler cap
The fuel filler cap is not closed.
\1Close the fuel filler cap. A clicking sound
indicates that the fuel filler cap is closed.
\1If the malfunction continues to be indi-
cated, have it rectified immediately at an
authorized Sprinter Dealer.
Display symbol
Display message
Possible cause / result
Possible solution

298 Practical hintsDisplay messages
5
9
Doors open
You are already driving at walking pace,
even though not all the doors are closed.
\1Close the doors.
Hood open
You are already driving at walking pace,
even though the hood is not closed.
\1Close the hood.
/
Water in
Fuel
Visit
workshop
The water that has collected in the water
separator has reached the maximum lev-
el.
\1Drain the water separator (\2page 317).
or
\1Have the water separator drained at an
authorized Sprinter Dealer.
W
Washer fluid
Check level
The washer fluid level has dropped to ap-
proximately
1/3 of the reservoir capacity.
\1Add windshield washer fluid
(\2page 193).
Display symbol
Display message
Possible cause / result
Possible solution

299 Practical hints
Where will I find...?
5
The warning triangles are behind the driv-
er's seat.
1Warning triangles
\1Remove warning triangles1 from the
brackets upward.The fire extinguisher is secured to the front
of the co-driver’s seat base.
1Fire extinguisher
2Tabs
\1Pull tabs2 upward.
\1Take fire extinguisher1 out of the
bracket.The first-aid kit is located in the storage
compartment in the co-driver’s door.
1Locked
2Unlocked
Turn the two quick-release locks clockwise
to unlock2 and fold out the cover.
Warning triangle and warning lamp
N72.10-2148-31
Fire extinguisheriRead the instructions on the fire extin-
guisher carefully and familiarize your-
self with its operation.
First-aid kit

300 Practical hintsWhere will I find...?
5
3First-aid kitThe jack and the vehicle tool kit are locat-
ed under the hatch in the co-driver’s foot-
well.
1Quick-release lock
2Unlocked
\1To unlock: turn quick-release lock 1
counterclockwise or clockwise.
\1Remove the cover.
\1To lock: press quick-release lock 1
down until it engages.
iCheck the expiry dates of the first-aid
kit materials every year, and replace
them if necessary.
Jack and vehicle tool kitWarning
G
To avoid the risk of causing serious or fatal
injury, or damage to the vehicle, please bear
the following points in mind:
\4The jack is designed only to raise the ve-
hicle for a short time, for example while
a wheel is being changed.
It is not designed to enable work to be
carried out underneath the vehicle.
\4The jack must be placed on a firm, flat
surface only.
\4Do not change wheels on uphill or down-
hill gradients under any circumstances.
\4Do not crawl under the vehicle if it is
only supported by the jack.
\4Make sure that no persons are present
in the vehicle when raising the vehicle.
\4Do not start the engine while the vehicle
is raised.
\4Make sure that the distance between
the underside of the tires and the
ground does not exceed 30 mm.
\4If work is to be carried out under the
vehicle, the vehicle must be placed on
stands.

301 Practical hints
Where will I find...?
5
3Tensioning lever
4Jack
5Vehicle tool kit
\1Remove the vehicle tool kit.
\1Pull tensioning lever3 upward and
unhook the retaining strap of jack4.
\1Remove jack4 upward out of the re-
tainer.If you are replacing the tires on the vehicle,
you may use the spare wheel as a road
wheel provided that:
\4the tires are no more than 6 years old
\4the wheel and tire have the same spec-
ified design as the road wheels
The spare wheel is located in a spare wheel
bracket under the rear of the vehicle.
More information about tire inflation pres-
sures can be found in the "Operation" sec-
tion (\2page 213).Panel van / crewbus
1Cover
2Recess
\1Open the rear doors (\2page 61).
\1Insert a screwdriver into recesses2
and pry off covers1.
\1Using the wheel wrench from the vehi-
cle tool kit (\2page 300), now unscrew
the visible bolts approximately
20 turns counterclockwise.
iPlace the jack into the retainer as
shown when storing it back into place.
Make sure that the jack’s retaining
strap is hooked in and tensioned.
Spare wheel!
CAUTION
Check regularly that the spare wheel is
secured correctly.

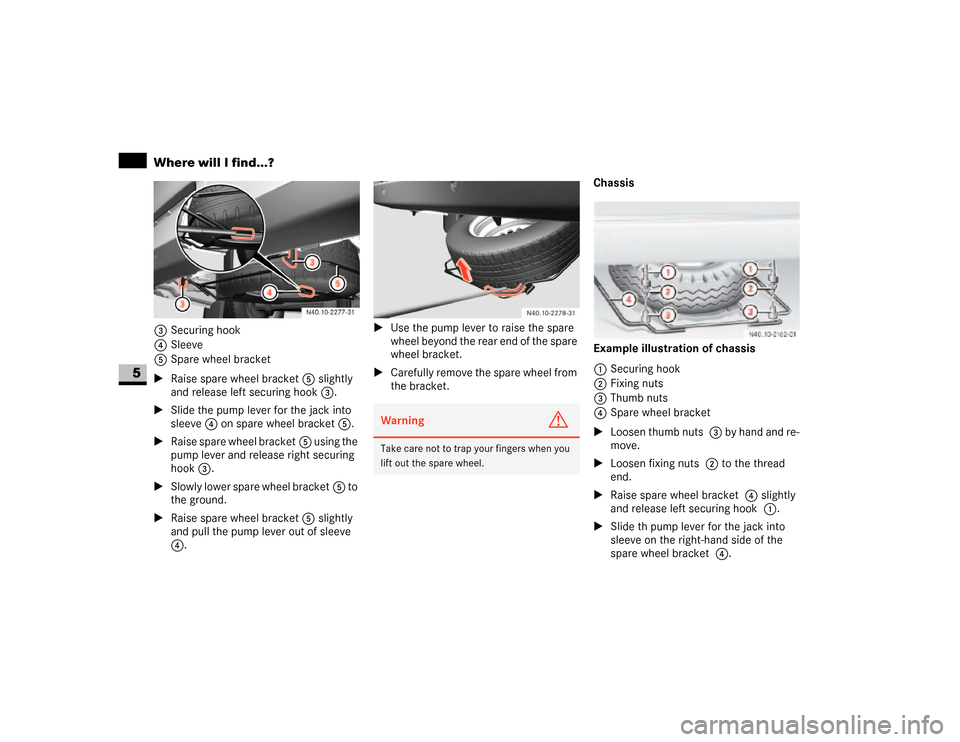

302 Practical hintsWhere will I find...?
5
3Securing hook
4Sleeve
5Spare wheel bracket
\1Raise spare wheel bracket5 slightly
and release left securing hook3.
\1Slide the pump lever for the jack into
sleeve4 on spare wheel bracket5.
\1Raise spare wheel bracket5 using the
pump lever and release right securing
hook3.
\1Slowly lower spare wheel bracket5 to
the ground.
\1Raise spare wheel bracket5 slightly
and pull the pump lever out of sleeve
4.\1Use the pump lever to raise the spare
wheel beyond the rear end of the spare
wheel bracket.
\1Carefully remove the spare wheel from
the bracket.Chassis
Example illustration of chassis
1Securing hook
2Fixing nuts
3Thumb nuts
4Spare wheel bracket
\1Loosen thumb nuts 3 by hand and re-
move.
\1Loosen fixing nuts 2 to the thread
end.
\1Raise spare wheel bracket 4 slightly
and release left securing hook 1.
\1Slide th pump lever for the jack into
sleeve on the right-hand side of the
spare wheel bracket 4.
Warning
G
Take care not to trap your fingers when you
lift out the spare wheel.

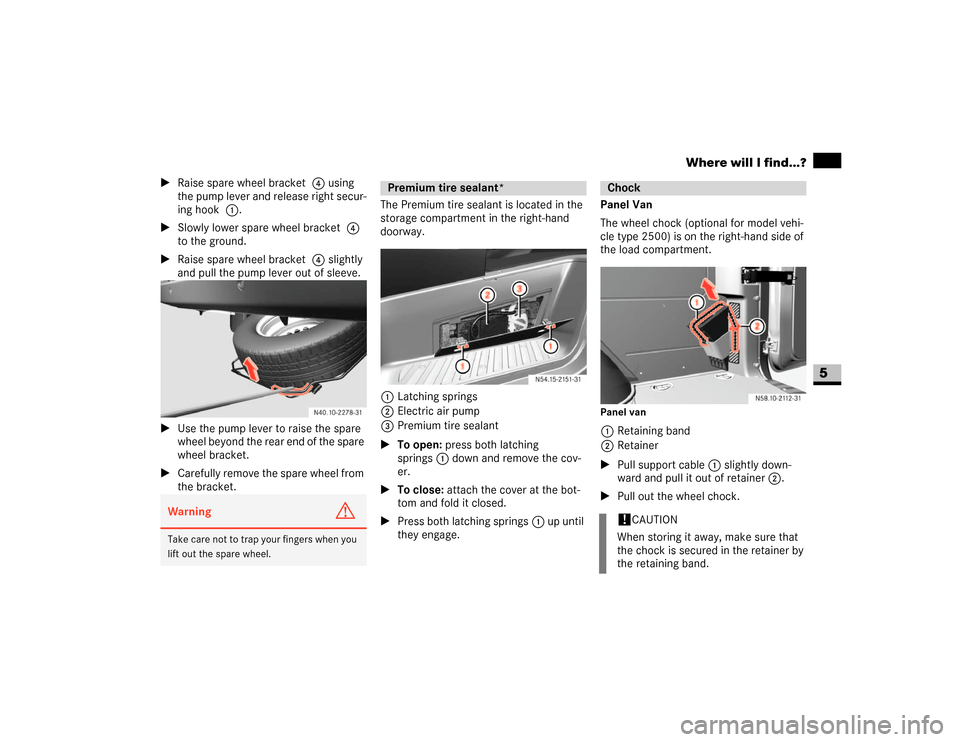

303 Practical hints
Where will I find...?
5
\1Raise spare wheel bracket 4 using
the pump lever and release right secur-
ing hook 1.
\1Slowly lower spare wheel bracket 4
to the ground.
\1Raise spare wheel bracket 4 slightly
and pull the pump lever out of sleeve.
\1Use the pump lever to raise the spare
wheel beyond the rear end of the spare
wheel bracket.
\1Carefully remove the spare wheel from
the bracket.The Premium tire sealant is located in the
storage compartment in the right-hand
doorway.
1Latching springs
2Electric air pump
3Premium tire sealant
\1To open: press both latching
springs1 down and remove the cov-
er.
\1To close: attach the cover at the bot-
tom and fold it closed.
\1Press both latching springs1 up until
they engage.Panel Van
The wheel chock (optional for model vehi-
cle type 2500) is on the right-hand side of
the load compartment.
Panel van1Retaining band
2Retainer
\1Pull support cable 1 slightly down-
ward and pull it out of retainer 2.
\1Pull out the wheel chock.
Warning
G
Take care not to trap your fingers when you
lift out the spare wheel.
Premium tire sealant*
Chock!
CAUTION
When storing it away, make sure that
the chock is secured in the retainer by
the retaining band.
