2007 DODGE SPRINTER reset sun roof

146 Controls in detailOpen air
3
Resetting the sliding sunroof
The sliding sunroof must be reset after:
\4the sunroof has been closed manually
using the emergency operation key
(\2page 304)
\4the sunroof has opened with a jerk
\4a malfunction
\1Switch on the ignition (\2page 67).
\1Press the sliding sunroof switch in the
direction of arrow2 (\2page 145).
\1Wait until the sliding sunroof is closed
and then keep the sliding sunroof
switch pressed for approximately
3seconds.
The sliding sunroof is reset.The roof ventilator can be used to ventilate
or remove air from the load compartment.
The switch is between the light switch and
the steering wheel.
1To ventilate the load compartment
(air out)
2To ventilate the load compartment
(air in)\1Switch on the ignition (\2page 67).
\1Air out: press upper part 1 of the
switch.
The roof ventilator removes used air
from the load compartment.
\1Air in: press lower part 2 of the
switch.
The roof ventilator feeds fresh air into
the load compartment.
\1To switch off: set the switch to the
center position.
Roof ventilator in the load compart-
ment*
N54.25-2929-31

305 Practical hints
Where will I find...?
5

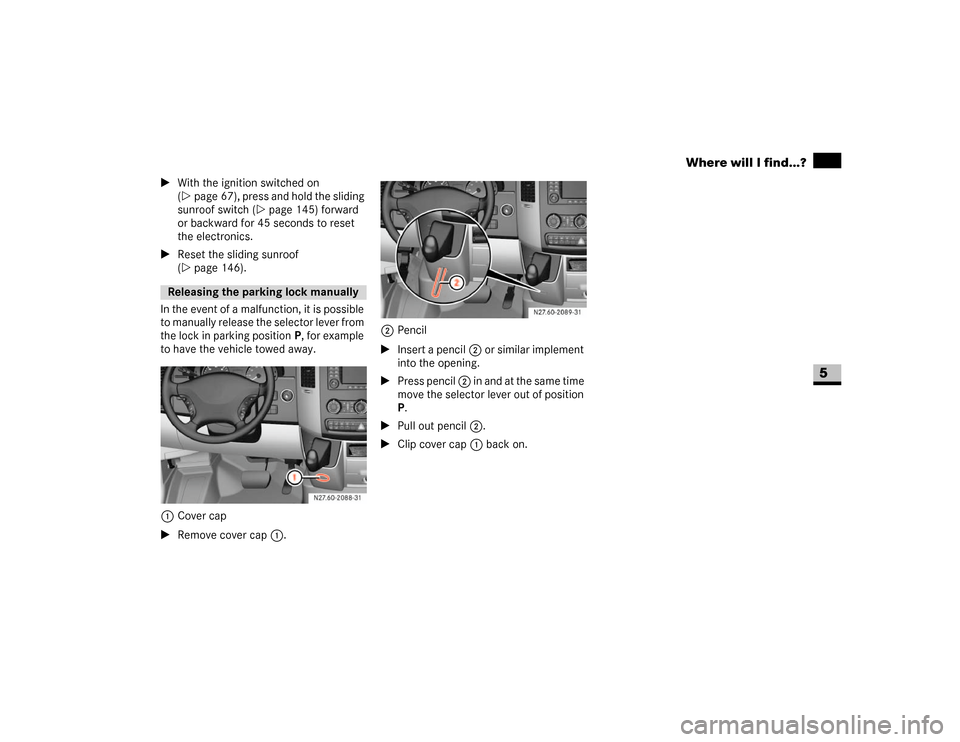

\1With the ignition switched on
(\2page 67), press and hold the sliding
sunroof switch (\2page 145) forward
or backward for 45 seconds to reset
the electronics.
\1Reset the sliding sunroof
(\2page 146).
In the event of a malfunction, it is possible
to manually release the selector lever from
the lock in parking positionP, for example
to have the vehicle towed away.
1Cover cap
\1Remove cover cap1.2Pencil
\1Insert a pencil2 or similar implement
into the opening.
\1Press pencil 2 in and at the same time
move the selector lever out of position
P.
\1Pull out pencil 2.
\1Clip cover cap1 back on.Releasing the parking lock manually
N27.60-2088-31
N27.60-2089-31

388 IndexSide lamps
. . . . . . . . . . . . . . . . . . . . 307
Side marker lamps
. . . . . . . . . . . . . 307
changing bulbs
. . . . . . . . . . . . . . . . 312
Side wall
. . . . . . . . . . . . . . . . . . . . . . 230
Side windows
cleaning . . . . . . . . . . . . . . . . . . . . . 244
operating . . . . . . . . . . . . . . . . . . . . 144
Sliding door
closing aid . . . . . . . . . . . . . . . . . . . . 57
electric
. . . . . . . . . . . . . . . . . . . . . . . 57
locking/unlocking
from the inside
. . . . . . . . . . . . . . . 56
opening/closing . . . . . . . . . . . . . . . . 56
Sliding sunroof
. . . . . . . . . . . . . . . . 145
opening/closing manually
. . . . . . . 304
resetting
. . . . . . . . . . . . . . . . . . . . . 146
Sliding sunroof emergency
operation . . . . . . . . . . . . . . . . . . . . . 304
Sliding/tilting sunroof
see Sliding sunroof
Snow chains . . . . . . . . . . . . . . . . . . 236
Spare wheel . . . . . . . . . . . . . . . . . . 301
Speed
adjusting
see Cruise control
Speedometer . . . . . . . . . . . . . . . . . . . 85
setting the unit (vehicles with steering
wheel buttons) . . . . . . . . . . . . . . . . . 99Spinning
see Tires, Direction of rotation
SRS (Supplemental
Restraint System)
. . . . . . . . . . . . . . . 28
display message . . . . . . . . . . . . . . . 288
SRS (Supplemental
Restraint System)
warning lamp
. . . . . . . . . . . . . . . . . 272
Standard seat . . . . . . . . . . . . . . . . . . 69
Standing lamps
changing bulbs . . . . . . . . . . . . . . . . 308
rear
. . . . . . . . . . . . . . . . . . . . . . . . 309
Steering . . . . . . . . . . . . . . . . . . . . . . 116
unlocking . . . . . . . . . . . . . . . . . . . . . 67
Steering column adjustment
. . . . . . 76
Steering lock
see Ignition lock
Steering wheel
adjusting
. . . . . . . . . . . . . . . . . . . . . 76
buttons (vehicle with steering wheel
buttons) . . . . . . . . . . . . . . . . . . . 17
, 89
releasing the lock
. . . . . . . . . . . . . . . 67
Steps
. . . . . . . . . . . . . . . . . . . . . . . . 243
Stickers . . . . . . . . . . . . . . . . . . . . . . . . 8
Storage compartment under the
co-driver's seat
. . . . . . . . . . . . . . . . 164
Storage compartments
. . . . . . . . . .13
,
18
, 164
–166co-driver door
. . . . . . . . . . . . . . . . . 299
cup holder
. . . . . . . . . . . . . . . . . . . 167
driver's door . . . . . . . . . . . . . . . . . . 299
glove box
. . . . . . . . . . . . . . . . . . . . 165
holder for bottled drinks
. . . . . . . . 167
storage compartment above the roof
trim
. . . . . . . . . . . . . . . . . . . . . . . . 164
storage compartment under the co-
driver's seat
. . . . . . . . . . . . . . . . . . 164
storage compartments above the
windshield
. . . . . . . . . . . . . . . . . . . 164
storage compartments in the doors
164
Storing tires
. . . . . . . . . . . . . . . . . . . 204
Submenu
clock/date . . . . . . . . . . . . . . . . . . . 101
convenience . . . . . . . . . . . . . . . . . . 105
instrument cluster
. . . . . . . . . . . . . . 99
lighting
. . . . . . . . . . . . . . . . . . . . . . 102
overview of settings
. . . . . . . . . . . . . 97
selecting
. . . . . . . . . . . . . . . . . . . . . . 97
vehicle
. . . . . . . . . . . . . . . . . . . . . . 104
Surround lighting
see Locator lighting
Suspension seat
. . . . . . . . . . . . . . . . 69
Switch unit
. . . . . . . . . . . . . . . . . . . . . 20
Swivel seat . . . . . . . . . . . . . . . . . . . . . 70
