2007 DODGE CHARGER Owners Manual

FLUIDS AND CAPACITIES
U.S. Metric
Fuel (approximate)
2.7 Liter Engine 18 gallons 68 liters
3.5 Liter Engine 18 gallons 68 liters
5.7 Liter Engine 19 gallons 72 liters
Engine Oil-With Filter
2.7 Liter Engine (SAE 5W-20, API Certified) 6.0 qts. 5.7 liters
3.5 Liter Engine (SAE 10W-30, API Certified) 6.0 qts. 5.7 liters
5.7 Liter Engine (SAE 5W-20, API Certified) 7.0 qts. 6.6 liters
Cooling System *
2.7 Liter Engine (MoparAntifreeze/Coolant 5 Year/100,000 Mile For-
mula) or equivalent.9.9 qts 9.4 liters
3.5 Liter Engine without All Wheel Drive (MoparAntifreeze/Coolant
5 Year/100,000 Mile Formula) or equivalent.11.1 qts 10.5 liters
3.5 Liter Engine with All Wheel Drive (MoparAntifreeze/Coolant 5
Year/100,000 Mile Formula) or equivalent.11.4 qts 10.8 liters
5.7 Liter Engine without Severe Duty II Cooling System (Mopar
Antifreeze/Coolant 5 Year/100,000 Mile Formula) or equivalent.14.7 qts 13.9 liters
5.7 Liter Engine with Severe Duty II Cooling System (Mopar
Antifreeze/Coolant 5 Year/100,000 Mile Formula) or equivalent.15.1 qts 14.3 liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE 337
7

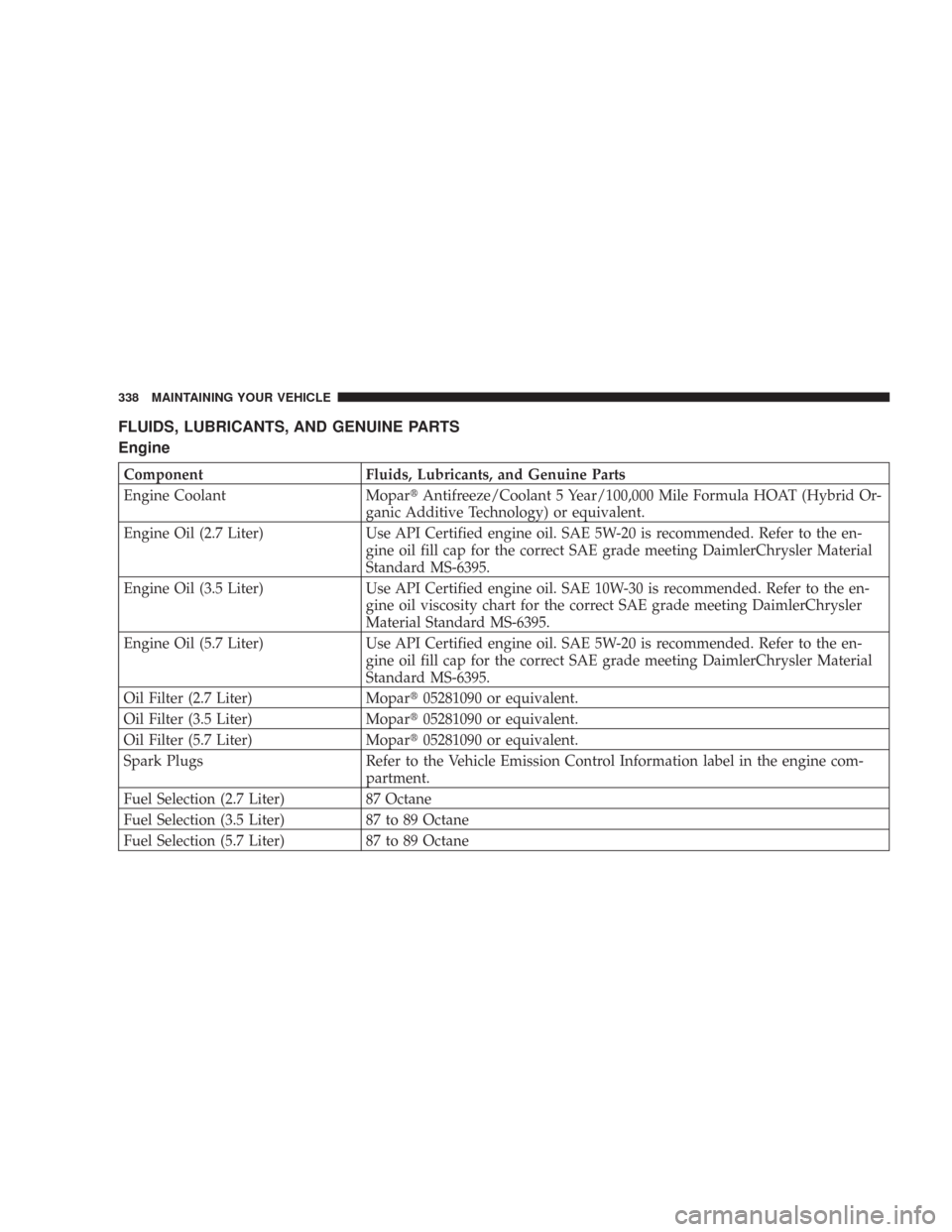

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluids, Lubricants, and Genuine Parts
Engine Coolant MoparAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Or-
ganic Additive Technology) or equivalent.
Engine Oil (2.7 Liter) Use API Certified engine oil. SAE 5W-20 is recommended. Refer to the en-
gine oil fill cap for the correct SAE grade meeting DaimlerChrysler Material
Standard MS-6395.
Engine Oil (3.5 Liter) Use API Certified engine oil. SAE 10W-30 is recommended. Refer to the en-
gine oil viscosity chart for the correct SAE grade meeting DaimlerChrysler
Material Standard MS-6395.
Engine Oil (5.7 Liter) Use API Certified engine oil. SAE 5W-20 is recommended. Refer to the en-
gine oil fill cap for the correct SAE grade meeting DaimlerChrysler Material
Standard MS-6395.
Oil Filter (2.7 Liter) Mopar05281090 or equivalent.
Oil Filter (3.5 Liter) Mopar05281090 or equivalent.
Oil Filter (5.7 Liter) Mopar05281090 or equivalent.
Spark Plugs Refer to the Vehicle Emission Control Information label in the engine com-
partment.
Fuel Selection (2.7 Liter) 87 Octane
Fuel Selection (3.5 Liter) 87 to 89 Octane
Fuel Selection (5.7 Liter) 87 to 89 Octane
338 MAINTAINING YOUR VEHICLE

Chassis
Component Fluids, Lubricants and Genuine Parts
Automatic Transmission MoparATF+4 Automatic Transmission Fluid.
Brake Master Cylinder MoparDOT 3, SAE J1703 should be used. If DOT 3, SAE J1703 brake
fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids.
Front Axle API Certified GL-5 SAE 75W90 Synthetic Gear Lubricant or equivalent.
Power Steering Reservoir MoparPower Steering Fluid + 4, MoparATF+4 Automatic Transmission
Fluid.
Rear Axle API Certified GL-5 SAE 75W140 Synthetic Gear Lubricant or equivalent.
Transfer Case MoparTransfer Case Lubricant LX, P/N 05170055AA, or equivalent.
MAINTAINING YOUR VEHICLE 339
7

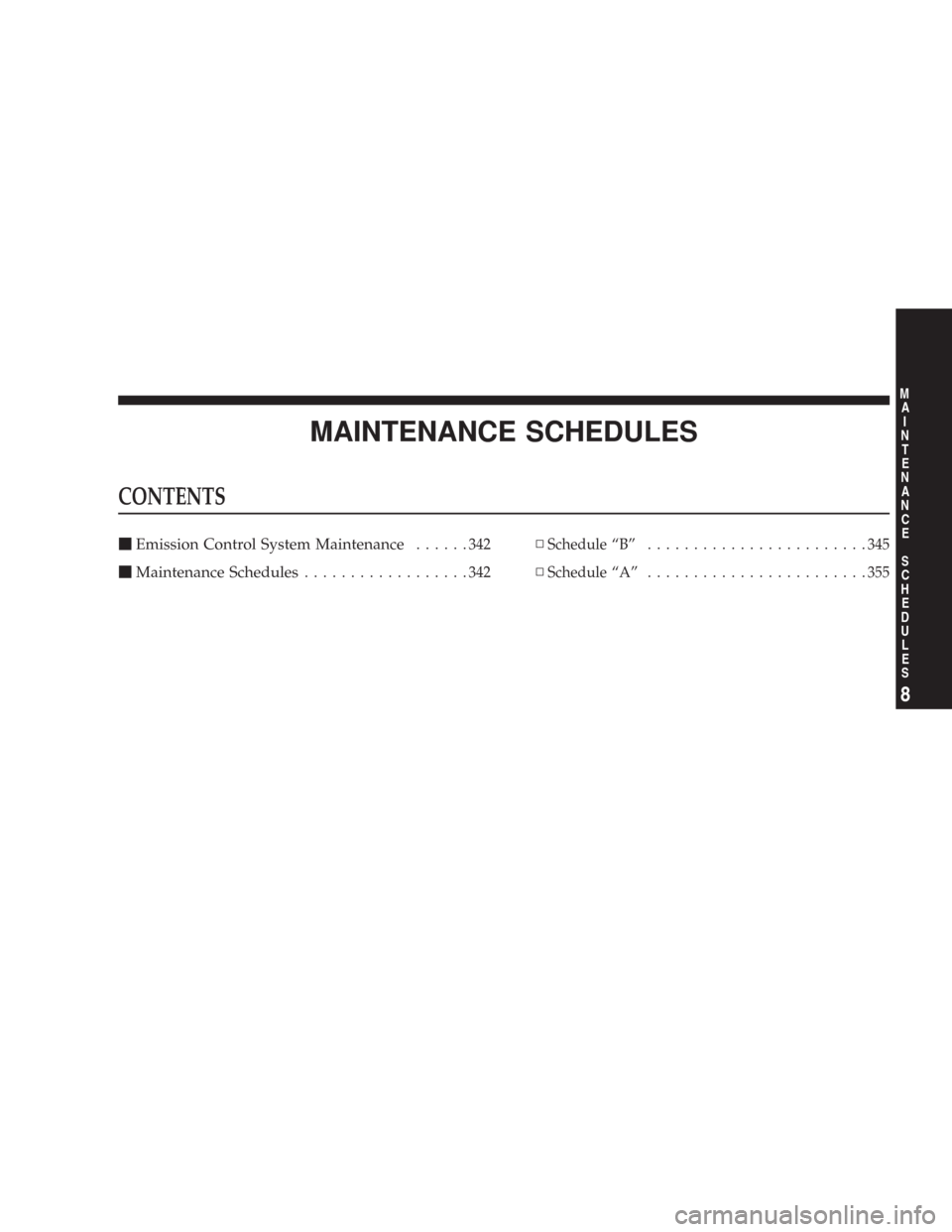

MAINTENANCE SCHEDULES
CONTENTS
Emission Control System Maintenance......342
Maintenance Schedules..................342▫Schedule “B”........................345
▫Schedule “A”........................355
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

EMISSION CONTROL SYSTEM MAINTENANCE
The “Scheduled” maintenance services, listed inbold
typemust be done at the times or mileages specified to
assure the continued proper functioning of the emission
control system. These, and all other maintenance services
included in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions such as dusty areas and very short trip
driving.
Inspection and service also should be done any time a
malfunction is suspected.
NOTE:Maintenance, replacement, or repair of the
emission control devices and systems on your vehicle
may be performed by any automotive repair establish-
ment or individual using any automotive part, which has
been certified pursuant to U.S. EPA or, in the State of
California, California Air Resources Board regulations.
MAINTENANCE SCHEDULES
NOTE:
•
For vehicles equipped with a 2.7L engine, follow
Schedule“A”or“B”from 0 to 150,000 miles (0 to 250
000 km).
•For vehicles equipped with a 3.5L or 5.7L engine,
follow Schedule“A”
or“B”from 0 to 120,000 miles
(0 to 200 000 km).
There are two maintenance schedules that show the
requiredservice for your vehicle.
First is Schedule“B.”It is for vehicles that are operated
under the conditions that are listed below and at the
beginning of the schedule.
Change the automatic transmission fluid and filter every
60,000 miles (100 000 km) if the vehicle is usually
operated under one or more of the conditions marked
with an
.
•Day or night temperatures are below 32°F (0°C).
•Stop and go driving.
342 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

•Extensive engine idling.
•Driving in dusty conditions.
•Short trips of less than 10 miles (16 km).
•More than 50% of your driving is at sustained high
speeds during hot weather, above 90°F (32°C).
•Trailer towing.

•Taxi, police, or delivery service (commercial ser-
vice).

•Off-road or desert operation.
NOTE:IfANYof these apply to you, then change your
engine oil every 3,000 miles (5 000 km) or 3 months,
whichever comes first, and follow the maintenance rec-
ommendations in Schedule “B” in this section.
NOTE:IfANYof these apply to you, then flush and
replace the engine coolant every 102,000 miles (170 000
km) or 60 months, whichever comes first, and follow the
maintenance recommendations in Schedule “B” in this
section.
NOTE:Most vehicles are operated under the conditions
listed for ScheduleB.
Second is Schedule“A.”It is for vehicles that are not
operated under any of the conditions listed under Sched-
uleB.
Use the schedule that best describes your driving condi-
tions. Where time and mileage are listed, follow the
interval that occurs first.
NOTE:Under no circumstances should oil change
intervals exceed 6,000 miles (10 000 km) or 6 months
whichever comes first.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
MAINTENANCE SCHEDULES 343
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

At Each Stop for Fuel
•
Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
Once a Month
•
Check tire pressure and look for unusual wear or
damage.
•Inspect the battery, and clean, and tighten the termi-
nals as required.
•Check the fluid levels of coolant reservoir and brake
master cylinder, and add as needed.
•Check all lights and all other electrical items for correct
operation.
•Check rubber seals on each side of the radiator for
proper fit.
At Each Oil Change
•
Change the engine oil filter.
•Inspect the exhaust system.
•Inspect the brake hoses.
•Inspect the CV joints and front and rear suspension
components.
•Check the coolant level, hoses, and clamps.
