2007 DODGE CHARGER Owners Manual

and MoparTotal Clean or equivalent. Care should be
taken to avoid soaking your leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean
your leather upholstery. Application of a leather condi-
tioner is not required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MoparGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments, which may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
MAINTAINING YOUR VEHICLE 321
7

1. Clean with a wet soft rag or micro-fiber towel. A mild
soap solution may be used, but do not use high alcohol
content or abrasive cleaners. If soap is used, wipe clean
with a clean damp rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use MoparTotal Clean, a mild
soap solution, or lukewarm water. Do not remove the
belts from the vehicle to wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Cleaning The Center Console Cup Holders
Perform the following steps to clean the center console
cup holders:
•Grab the center of the rubber portion of the cup holder
firmly and lift upward to remove.
•Soak the rubber cup holder liner in a mixture of
medium hot tap water and one teaspoon of mild liquid
dish soap. Let soak for approximately one hour.
•After one hour pull the liner from the water and dip it
back into the water about six times. This will loosen
any remaining debris.
•Rinse the liner thoroughly under warm running water.
Shake the excess water from the liner and dry the
outer surfaces with a clean soft cloth.
•Carefully tuck the front, followed by the rear, then side
edges of the cup holder into the center console.
322 MAINTAINING YOUR VEHICLE

FUSES (POWER DISTRIBUTION CENTERS)
Fuses (Front Power Distribution Center)
A power distribution center is located in the engine
compartment. This center contains fuses and relays.
Cavity Car-
tridge
FuseMini
FuseDescription
1———
2———
3 — 15 Amp
BlueAdjustable Pedals - if
equipped
4 — 20 Amp
YellowAC Clutch/Horn
5———
6 — 15 Amp
BlueFront Control Module
(FCM)
7 — 20 Amp
YellowFog Lights - if equipped
8 — 15 Amp
BlueLights – License, Park,
Side Marker, Stop, Turn
9 — 15 Amp
BlueFront Control Module
(FCM)
10 — 5 Amp
OrangePowertrain Control
Module (PCM)/Starter
Front Power Distribution Center
MAINTAINING YOUR VEHICLE 323
7

Cavity Car-
tridge
FuseMini
FuseDescription
11 — 25 Amp
ClearAuto Shutdown/
Powertrain Control
Module (PCM)
12———
13———
14 — 25 Amp
ClearPowertrain Control
Module (PCM)
15 — 20 Amp
YellowInjectors, Ignition Coils
16———
17 30 Amp
Pink— Anti-lock Brakes System
(ABS) Valves - if
equipped/Powertrain
Control Module (PCM)
18 30 Amp
Pink— Windshield Wiper/
Washer
19 50 Amp
Red— Radiator FanCavity Car-
tridge
FuseMini
FuseDescription
20 20 Amp
Blue— Starter
21 50 Amp
Red— Anti-lock Brakes System
(ABS) Pump Motor - if
equipped
22 40 Amp
Green— AC Clutch/Radiator Fan
High — Low
23———
24 60 Amp
Yellow— Radiator Fan - AWD
25 30 Amp
Pink— Front Control Module
(FCM)
26 20 Amp
Blue— Transmission - RLE
27 30 Amp
Pink— Front Control Module
(FCM)
324 MAINTAINING YOUR VEHICLE

CAUTION!
•When installing the Power Distribution Center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Power Distribu-
tion Center, and possibly result in an electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage
rating. The use of a fuse with a rating other than
indicated may result in a dangerous electrical
system overload. If a properly rated fuse contin-
ues to blow, it indicates a problem in the circuit
that must be corrected.

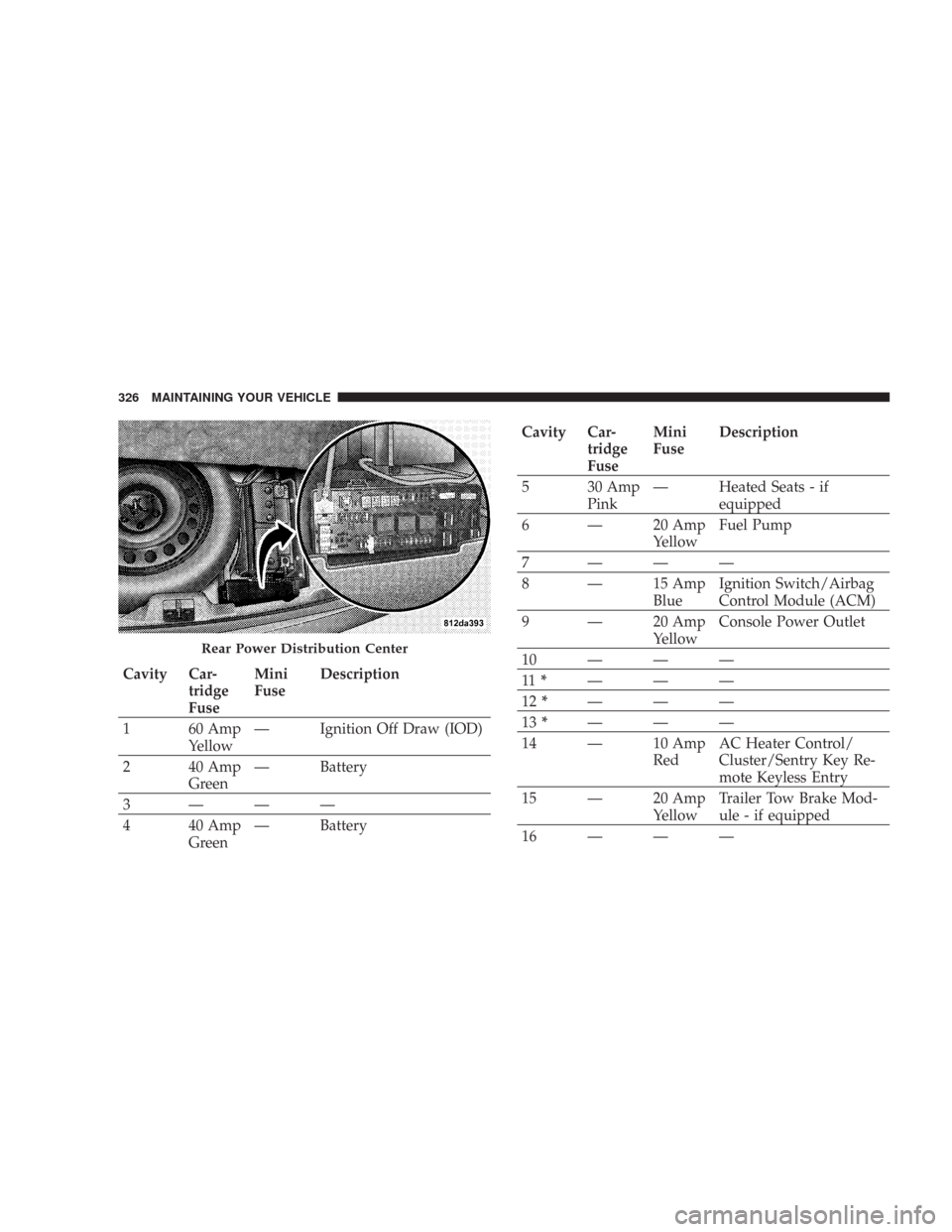

Fuses (Rear Power Distribution Center)
There is also a power distribution center located in the
rear compartment under the spare tire access panel. This
center contains fuses and relays.
Opening The Access Panel
MAINTAINING YOUR VEHICLE 325
7

Cavity Car-
tridge
FuseMini
FuseDescription
1 60 Amp
Yellow— Ignition Off Draw (IOD)
2 40 Amp
Green— Battery
3———
4 40 Amp
Green— Battery
Cavity Car-
tridge
FuseMini
FuseDescription
5 30 Amp
Pink— Heated Seats - if
equipped
6 — 20 Amp
YellowFuel Pump
7———
8 — 15 Amp
BlueIgnition Switch/Airbag
Control Module (ACM)
9 — 20 Amp
YellowConsole Power Outlet
10———
11*———
12*———
13*———
14 — 10 Amp
RedAC Heater Control/
Cluster/Sentry Key Re-
mote Keyless Entry
15 — 20 Amp
YellowTrailer Tow Brake Mod-
ule - if equipped
16———
Rear Power Distribution Center
326 MAINTAINING YOUR VEHICLE

Cavity Car-
tridge
FuseMini
FuseDescription
17 — 20 Amp
YellowCluster
18 — 20 Amp
YellowSelectable Power Outlet
19 — 10 Amp
RedStop Lights
20———
21———
22———
23———
24———
25———
26———
27 — 10 Amp
RedAirbag/Airbag Control
Module (ACM)
28 — 10 Amp
RedCurtain Airbag - if
equippedCavity Car-
tridge
FuseMini
FuseDescription
29 — 5 Amp
OrangeAnti-lock Brakes Module
- if equipped/Cluster/
Front Control Module
(FCM)/Powertrain Con-
trol Module (PCM)/
Sentry Key Remote Key-
less Entry/Stop Lights
30 — 10 Amp
RedDoor Modules/Power
Mirrors - if equipped/
Steering Control Module
31———
32———
33———
34———
MAINTAINING YOUR VEHICLE 327
7

Cavity Car-
tridge
FuseMini
FuseDescription
35 — 5 Amp
OrangeAmplifier - if equipped/
Antenna/Ignition
Delay/Overhead
Console/Passenger Door
Lock & Express Power
Window Switch - if
equipped/Power Mir-
rors - if equipped/Rear
Defrost
36 — 20 Amp
YellowHands Free Phone - if
equipped/Media System
Monitor DVD - if
equipped/Radio/
Satellite Receiver - if
equipped
37 — 15 Amp
BlueTransmission - NAG1
38 — 5 Amp
OrangeCargo Light/Overhead
Console
39 — 10 Amp
RedHeated Mirrors - if
equippedCavity Car-
tridge
FuseMini
FuseDescription
40 — 5 Amp
OrangeHeated Seats - if
equipped/Inside Rear-
view Mirror
41 — 10 Amp
RedAC Heater Control/Tire
Pressure Monitoring - if
equipped
42 30 Amp
Pink— Front Blower Motor
43 30 Amp
Pink— Amplifier - if equipped/
Antenna/Rear Defrost
44 20 Amp
Blue— Amplifier - if equipped/
Front Control Module
(FCM)/Sunroof - if
equipped
*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The Cluster is fused by the 25 amp circuit
breaker in Cavity 11. The Passenger Seat Switch is fused
by the 25 amp circuit breaker in Cavity 12. The Door
Modules (except base), the Driver Door Lock Switch
328 MAINTAINING YOUR VEHICLE
