2007 DODGE CHARGER Owners Manual

(base), the Driver Express Power Window Switch (if
equipped), and the Passenger Door Lock Switch (base)
are fused by the 25 amp circuit breaker in Cavity 13. If
you experience temporary or permanent loss of these
systems, see your authorized dealer for service.
CAUTION!
•When installing the Power Distribution Center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Power Distribu-
tion Center, and possibly result in an electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage
rating. The use of a fuse with a rating other than
indicated may result in a dangerous electrical
system overload. If a properly rated fuse contin-
ues to blow, it indicates a problem in the circuit
that must be corrected.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take steps to protect your battery.
You may:
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
insure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
MAINTAINING YOUR VEHICLE 329
7

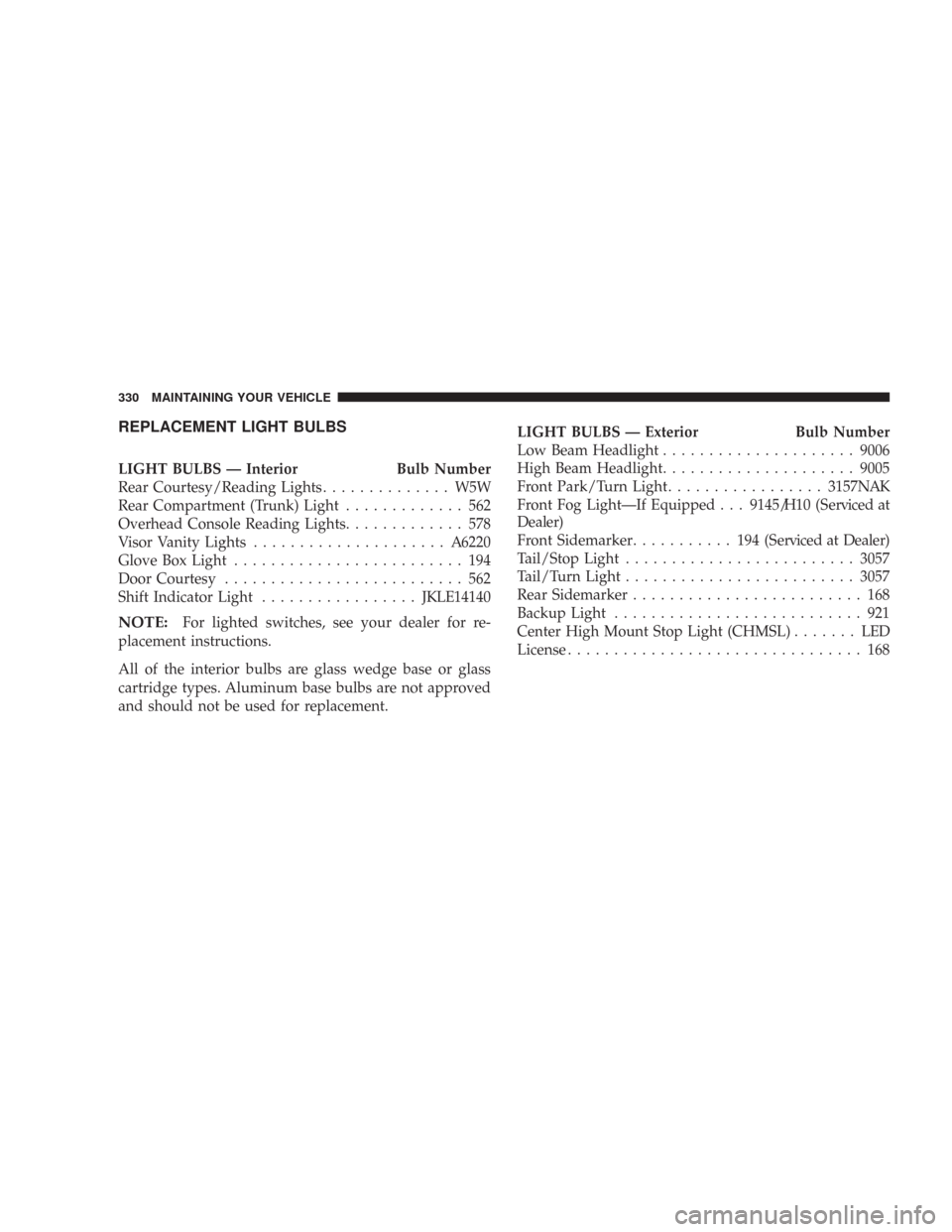

REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb Number
Rear Courtesy/Reading Lights.............. W5W
Rear Compartment (Trunk) Light............. 562
Overhead Console Reading Lights............. 578
Visor Vanity Lights.....................A6220
Glove Box Light......................... 194
Door Courtesy.......................... 562
Shift Indicator Light.................JKLE14140
NOTE:For lighted switches, see your dealer for re-
placement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.LIGHT BULBS — Exterior Bulb Number
Low Beam Headlight.....................9006
High Beam Headlight.....................9005
Front Park/Turn Light.................3157NAK
Front Fog Light—If Equipped. . . 9145/H10 (Serviced at
Dealer)
Front Sidemarker........... 194(Serviced at Dealer)
Tail/Stop Light.........................3057
Tail/Turn Light.........................3057
Rear Sidemarker......................... 168
Backup Light........................... 921
Center High Mount Stop Light (CHMSL)....... LED
License................................ 168
330 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
Low Beam Headlight, High Beam Headlight,
Park/Turn Light, and Front Side Marker Light
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlight assem-
bly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly
counter-clockwise, and then pull it out of the headlight
assembly.
3. Pull the bulb out of the socket assembly.
4. Push the replacement bulb into the socket assembly.
5. Reinstall the bulb and socket assembly into the head-
light assembly, and then turn it clockwise.
1 — High Beam Headlight Bulb
2 — Low Beam Headlight BulbMAINTAINING YOUR VEHICLE 3317

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3 — Park/Turn Light Bulb4 — Side Marker Light Bulb 332 MAINTAINING YOUR VEHICLE

Backup Light, Side Marker Light, Tail/Turn Light,
and Tail/Stop Light
1. Open the Trunk.
2. Remove two fasteners from the back of the tail light
assembly.3. Pull back the trunk liner.
4. Remove the remaining fastener from the back of the
tail light assembly.
5. Push the electrical connector locking tab to the side.
6. Disconnect the electrical connector.
MAINTAINING YOUR VEHICLE 333
7

7. Pull the tail light assembly clear from the vehicle to
access the bulbs.
8. Turn the appropriate bulb and socket assembly
counter-clockwise to remove it from the tail light assem-
bly.
1 — Backup Light Bulb
2 — Side Marker Light Bulb 334 MAINTAINING YOUR VEHICLE

9. Pull the bulb out of the socket assembly.
10. Push the replacement bulb into the socket assembly.
11. Reinstall the bulb and socket assembly into the tail
light assembly, and then turn it clockwise.
12. Reinstall the tail light assembly, fasteners, electrical
connector, and trunk liner.
13. Close the trunk.
3 — Tail/Turn Light Bulb4 — Tail/Stop Light BulbMAINTAINING YOUR VEHICLE 3357

License Light
1. Remove the screws securing the light to the rear fascia.
2. Remove the bulb and socket assembly.
3. Pull the bulb out of the socket assembly.4. Push the replacement bulb into the socket assembly.
5. Reinstall the bulb and socket assembly.
6. Reattach the light to the rear fascia, and then install the
screws.
1 — License Light Bulb
2 — Socket 336 MAINTAINING YOUR VEHICLE
