2007 CHEVROLET HHR Owners Manual

Fuses Usage
58 Windshield Wiper Diode
59 Windshield Wiper
60 Horn
61 Anti-lock Brake System (Option)
62 Instrument Panel, Ignition
63 Driver’s Side High-Beam
64 Canister Vent
65 Driver’s Side Low-Beam
66 Passenger’s Side Low-Beam
67 Passenger’s Side High-Beam
69 Parking Lamps
Relays Usage
14 Rear Defogger Relay
15 Air Conditioning Clutch
16 Empty
17 Rear Wiper
18 Liftgate Release
Relays Usage
19 Fuel Pump
24 Empty
26 Powertrain
28 Daytime Running Lamps
34 Starting System
35 Empty
38 Empty
39 Windshield Washer Pump
48 Rear Windshield Washer
50 Cooling Fan
51 Run, Crank
52 Windshield Wiper
54 Fog Lamps (Option)
55 Horn
68 Parking Lamps
70 Windshield Wipers
71 Headlamp Low-Beam
72 Headlamp High-Beam
An OnStar®mini-fuse is located near the battery
in the rear of the vehicle.
385

Capacities and Specications
The following approximate capacities are given in English and metric conversions. Please refer toNormal
Maintenance Replacement Parts on page 405for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Cooling System
2.2L Engine 7.4 qt 7.0 L
2.4L Engine Manual 8.7 qt 8.2 L
2.4L Engine Automatic 8.5 qt 8.0 L
Engine Oil with Filter 5.0 qt 4.7 L
Fuel Tank 16.2 gal 61.3 L
386

ApplicationCapacities
English Metric
Transaxle, Automatic (Complete Drain and Rell) 7.0 qt 6.6 L
Transaxle, Manual (Complete Drain and Rell) 1.7 qt 1.6 L
Wheel Nut Torque 100 lb ft
140Y
All capacities are approximate. When adding, be sure to ll to the appropriate level, as recommended in this
manual.
Engine Specications
Engine VIN Code Transaxle Spark Plug Gap
2.2L L4 DAutomatic
Manual0.040 inch (1.01 mm)
2.4L L4 PAutomatic
Manual0.040 inch (1.01 mm)
387

✍NOTES
388

Maintenance Schedule................................ 390
Introduction............................................... 390
Maintenance Requirements........................ 390
Your Vehicle and the Environment............ 391
Using the Maintenance Schedule............... 391
Scheduled Maintenance............................. 393
Additional Required Services..................... 396
Maintenance Footnotes.............................. 397Owner Checks and Services..................... 398
At Each Fuel Fill....................................... 399
At Least Once a Month............................. 399
At Least Once a Year............................... 400
Recommended Fluids and Lubricants........ 403
Normal Maintenance Replacement Parts..... 405
Engine Drive Belt Routing......................... 406
Maintenance Record.................................. 407
Section 6 Maintenance Schedule
389

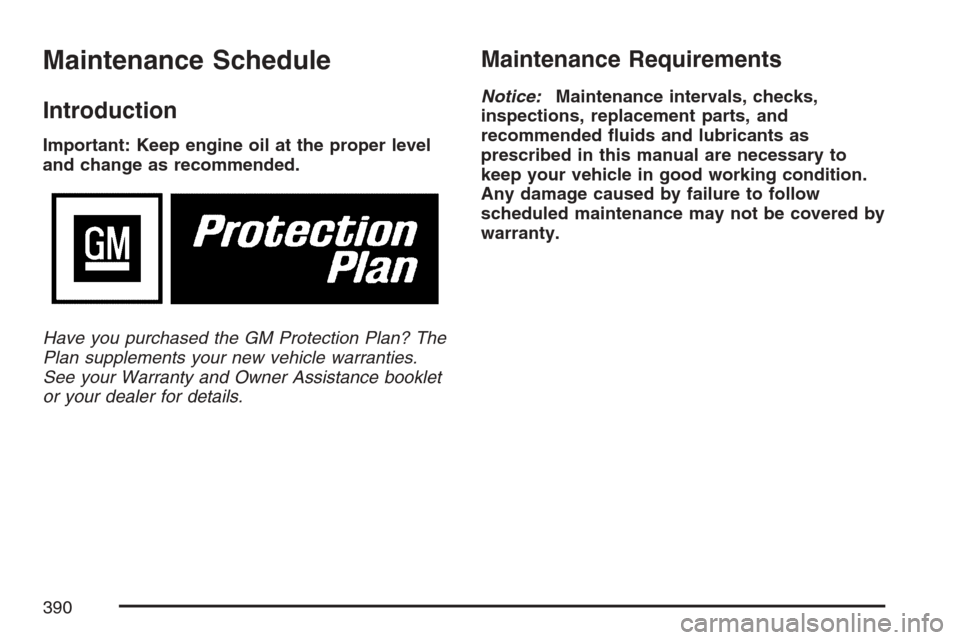

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to
keep your vehicle in good working condition.
Any damage caused by failure to follow
scheduled maintenance may not be covered by
warranty.
390

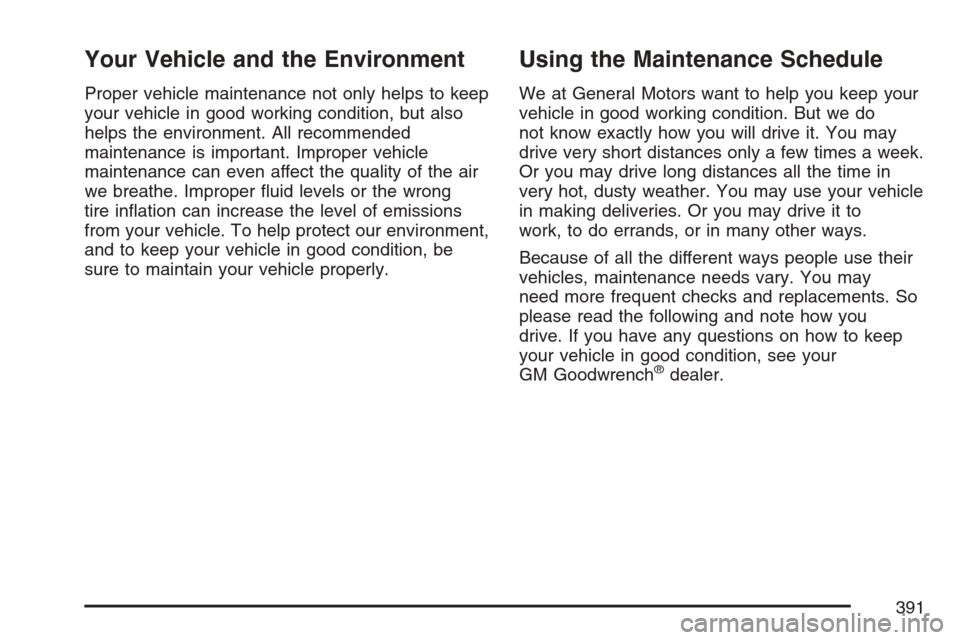

Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
your vehicle in good working condition, but also
helps the environment. All recommended
maintenance is important. Improper vehicle
maintenance can even affect the quality of the air
we breathe. Improper uid levels or the wrong
tire ination can increase the level of emissions
from your vehicle. To help protect our environment,
and to keep your vehicle in good condition, be
sure to maintain your vehicle properly.
Using the Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we do
not know exactly how you will drive it. You may
drive very short distances only a few times a week.
Or you may drive long distances all the time in
very hot, dusty weather. You may use your vehicle
in making deliveries. Or you may drive it to
work, to do errands, or in many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may
need more frequent checks and replacements. So
please read the following and note how you
drive. If you have any questions on how to keep
your vehicle in good condition, see your
GM Goodwrench
®dealer.
391

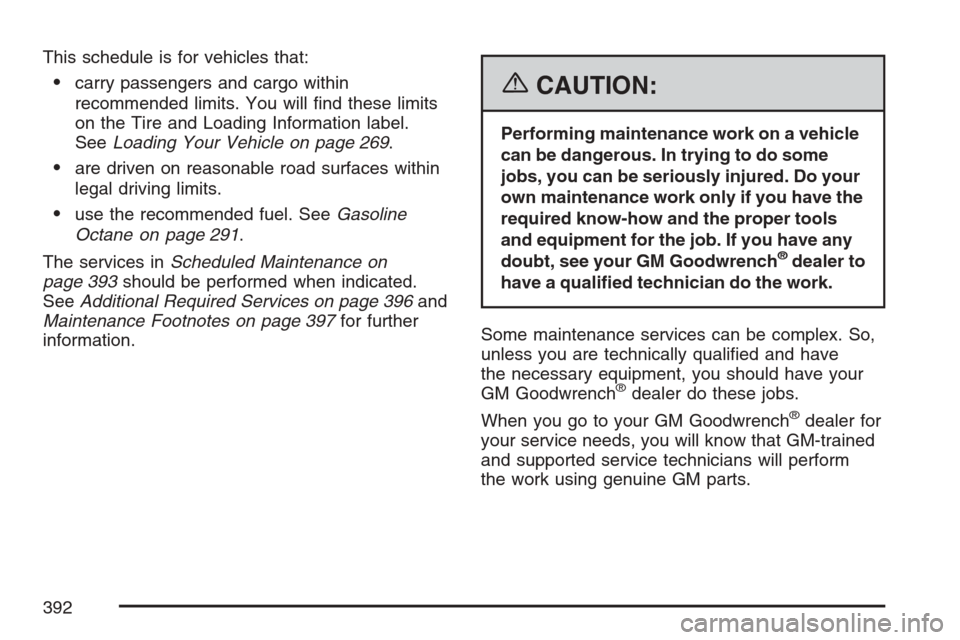

This schedule is for vehicles that:
carry passengers and cargo within
recommended limits. You will nd these limits
on the Tire and Loading Information label.
SeeLoading Your Vehicle on page 269.
are driven on reasonable road surfaces within
legal driving limits.
use the recommended fuel. SeeGasoline
Octane on page 291.
The services inScheduled Maintenance on
page 393should be performed when indicated.
SeeAdditional Required Services on page 396and
Maintenance Footnotes on page 397for further
information.
{CAUTION:
Performing maintenance work on a vehicle
can be dangerous. In trying to do some
jobs, you can be seriously injured. Do your
own maintenance work only if you have the
required know-how and the proper tools
and equipment for the job. If you have any
doubt, see your GM Goodwrench
®dealer to
have a qualied technician do the work.
Some maintenance services can be complex. So,
unless you are technically qualied and have
the necessary equipment, you should have your
GM Goodwrench
®dealer do these jobs.
When you go to your GM Goodwrench
®dealer for
your service needs, you will know that GM-trained
and supported service technicians will perform
the work using genuine GM parts.
392
