6. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being adjusted. Do not place
directly on the headlamp. This allows only the
beam of light from the headlamp being
adjusted to be seen on the at surface.
7. Locate the vertical headlamp aiming screws,
which are under the hood near each headlamp
assembly.
The adjustment screw can be turned with a
6 mm hex socket.8. Turn the vertical aiming screw until the
headlamp beam is aimed to the horizontal
tape line. Turn it clockwise or
counterclockwise to raise or lower the angle
of the beam.
The top edge of the cut-off should be
positioned at the bottom edge of the horizontal
tape line.
9. Make sure that the light from the headlamp is
positioned at the bottom edge of the horizontal
tape line. The lamp on the left (A) shows
the correct headlamp aim. The lamp on the
right (B) shows the incorrect headlamp aim.
10. Repeat Steps 7 through 9 for the opposite
headlamp.
Driver’s Side Shown
329

Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 334.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas
inside and can burst if you drop or
scratch the bulb. You or others could be
injured. Be sure to read and follow the
instructions on the bulb package.
Headlamps, Front Turn Signal, and
Parking Lamps
A. Headlamp
B. Turn Signal/Parking Lamp
330

To replace the headlamp, turn signal, or parking
lamp bulb, do the following:
1. Turn the wheel to access the wheel well.
2. Remove the fasteners to access the headlamp
and the turn signal/parking lamp bulbs.
3. Reach in behind the wheel well liner and
locate the bulb you need to change.
4. Turn the bulb socket counterclockwise to
remove.5. Pull the old bulb out of the socket.
6. Install a new bulb.
7. Reverse Steps 1 through 4 to reinstall.
Center High-Mounted Stoplamp
(CHMSL)
To replace the center high-mounted stoplamp
bulb, do the following:
1. Open the liftgate. SeeLiftgate on page 106
for more information.
2. Remove the center trim located near the top
of the liftgate.
331

3. Locate the bulb assembly.
4. Locate the bulb you wish to change.
5. Turn the bulb socket counterclockwise to
remove.
6. Pull the bulb straight out of the socket.
7. Install a new bulb.
8. Reverse the steps to reinstall.Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
A. Stoplamp/Taillamp/Turn Signal
B. Back-up
332

To replace one of these bulbs, do the following:
1. Open the liftgate. SeeLiftgate on page 106for
more information.
2. Remove the cover in the rear cargo area of
the vehicle to access the bulbs.3. Turn the bulb socket counterclockwise and
pull it out of the lamp housing.
4. Pull the bulb straight out of the socket.
5. Install a new bulb. When installing the bulb
socket into the assembly, line up the tabs
with the slots in the bulb assembly.
6. Reverse the steps to reinstall.
333

License Plate Lamp
To replace one of these bulbs, do the following:
1. Remove the two screws holding each of
the license plate lamps to the fascia.
2. Turn and pull the license plate lamp forward
through the fascia opening.3. Turn the bulb socket counterclockwise and
pull the bulb straight out of the socket.
4. Install the new bulb.
5. Reverse Steps 1 through 3 to reinstall the
license plate lamp.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-up Lamp and CHMSL 921
Front Turn Signal and
Parking Lamp 3157KX
Headlamp High/Low-Beam H13
Stoplamp/Taillamp/Turn Signal 3057KX
For replacement bulbs not listed here, contact
your dealer.
334

Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear or cracking. SeeScheduled Maintenance
on page 393for more information on wiper blade
inspection.
Replacement blades come in different types and
are removed in different ways. For the proper type
and length, seeNormal Maintenance Replacement
Parts on page 405. Here’s how to remove the
wiper blade:
1. Pull the windshield wiper arm away from the
windshield.2. While holding the wiper arm, lift the clip up
from the blade connecting point, and pull the
blade assembly down toward the windshield
to remove it from the wiper arm.
3. Install the new wiper blade on the wiper
arm and press down on the clip to snap it
into place.
Backglass Wiper Blade Replacement
1. Remove the protective cap from the wiper
arm. If the protective cap is not removed
before lifting the wiper arm, the wiper
arm could be damaged.
2. Pull the wiper arm away from the backglass
and into the service position.
3. Rotate the wiper blade, and pull down on it to
remove it from the wiper arm.
4. Install the new wiper blade, then set the wiper
arm back into its original position and replace
the protective cap.
335

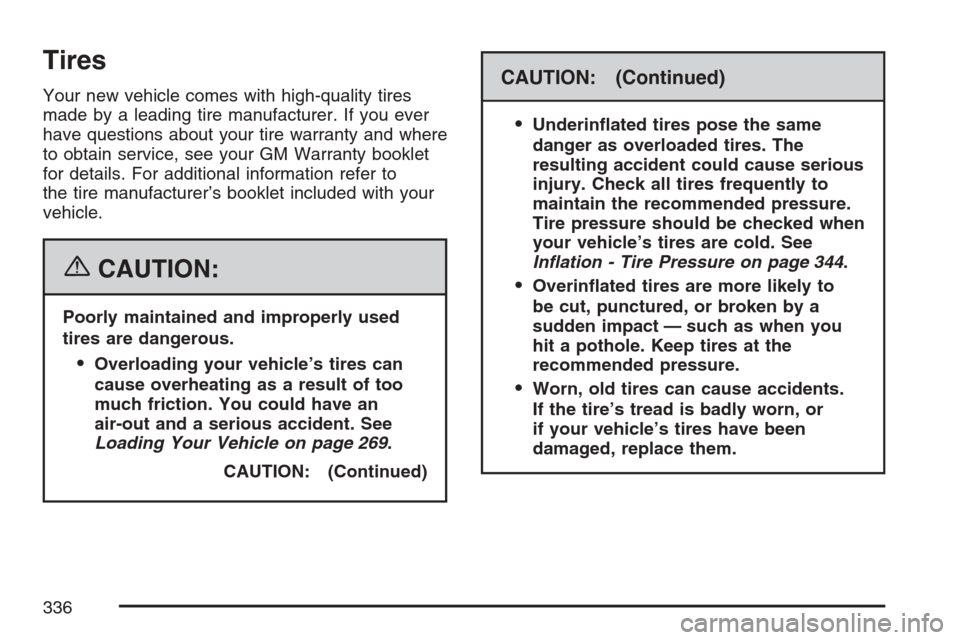

Tires
Your new vehicle comes with high-quality tires
made by a leading tire manufacturer. If you ever
have questions about your tire warranty and where
to obtain service, see your GM Warranty booklet
for details. For additional information refer to
the tire manufacturer’s booklet included with your
vehicle.
{CAUTION:
Poorly maintained and improperly used
tires are dangerous.
Overloading your vehicle’s tires can
cause overheating as a result of too
much friction. You could have an
air-out and a serious accident. See
Loading Your Vehicle on page 269.
CAUTION: (Continued)
CAUTION: (Continued)

Underinated tires pose the same
danger as overloaded tires. The
resulting accident could cause serious
injury. Check all tires frequently to
maintain the recommended pressure.
Tire pressure should be checked when
your vehicle’s tires are cold. See
Inflation - Tire Pressure on page 344.
Overinated tires are more likely to
be cut, punctured, or broken by a
sudden impact — such as when you
hit a pothole. Keep tires at the
recommended pressure.
Worn, old tires can cause accidents.
If the tire’s tread is badly worn, or
if your vehicle’s tires have been
damaged, replace them.
