Underneath the seat1Engine-oil filler neck
( 100)
2 Toolkit ( 98)
3 Helmet holder ( 67)
215zGeneral views

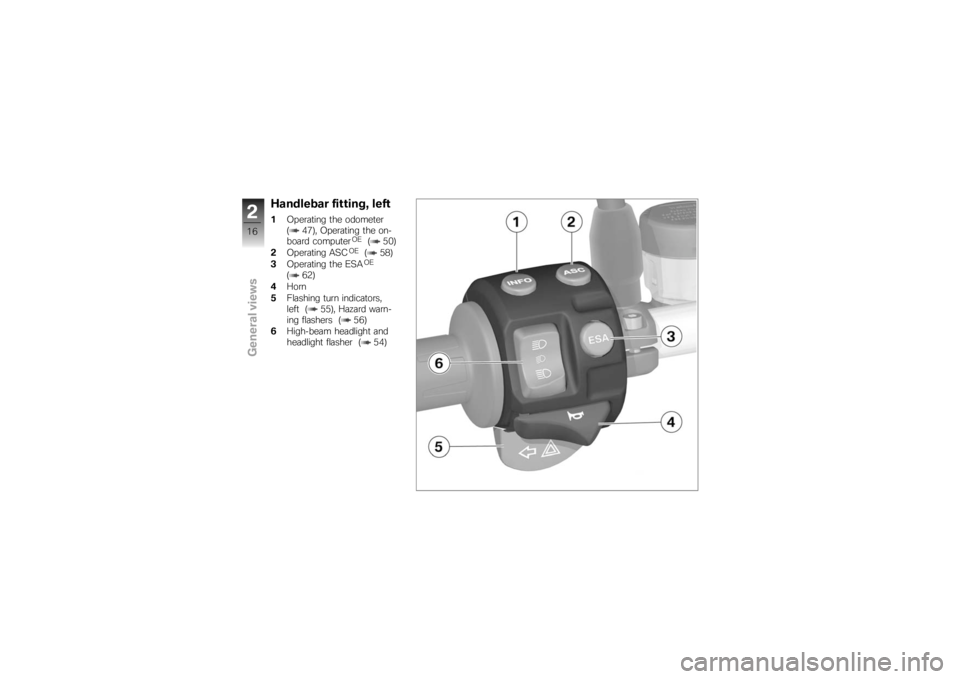

Handlebar fitting, left1Operating the odometer
( 47), Operating the on-
board computer
OE
( 50)
2 Operating ASC
OE
( 58)
3 Operating the ESAOE
( 62)
4 Horn
5 Flashing turn indicators,
left ( 55), Hazard warn-
ing flashers ( 56)
6 High-beam headlight and
headlight flasher ( 54)
216zGeneral views

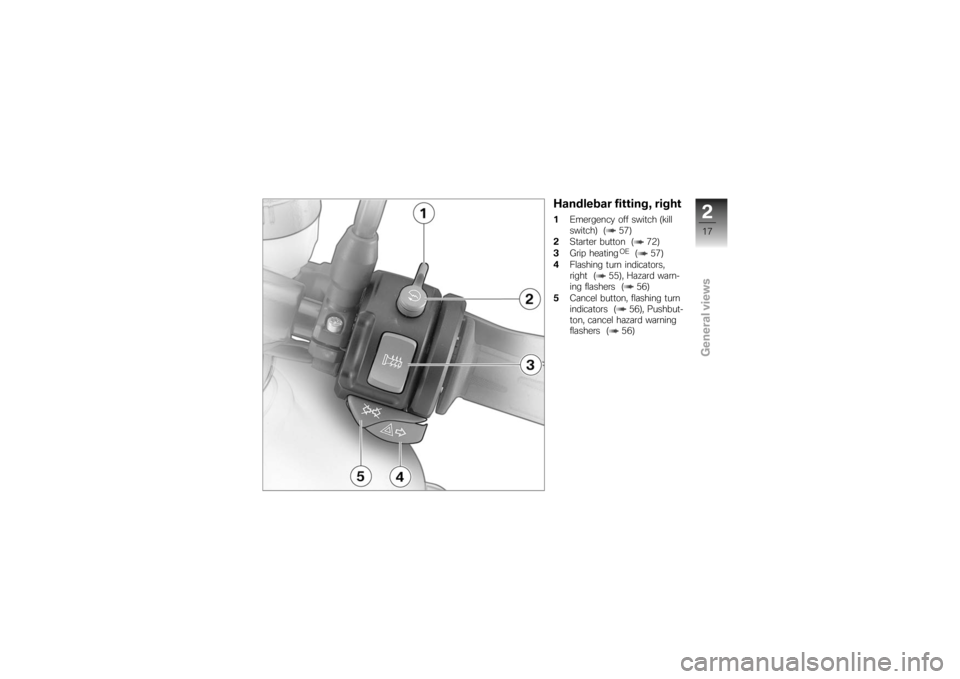

Handlebar fitting, right1Emergency off switch (kill
switch) ( 57)
2 Starter button ( 72)
3 Grip heating
OE
( 57)
4 Flashing turn indicators,
right ( 55), Hazard warn-
ing flashers ( 56)
5 Cancel button, flashing turn
indicators ( 56), Pushbut-
ton, cancel hazard warning
flashers ( 56)
217zGeneral views

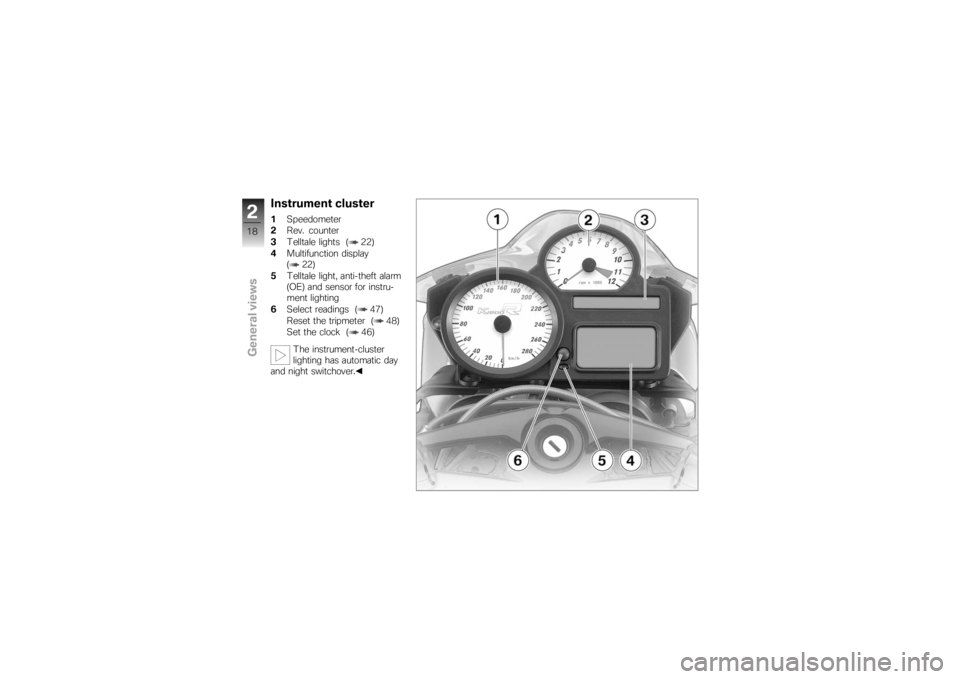

Instrument cluster1Speedometer
2 Rev. counter
3 Telltale lights ( 22)
4 Multifunction display
( 22)
5 Telltale light, anti-theft alarm
(OE) and sensor for instru-
ment lighting
6 Select readings ( 47)
Reset the tripmeter ( 48)
Set the clock ( 46)
The instrument-cluster
lighting has automatic day
and night switchover.
218zGeneral views

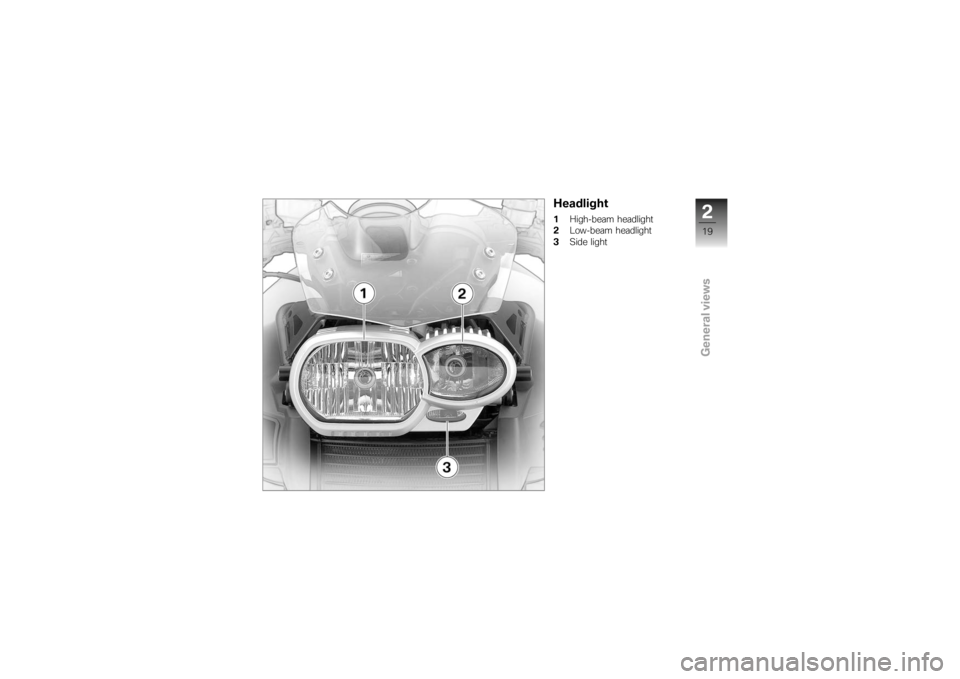

Headlight1High-beam headlight
2 Low-beam headlight
3 Side light
219zGeneral views

220zGeneral views

Status indicators
Status indicators
Standard status indicators........... 22
Status indicators with on-board com-
puter
OE
.............................. 23
Status indicators with tyre-pressure
monitoring (RDC)
OE
................. 24
Standard warnings ................... 24
Warnings issued by the on-board
computer
OE
......................... 29
ABS warningsOE
..................... 31
ASC warnings
OE
..................... 33
RDC warnings
OE
.................... 35
Anti-theft alarm warnings
OE
......... 40
321zStatus indicators

Standard status
indicatorsMultifunction display1Clock ( 46)
2 Gear ( 22)
3 Coolant temperature
( 22)
4 Odometer and tripmeters
( 47)
5 Fuel capacity ( 22)
Telltale lights1Flashing turn indicators, left
2 High-beam headlight
3 Idle
4 Flashing turn indicators,
rightFuel capacity
The horizontal bars below
the fuel-pump symbol in-
dicate the remaining quantity of
fuel.
When the fuel in the tank is
topped up the gauge briefly
shows the original level, before
the reading is updated.
Gear
The gear engaged or
N
for neutral appears on the
display.
If no gear is engaged, the
'neutral' telltale light also
lights up.
Coolant temperature
The horizontal bars below
the temperature symbol
indicate the coolant temperature.
Service-due indicatorIf the next service is due in less
than one month, the date for the
322zStatus indicators
