2007.5 PEUGEOT 807 Owners Manual

Seats
66

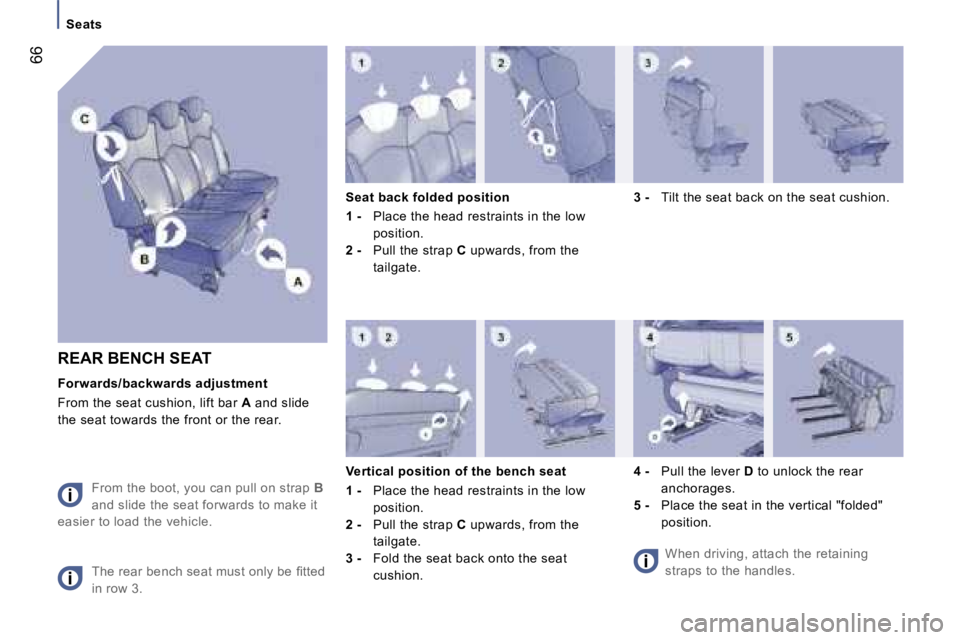

REAR BENCH SEAT
Forwards/backwards adjustment
From the seat cushion, lift bar A and slide
the seat towards the front or the rear.
From the boot, you can pull on strap B
and slide the seat forwards to make it
easier to load the vehicle.
The rear bench seat must only be fitted
in row 3.
Seat back folded position
1 - Place the head restraints in the low
position.
2 - Pull the strap C upwards, from the
tailgate. 3 -
Tilt the seat back on the seat cushion.
Vertical position of the bench seat
1 - Place the head restraints in the low
position.
2 - Pull the strap C upwards, from the
tailgate.
3 - Fold the seat back onto the seat
cushion. 4 -
Pull the lever D to unlock the rear
anchorages.
5 - Place the seat in the vertical "folded"
position.
When driving, attach the retaining
straps to the handles.

Seats
ERGONOMICS and COMFORT67
3

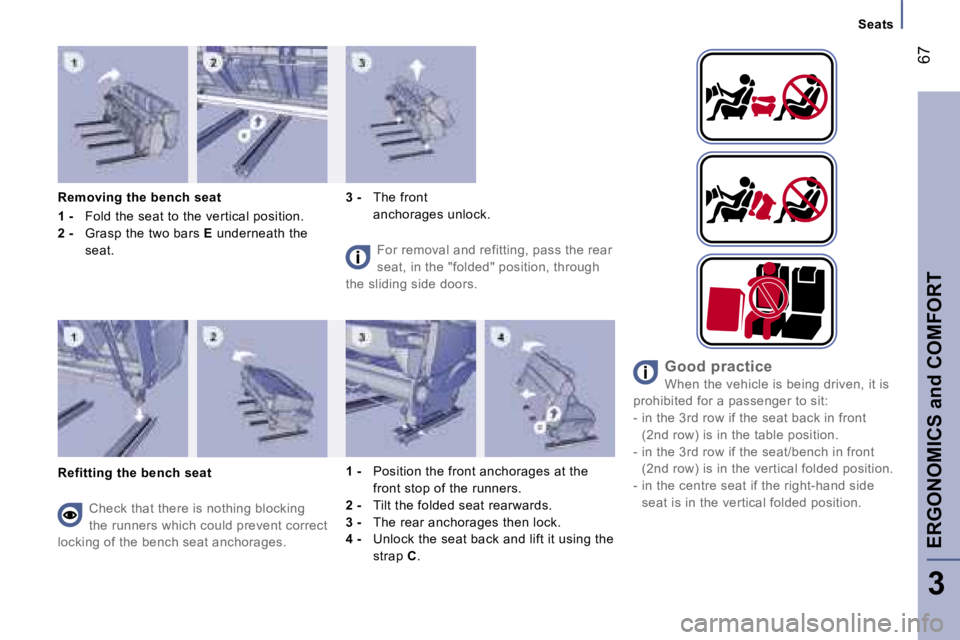

Removing the bench seat
1 -
Fold the seat to the vertical position.
2 - Grasp the two bars E underneath the
seat. 3 -
The front
anchorages unlock.
Refitting the bench seat
For removal and refitting, pass the rear
seat, in the "folded" position, through
the sliding side doors.
Check that there is nothing blocking
the runners which could prevent correct
locking of the bench seat anchorages.
1 - Position the front anchorages at the
front stop of the runners.
2 - Tilt the folded seat rearwards.
3 - The rear anchorages then lock.
4 - Unlock the seat back and lift it using the
strap C.
Good practice
When the vehicle is being driven, it is
prohibited for a passenger to sit:
- in the 3rd row if the seat back in front (2nd row) is in the table position.
- in the 3rd row if the seat/bench in front (2nd row) is in the vertical folded position.
- in the centre seat if the right-hand side seat is in the vertical folded position.

Seats
68

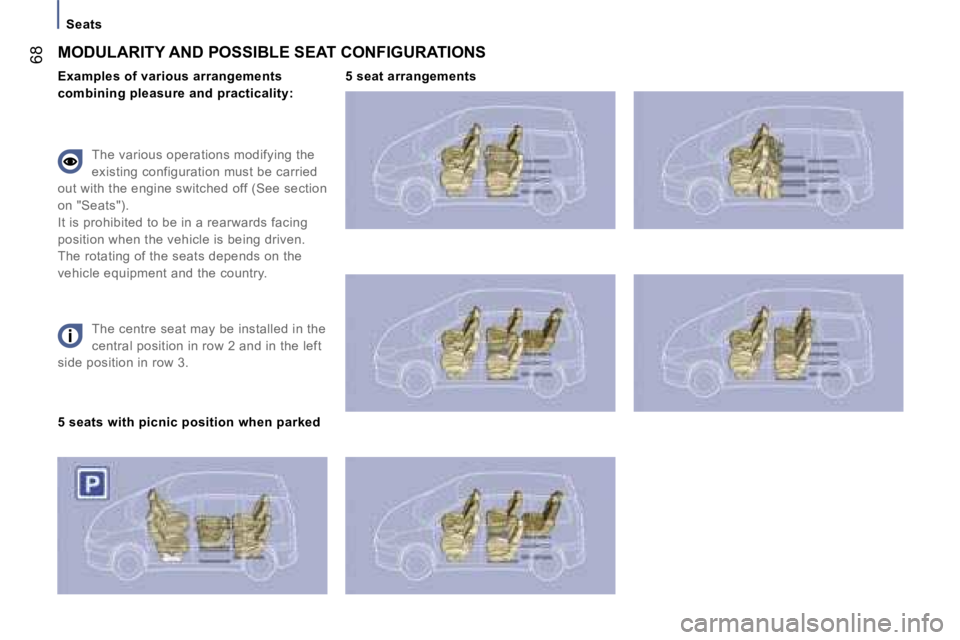

The centre seat may be installed in the
central position in row 2 and in the left
side position in row 3.
MODULARITY AND POSSIBLE SEAT CONFIGURATIONS
Examples of various arrangements
combining pleasure and practicality:
The various operations modifying the
existing configuration must be carried
out with the engine switched off (See section
on "Seats").
It is prohibited to be in a rearwards facing
position when the vehicle is being driven.
The rotating of the seats depends on the
vehicle equipment and the country.
5 seats with picnic position when parked 5 seat arrangements

Seats
ERGONOMICS and COMFORT69
3

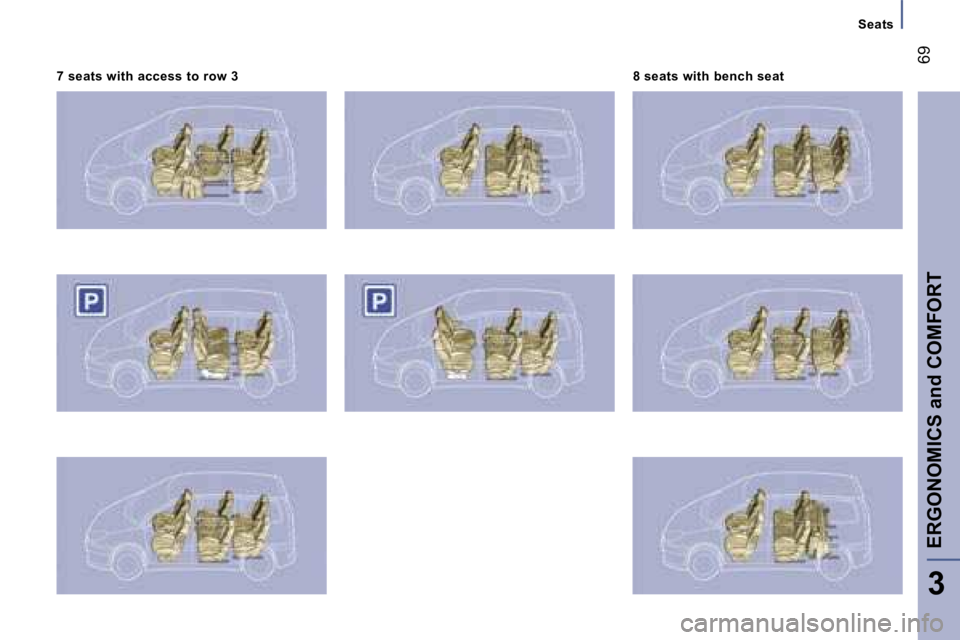

7 seats with access to row 3
8 seats with bench seat

Seats
70

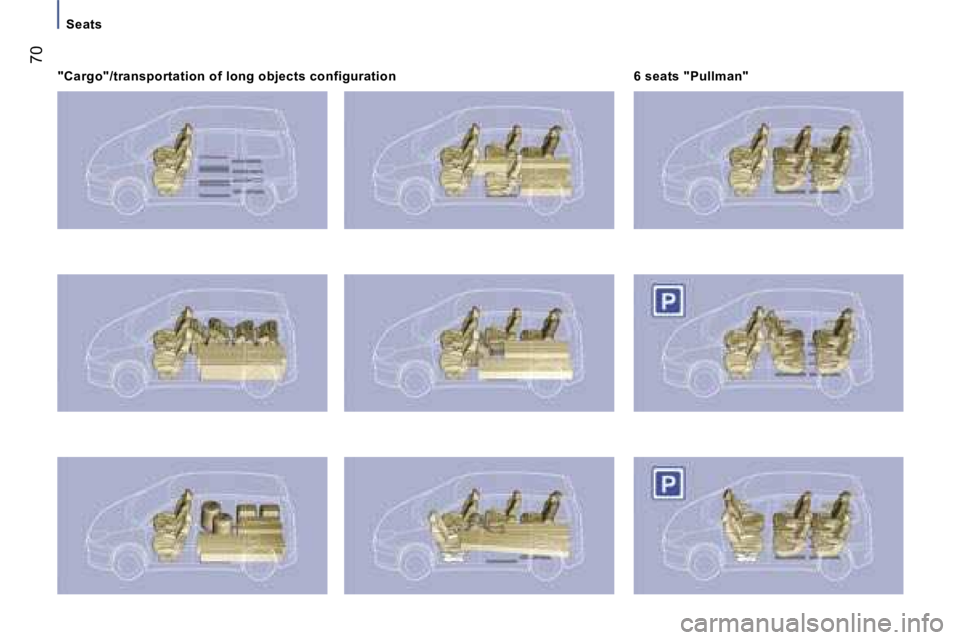

"Cargo"/transportation of long objects configuration6 seats "Pullman"

Practical information
ERGONOMICS and COMFORT71
3

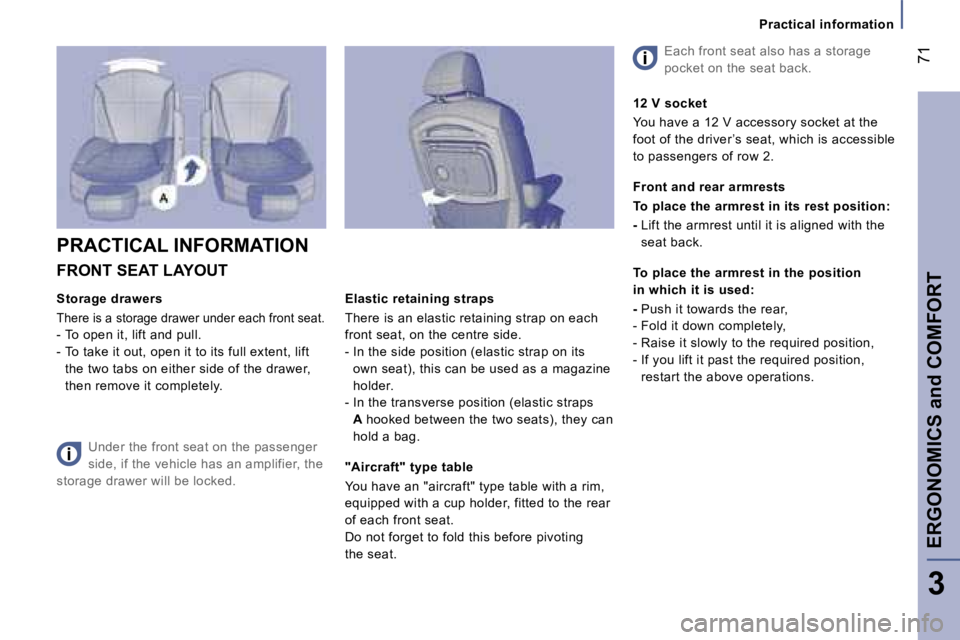

FRONT SEAT LAYOUT
Storage drawers
There is a storage drawer under each front seat.
- To open it, lift and pull.
- To take it out, open it to its full extent, lift
the two tabs on either side of the drawer,
then remove it completely.
Each front seat also has a storage
pocket on the seat back.
12 V socket
You have a 12 V accessory socket at the
foot of the driver ’s seat, which is accessible
to passengers of row 2.
Front and rear armrests
To place the armrest in its rest position:
- Lift the armrest until it is aligned with the
seat back.
To place the armrest in the position
in which it is used:
- Push it towards the rear,
- Fold it down completely,
- Raise it slowly to the required position,
- If you lift it past the required position, restart the above operations.
Elastic retaining straps
There is an elastic retaining strap on each
front seat, on the centre side.
- In the side position (elastic strap on its
own seat), this can be used as a magazine
holder.
- In the transverse position (elastic straps A hooked between the two seats), they can
hold a bag.
"Aircraft" type table
You have an "aircraft" type table with a rim,
equipped with a cup holder, fitted to the rear
of each front seat.
Do not forget to fold this before pivoting
the seat.
PRACTICAL INFORMATION
Under the front seat on the passenger
side, if the vehicle has an amplifier, the
storage drawer will be locked.

Practical information
72

Practical information
ERGONOMICS and COMFORT73
3
The light comes on when the cover is
opened.
It contains three sockets for the connection
of video equipment if fitted in your vehicle.
It includes special compartments for
storing maps, a packet of cigarettes, an A4
document etc.
6. Lighter or 12 V socket for
accessories
This permits the connection of a mobile
telephone charger, a baby’s bottle warmer,
etc.
7. Cooled compartment
It can hold up to three cans.
Slide the closer, located on the right, to
open (upwards) or close (downwards) the
air inlet.
8. Can holder and ashtray
This retractable and lit support contains up
to two can holders, a removable ashtray and
a location for the lighter when it is used as a
12 V socket.
1. Driver ’s upper glove box
To open, press the button.
To close, press the cover.
It includes special compartments for storing
a pen, a mobile telephone, coins or tokens
and credit cards.
2. Audio equipment concealing flap
Lower the flap fully to lock it in place.
Press the flap to raise it.
3. Central storage compartment
4. Passenger ’s upper glove box
To open, press the button.
To close, press the cover.
It includes special compartments for storing
a pair of spectacles, keys, five CDs and four
audio cassettes or nine audio CDs.
5. Passenger ’s lower glove box
This is fitted with a lock.
To open the glove box, lift the handle.
FRONT INTERIOR LAYOUT
9. Storage compartment or additional telematics control
The storage compartment must not be used
as an ashtray.
If fitted in your vehicle, the additional
telematics control is located on the centre
console.
10. Storage compartment
11. Door tray with space for a bottle of water
12. Mat fitting/removal
When removing the front mat, push the
seats as far back as possible and remove
the fixings.
When refitting, position the mat correctly on
the pins and clip the fixings.
Check that the mat is secured correctly.
To prevent the mat from becoming caught
under the pedals:
- only use mats suited to the fixings already present in the vehicle.
It is imperative that these fixings are used.
- never fit one mat on top of another.
