2007.5 PEUGEOT 807 Owners Manual

Practical information
74

Practical information
ERGONOMICS and COMFORT75
3

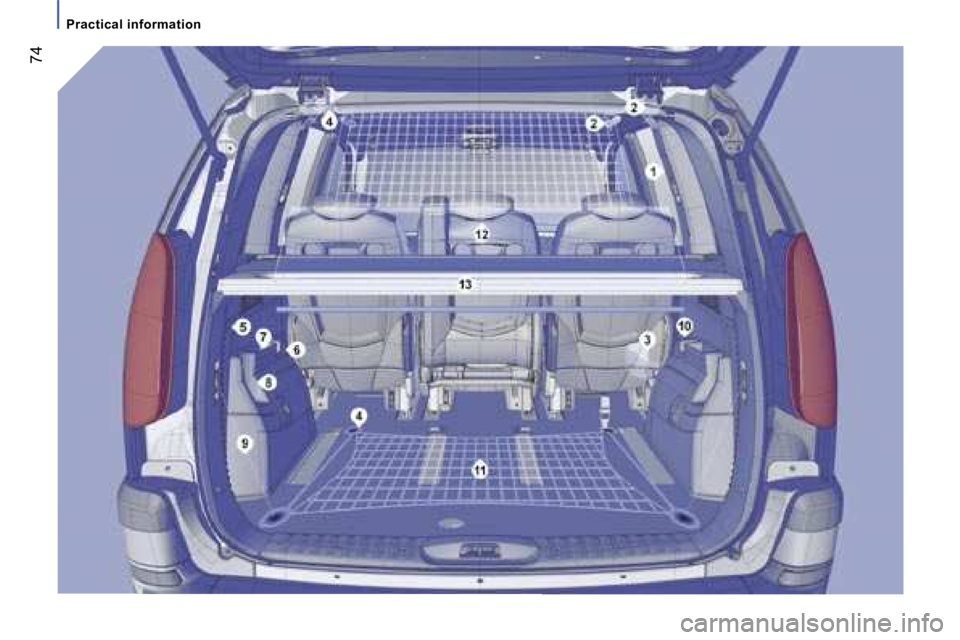

REAR INTERIOR LAYOUT
6. Can holder
7. Storage compartment
8. Bottle holder or portable bin with ashtray
9. Luggage retaining net "hammock" position fastenings
Fold the net in two.
Secure the two centre hooks in the stowing
rings on the floor.
Secure the net’s remaining four hooks
on the tailgate pillars.
10. 12 V socket for accessories
This permits the connection of a mobile
telephone charger, a baby’s bottle warmer, ...
11. Luggage retaining net "octopus" position
Secure the net’s four hooks in their stowing
rings on the floor.
1. Access handle
2. Grab handle and coat hook
3. Door tray with storage for a can and
a bottle of water or for the portable
bin with ashtray
4. High load retaining net fastenings
Open the covers of the upper fastenings
in row 3.
Install the ends of the metal bar in these
fastenings.
Secure the two tray strap hooks in the
stowing rings on the floor.
Pull the two straps taut.
Secure the two hooks on the elastic parts of
the tray in these rings.
The rings are located directly below the
corresponding upper fastenings.
5. Storage compartment 12. Load space cover (5 seat version)
To install it:
- position one end of the roller in row 2,
- compress the opposite end of the roller
and position it,
- release it to allow it to engage,
- unroll the cover as far as the pillars,
- secure the two hooks on the pillars,
To remove it:
- pull the cover towards you to detach it from its fastenings,
- return the cover into its roller,
- compress it and remove it from its support in row 2.
13. Rear shelf with umbrella holder (6-7-8 seat version)
To remove the shelf:
- pull it rearward
- lift it slightly, then remove it
To install it:
- tilt it forwards slightly,
- push to engage it in its fastenings.

Practical information
76
Front courtesy light
Automatic switching on/off
The front courtesy light comes on when the
key is removed from the ignition, when the
vehicle is unlocked, when one of the front
doors is opened or for location of the vehicle
using the remote control.
It switches off gradually after the ignition is
switched on and when the vehicle is locked.Permanently on, ignition on.
Front: comes on when one of the
front or rear doors is opened.
Permanently off.
Individual reading light
Rear courtesy light rows 2 and 3
These are switched on and off by means of
a manual switch.
COURTESY LIGHTS
Rows 2 and 3: comes on when
one of the rear doors is opened.
Rear courtesy light

Practical information
ERGONOMICS and COMFORT77
3
AREAS FOR TOLL CARDS/CAR
PARK TICKETS
The athermic windscreen has two
non-reflective zones located either side
of the base of the interior mirror.
They are intended for affixing toll cards
and/or car park tickets.
SUN VISOR WITH ILLUMINATED
COURTESY MIRROR
With the ignition on, the mirror is illuminated
automatically when the concealing flap is
raised.
SIDE BLINDS
Side blinds are available in rows 2 and/or 3.
Pull the side blind by the tab(s).
Position the blind’s attachment(s) on the
corresponding hook(s).
Ensure that the tabs are hooked
correctly to prevent any damage to the
blind when the corresponding sliding side
door is opened.

Mirrors and windows
78
Manual interior mirror
The interior mirror has two positions: day (normal),
 night (anti-dazzle).
To change from one to the other, push or
pull the lever on the lower edge of the mirror.
Automatic day/night interior mirror
This automatically and gradually changes
between the day and night positions. To
prevent dazzling, the glass of the mirror
darkens automatically depending on the
intensity of the light from behind. It clears as
the light (headlamps of following vehicles,
sunlight) decreases, ensuring maximum
visibility.
Operation
Switch on the ignition and press switch
1:
 Indicator light 2 lit (switch pressed):
automatic operation.
MIRRORS
Electric exterior mirrors

Move switch A to the right or to the left
to select the corresponding mirror.
 Move knob B in all four directions to
adjust.
 Return switch A to the centre position.
When parked, the mirrors can be folded
back manually, or electrically by pulling
switch A rearwards.
Electric unfolding of the mirrors is possible
with the key on unlocking the vehicle. 
Indicator light 2 off: automatic system off.
The mirror remains at its most clear.
MIRRORS AND WINDOWS
Special feature
To ensure maximum visibility during
manoeuvres, the mirror clears automatically
when reverse gear is engaged.

Mirrors and windows
ERGONOMICS and COMFORT79
3

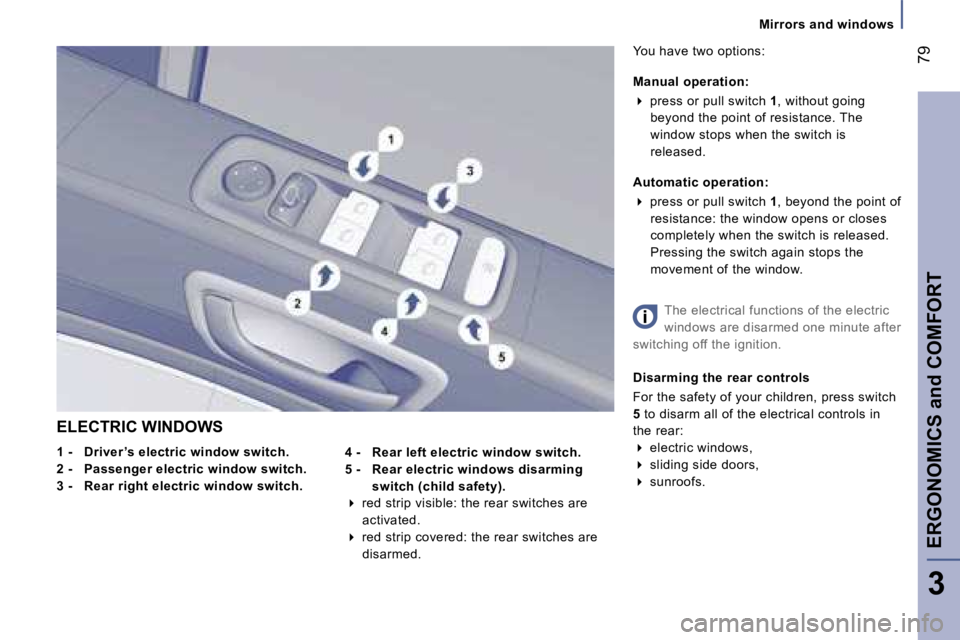

ELECTRIC WINDOWS
1 - Driver ’s electric window switch.
2 - Passenger electric window switch.
3 - Rear right electric window switch.4 - Rear left electric window switch.
5 - Rear electric windows disarming
switch (child safety).
 red strip visible: the rear switches are
activated.
 red strip covered: the rear switches are
disarmed. You have two options:
Manual operation: 
press or pull switch 1, without going
beyond the point of resistance. The
window stops when the switch is
released.
Automatic operation:  press or pull switch 1, beyond the point of
resistance: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the
movement of the window.
The electrical functions of the electric
windows are disarmed one minute after
switching off the ignition.
Disarming the rear controls
For the safety of your children, press switch
5 to disarm all of the electrical controls in
the rear: electric windows,
 sliding side doors,
 sunroofs.

Mirrors and windows
80

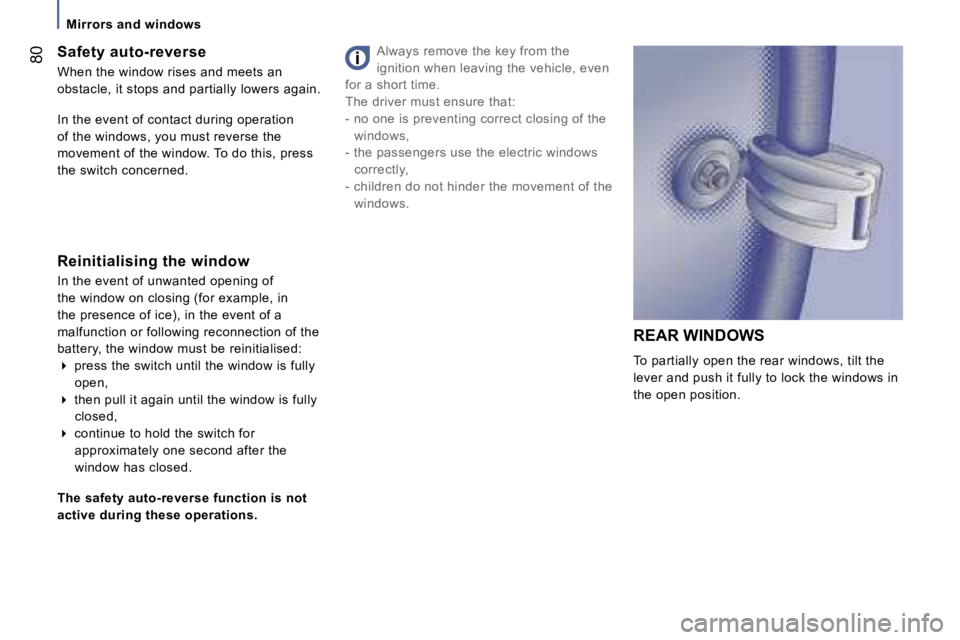

REAR WINDOWS
To partially open the rear windows, tilt the
lever and push it fully to lock the windows in
the open position.
Reinitialising the window
In the event of unwanted opening of
the window on closing (for example, in
the presence of ice), in the event of a
malfunction or following reconnection of the
battery, the window must be reinitialised:
press the switch until the window is fully
open,
 then pull it again until the window is fully
closed,
 continue to hold the switch for
approximately one second after the
window has closed.
The safety auto-reverse function is not
active during these operations.
Safety auto-reverse
When the window rises and meets an
obstacle, it stops and partially lowers again.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this, press
the switch concerned.
Always remove the key from the
ignition when leaving the vehicle, even
for a short time.
The driver must ensure that:
- no one is preventing correct closing of the
windows,
- the passengers use the electric windows correctly,
- children do not hinder the movement of the windows.

Mirrors and windows
80
REAR WINDOWS
To partially open the rear windows, tilt the
lever and push it fully to lock the windows in
the open position.
Reinitialising the window
In the event of unwanted opening of
the window on closing (for example, in
the presence of ice), in the event of a
malfunction or following reconnection of the
battery, the window must be reinitialised:
press the switch until the window is fully
open,
 then pull it again until the window is fully
closed,
 continue to hold the switch for
approximately one second after the
window has closed.
The safety auto-reverse function is not
active during these operations.
Safety auto-reverse
When the window rises and meets an
obstacle, it stops and partially lowers again.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this, press
the switch concerned.
Always remove the key from the
ignition when leaving the vehicle, even
for a short time.
The driver must ensure that:
- no one is preventing correct closing of the
windows,
- the passengers use the electric windows correctly,
- children do not hinder the movement of the windows.
