2007.5 PEUGEOT 807 Owners Manual

S
O S SOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 # MENU LIST
TA
PTY
DARK
81
RT4

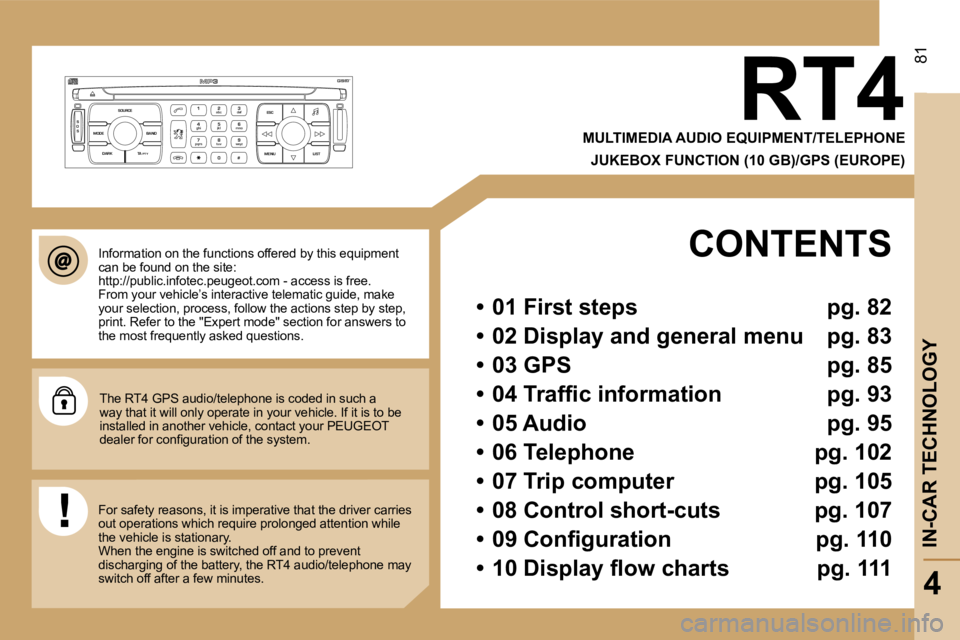

MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
Information on the functions offered by this equipm ent
can be found on the site:
http://public.infotec.peugeot.com - access is free.
From your vehicle’s interactive telematic guide, ma ke
your selection, process, follow the actions step by step,
print. Refer to the "Expert mode" section for answe rs to
the most frequently asked questions.
The RT4 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If i t is to be
installed in another vehicle, contact your PEUGEOT
dealer for configuration of the system.
For safety reasons, it is imperative that the drive r carries
out operations which require prolonged attention wh ile
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the RT4 audio/telephone may
switch off after a few minutes. CONTENTS
• 01 First steps pg. 82
• 02 Display and general menu pg. 83
• 03 GPS pg. 85
• 04 Traffic information pg. 93
• 05 Audio pg. 95
• 06 Telephone pg. 102
• 07 Trip computer pg. 105
• 08 Control short-cuts pg. 107
• 09 Configuration pg. 110
• 10 Display flow charts pg. 111
IN-CAR TECHNOLOGY
4

82

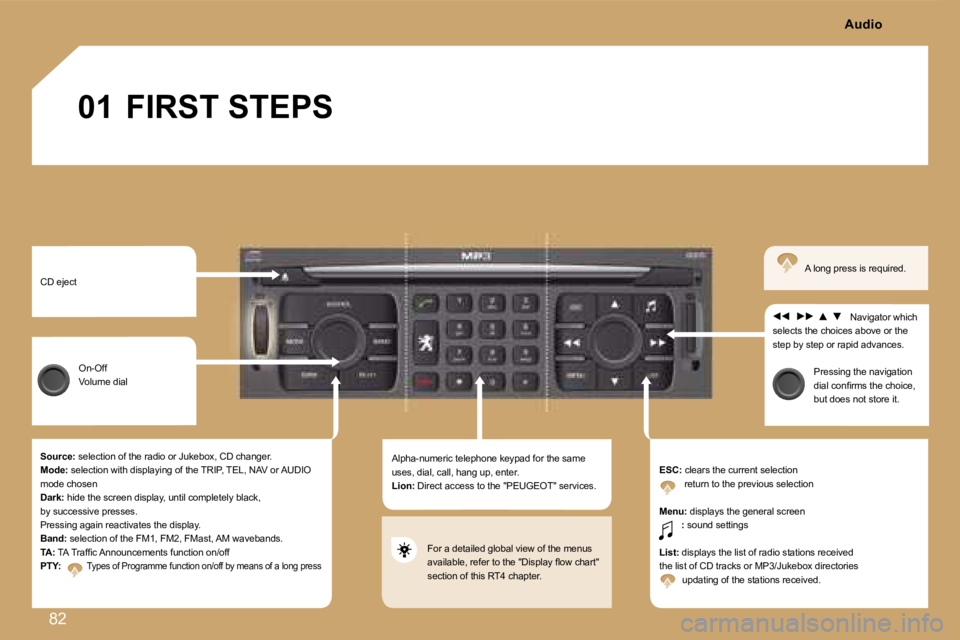

01 FIRST STEPS
CD eject On-Off
Volume dial
Source: selection of the radio or Jukebox, CD changer.
Mode: selection with displaying of the TRIP, TEL, NAV or AUDIO
mode chosen
Dark: hide the screen display, until completely black,
by successive presses.
Pressing again reactivates the display.
Band: selection of the FM1, FM2, FMast, AM wavebands.
TA: TA Traffic Announcements function on/off
PTY:
Types of Programme function on/off by means of a lo ng press
Alpha-numeric telephone keypad for the same
uses, dial, call, hang up, enter.
Lion: Direct access to the "PEUGEOT" services. ESC:
clears the current selection
return to the previous selection
Menu: displays the general screen
: sound settings
List: displays the list of radio stations received
the list of CD tracks or MP3/Jukebox directories
updating of the stations received. Navigator which
selects the choices above or the
step by step or rapid advances.
Pressing the navigation
dial confirms the choice,
but does not store it.
A long press is required.
For a detailed global view of the menus
available, refer to the "Display flow chart"
section of this RT4 chapter. Audio

02
83

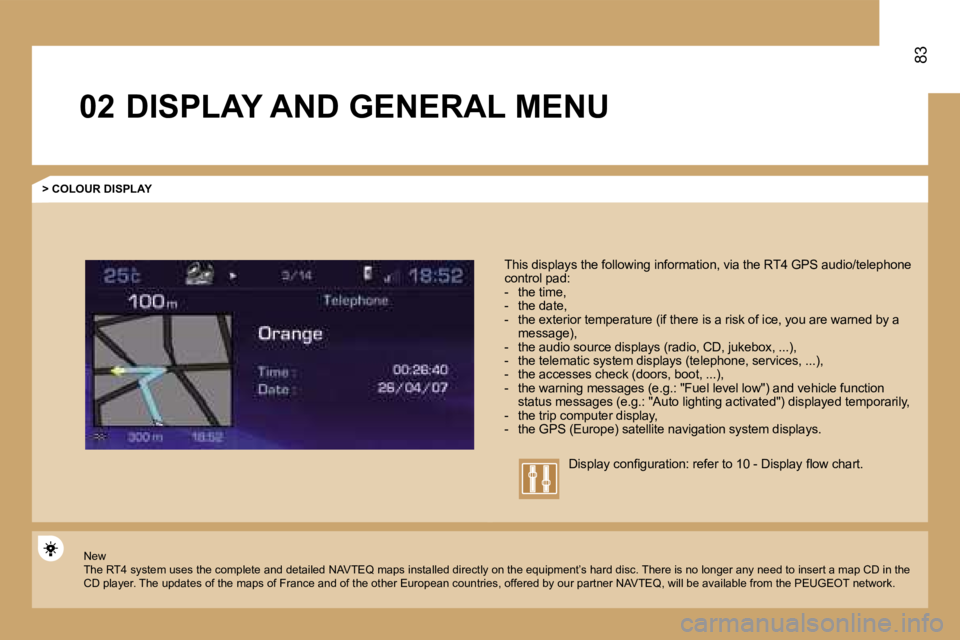

DISPLAY AND GENERAL MENU
> COLOUR DISPLAY
This displays the following information, via the RT4 GPS audio/telephone
control pad:
- the time,
- the date,
- the exterior temperature (if there is a risk of i ce, you are warned by a
message),
- the audio source displays (radio, CD, jukebox, .. .),
- the telematic system displays (telephone, service s, ...),
- the accesses check (doors, boot, ...),
- the warning messages (e.g.: "Fuel level low") and vehicle function
status messages (e.g.: "Auto lighting activated") d isplayed temporarily,
- the trip computer display,
- the GPS (Europe) satellite navigation system disp lays.
New
The RT4 system uses the complete and detailed NAVTEQ maps instal led directly on the equipment’s hard disc. There is no longer any need to insert a map CD in the
CD player. The updates of the maps of France and of the o ther European countries, offered by our partner NAVTEQ, will be available from the PEUGEOT network.
Display configuration: refer to 10 - Display flow chart.

84

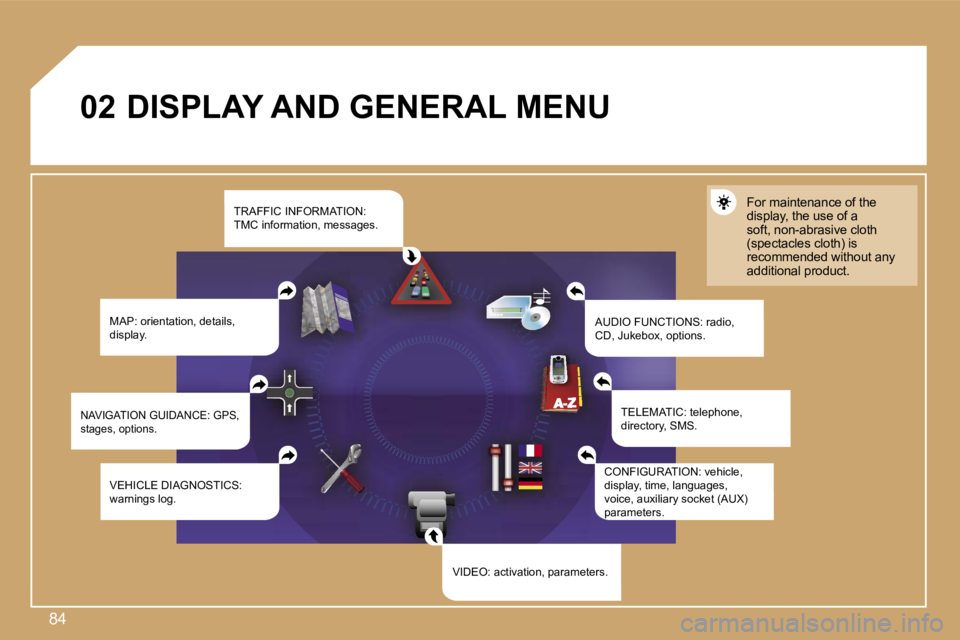

02 DISPLAY AND GENERAL MENUMAP: orientation, details,
display. AUDIO FUNCTIONS: radio,
CD, Jukebox, options.For maintenance of the
display, the use of a
soft, non-abrasive cloth
(spectacles cloth) is
recommended without any
additional product.
TELEMATIC: telephone,
directory, SMS.
CONFIGURATION: vehicle,
display, time, languages,
voice, auxiliary socket (AUX)
parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS:
warnings log.
NAVIGATION GUIDANCE: GPS,
stages, options.
TRAFFIC INFORMATION:
TMC information, messages.

MENUESCLIST
MENU
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
1
2
3 5
7
4 6
8
ESC
MENU LIST
ESC
MENU LIST
03
85
GPS
SELECTING A DESTINATION
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to confirm the selection.
Turn the dial and select the
DESTINATION CHOICE function. Press the dial to confirm the selection.
Press the dial to confirm the selection.
Turn the dial and select the ENTER
AN ADDRESS function.
When the country has been selected,
turn the dial and select the TOWN
function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE Tip: for a detailed global view of the menus availa
ble, refer to the "Display flow
charts" section of this RT4 chapter.

86
ESC
MENU LIST
2abc5jkl8tuv
3def6mno9wxyz
1 4ghi r7pq s0#
ESC
MENU LIST
9 12
14
10
13
ESC
MENU LIST
ESC
MENU LIST
11ESC
MENU LIST

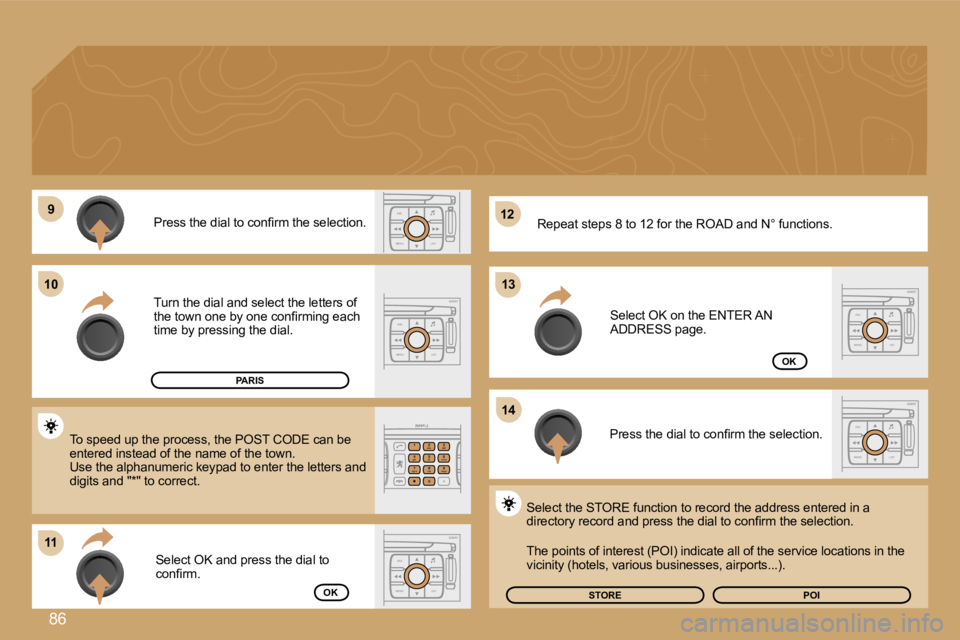

Press the dial to confirm the selection.
Turn the dial and select the letters of
the town one by one confirming each
time by pressing the dial.
Select OK and press the dial to
confirm.
To speed up the process, the POST CODE can be
entered instead of the name of the town.
Use the alphanumeric keypad to enter the letters an
d
digits and "*" to correct. Press the dial to confirm the selection.Select OK on the ENTER AN
ADDRESS page.
Repeat steps 8 to 12 for the ROAD and N° functions.
OK
OK
Select the STORE function to record the address ent
ered in a
directory record and press the dial to confirm the sel ection.
The points of interest (POI) indicate all of the se rvice locations in the
vicinity (hotels, various businesses, airports...).
STORE
PARIS
POI

ESCLIST
MENU
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
MENU1
2
3
4 5
6
7
8
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03
87

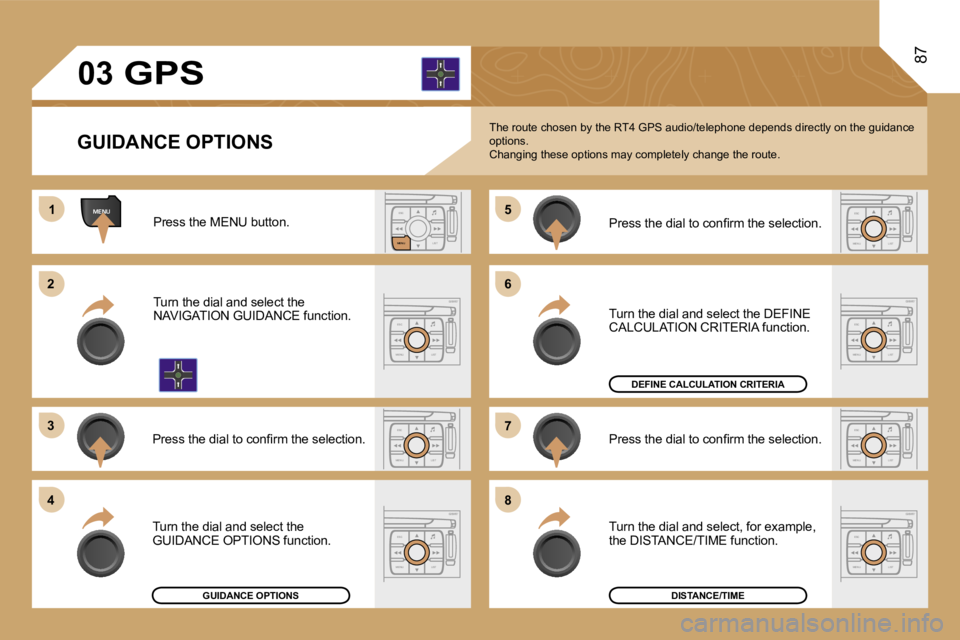

GUIDANCE OPTIONS
GPS
The route chosen by the RT4 GPS audio/telephone depends di rectly on the guidance
options.
Changing these options may completely change the route.
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to confirm the selection.
Turn the dial and select the
GUIDANCE OPTIONS function. Turn the dial and select the DEFINE
CALCULATION CRITERIA function.
Press the dial to confirm the selection.
Press the dial to confirm the selection.
GUIDANCE OPTIONSDISTANCE/TIME
DEFINE CALCULATION CRITERIA
Turn the dial and select, for example,
the DISTANCE/TIME function.

88
ESC
MENU LISTESC
MENU LIST
MENU9
10
11
12 1
2
3
4
5ESC LIST
MENU
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST

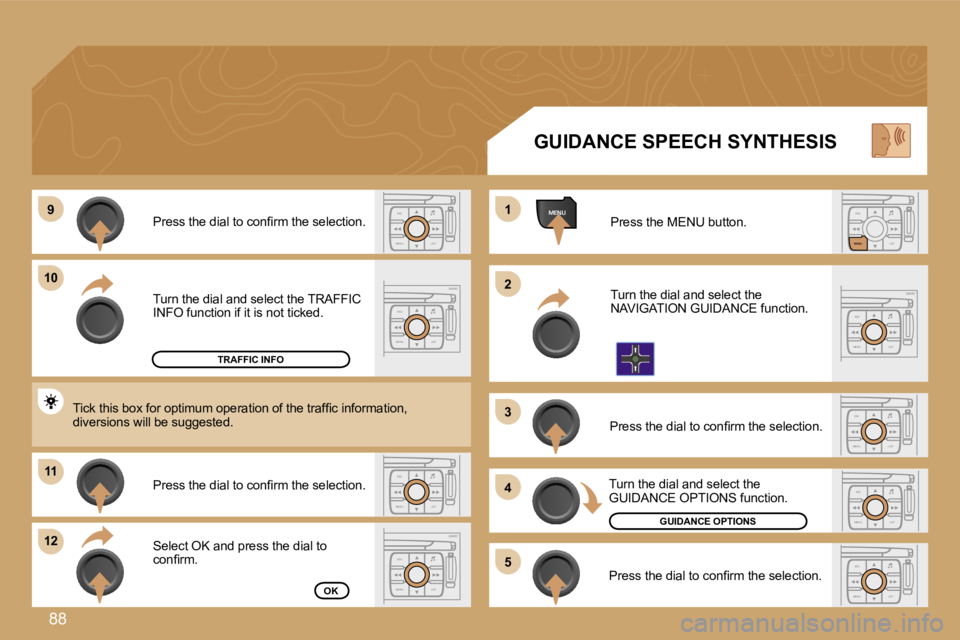

Turn the dial and select the TRAFFIC
INFO function if it is not ticked.
Press the dial to confirm the selection.
Select OK and press the dial to
confirm.
TRAFFIC INFO
Press the dial to confirm the selection.
Tick this box for optimum operation of the traffic in
formation,
diversions will be suggested.
OK GUIDANCE SPEECH SYNTHESIS
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to confirm the selection.
GUIDANCE OPTIONS
Turn the dial and select the
GUIDANCE OPTIONS function.
Press the dial to confirm the selection.
