2007.5 PEUGEOT 807 Owners Manual

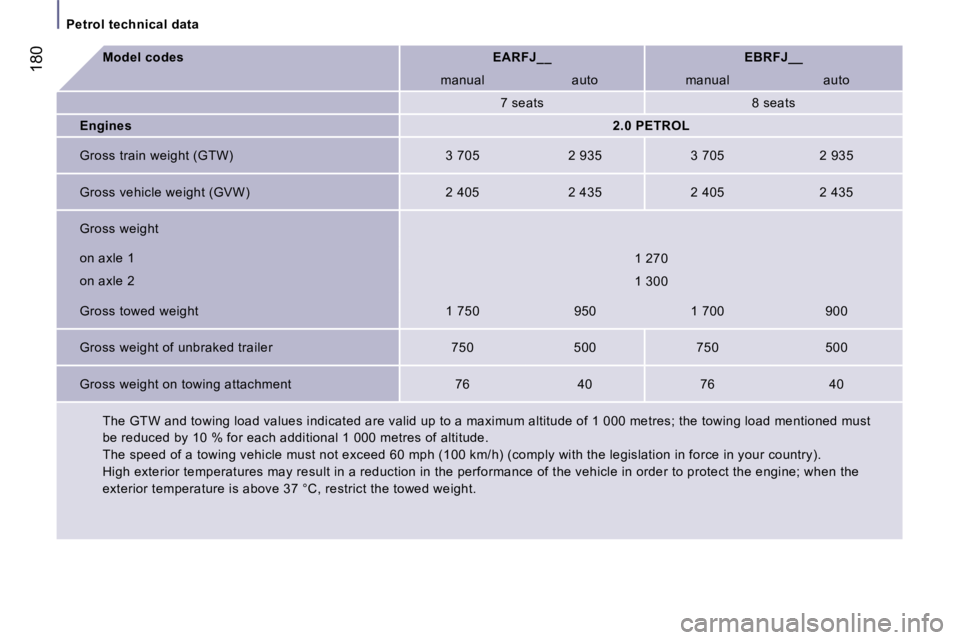

Petrol technical data
180Model codesEARFJ__ EBRFJ__
manual auto manual auto 7 seats 8 seats
Engines 2.0 PETROL
Gross train weight (GTW) 3 705 2 935 3 705 2 935
Gross vehicle weight (GVW) 2 405 2 435 2 405 2 435
Gross weight
on axle 1 1 270
on axle 2 1 300
Gross towed weight 1 750 950 1 700 900
Gross weight of unbraked trailer 750 500 750 500
Gross weight on towing attachment 76 40 76 40
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned must
be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reductio n in the performance of the vehicle in order to protect the engine; when the
exterior temperature is above 37 °C, restrict the t owed weight.

183
Diesel technical data
TECHNICAL DATA
9
DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS
(in mm - in kg)
Model codes EARHKH EBRHKH EARHRH EBRHRH
7 seats 8 seats 7 seats 8 seats
Engines 2.0 HDi 2.0 HDi FAP
Wheelbase(s) (at full load) 2 823
on Axle 1 1 570
on Axle 2 1 548
Length 4 727
Width 1 850
Height at kerb weight
without roof bars 1 745 to 1 759
with fixed roof bars 1 854 to 1 863
Kerb weight
1 846 to 1 9491 811 to 1 9761 854 to 1 9571 818 to 1 983
on Axle 1 1 117 to 1 1531 114 to 1 1581 121 to 1 1571 117 to 1 161
on Axle 2 729 to 796 697 to 818 733 to 800 701 to 822

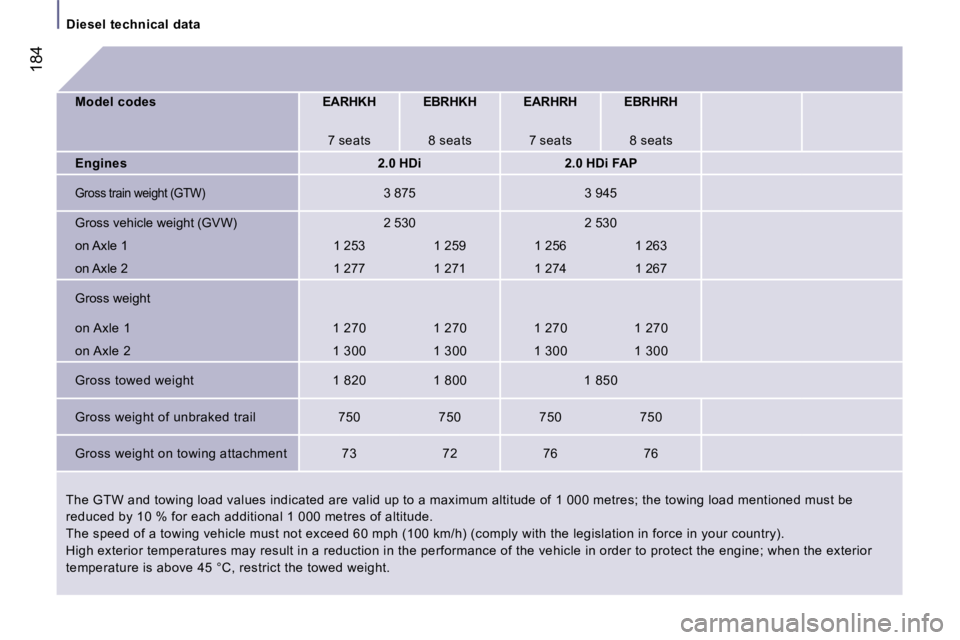

Diesel technical data
184
Model codes EARHKH EBRHKH EARHRH EBRHRH7 seats 8 seats 7 seats 8 seats
Engines 2.0 HDi 2.0 HDi FAP
Gross train weight (GTW)3 875 3 945
Gross vehicle weight (GVW) 2 530 2 530
on Axle 1 1 253 1 259 1 256 1 263
on Axle 2 1 277 1 271 1 274 1 267
Gross weight
on Axle 1 1 270 1 270 1 270 1 270
on Axle 2 1 300 1 300 1 300 1 300
Gross towed weight 1 820 1 800 1 850
Gross weight of unbraked trail 750 750 750 750
Gross weight on towing attachment 73 72 76 76
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned must be
reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reductio n in the performance of the vehicle in order to protect the engine; when the exterior
temperature is above 45 °C, restrict the towed weig ht.

185

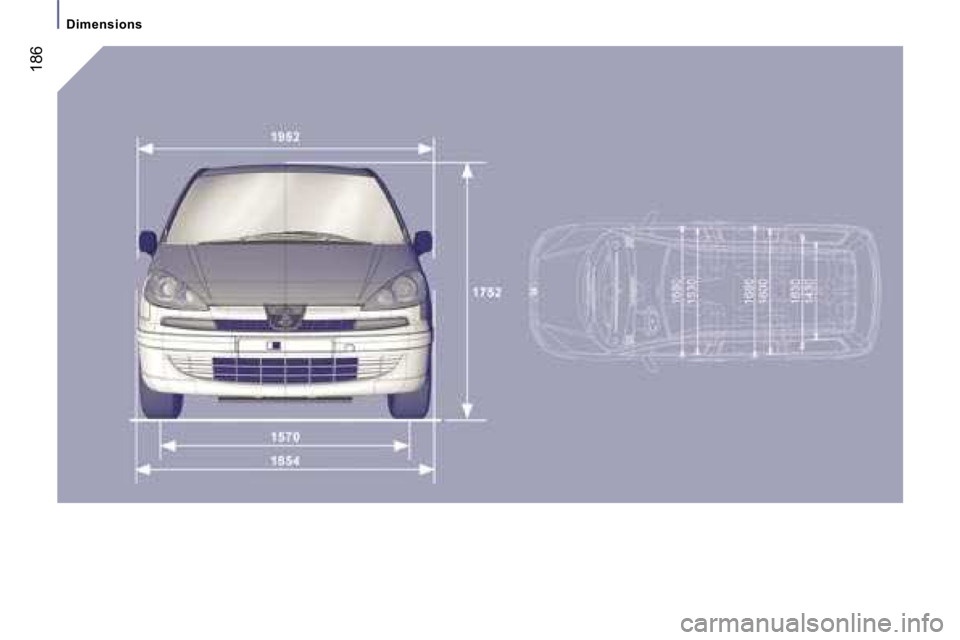

Dimensions
TECHNICAL DATA
9

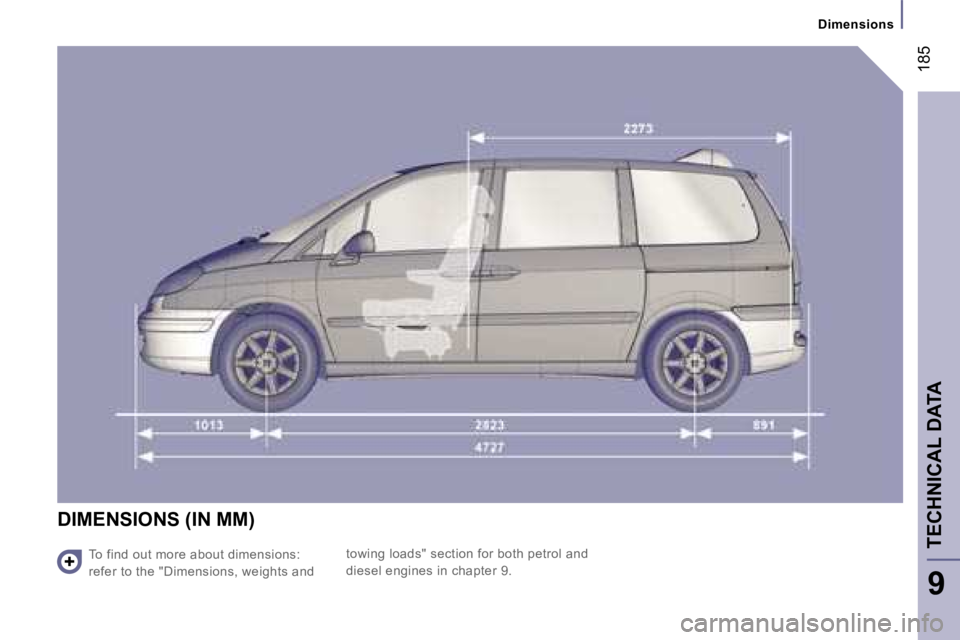

DIMENSIONS (IN MM)

To find out more about dimensions:
refer to the "Dimensions, weights and towing loads" section for both petrol and
diesel engines in chapter 9.

Dimensions
186

187

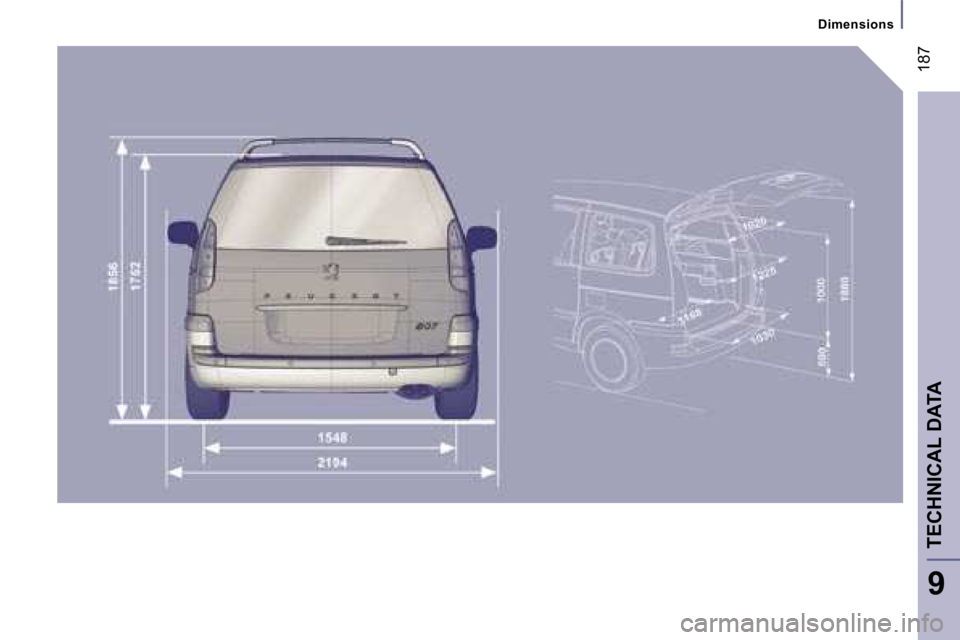

Dimensions
TECHNICAL DATA
9
