2007.5 Peugeot 807 Dag Owner's Manual

ERGONOMICS and COMFORT57
3
3 - Driver's seat height adjustment
Manoeuvre the handle upwards or
downwards until the desired position is
reached.
4 - Driver's seat lumbar adjustment
Move the lever up or down to obtain the
required position.5 - Head restraint height and angle
adjustment
To raise or lower the restraint, pull it
forwards, then slide it.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove it, set it in the high position, lift
the tab using a coin and pull upwards and
forwards at the same time.
To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back. 6 - Rotating of seats
If your vehicle is fitted with this function:
Place the seat back in the upright position.
Place the seat in the highest intermediate
longitudinal position.
On the driver's side, push the steering
wheel, apply the handbrake. To allow
rotation of the seat, lower the handbrake
handle pulling on the end.
Pull the control upwards and rotate the seat
inwards.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted. This rotating operation must be carried
out with the engine switched off.
The
handbrake, the lever of which is now in the
lower position, remains applied.
Do not forget to raise the lever and release
the brake before setting off.
Driving with a passenger seated facing the
rear is prohibited. For further information regarding the
disengaging of the handbrake, refer to
the "Driving Safety" section of chapter 5.
Seats

Seats

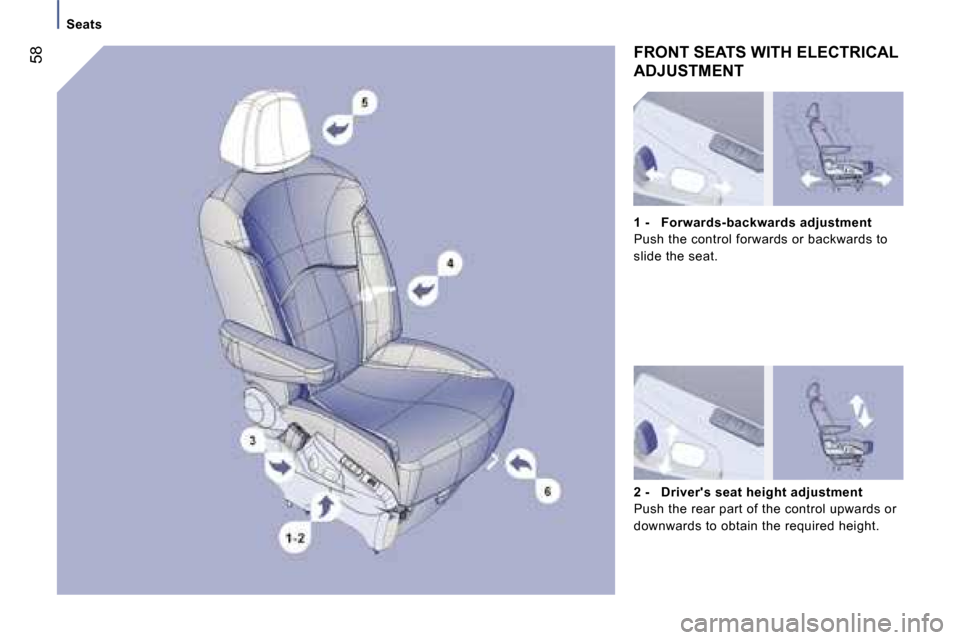

58FRONT SEATS WITH ELECTRICAL
ADJUSTMENT
2 - Driver's seat height adjustment
Push the rear part of the control upwards or
downwards to obtain the required height.
1 - Forwards-backwards adjustment
Push the control forwards or backwards to
slide the seat.

ERGONOMICS and COMFORT59
3
3 - Seat back angle adjustment
Tilt the control to the front or the rear to
obtain the angle required.
The electrical functions of the seats are
cancelled one minute after the ignition
has been switched off.
4 - Driver's seat lumbar adjustment (mechanical)
Raise or lower the lever to obtain the correct
position. 5 - Head restraint height and angle
adjustment (manual)
To raise or lower the head restraint, pull it
forwards, then slide it.
The setting is correct when the upper edge
of the head restraint is level with the top of
the head.
To remove the head restraint, place it in the
high position, lift the tab using a coin and
pull upwards and forwards at the same time.
To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
6 - Rotating of seats (mechanical)
Place the seat back in the upright position.
Place the seat in the highest intermediate
longitudinal position.
On the driver's side, push the steering
wheel, apply the handbrake. To allow
rotation of the seat, lower the handbrake
handle pulling on the end.
Pull the control upwards and rotate the seat
inwards.
This rotating operation must be carried
out with the engine switched off. The
handbrake, the lever of which is now in
the lower position, remains applied. Do not
forget to raise the lever and release the
brake before setting off.
Driving with a passenger seated facing the
rear is prohibited. For further information regarding the
disengaging of the handbrake, refer to
the "Driving safety" section of chapter 5.
Seats

Seats
60
Memorising seat positions
Two driving positions can be memorised,
using buttons M/1 and M/2.
These are located on the side of the seat: Place the ignition key in the "running"
position (2nd notch),
 Adjust your seat,
 Press button M, then button 1 for a first
driving position within four seconds.
Repeat the same actions on buttons M and
2 to store another driving position.
An audible signal confirms that a position
has been memorised.
Memorising a new position cancels the
previous one. Activating a memorised driving
position
Engine off 
Briefly press button 1 or 2 to recall the
corresponding memorised position. Front heated seat controls
When the engine is running, the front seats
can be heated separately.
Use the adjustment controls located on the
side of each front seat to switch on and
select the self-regulated level of heating:
1:
Low.
2: Medium.
3: High.
0: Off.
After recalling a memorised position
five times in succession, the function
will be cancelled until the engine is started.
Engine running  Keep button 1 or 2 pressed down until
the end of setting of the corresponding
memorised position.

ERGONOMICS and COMFORT61
3
Rear side seats
Two rear passenger seats, left and right side posit
ion, rows 2 and 3.Rear centre seat
One rear passenger seat, row 2 central position and
row 3 left side
position. Integrated seat belt. Plastic shell trim. Folds to the low
table position.
Rear bench seat
One three-seat bench seat, row 3. Pullman seat
Equipment dedicated to the special version of the 8
07.
Four rear passenger seats with armrests.
Side position, rows 2 and 3. Seats

Seats
62
REAR SIDE SEATS
Forwards/backwards adjustment
Lift bar A and slide the seat forwards or
backwards.
Adjusting the angle of the seat back
Push lever B upwards and adjust the angle
as required.
Release the lever to lock. cushion and guide the tilting of the seat
back forwards until the rear anchorages
are unlocked. If you experience any
difficulty, use the emergency control to
unlock the anchorages.
4 - Place the seat in the vertical closed
position.
Exit from row 3
1 - Place the head restraint in the low
position.
2 - Pull control C.
3 - Guide the tilting of the seat back
forwards until the rear anchorages
are unlocked. If you experience any
difficulty, use the red emergency control
to unlock the anchorages. 4 -
Place the seat in the vertical closed
position.
Following each entry or exit, reposition
the raised seat guiding it until the rear
anchorages lock in their rails.
Handling the side seat
Access to row 3
1 - Place the head restraint in the low
position.
2 - Push lever B upwards as far as
possible.
3 - Fold the seat back onto the seat

ERGONOMICS and COMFORT63
3
Control for sliding the rear side seats
from row 3 or the boot
Pull the strap (marked with the arrow
symbol) to slide the seat in front of you.Removing the side seat
1 -
Tilt the seat back forwards to detach the
rear anchorages.
2 - Grab the red strap which appears and
pull it upwards, the front anchorages
unlock.
Refitting the side seat 3 -
The strap, like the handle, enables you
to remove the seat.
1 - Place the front anchorages at the front
stop in the slides. Support the strap
firmly for easier positioning of the seat.
2 - Tilt the folded seat towards the rear.
The rear anchorages lock.
3 - Raise the seat back.
4 - Slide the seat.
Check that there is no obstacle
obstructing the slides or preventing
correct locking of the seat anchorages.
Seats

Seats
64
ROW 2 CENTRE SEAT
This can be placed in row 3, on the left."Low table" position
1 -
Place the head restraint in the low
position.
2 - At the top (at the back of the seat), lift
the handle identified by the symbol
and guide the tilting of the seat back
towards its seat cushion. 3 -
You have a "low table". To return to the
seat position, lift the handle and guide
the raising of the seat back.
Removing the centre seat
1 - Place the seat in the "low table"
position.
2 - Using the control which you pull, tilt the
seat back forwards so releasing the rear
anchorages from the slides. 3 -
Grab the red strap which appears and
pull it upwards, the front anchorages
unlock.
4 - The strap, like the handle, enables you
to remove the seat.
