2007.5 Peugeot 807 Dag Owner's Manual

Petrol technical data

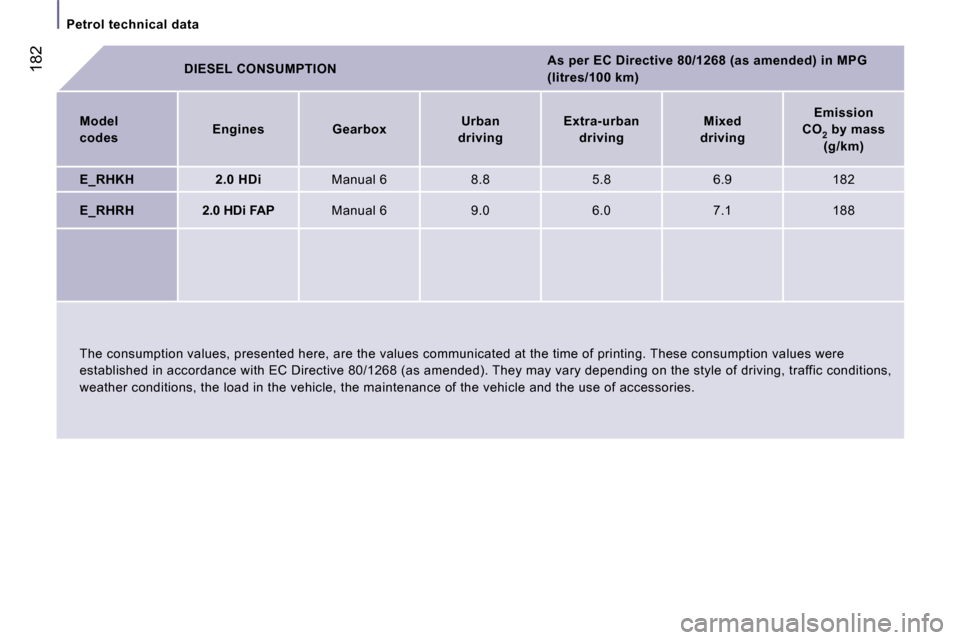

182DIESEL CONSUMPTIONAs per EC Directive 80/1268 (as amended) in MPG
(litres/100 km)
Model
codes Engines Gearbox Urban
driving Extra-urban
driving Mixed
driving Emission
CO 2 by mass
(g/km)
E_RHKH 2.0 HDi Manual 6 8.8 5.8 6.9 182
E_RHRH 2.0 HDi FAP Manual 6 9.0 6.0 7.1 188
The consumption values, presented here, are the val ues communicated at the time of printing. These consumption values were
established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style of driving, traffic conditions,
weather conditions, the load in the vehicle, the ma intenance of the vehicle and the use of accessories .

179
Environment
TECHNICAL DATA
9

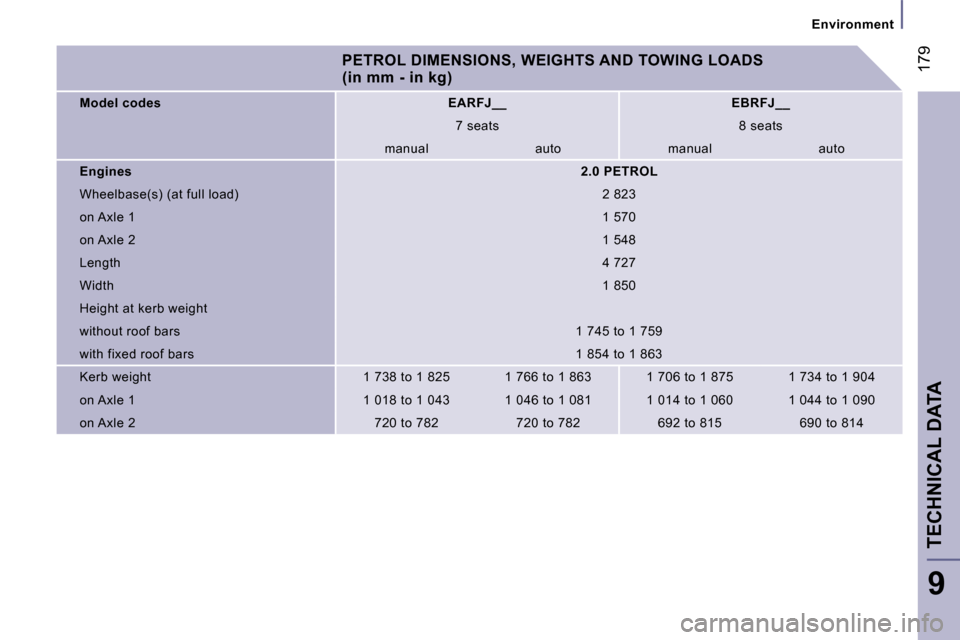

PETROL DIMENSIONS, WEIGHTS AND TOWING LOADS
(in mm - in kg)
Model codes EARFJ__EBRFJ__
7 seats 8 seats
manual auto manual auto
Engines 2.0 PETROL
Wheelbase(s) (at full load) 2 823
on Axle 1 1 570
on Axle 2 1 548
Length 4 727
Width
1 850
Height at kerb weight
without roof bars 1 745 to 1 759
with fixed roof bars 1 854 to 1 863
Kerb weight 1 738 to 1 825 1 766 to 1 863 1 706 to 1 875 1 734 to 1 904
on Axle 1 1 018 to 1 043 1 046 to 1 081 1 014 to 1 060 1 044 to 1 090
on Axle 2 720 to 782 720 to 782 692 to 815 690 to 814

Environment

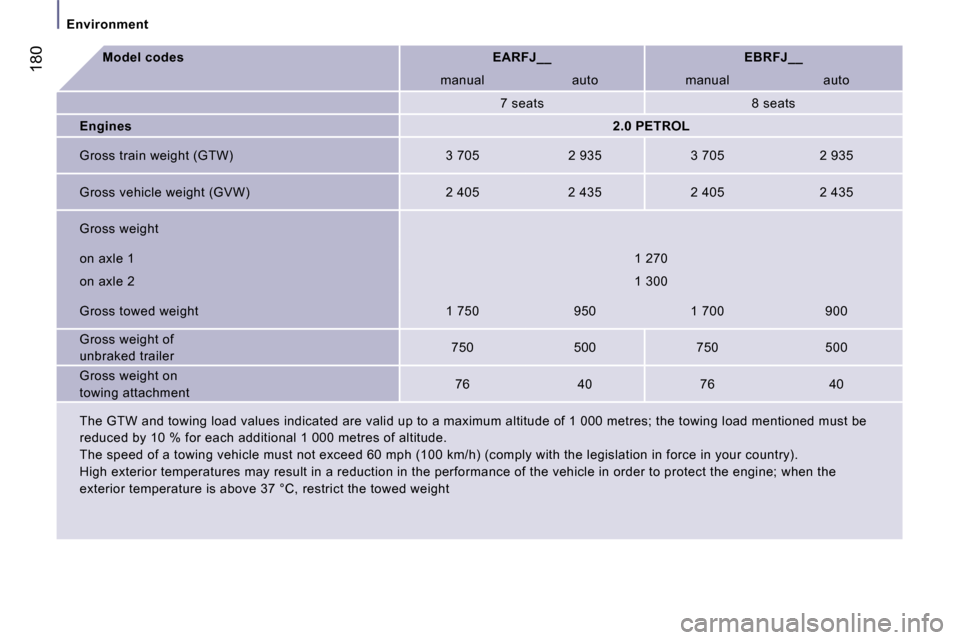

180Model codesEARFJ__ EBRFJ__
manual auto manual auto
7 seats 8 seats
Engines
2.0 PETROL
Gross train weight (GTW) 3 705 2 935 3 705 2 935
Gross vehicle weight (GVW) 2 405 2 435 2 405 2 435
Gross weight
on axle 1 1 270
on axle 2 1 300
Gross towed weight 1 750 950 1 700 900
Gross weight of
unbraked trailer 750 500 750 500
Gross weight on
towing attachment 76 40 76 40
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned must be
reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reductio n in the performance of the vehicle in order to protect the engine; when the
exterior temperature is above 37 °C, restrict the t owed weight

183
Petrol technical data
TECHNICAL DATA
9

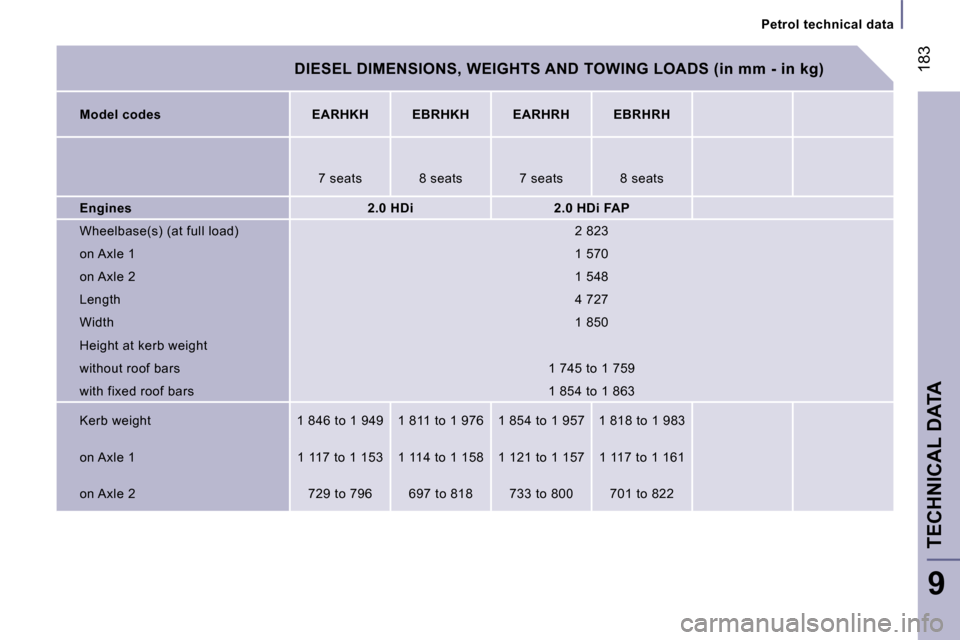

DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)
Model codes EARHKH EBRHKH EARHRH EBRHRH
7 seats 8 seats 7 seats 8 seats
Engines 2.0 HDi 2.0 HDi FAP
Wheelbase(s) (at full load) 2 823
on Axle 1 1 570
on Axle 2 1 548
Length 4 727
Width 1 850
Height at kerb weight
without roof bars 1 745 to 1 759
with fixed roof bars 1 854 to 1 863
Kerb weight 1 846 to 1 949 1 811 to 1 976 1 854 to 1 9 57 1 818 to 1 983
on Axle 1 1 117 to 1 153 1 114 to 1 158 1 121 to 1 157 1 117 to 1 161
on Axle 2 729 to 796 697 to 818 733 to 800 701 to 822

Petrol technical data
184

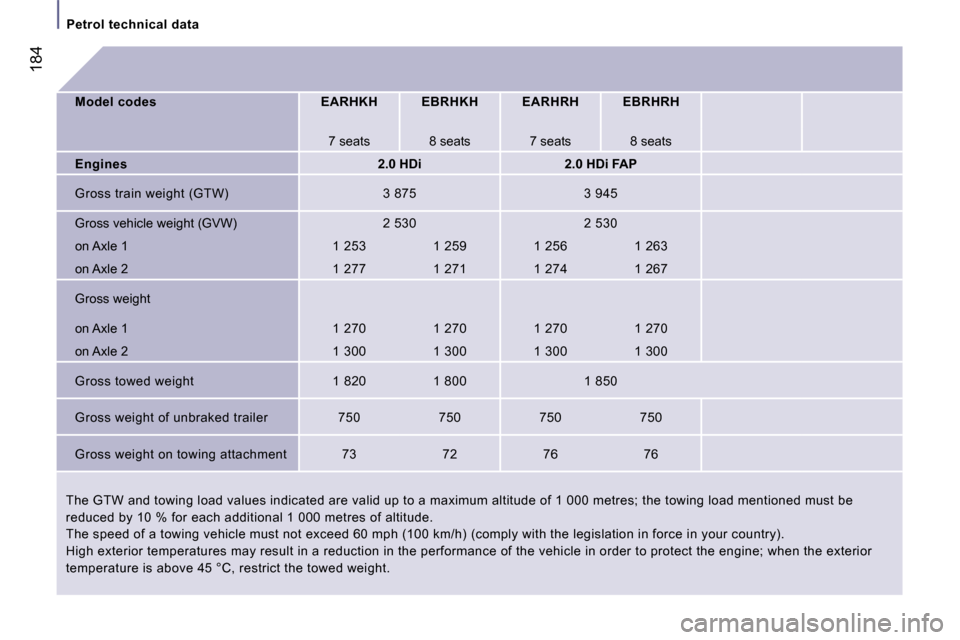

Model codes EARHKH EBRHKH EARHRH EBRHRH7 seats 8 seats 7 seats 8 seats
Engines 2.0 HDi 2.0 HDi FAP
Gross train weight (GTW) 3 875 3 945
Gross vehicle weight (GVW) 2 530 2 530
on Axle 1 1 253 1 259 1 256 1 263
on Axle 2 1 277 1 271 1 274 1 267
Gross weight
on Axle 1 1 270 1 270 1 270 1 270
on Axle 2 1 300 1 300 1 300 1 300
Gross towed weight 1 820 1 800 1 850
Gross weight of unbraked trailer 750 750 750 750
Gross weight on towing attachment 73 72 76 76
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned must be
reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reductio n in the performance of the vehicle in order to protect the engine; when the exterior
temperature is above 45 °C, restrict the towed weig ht.

185
Dimensions
TECHNICAL DATA
9

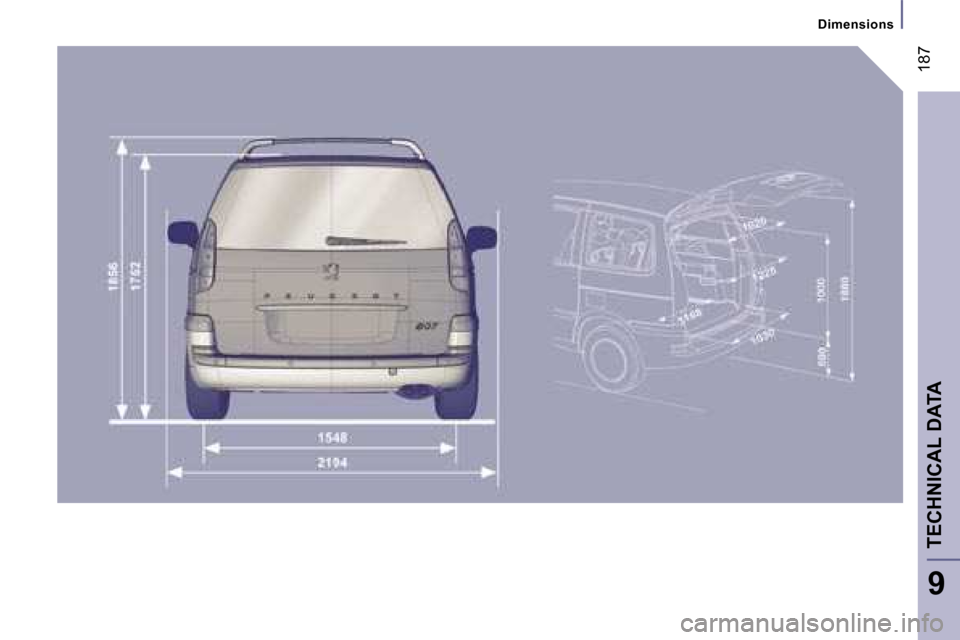

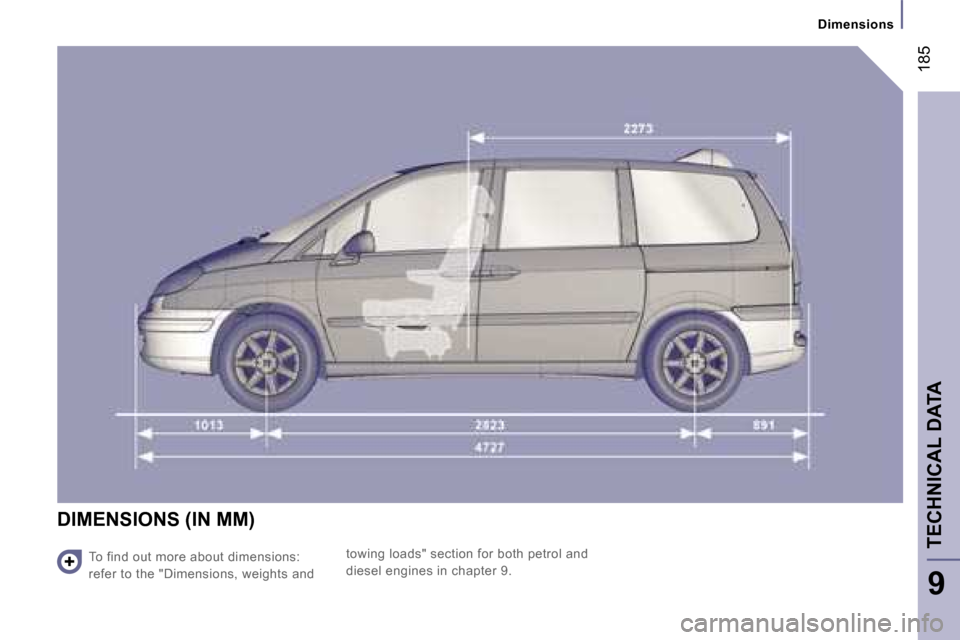

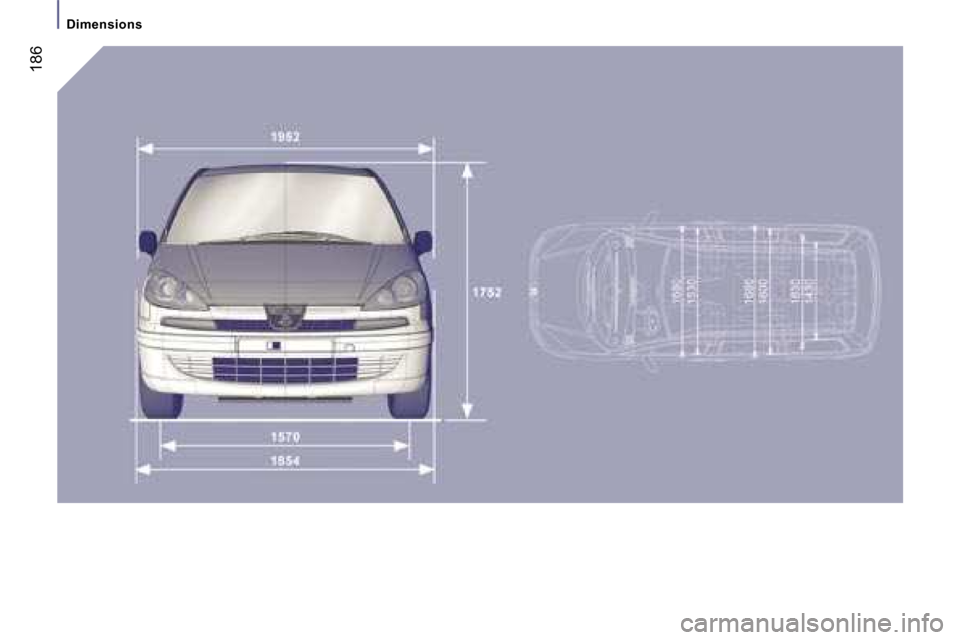

DIMENSIONS (IN MM)
To find out more about dimensions:
refer to the "Dimensions, weights and
towing loads" section for both petrol and
diesel engines in chapter 9.

Dimensions
186

187
Dimensions
TECHNICAL DATA
9
