2007.5 Peugeot 807 Dag Owner's Manual

167
Changing a bulb
TROUBLESHOOTING
8

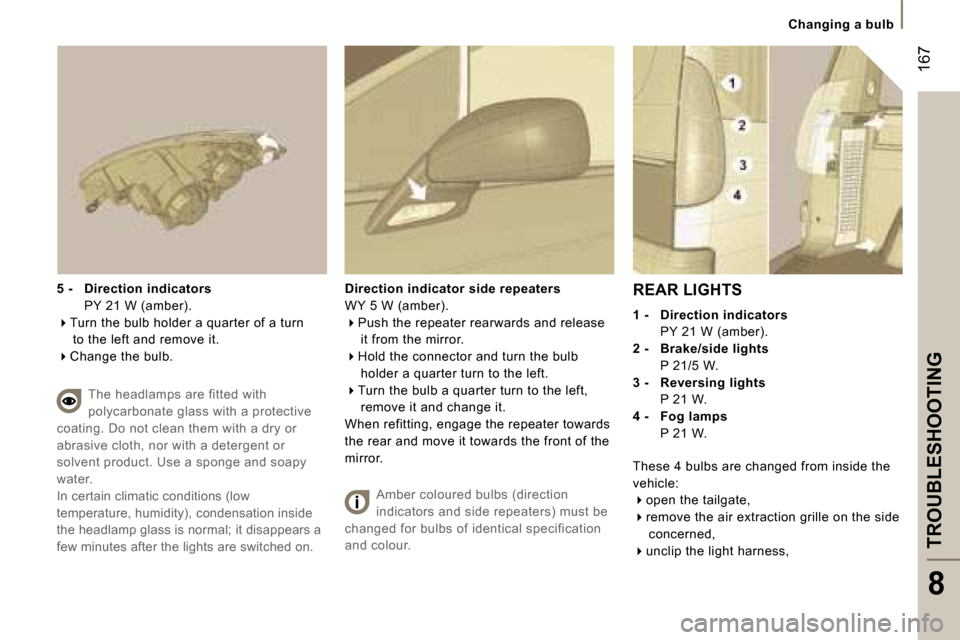

REAR LIGHTS
1 - Direction indicators
PY 21 W (amber).
2 - Brake/side lights
P 21/5 W.
3 - Reversing lights
P 21 W.
4 - Fog lamps
P 21 W.
These 4 bulbs are changed from inside the
vehicle: open the tailgate,
 remove the air extraction grille on the side
concerned,
 unclip the light harness,
5 - Direction indicators

PY 21 W (amber).
 Turn the bulb holder a quarter of a turn
to the left and remove it.
 Change the bulb.
The headlamps are fitted with
polycarbonate glass with a protective
coating. Do not clean them with a dry or
abrasive cloth, nor with a detergent or
solvent product. Use a sponge and soapy
water.
In certain climatic conditions (low
temperature, humidity), condensation inside
the headlamp glass is normal; it disappears a
few minutes after the lights are switched on.
Direction indicator side repeaters
WY 5 W (amber). Push the repeater rearwards and release
it from the mirror.
 Hold the connector and turn the bulb
holder a quarter turn to the left.
 Turn the bulb a quarter turn to the left,
remove it and change it.
When refitting, engage the repeater towards
the rear and move it towards the front of the
mirror.
Amber coloured bulbs (direction
indicators and side repeaters) must be
changed for bulbs of identical specification
and colour.

167
Changing a bulb
TROUBLESHOOTING
8
REAR LIGHTS
1 - Direction indicators
PY 21 W (amber).
2 - Brake/side lights
P 21/5 W.
3 - Reversing lights
P 21 W.
4 - Fog lamps
P 21 W.
These 4 bulbs are changed from inside the
vehicle: open the tailgate,
 remove the air extraction grille on the side
concerned,
 unclip the light harness,
5 - Direction indicators

PY 21 W (amber).
 Turn the bulb holder a quarter of a turn
to the left and remove it.
 Change the bulb.
The headlamps are fitted with
polycarbonate glass with a protective
coating. Do not clean them with a dry or
abrasive cloth, nor with a detergent or
solvent product. Use a sponge and soapy
water.
In certain climatic conditions (low
temperature, humidity), condensation inside
the headlamp glass is normal; it disappears a
few minutes after the lights are switched on.
Direction indicator side repeaters
WY 5 W (amber). Push the repeater rearwards and release
it from the mirror.
 Hold the connector and turn the bulb
holder a quarter turn to the left.
 Turn the bulb a quarter turn to the left,
remove it and change it.
When refitting, engage the repeater towards
the rear and move it towards the front of the
mirror.
Amber coloured bulbs (direction
indicators and side repeaters) must be
changed for bulbs of identical specification
and colour.

Changing a bulb
168

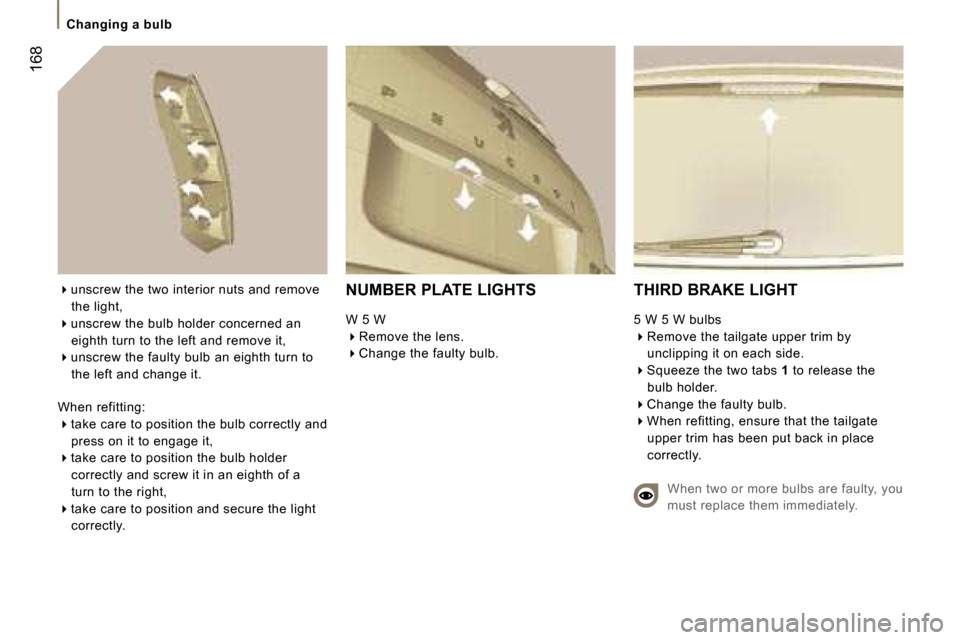

NUMBER PLATE LIGHTS
W 5 W Remove the lens.
 Change the faulty bulb. THIRD BRAKE LIGHT
5 W 5 W bulbs

 Remove the tailgate upper trim by
unclipping it on each side.
 Squeeze the two tabs 1 to release the
bulb holder.
 Change the faulty bulb.
 When refitting, ensure that the tailgate
upper trim has been put back in place
correctly.

unscrew the two interior nuts and remove
the light,
 unscrew the bulb holder concerned an
eighth turn to the left and remove it,
 unscrew the faulty bulb an eighth turn to
the left and change it.
When refitting:
 take care to position the bulb correctly and
press on it to engage it,
 take care to position the bulb holder
correctly and screw it in an eighth of a
turn to the right,
 take care to position and secure the light
correctly.
When two or more bulbs are faulty, you
must replace them immediately.

169
Changing a fuse
TROUBLESHOOTING
8

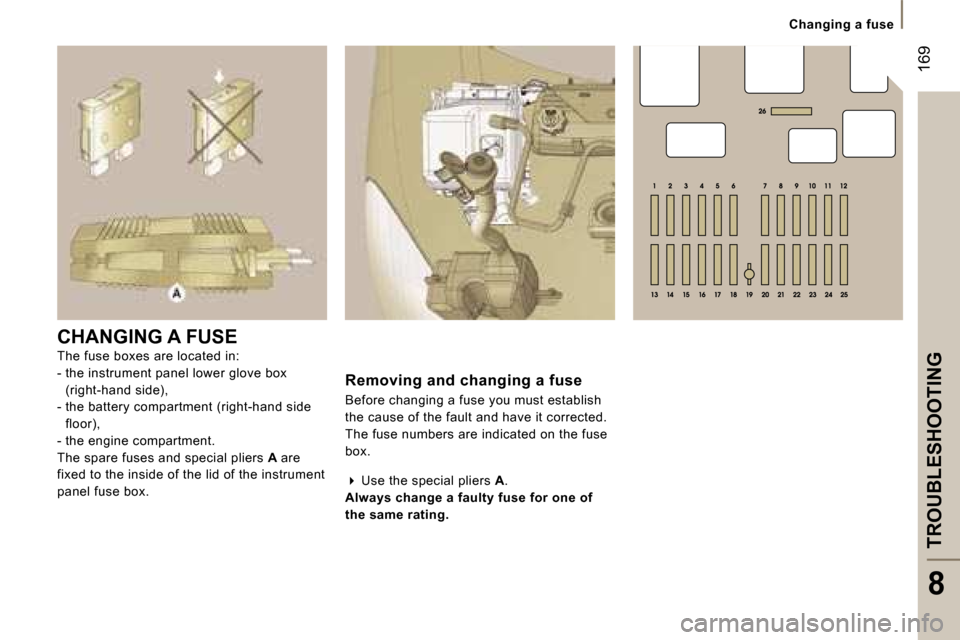

CHANGING A FUSE
The fuse boxes are located in:
- the instrument panel lower glove box
(right-hand side),
- the battery compartment (right-hand side floor),
- the engine compartment.
The spare fuses and special pliers A are
fixed to the inside of the lid of the instrument
panel fuse box. Removing and changing a fuse
Before changing a fuse you must establish
the cause of the fault and have it corrected.
The fuse numbers are indicated on the fuse
box.

Use the special pliers A.
Always change a faulty fuse for one of
the same rating.

Changing a fuse

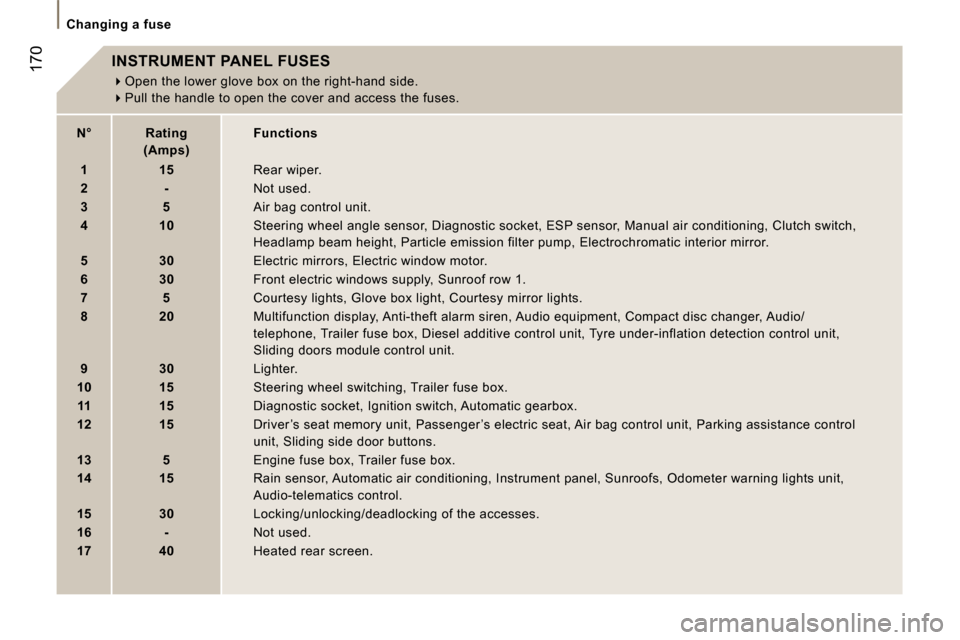

170INSTRUMENT PANEL FUSES Open the lower glove box on the right-hand side.
 Pull the handle to open the cover and access the fu ses.
N° Rating (Amps) Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manual air conditioning, Clutch switch,
Headlamp beam height, Particle emission filter pump , Electrochromatic interior mirror.
5 30 Electric mirrors, Electric window motor.
6 30 Front electric windows supply, Sunroof row 1.
7 5 Courtesy lights, Glove box light, Courtesy mirror l ights.
8 20 Multifunction display, Anti-theft alarm siren, Audi o equipment, Compact disc changer, Audio/
telephone, Trailer fuse box, Diesel additive contro l unit, Tyre under-inflation detection control unit,
Sliding doors module control unit.
9 30 Lighter.
10 15 Steering wheel switching, Trailer fuse box.
11 15 Diagnostic socket, Ignition switch, Automatic gearb ox.
12 15 Driver ’s seat memory unit, Passenger ’s electric sea t, Air bag control unit, Parking assistance control
unit, Sliding side door buttons.
13 5 Engine fuse box, Trailer fuse box.
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Sunroofs, Odometer warning lights unit,
Audio-telematics control.
15 30 Locking/unlocking/deadlocking of the accesses.
16 - Not used.
17 40 Heated rear screen.

171
Changing a fuse
TROUBLESHOOTING
8
BATTERY COMPARTMENT FUSES
Fuse box
The fuses are located in the battery
compartment, housed underneath the floor
in front of the seat on the right-hand side: unclip the cover.
Carefully close the cover when you have
finished.

Changing a fuse
172

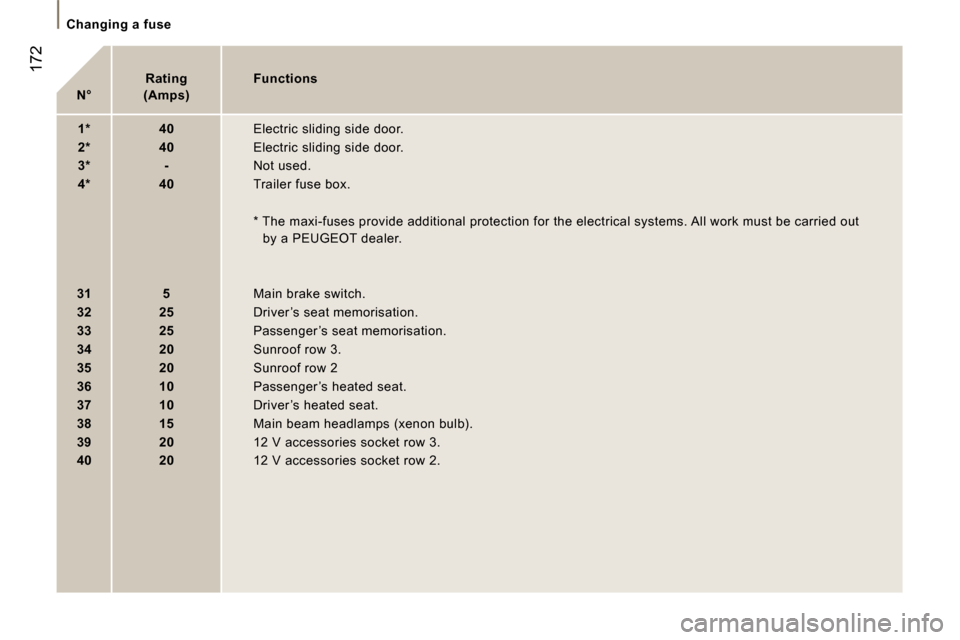

N°Rating
(Amps) Functions
1* 40 Electric sliding side door.
2* 40 Electric sliding side door.
3* - Not used.
4* 40 Trailer fuse box.
* The maxi-fuses provide additional protection for the electrical systems. All work must be carried o ut
by a PEUGEOT dealer.
31 5 Main brake switch.
32 25 Driver ’s seat memorisation.
33 25 Passenger ’s seat memorisation.
34 20 Sunroof row 3.
35 20 Sunroof row 2
36 10 Passenger ’s heated seat.
37 10 Driver ’s heated seat.
38 15 Main beam headlamps (xenon bulb).
39 20 12 V accessories socket row 3.
40 20 12 V accessories socket row 2.

173
Changing a fuse
TROUBLESHOOTING
8
The electrical system of your vehicle is
designed to operate with standard or
optional equipment.
Before installing other electrical equipment
or accessories on your vehicle, contact a
PEUGEOT dealer.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular where the
equipment in question consumes more than
10 milliamperes.

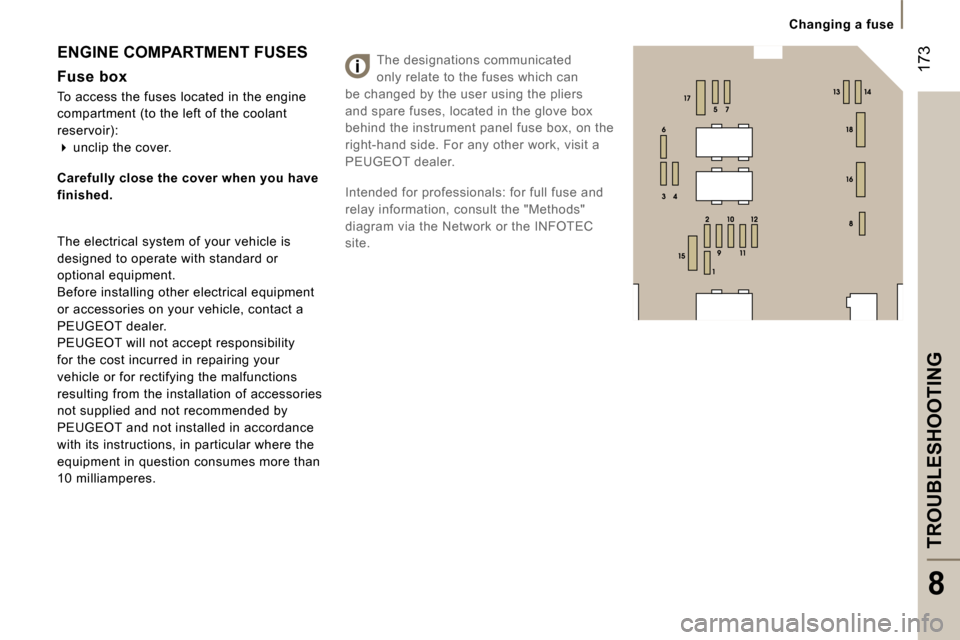

ENGINE COMPARTMENT FUSES
Fuse box
To access the fuses located in the engine
compartment (to the left of the coolant
reservoir):
unclip the cover.
Carefully close the cover when you have
finished.
The designations communicated
only relate to the fuses which can
be changed by the user using the pliers
and spare fuses, located in the glove box
behind the instrument panel fuse box, on the
right-hand side. For any other work, visit a
PEUGEOT dealer.
Intended for professionals: for full fuse and
relay information, consult the "Methods"
diagram via the Network or the INFOTEC
site.
