2007.5 Peugeot 807 Dag Owner's Manual

Instruments and controls
READY to SET OFF27
2
Warning light is indicates Solution - action
ESP/ASR flashing. wheel skid avoided.
The system optimises drive and permits improvement
of the
directional stability of the vehicle. Chapter 5, "D riving safety"
section.
remaining on. system malfunction. E.g.: under-
inflation of the tyres. Check the pressure of the tyres. Call a PEUGEOT dea
ler.
remaining on with
the button (below
the steering wheel
on the left) pressed. deactivation of the system.
Operation of the system is deactivated. Chapter 5,
"Driving
safety" section.
Diesel pre-heating lit.climatic conditions requiring pre-
heating. Wait until the warning light is switched off before
operating the
starter.
Dipped
headlamps/
Daytime lights litmanual selection or automatic
lighting.
Rotate the ring on the lights stalk to the second p
osition.
lighting of the dipped headlamps from
the time the ignition is switched on
- daytime lights. Depending on the
country in which the vehicle is sold. Chapter 3, "Steering wheel controls" section.
Main beam
headlamps pulling of the stalk towards you. Pull the stalk to
return to dipped headlamps.
Direction
indicators flashing with
buzzer.change of direction via the lights
stalk, to the left of the steering
wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.
opening of the driver ’s door with the
lights still on.
Rotate the ring on the lights stalk to position 0.
and with an audible
signal, ignition off.

Instruments and controls
28

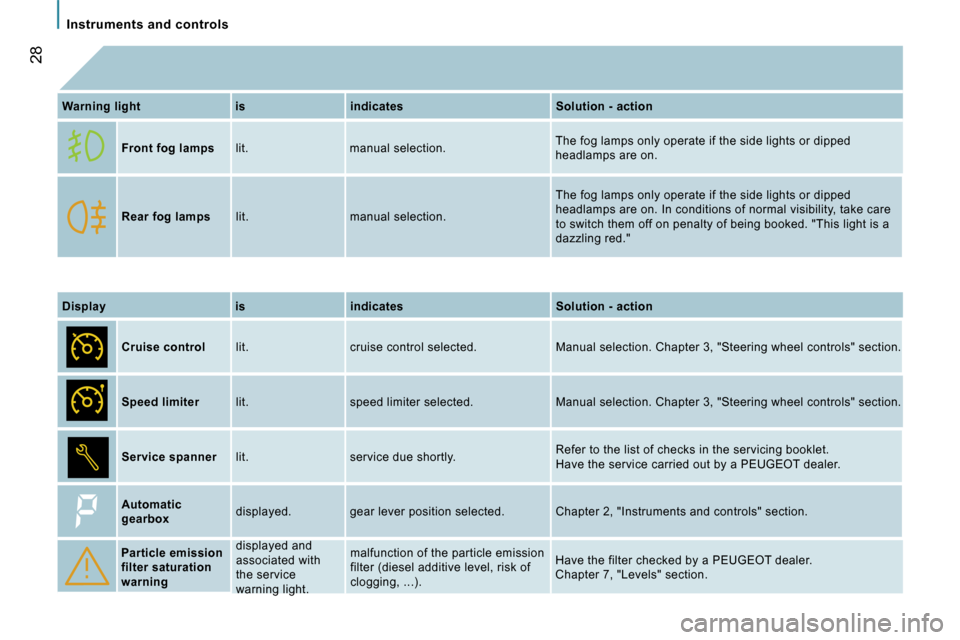

Warning light is indicates Solution - actionRear fog lamps lit. manual selection. The fog lamps only operate if the side lights or di
pped
headlamps are on. In conditions of normal visibilit y, take care
to switch them off on penalty of being booked. "Thi s light is a
dazzling red."
Cruise control lit. cruise control selected. Manual selection. Chapt er 3, "Steering wheel controls" section.
Speed limiter lit. speed limiter selected. Manual selection. Chapte r 3, "Steering wheel controls" section.
Service spanner lit. service due shortly. Refer to the list of checks in the servicing bookle
t.
Have the service carried out by a PEUGEOT dealer.
Automatic
gearbox displayed. gear lever position selected. Chapter 2, "
Instruments and controls" section.
Display is indicates Solution - action
Particle emission
filter saturation
warning displayed and
associated with
the service
warning light.malfunction of the particle emission
filter (diesel additive level, risk of
clogging, ...).
Have the filter checked by a PEUGEOT dealer.
Chapter 7, "Levels" section.
Front fog lamps
lit. manual selection. The fog lamps only operate if the side lights or di
pped
headlamps are on.

Instruments and controls
READY to SET OFF29
2
Wait for the engine to cool before
topping up the level.
The cooling system is pressurised.
In the event of a breakdown and in order to
avoid any risk of scalding, unscrew the cap
two turns to allow the pressure to drop.
When the pressure has dropped, remove the
cap and top up the level.
Contact a PEUGEOT dealer.

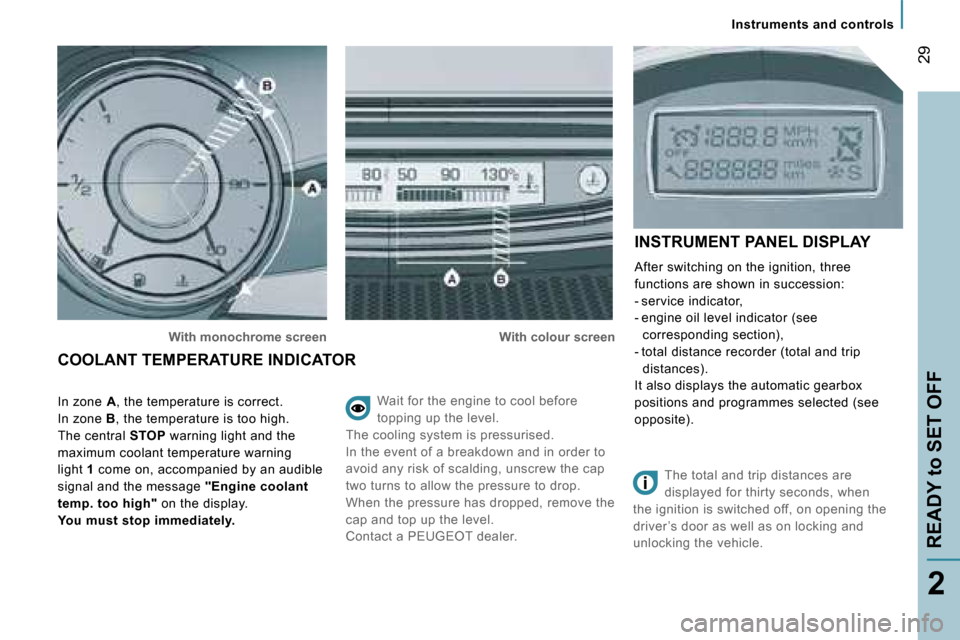

COOLANT TEMPERATURE INDICATOR
In zone A , the temperature is correct.
In zone B, the temperature is too high.
The central STOP warning light and the
maximum coolant temperature warning
light 1 come on, accompanied by an audible
signal and the message "Engine coolant
temp. too high" on the display.
You must stop immediately.
With monochrome screen With colour screen
INSTRUMENT PANEL DISPLAY
After switching on the ignition, three
functions are shown in succession:
- service indicator,
- engine oil level indicator (see
corresponding section),
- total distance recorder (total and trip distances).
It also displays the automatic gearbox
positions and programmes selected (see
opposite).
The total and trip distances are
displayed for thirty seconds, when
the ignition is switched off, on opening the
driver ’s door as well as on locking and
unlocking the vehicle.

Instruments and controls

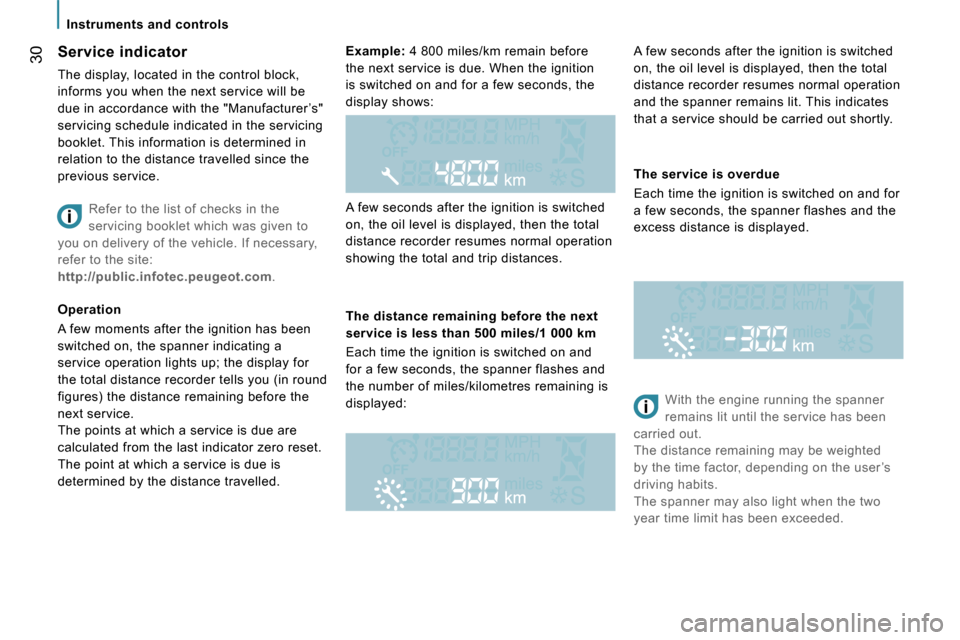

30Service indicator
The display, located in the control block,
informs you when the next service will be
due in accordance with the "Manufacturer ’s"
servicing schedule indicated in the servicing
booklet. This information is determined in
relation to the distance travelled since the
previous service.
Refer to the list of checks in the
servicing booklet which was given to
you on delivery of the vehicle. If necessary,
refer to the site:
http://public.infotec.peugeot.com .
Operation
A few moments after the ignition has been
switched on, the spanner indicating a
service operation lights up; the display for
the total distance recorder tells you (in round
figures) the distance remaining before the
next service.
The points at which a service is due are
calculated from the last indicator zero reset.
The point at which a service is due is
determined by the distance travelled. A few seconds after the ignition is switched
on, the oil level is displayed, then the total
distance recorder resumes normal operation
showing the total and trip distances.
The distance remaining before the next
service is less than 500 miles/1 000 km
Each time the ignition is switched on and
for a few seconds, the spanner flashes and
the number of miles/kilometres remaining is
displayed:A few seconds after the ignition is switched
on, the oil level is displayed, then the total
distance recorder resumes normal operation
and the spanner remains lit. This indicates
that a service should be carried out shortly.
The service is overdue
Each time the ignition is switched on and for
a few seconds, the spanner flashes and the
excess distance is displayed.
With the engine running the spanner
remains lit until the service has been
carried out.
The distance remaining may be weighted
by the time factor, depending on the user ’s
driving habits.
The spanner may also light when the two
year time limit has been exceeded.
Example: 4 800 miles/km remain before
the next service is due. When the ignition
is switched on and for a few seconds, the
display shows:

Instruments and controls
READY to SET OFF31
2
Zero re-set
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as follows:
Switch off the ignition,
 Press and hold the trip recorder re-set
button,
 Switch on the ignition.
The display begins a countdown.
When the display shows "=0", release the
button; the spanner disappears.
Engine oil level indicator
When the ignition is switched on, the engine
oil level is indicated for a few seconds, after
the service information. Oil level correct
Lack of oil
Flashing of
"OIL", linked
with the service warning
light, accompanied by
an audible signal and a
message on the display, indicates a lack of
oil which could damage the engine.
If the lack of oil is confirmed by a check
using the dipstick, it is essential that the
level is topped up.
Oil level gauge fault
Flashing of "OIL --"
indicates a malfunction
of the engine oil level
gauge.
Contact a PEUGEOT dealer. Dipstick
A
= maximum, never exceed
this level as a surplus of oil may
damage the engine.
Contact a PEUGEOT dealer
without delay.
B = minimum, top up the level via
the oil filler cap, using the type of
oil suited to your engine.
Trip recorder zero reset
button
With the ignition on, press the
button until the zeros appear.
Lighting rheostat
With the lights on, press the
button to vary the intensity of
the lighting of the instruments
and controls. When the lighting
reaches the minimum (or maximum) setting,
release the button then press it again to
increase (or reduce) the brightness.
As soon as the lighting is of the required
brightness, release the button.
The level read will only be correct
if the vehicle is on level ground and
the engine has been off for more than
15 minutes.
After this operation, if you wish to
disconnect the battery, lock the vehicle
and wait for at least five minutes, otherwise
the zero re-set will not be registered.

Gearboxes and steering wheel
32
GEARBOXES AND STEERING WHEELPark: position of the lever when
parked.
To immobilise the vehicle or start
the engine.
Drive: position of the lever while
driving.
To move the vehicle forwards in
automatic mode.
Reverse: position of the lever in
reverse gear.
To reverse the vehicle.
Neutral: position of the lever in
neutral.
To park the vehicle (handbrake
on) and start the engine.
Manual 1, 2, 3, 4: selection of the
gears by pressing the gear lever.
To move the vehicle forwards in
manual mode.
AUTOMATIC GEARBOX
The four-speed "Porshe Tiptronic-system"
automatic gearbox offers a choice between:
- the comfort of integral automatic
operation , enhanced by a snow
programme,
- or the pleasure of manual gear changing .Gear selection gate 
Move the lever in the gate to select a
position.
Once the position is selected, the
corresponding indicator light appears on
the instrument panel display.

Gearboxes and steering wheel
READY to SET OFF33
2
Automatic mode
Automatic changing of the
four gears.
 Select position D.
Moving off
 It is essential to press the
brake pedal to exit position P,
 select position R or D,
You can also move off from position N.

gradually release the pressure
on the brake pedal; the vehicle
moves off immediately.
 With your foot on the
brake, release the
handbrake,
 select position R, D or M,
 gradually release the pressure
on the brake pedal; the vehicle
moves off immediately. The gearbox always selects the most
suitable gear according to the following
parameters:
- the style of driving,
- the road profile,
- the vehicle load.
The gearbox is then operating in auto-
adaptive mode, without any action on your
part.
For immediate maximum acceleration
without touching the gear lever, press
the accelerator pedal down as far as it will
go to the end of its travel passing the point
of resistance (kickdown). The gearbox will
automatically change down or maintain the
gear selected until maximum engine speed
is reached.
On a descent, the gearbox will automatically
change down in order to provide efficient
engine braking and good re-acceleration.
If you take your foot off the accelerator
suddenly, the gearbox will not change to a
higher gear for reasons of safety.
With the engine running, to move off from
position P.

Gearboxes and steering wheel
34
Manual mode
Manual changing of the gears by pressing. Select lever position M,
 press the lever to the + sign to
change to a higher gear, from 1
to 4,
 conversely, press the lever to
the - sign to change to a lower
gear.
You can change from position D
(automatic mode) to position M
(manual mode) at any time.
It is only possible to change from one gear
to another if the vehicle speed and engine
speed permit. If they do not, the vehicle will
operate temporarily in automatic mode.
When the vehicle is stationary or moving
very slowly, the gearbox automatically
selects gear 1.
The  (snow) programme does not operate
in manual mode.
Stopping the vehicle, starting the
engine
Reverse gear
 Select position R, with the
vehicle stationary and the
engine at idle.
If the battery is flat and the lever is
in position P, it will be impossible to
change to another position.
 Select position P to
immobilise the vehicle or
to start the engine , with the
handbrake on or off.
 You can also select position N
to park or to start the engine ,
with the handbrake on.
If position N is engaged inadvertently
while driving, allow the engine to
return to idle before engaging position D to
accelerate.
