SAFETY
107
Side air bags
System which protects the driver and
passenger in the event of a serious side
impact in order to limit the risk of injury
to the chest.
Each side air bag is incorporated in
the front seat back frame, on the door
side.
Activation
The side air bag is triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
The side air bag infl ates between the
front occupant of the vehicle and the
corresponding door trim pad. Curtain air bags
System which protects the driver and
passengers (with the exception of the
rear centre passenger and the passen-
gers of row 3) in the event of a serious
side impact in order to limit the risk of
injury to the head.
Each curtain air bag is incorporated in
the pillars and the upper section of the
passenger compartment. Activation
The curtain air bag is triggered at the
same time as the corresponding side air
bag in the event of a serious side impact
applied to all or part of the side impact
zone
B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
The curtain air bag infl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle
or if the vehicle rolls over, the air
bag may not be triggered.
In the event of a rear or front
collision, the air bag is not trig-
gered.
Impact detection zones

A. Front impact zone.

B. Side impact zone.
Operating fault
If this warning light comes on on the in-
strument panel and this display appears
on the instrument panel display, contact
a PEUGEOT dealer to have the system
checked. The air bags may no longer be
triggered in the event of a serious impact.

7
DRIVING
HANDBRAKE HANDBRAKE
Mechanical brake to hold the vehicle
when stationary.
Releasing

 Pull on the handle and press the
button A to release the handbrake.
Applying

 Pull the handbrake to immobilise
your vehicle.
When parking on a slope, direct your
wheels towards the pavement and ap-
ply the handbrake.
6 - SPEED MANUAL GEARBOX 6 - SPEED MANUAL GEARBOX
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push the
gear lever to the left then to the front.

Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling.
When the vehicle is being
driven, the displaying of this
screen indicates that the
handbrake is still on or has
not been properly released.

7
2WD4WD LOCK4WD AUTO
DRIVING

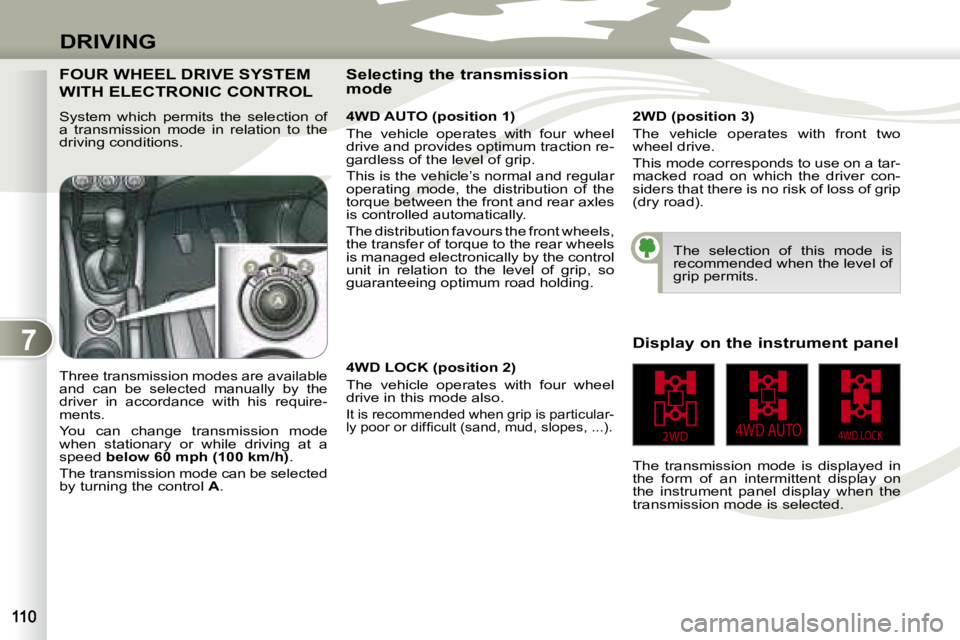

FOUR WHEEL DRIVE SYSTEM
WITH ELECTRONIC CONTROL
System which permits the selection of
a transmission mode in relation to the
driving conditions. 4WD AUTO (position 1)
The vehicle operates with four wheel
drive and provides optimum traction re-
gardless of the level of grip.
This is the vehicle’s normal and regular
operating mode, the distribution of the
torque between the front and rear axles
is controlled automatically.
The distribution favours the front wheels,
the transfer of torque to the rear wheels
is managed electronically by the control
unit in relation to the level of grip, so
guaranteeing optimum road holding.
Three transmission modes are available
and can be selected manually by the
driver in accordance with his require-
ments.
You can change transmission mode
when stationary or while driving at a
speed
below 60 mph (100 km/h) .
The transmission mode can be selected
by turning the control A . Display on the instrument panel
The transmission mode is displayed in
the form of an intermittent display on
the instrument panel display when the
transmission mode is selected.
Selecting the transmission
mode
The selection of this mode is
recommended when the level of
grip permits.
2WD (position 3)
The vehicle operates with front two
wheel drive.
This mode corresponds to use on a tar-
macked road on which the driver con-
siders that there is no risk of loss of grip
(dry road).
4WD LOCK (position 2)
The vehicle operates with four wheel
drive in this mode also.
It is recommended when grip is particular-
ly poor or diffi cult (sand, mud, slopes, ...).

7
i
DRIVING

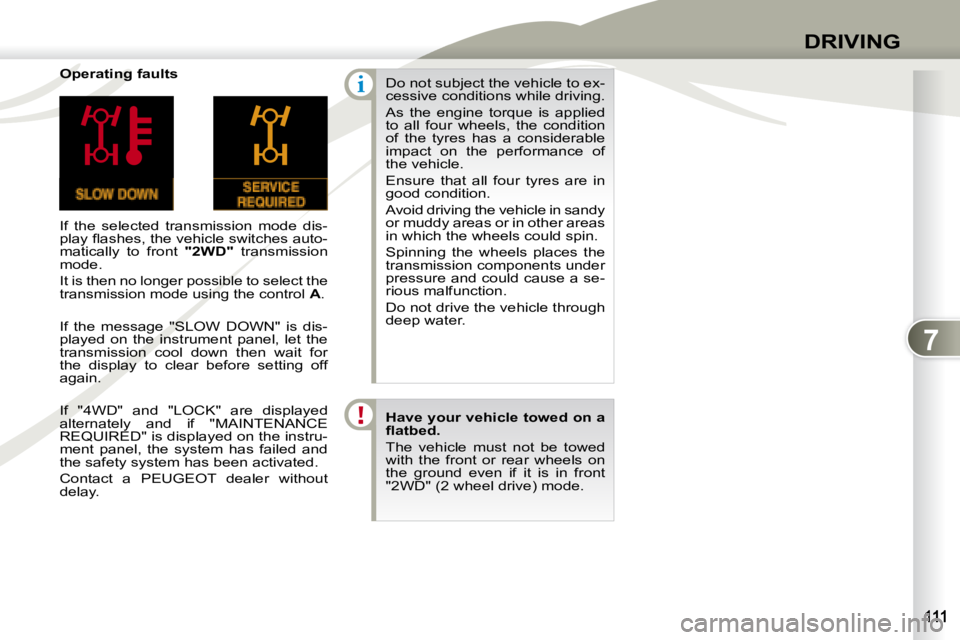

Operating faults
If the selected transmission mode dis-
play fl ashes, the vehicle switches auto-
matically to front "2WD" transmission
mode.
It is then no longer possible to select the
transmission mode using the control A .
If the message "SLOW DOWN" is dis-
played on the instrument panel, let the
transmission cool down then wait for
the display to clear before setting off
again.
If "4WD" and "LOCK" are displayed
alternately and if "MAINTENANCE
REQUIRED" is displayed on the instru-
ment panel, the system has failed and
the safety system has been activated.
Contact a PEUGEOT dealer without
delay. Do not subject the vehicle to ex-
cessive conditions while driving.
As the engine torque is applied
to all four wheels, the condition
of the tyres has a considerable
impact on the performance of
the vehicle.
Ensure that all four tyres are in
good condition.
Avoid driving the vehicle in sandy
or muddy areas or in other areas
in which the wheels could spin.
Spinning the wheels places the
transmission components under
pressure and could cause a se-
rious malfunction.
Do not drive the vehicle through
deep water.

Have your vehicle towed on a
fl atbed.
The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
"2WD" (2 wheel drive) mode.

7
i
DRIVING
Programming

 Press button 1 .

 Set the programmed speed by ac-
celerating to the required speed,
then press button 2 "COAST SET" .
CRUISE CONTROL
System which permits automatic main-
taining of the vehicle speed at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
25 mph (40 km/h) minimum and second
gear must be engaged in the case of a
manual gearbox.
The cruise control is switched off man-
ually, by an action on the brake or clutch
pedal or if the ASC system is triggered.
The programmed speed can be ex-
ceeded temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value. The controls of this system are grouped
together on the steering wheel.

1. "ON/OFF" button: activation/deacti-
vation of the cruise control mode.

2. "COAST SET" button: storing of a
driving speed and decreasing of the
cruising speed.

3. "ACC RES" button: increasing of
the cruising speed and recalling of
the stored speed.

4. "CANCEL" button: switching off of
the cruise control. When you press button
1 , the "CRUISE"
indicator light comes on on the instru-
ment panel.
Steering wheel controls Display on the instrument p
anel
The cruise control cannot, in any
circumstances, take the place of
the need to comply with speed
limits or of the vigilance and re-
sponsibility of the driver.

7
i
DRIVING
REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor light on button
A fl ashes when re-
verse gear is engaged.
Contact a PEUGEOT dealer.
In bad weather or in winter,
check that the sensors are not
covered with mud, ice or snow.
Deactivation

 With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation


With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
Modifi cation of the detection zones


Press button A to deactivate the system.

 Press button A again for a few sec-
onds and release it.
The detection zone modifi cation infor-
mation is indicated by an audible signal
which:
- is heard twice on vehicles fi tted with
a towbar,
- is heard once on vehicles which are
not fi tted with a towbar.

7
i
DRIVING
REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor light on button
A fl ashes when re-
verse gear is engaged.
Contact a PEUGEOT dealer.
In bad weather or in winter,
check that the sensors are not
covered with mud, ice or snow.
Deactivation

 With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation


With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
Modifi cation of the detection zones


Press button A to deactivate the system.

 Press button A again for a few sec-
onds and release it.
The detection zone modifi cation infor-
mation is indicated by an audible signal
which:
- is heard twice on vehicles fi tted with
a towbar,
- is heard once on vehicles which are
not fi tted with a towbar.

8
i
CHECKSCHECKS
Diesel additive level (Diesel
with particle emission filter)

The minimum level of this additive is indicated by lighting
of the service warning light, accompanied by an aud ible
signal and a message on the multifunction display.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer with-
out delay.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery
Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Check that the terminals are
clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.

Air filter and passenger compartment filter
Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A clogged passenger compartment fi l-
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours. Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a PEUGEOT dealer.
Following prolonged operation
of the vehicle at very low speed
or at idle, you may, exception-
ally, notice the emission of water
vapour at the exhaust on accel-
eration. This does not have any
adverse effect on the perform-
ance of the vehicle or on the en-
vironment.
Avoid any prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harmful
to health or indeed very corro-
sive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Empty used oil into the contain-
ers provided for this purpose in
the PEUGEOT network. Do not discard the oil fi lter
through public channels, depos-
it it in the containers dedicated
to this use in the PEUGEOT net-
work.
