11
ABC
EF
G
IKL
M
N
D
H
J
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA

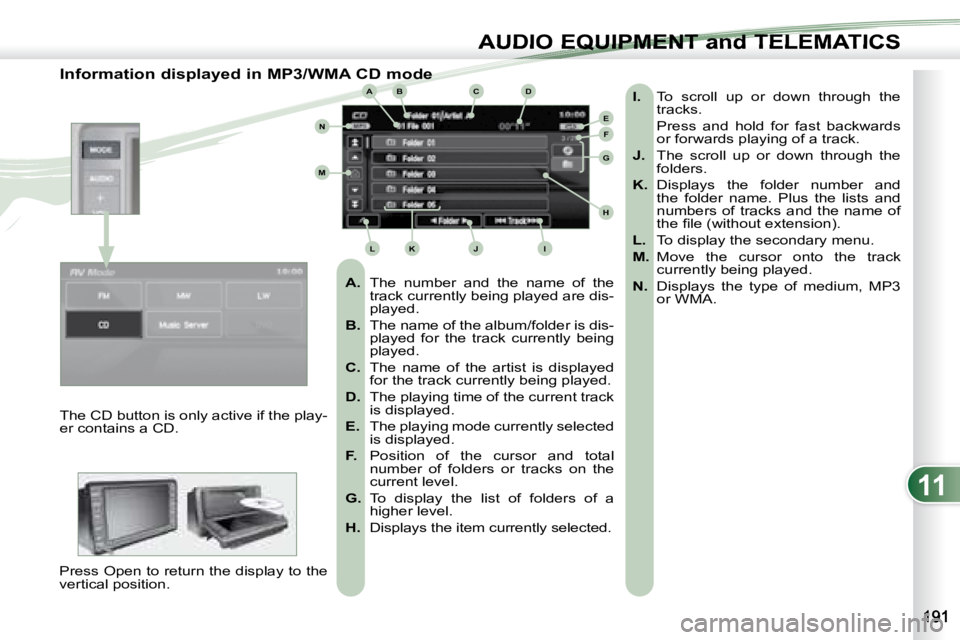

Information displayed in MP3/WMA CD mode
A. The number and the name of the
track currently being played are dis-
played.
B. The name of the album/folder is dis-
played for the track currently being
played.
C. The name of the artist is displayed
for the track currently being played.
D. The playing time of the current track
is displayed.
E. The playing mode currently selected
is displayed.
F. Position of the cursor and total
number of folders or tracks on the
current level.
G. To display the list of folders of a
higher level.
H. Displays the item currently selected.
I. To scroll up or down through the
tracks.
Press and hold for fast backwards or forwards playing of a track.
J. The scroll up or down through the
folders.
K. Displays the folder number and
the folder name. Plus the lists and
numbers of tracks and the name of
t h e fi l e ( w i t h o u t e x t e n s i o n ) .
L. To display the secondary menu.
M. Move the cursor onto the track
currently being played.
N. Displays the type of medium, MP3
or WMA.
The CD button is only active if the play-
er contains a CD.
Press Open to return the display to the
vertical position.
Page 204 of 221
11
AUDIO EQUIPMENT and TELEMATICS
Playing an MP3/WMA CD (1/2) Press Explanations Result
Press the MODE button then CD, if the player already contains a CD.
Moving around the folders
Selecting a folder Otherwise, insert a CD in the player, play begins
automatically.
You can move by one level at a time.
Press on the name of a folder and at each press the list of f olders of the
level below is displayed.
Press on the folder above to move up and/or select a level.
Press [ Folder] to select the previous folder.
Press [Folder ] to select the next folder.
These displays indicate the current level:
CD: level 0, folder below: level, folder below that, l
evel 2, etc...
Up to 8 levels maximum.
Page 206 of 221
11
ABCDE
FGHIJ
KLM
RQPON
AUDIO EQUIPMENT and TELEMATICS

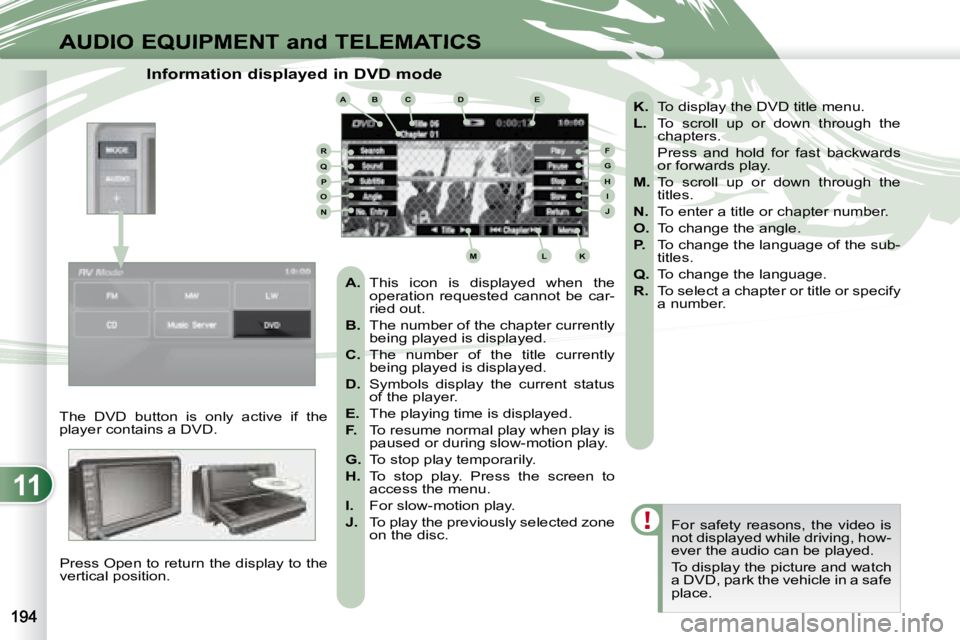

Information displayed in DVD mode
The DVD button is only active if the
player contains a DVD. Press Open to return the display to the
vertical position. For safety reasons, the video is
not displayed while driving, how-
ever the audio can be played.
To display the picture and watch
a DVD, park the vehicle in a safe
place.
K. To display the DVD title menu.
L. To scroll up or down through the
chapters.
Press and hold for fast backwards or forwards play.
M. To scroll up or down through the
titles.
N. To enter a title or chapter number.
O. To change the angle.
P. To change the language of the sub-
titles.
Q. To change the language.
R. To select a chapter or title or specify
a number.
A. This icon is displayed when the
operation requested cannot be car-
ried out.
B. The number of the chapter currently
being played is displayed.
C. The number of the title currently
being played is displayed.
D. Symbols display the current status
of the player.
E. The playing time is displayed.
F. To resume normal play when play is
paused or during slow-motion play.
G. To stop play temporarily.
H. To stop play. Press the screen to
access the menu.
I. For slow-motion play.
J. To play the previously selected zone
on the disc.
Page 208 of 221
11
ABCB1B2
B3
C1C2C3C4C5
AUDIO EQUIPMENT and TELEMATICS
A - Choose to switch off the display.
To switch it back on, touch the screen or press any button.
B - in the vehicle, if an audio source is selected (FM, CD, …), for:
B1 - the sound distribution or the vol- ume such as the front-rear bal-
ance, the bass, the medium, the
treble, the volume adjustment in
relation to the vehicle speed,
B2 - the type of music (with surround option) such as classic, jazz, pop,
rock, hip hop, country, normal, …
B 3 - t h e s o u n d fi e l d ( w i t h s u r r o u n d option) such as stage, live, hall,
normal, …
C - Choose the quality of the picture for:
C1 - the colour (when playing DVDs),
C2 - the intensity of the colours (when playing DVDs),
C3 - the brightness,
C4 - the contrast,
C5 - the level of black.

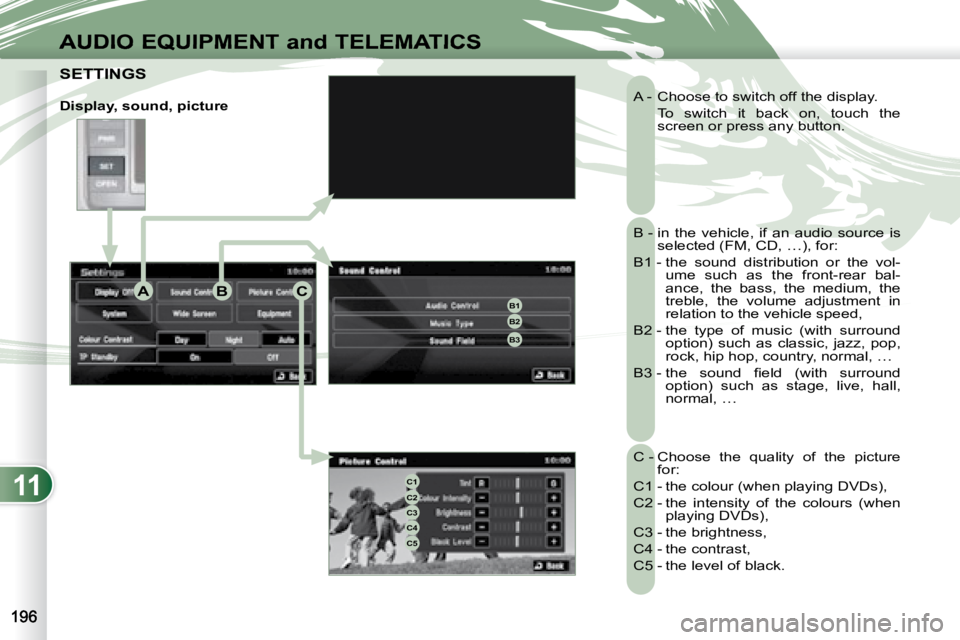

SETTINGS SETTINGS
Display, sound, picture
Page 209 of 221
11
DE
E1E2E3E4
D1D2
D3D4
AUDIO EQUIPMENT and TELEMATICSEQUIPMENT and TELEMA
Time and date, language, unit,
picture size E -
Choose the size of the DVD picture for:
E1 - normal 4/3, E2 - extends the picture evenly to the right
and to the left in wide screen mode,
E3 - extends the right and left parts only leaving
the centre as it stands in wide screen mode,
E4 - enlarges the picture in 4/3 format. The top
and the bottom are outside the frame.
D - Choose the base settings of the sys- tem for:
D1 - setting of the time by the RDS signal, time zone, summer time,
D2 - the language (English, Français, Deutsch, Nederlands, Portuguese,
Español, Svenska, Italiano, Dansk),
D3 - the units for calculation of the dis- tances (km or miles and °C or °F),
D4 - other settings such as:
- the voice guidance volume,
- the type of voice guidance voice (female or male),
- the volume of the operation bleeps (1 to 3 and 0=no bleep),
- the type of inputting keypad (alpha- bet or PC),
- the range of menu colours (red or blue),
- the displaying or not of the audio playing icons on the map screen,
- the reinitialisation of the vehicle sensor,
- the interruption or not of the display when the air conditioning is used.
Page 210 of 221
11
H
G
F
F1
F2
F3
AUDIO EQUIPMENT and TELEMATICS
Equipment, contrast, traffic information (TP) F - Choose to adjust or set the para-meters of certain equipment of-
fered in your vehicle (e.g.: unfold-
ing/folding of the mirrors, raising of
the windows on locking, timing and
sensitivity of the automatic lighting,
direction indicators motorway func-
tion, …):
F1 - to scroll up the list,
F2 - to scroll down the list,
F3 - to reinitialise all of the settings (manufacturer’s settings).
Press each setting to select or change the parameters.
G - Choose to adjust the contrast of the display in relation to the exterior
light (day, night or automatic).
H - Choose to activate or deactivate the t r a f fi c i n f o r m a t i o n ( T P ) .
Page 214 of 221
11
AUDIO EQUIPMENT and TELEMATICS

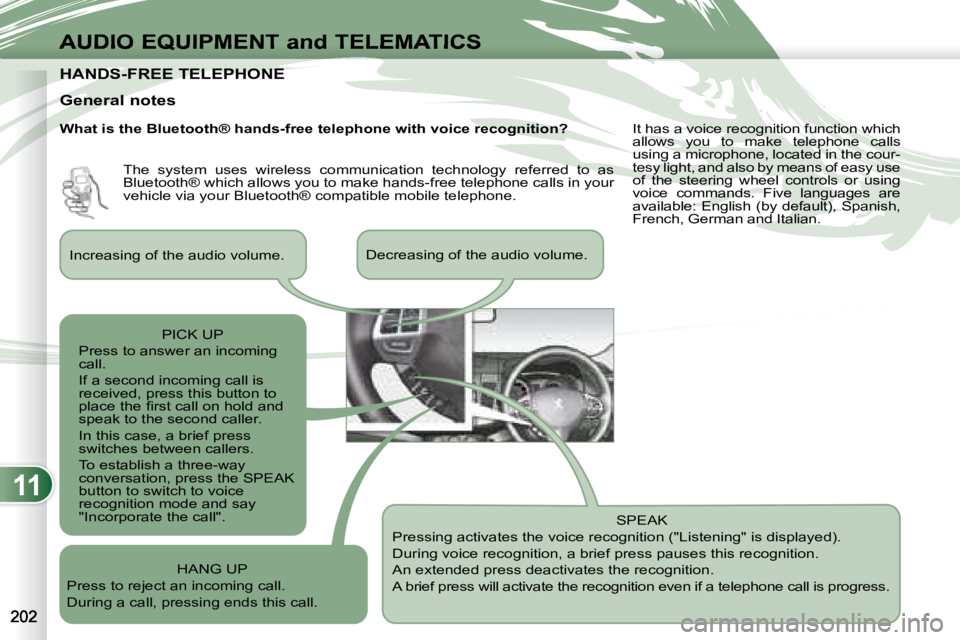

HANDS-FREE TELEPHONE HANDS-FREE TELEPHONE
General notes SPEAK
Pressing activates the voice recognition ("Listening" is displayed).
During voice recognition, a brief press pauses this recognition.
An extended press deactivates the recognition.
A brief press will activate the recognition even i f a telephone call is progress.
Increasing of the audio volume.
Decreasing of the audio volume.
PICK UP
Press to answer an incoming
call.
If a second incoming call is
received, press this button to
p l a c e t h e fi r s t c a l l o n h o l d a n d
speak to the second caller.
In this case, a brief press
switches between callers.
To establish a three-way
conversation, press the SPEAK
button to switch to voice
recognition mode and say
"Incorporate the call".
HANG UP
Press to reject an incoming call.
During a call, pressing ends this call. The system uses wireless communication technology referred to as
Bluetooth® which allows you to make hands-free telephone call
s in your
vehicle via your Bluetooth® compatible mobile telephone. It has a voice recognition function which
allows you to make telephone calls
using a microphone, located in the cour-
tesy light, and also by means of easy use
of the steering wheel controls or using
voice commands. Five languages are
available: English (by default), Spanish,
French, German and Italian.
What is the Bluetooth® hands-free telephone with voice re
cognition?
Page 218 of 221
11
i
AUDIO EQUIPMENT and TELEMATICS

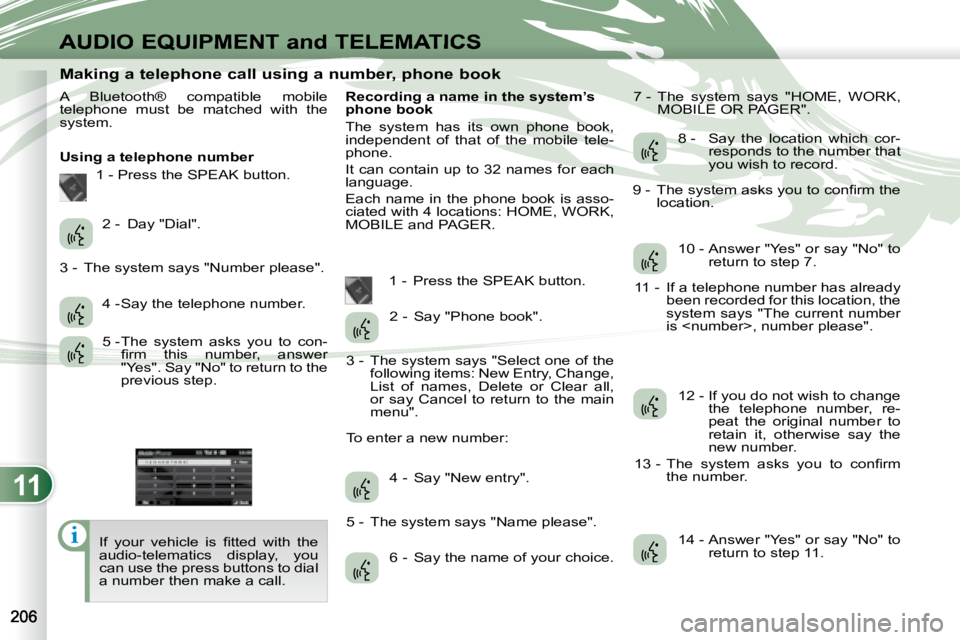

Making a telephone call using a number, phone book
A Bluetooth® compatible mobile
telephone must be matched with the
system.
Using a telephone number 1 - Press the SPEAK button.
I f y o u r v e h i c l e i s fi t t e d w i t h t h e
audio-telematics display, you
can use the press buttons to dial
a number then make a call. Recording a name in the system’s
phone book
The system has its own phone book,
independent of that of the mobile tele-
phone.
It can contain up to 32 names for each
language.
Each name in the phone book is asso-
ciated with 4 locations: HOME, WORK,
MOBILE and PAGER.
1 - Press the SPEAK button. 7 - The system says "HOME, WORK,
MOBILE OR PAGER".
2 - Day "Dial".
3 - The system says "Number please". 4 - Say the telephone number.
5 - The system asks you to con- fi r m t h i s n u m b e r , a n s w e r
"Yes". Say "No" to return to the
previous step. 2 - Say "Phone book".
3 - The system says "Select one of the following items: New Entry, Change,
List of names, Delete or Clear all,
or say Cancel to return to the main
menu".
To enter a new number:
4 - Say "New entry".
5 - The system says "Name please". 6 - Say the name of your choice. 8 - Say the location which cor-
responds to the number that
you wish to record.
9 - T h e s y s t e m a s k s y o u t o c o n fi r m t h e location.
10 - Answer "Yes" or say "No" to return to step 7.
11 - If a telephone number has already been recorded for this location, the
system says "The current number
is
12 - If you do not wish to change the telephone number, re-
peat the original number to
retain it, otherwise say the
new number.
1 3 - T h e s y s t e m a s k s y o u t o c o n fi r m the number.
14 - Answer "Yes" or say "No" to return to step 11.
