1
i
i

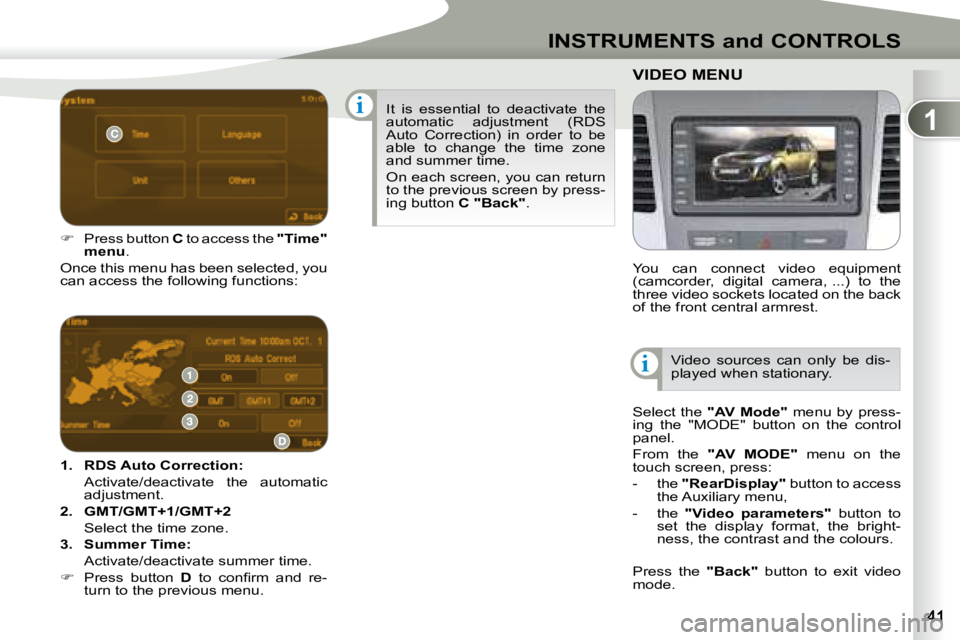

INSTRUMENTS and CONTROLS
1. R D S A u t o C o r r e c t i o n :
Activate/deactivate the automatic adjustment.
2. GMT/GMT+1/GMT+2
Select the time zone.
3. S u m m e r T i m e :
Activate/deactivate summer time.
Press button D t o c o n fi r m a n d r e -
turn to the previous menu.
Press button C to access the "Time"
menu .
Once this menu has been selected, you
can access the following functions: It is essential to deactivate the
automatic adjustment (RDS
Auto Correction) in order to be
able to change the time zone
and summer time.
On each screen, you can return
to the previous screen by press-
ing button
C "Back" .
Select the "AV Mode" menu by press-
ing the "MODE" button on the control
panel.
From the "AV MODE" menu on the
touch screen, press:
- the " R e a r D i s p l a y " button to access
the Auxiliary menu,
- the " V i d e o p a r a m e t e r s " button to
set the display format, the bright-
ness, the contrast and the colours.
Press the "Back" button to exit video
mode.
VIDEO MENU
Y o u c a n c o n n e c t v i d e o e q u i p m e n t
(camcorder, digital camera, ...) to the
three video sockets located on the back
of the front central armrest.
Video sources can only be dis-
played when stationary.
Page 43 of 221
1
i
i
INSTRUMENTS and CONTROLS
1. R D S A u t o C o r r e c t i o n :
Activate/deactivate the automatic adjustment.
2. GMT/GMT+1/GMT+2
Select the time zone.
3. S u m m e r T i m e :
Activate/deactivate summer time.
Press button D t o c o n fi r m a n d r e -
turn to the previous menu.
Press button C to access the "Time"
menu .
Once this menu has been selected, you
can access the following functions: It is essential to deactivate the
automatic adjustment (RDS
Auto Correction) in order to be
able to change the time zone
and summer time.
On each screen, you can return
to the previous screen by press-
ing button
C "Back" .
Select the "AV Mode" menu by press-
ing the "MODE" button on the control
panel.
From the "AV MODE" menu on the
touch screen, press:
- the " R e a r D i s p l a y " button to access
the Auxiliary menu,
- the " V i d e o p a r a m e t e r s " button to
set the display format, the bright-
ness, the contrast and the colours.
Press the "Back" button to exit video
mode.
VIDEO MENU
Y o u c a n c o n n e c t v i d e o e q u i p m e n t
(camcorder, digital camera, ...) to the
three video sockets located on the back
of the front central armrest.
Video sources can only be dis-
played when stationary.
Page 76 of 221
3
i
ACCESS
The vehicle will relock automati-
cally after thirty seconds unless
a door or the tailgate is opened.
This function prevents inadvertent
unlocking.
The folding and unfolding of the
e x t e r i o r m i r r o r s c a n b e c o n fi g -
ured via the colour display "Set-
tings" menu or deactivated by a
PEUGEOT dealer.
Folding the key
First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
PEUGEOT dealer as soon as possible.
Page 79 of 221
3
i
ACCESS
The vehicle will relock automati-
cally after thirty seconds unless
a door or the tailgate is opened.
This function prevents inadvertent
unlocking.
The folding and unfolding of the
e x t e r i o r m i r r o r s c a n b e c o n fi g -
ured via the colour display "Set-
tings" menu or deactivated by a
PEUGEOT dealer.
Folding the key
First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
PEUGEOT dealer as soon as possible.
Page 84 of 221
3
i
ACCESS

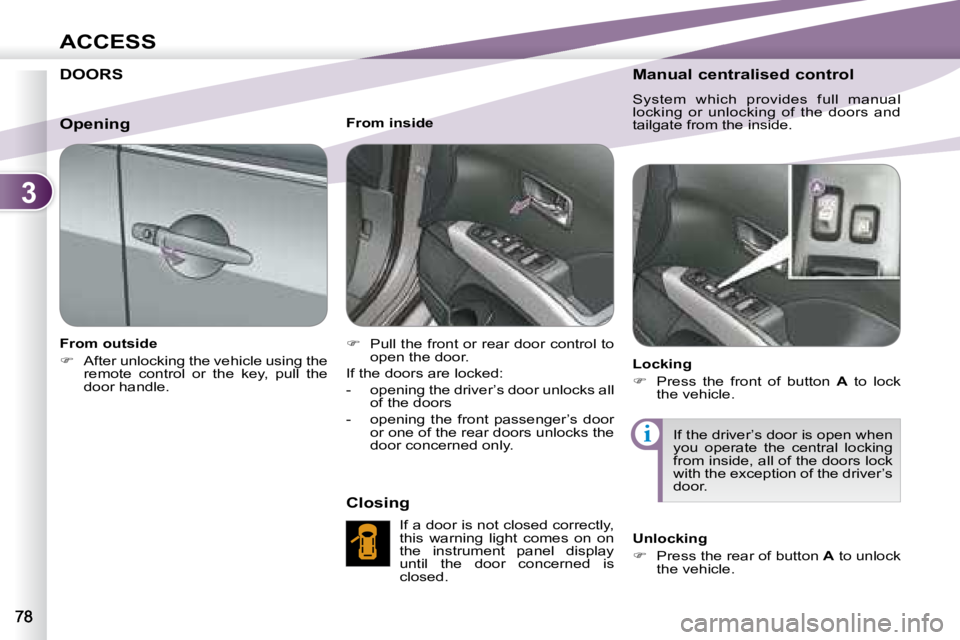

DOORS
From outside
After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside
Pull the front or rear door control to
open the door.
If the doors are locked:
- opening the driver’s door unlocks all of the doors
- opening the front passenger’s door or one of the rear doors unlocks the
door concerned only.
Closing If a door is not closed correctly,
this warning light comes on on
the instrument panel display
until the door concerned is
closed. Manual centralised control
System which provides full manual
locking or unlocking of the doors and
tailgate from the inside.
Locking
Press the front of button A to lock
the vehicle.
If the driver’s door is open when
you operate the central locking
from inside, all of the doors lock
with the exception of the driver’s
door.
Unlocking
Press the rear of button A to unlock
the vehicle.
Opening
Page 86 of 221
3
i
i
ACCESS
Opening
After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate.
Before opening the tailgate, ensure
that no one is within the radius of
opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower tail-
gate and do not subject it to heavy
knocks, it may be damaged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
w h e n a t o w b a r i s fi t t e d .
"Tailgate open" warning
This warning light comes on on
the instrument panel display
when the tailgate is not closed
correctly.
TAILGATE LOWER TAILGATE LOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Pull the handle B downwards to
guide the tailgate,
release the handle and press the
exterior surface of the tailgate gently
to close it. Closing
Raise the tailgate D , push it to close it,
then check that it is secured correctly. Maximum authorised weight on
the lower tailgate when open:
200 kg .
Page 88 of 221
3
i
i
ACCESS
Opening
After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate.
Before opening the tailgate, ensure
that no one is within the radius of
opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower tail-
gate and do not subject it to heavy
knocks, it may be damaged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
w h e n a t o w b a r i s fi t t e d .
"Tailgate open" warning
This warning light comes on on
the instrument panel display
when the tailgate is not closed
correctly.
TAILGATE LOWER TAILGATE LOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Pull the handle B downwards to
guide the tailgate,
release the handle and press the
exterior surface of the tailgate gently
to close it. Closing
Raise the tailgate D , push it to close it,
then check that it is secured correctly. Maximum authorised weight on
the lower tailgate when open:
200 kg .
Page 92 of 221
3
ACCESS
FUEL TANK ANK
T o fi l l t h e t a n k s a f e l y :
it is imperative that the engine is
switched off,
pull the control A located at the
bottom right of the driver's seat to
r e l e a s e t h e f u e l fi l l e r fl a p ,
o p e n t h e f u e l fi l l e r fl a p B ,
turn the cap C to the left,
W h e n y o u h a v e fi l l e d t h e t a n k :
r e fi t t h e c a p , i n s e r t i n g t h e u p p e r p a r t
fi r s t ,
screw in the cap to the right,
c l o s e t h e fl a p .
E n s u r e t h a t t h e f u e l fi l l e r fl a p i s c l o s e d
correctly.
remove the cap C ,
fi l l t h e t a n k , b u t do not continue
after the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A l a b e l , a f fi x e d o n t h e i n s i d e o f t h e fl a p ,
reminds you of the type of fuel to be
used in relation to your engine. When the tank minimum
level is reached (approximate-
ly 10 litres), this indication ap-
pears on the instrument panel display.
The symbol fl a s h e s s l o w l y
(approximately once per second).
You have enough fuel remaining to
drive approximately 30 miles (50 km)
.
When the symbol begins to
fl a s h r a p i d l y (approximately
twice per second), there is not
much fuel remaining in your tank
(approximately 5 litres).
This symbol indicates that the
fuel tank cap is located on the
left-hand side of the vehicle.
Location of the cap
1. Opening.
2. Closing.
S y s t e m f o r fi l l i n g w i t h f u e l , a f t e r t a k i n g i n t o
account the detection of the associated
low level.
Capacity of the tank: approximately
60 litres.
