2007.5 PEUGEOT 4007 reset
[x] Cancel search: resetPage 27 of 221
1
i
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the tem-
perature of the coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool be-
fore topping up the level. The
cooling system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank in relation to the av-
erage consumption over
the last few miles/kilo-
metres travelled.
RANGE RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Contact a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief, resulting in
a reduction in the current con-
sumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the bat-
tery, the previous consumption
data is lost and the value dis-
played will be different from that
displayed before the battery was
disconnected. The distance dis-
played must be considered an
approximate indication.
Page 28 of 221
1
i
i
INSTRUMENTS and CONTROLS
SERVICE INDICATOR SERVICE INDICATOR
System which informs the driver when
the next service is due in accordance
with the manufacturer’s servicing
schedule. Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle’s
service yourself, the zero reset proce-
dure is the following:
switch off the ignition,
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the s p a n n e r
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next serv-
ice is due is displayed.
Service overdue
O p e r a t i o n
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance re-
corder display line indicates the number
of miles (kilometres) remaining and the
time elapsed line indicates the number
of months remaining before the next
service is due.
After a certain distance and a cer-
tain time, the displaying of "---" is
reinitialised and the display indi-
cates the time remaining before
the next service is due.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km)),
- the time elapsed since the last serv-
ice (in months).
The distance remaining to be travelled
may be weighted by the time factor, de-
pending on the user’s driving habits.
E x a m p l e : the display indicates that
7300 miles (kilometres) remain before
the next service is due.
The symbol "---" remains dis-
p l a y e d u n t i l t h e fi r s t s e r v i c e o f
a new vehicle has been carried
out.
E x a m p l e : the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
Each time the ignition is switched on,
the display
"SCHEDULED SERVICE"
is displayed for a few seconds to indi-
cate that the service must be carried
out without delay.
Page 29 of 221
1
i
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the tem-
perature of the coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool be-
fore topping up the level. The
cooling system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank in relation to the av-
erage consumption over
the last few miles/kilo-
metres travelled.
RANGE RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Contact a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief, resulting in
a reduction in the current con-
sumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the bat-
tery, the previous consumption
data is lost and the value dis-
played will be different from that
displayed before the battery was
disconnected. The distance dis-
played must be considered an
approximate indication.
Page 30 of 221
1
i
i
INSTRUMENTS and CONTROLS
SERVICE INDICATOR SERVICE INDICATOR
System which informs the driver when
the next service is due in accordance
with the manufacturer’s servicing
schedule. Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle’s
service yourself, the zero reset proce-
dure is the following:
switch off the ignition,
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the s p a n n e r
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next serv-
ice is due is displayed.
Service overdue
O p e r a t i o n
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance re-
corder display line indicates the number
of miles (kilometres) remaining and the
time elapsed line indicates the number
of months remaining before the next
service is due.
After a certain distance and a cer-
tain time, the displaying of "---" is
reinitialised and the display indi-
cates the time remaining before
the next service is due.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km)),
- the time elapsed since the last serv-
ice (in months).
The distance remaining to be travelled
may be weighted by the time factor, de-
pending on the user’s driving habits.
E x a m p l e : the display indicates that
7300 miles (kilometres) remain before
the next service is due.
The symbol "---" remains dis-
p l a y e d u n t i l t h e fi r s t s e r v i c e o f
a new vehicle has been carried
out.
E x a m p l e : the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
Each time the ignition is switched on,
the display
"SCHEDULED SERVICE"
is displayed for a few seconds to indi-
cate that the service must be carried
out without delay.
Page 31 of 221
1
i
i
INSTRUMENTS and CONTROLS
System which provides current infor-
mation about the route travelled.
TRIP COMPUTER Average
c o n s u m p t i o n
(l/100 km or km/l or
m p g )
T h i s i s t h e a v e r a g e q u a n -
tity of fuel consumed
since the last zero reset.
T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief resulting in
a reduction in the current con-
sumption.
A v e r a g e s p e e d
( k m / h o r m p h )
This is the average
speed calculated since
the last zero reset. R e s e t t i n g t h e i n f o r m a t i o n t o z e r o
When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.
Automatic
If the ignition remains in the
"ACC" (Ac-
cessories) position for at least 4 hours,
the average consumption value is reset
to zero automatically.
If dashes "---" are displayed for
long periods in place of the digits
while driving, contact a PEUGEOT
dealer.
Current
c o n s u m p t i o n
(l/100 km or km/l or
m p g )
This is the average
q u a n t i t y o f f u e l c o n -
sumed during the last
few seconds of driving.
D a t a d i s p l a y s
With the ignition on, press the
INFO but-
ton on the fascia, to the right of the instru-
ment panel, several times in succession
to display the different information:
- the average consumption,
- the average speed,
- the current consumption. W h e n t h e r e q u i r e d i n f o r m a t i o n i s d i s -
played, press the
INFO button for more
than two seconds.
Page 38 of 221
1
i
i
INSTRUMENTS and CONTROLS
Set the time using the buttons as indi-
cated below:
with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK button until the
t i m e d i s p l a y fl a s h e s .
Press the appropriate button to set
the time:
Button
H : setting of the hours
The hours digits scroll when you press
this button.
B u t t o n M : setting of the minutes
The minutes digits scroll when you
press this button.
B u t t o n : 0 0 : resetting of the minutes to
zero.
- from 1 to 29 min
: rounded down to
the previous hour,
- from 3 0 t o 5 9 m i n : rounded up to
the next hour.
Manual mode
Automatic mode
In this mode, setting is automatic using
the signal from the RDS radio stations.
After setting the time, press the
DISP button; the time display stops
fl a s h i n g .
The digital clock does not dis-
play seconds.
When the "minutes" display is
set or reset to zero, the clock
starts at the zero second of the
minute selected.
The time setting is lost if the bat-
tery is disconnected.
Turn button B "TUNE" to the left or
to the right to select "CT ON" (auto-
matic mode) or "CT OFF" (manual
mode).
After selecting the mode, you can
exit the "Functions setting mode"
menu by pressing button B "TUNE"
for approximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit
the "functions setting mode"
menu automatically.
Page 212 of 221
11
D
C
D1D2D3
D4D5
D6D7D8
D7
D9D10D11D12

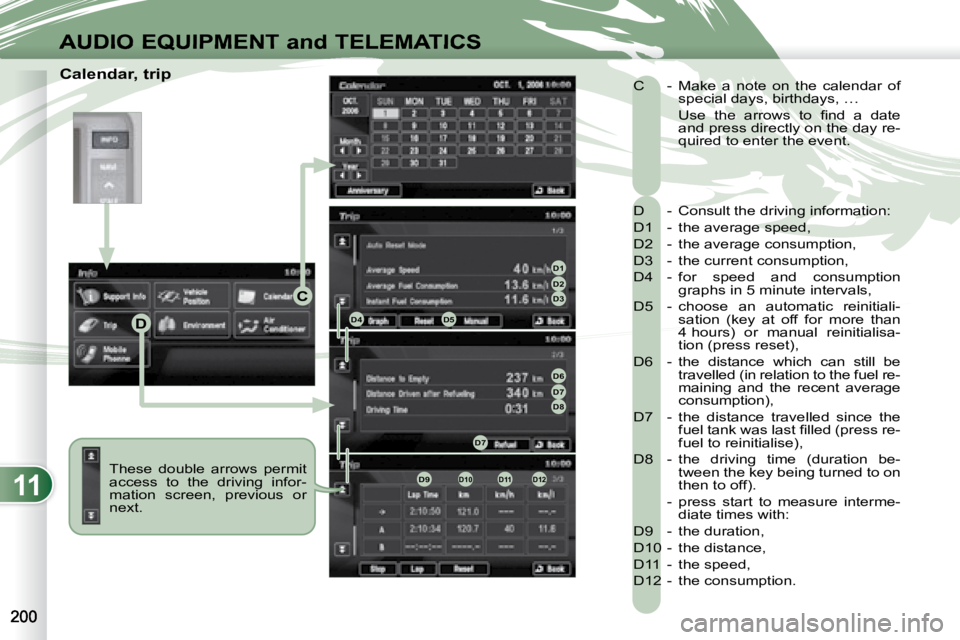

AUDIO EQUIPMENT and TELEMATICS
Calendar, trip These double arrows permit
access to the driving infor-
mation screen, previous or
next. D - Consult the driving information:
D1 - the average speed,
D2 - the average consumption,
D3 - the current consumption,
D4 - for speed and consumption
graphs in 5 minute intervals,
D5 - choose an automatic reinitiali- sation (key at off for more than
4 hours) or manual reinitialisa-
tion (press reset),
D6 - the distance which can still be travelled (in relation to the fuel re-
maining and the recent average
consumption),
D7 - the distance travelled since the f u e l t a n k w a s l a s t fi l l e d ( p r e s s r e -
fuel to reinitialise),
D8 - the driving time (duration be- tween the key being turned to on
then to off).
- press start to measure interme- diate times with:
D9 - the duration,
D10 - the distance,
D11 - the speed,
D12 - the consumption.
C - Make a note on the calendar of
special days, birthdays, …
U s e t h e a r r o w s t o fi n d a d a t e and press directly on the day re-
quired to enter the event.
