LIGHTS STALK LIGHTS STALK
System for selection and control of the
various front and rear lights providing
the vehicle’s lighting.
Main lighting
The various front and rear lights of the
vehicle are designed to adapt the driv-
er’s visibility progressively in relation to
the climatic conditions:
- side lights, to be seen,
- dipped headlamps to see without dazzling other drivers,
- main beam headlamps to see clear- ly when the road is clear.
Additional lighting
O t h e r l i g h t s a r e i n s t a l l e d t o f u l fi l t h e r e -
quirements of particular driving condi-
tions:
- rear fog lamps to be seen from a distance,
- front fog lamps for even better vis- ibility,
- daytime lights to be seen during the day. Programming
Various automatic lighting control
modes are also available according to
the following options:
- follow-me-home lighting,
- automatic lighting.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the ring
A and the lever B . lights off,
automatic switching on of the
lights,
side lights only,
B. lever for inversion of the lights by
pulling: dipped headlamps/main
beam headlamps.
In the lights off and side lights modes,
the driver can switch on the main beam
h e a d l a m p s d i r e c t l y ( " h e a d l a m p fl a s h " )
for as long as he pulls the lever.
Displays
Lighting of the corresponding indicator
l i g h t o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the selective switching on of the lighting
selected.
A. main lighting mode selection ring,
with:
dipped headlamps or main
beam headlamps.
Page 95 of 221
4
VISIBILITY
In foggy weather or in snow, the
brightness sensor can detect
s u f fi c i e n t l i g h t . T h e l i g h t s w i l l n o t
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.
Automatic lighting
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
W h e n t h e l i g h t r e t u r n s t o a s u f fi c i e n t
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e l i t . Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically
when the driver’s door is
opened .
Page 96 of 221
4
VISIBILITY
In foggy weather or in snow, the
brightness sensor can detect
s u f fi c i e n t l i g h t . T h e l i g h t s w i l l n o t
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.
Automatic lighting
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
W h e n t h e l i g h t r e t u r n s t o a s u f fi c i e n t
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e l i t . Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically
when the driver’s door is
opened .
Page 97 of 221
4
VISIBILITY
MANUAL ADJUSTMENT OF THE
HEADLAMPS
To avoid dazzling other road users, the
height of the headlamps must be adjusted
in relation to the load in the vehicle.
5-seat version
0. Driver only or Driver + 1 passenger
in the front.
1 or 2. 5 occupants (including the
d r i v e r ) .
3. 5 o c c u p a n t s ( i n c l u d i n g t h e d r i v e r ) +
maximum authorised load.
4. Driver + maximum authorised load.
AUTOMATIC HEADLAMP
ADJUSTMENT
On vehicles with xenon bulbs: when
stationary , the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driv-
er is then assured of having optimum
lighting and not causing a nuisance to
other road users.
In cases of malfunction ,
this message appears on
the multifunction display.
Do not touch the xenon bulbs. Contact
a PEUGEOT dealer.
7-seat version
0. Driver only or Driver + 1 passenger
in the front.
1 or 2. Driver + 1 passenger in the
front + 2 passengers on the
third bench seat.
3. 7 occupants (including the driver
with or without maximum authorised
l o a d ) .
4. Driver + maximum authorised load.
Page 110 of 221
6ii
SAFETY

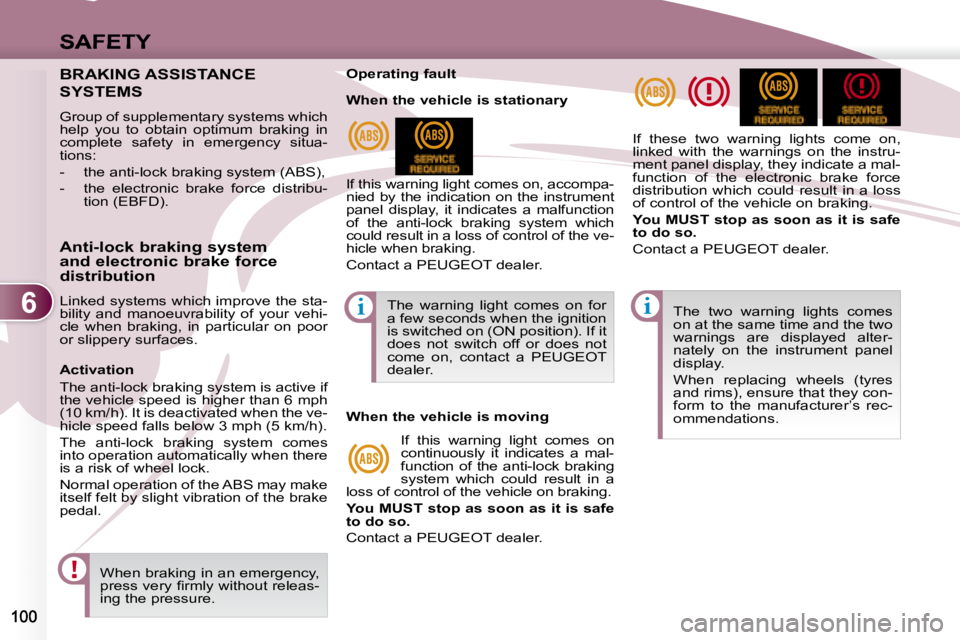

BRAKING ASSISTANCE
SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situa-
tions:
- the anti-lock braking system (ABS),
- the electronic brake force distribu-tion (EBFD).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehi-
cle when braking, in particular on poor
or slippery surfaces.
When braking in an emergency,
p r e s s v e r y fi r m l y w i t h o u t r e l e a s -
ing the pressure. The two warning lights comes
on at the same time and the two
warnings are displayed alter-
nately on the instrument panel
display.
When replacing wheels (tyres
and rims), ensure that they con-
form to the manufacturer’s rec-
ommendations.
Operating fault
If this warning light comes on, accompa-
nied by the indication on the instrument
panel display, it indicates a malfunction
of the anti-lock braking system which
could result in a loss of control of the ve-
hicle when braking.
Contact a PEUGEOT dealer.
If these two warning lights come on,
linked with the warnings on the instru-
ment panel display, they indicate a mal-
function of the electronic brake force
distribution which could result in a loss
of control of the vehicle on braking.
You MUST stop as soon as it is safe
to do so.
Contact a PEUGEOT dealer.
Activation
The anti-lock braking system is active if
the vehicle speed is higher than 6 mph
(10 km/h). It is deactivated when the ve-
hicle speed falls below 3 mph (5 km/h).
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal. The warning light comes on for
a few seconds when the ignition
is switched on (ON position). If it
does not switch off or does not
come on, contact a PEUGEOT
dealer.
When the vehicle is stationary
When the vehicle is moving
If this warning light comes on
continuously it indicates a mal-
function of the anti-lock braking
system which could result in a
loss of control of the vehicle on braking.
You MUST stop as soon as it is safe
to do so.
Contact a PEUGEOT dealer.
Page 111 of 221
6
SAFETY
101
The ASC/TCL systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive
at high speed.
The correct functioning of these
systems depends on observation
of the manufacturer’s recommen-
dations regarding the wheels (tyres
and rims), the braking compo-
nents, the electronic components
and the PEUGEOT assembly and
operation procedures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.
Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASC system,
so that the wheels can move freely and
regain grip.
Press the "ASC OFF" button, located
to the right of the steering wheel,
until the ASC OFF symbol appears
on the instrument panel display.
The displaying of this symbol in the top
right corner of the instrument panel dis-
play indicates that the ASC and TCL
systems are disarmed. Reactivation
These systems are not reactivated au-
tomatically above 30 mph (50 km/h).
Press the "ASC OFF" button again
to reactivate them manually.
The switching off of the symbol in the
top right corner of the instrument panel
display indicates the reactivation of the
ASC and TCL systems.
Operating fault
The displaying of this mes-
sage on the instrument
panel display indicates a
malfunction of these sys-
tems.
Contact a PEUGEOT dealer to have
the ASC/TCL systems checked.
SYSTEMS
Associated systems which guarantee
the directional stability of the vehicle
within the limits of the laws of physics:
- the anti-skid regulation (TCL),
- the electronic stability programme (ASC).
Activation
These systems are activated automati-
cally each time the vehicle is started.
They operate when the vehicle speed is
higher than 10 mph (15 km/h).
Anti-skid regulation and
electronic stability programme
The anti-skid regulation optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver.
They come into operation in
the event of a grip or trajectory
problem.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this symbol on the instrument panel dis-
play.
Page 113 of 221
6
SAFETY
103

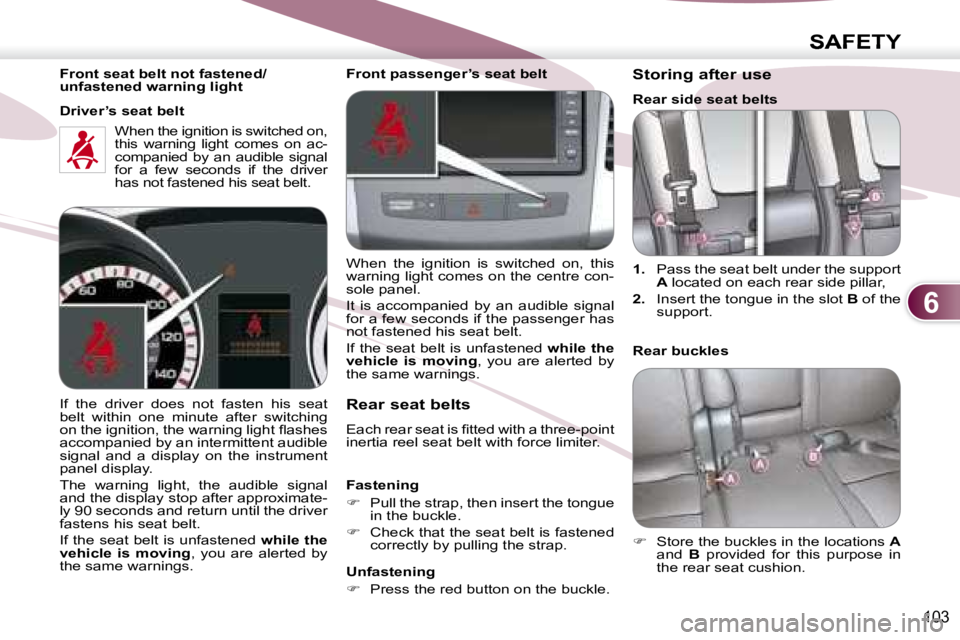

Front seat belt not fastened/
unfastened warning light
Driver’s seat belt When the ignition is switched on,
this warning light comes on ac-
companied by an audible signal
for a few seconds if the driver
has not fastened his seat belt.
Rear seat belts
E a c h r e a r s e a t i s fi t t e d w i t h a t h r e e - p o i n t
inertia reel seat belt with force limiter.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
Press the red button on the buckle.
If the driver does not fasten his seat
belt within one minute after switching
o n t h e i g n i t i o n , t h e w a r n i n g l i g h t fl a s h e s
accompanied by an intermittent audible
signal and a display on the instrument
panel display.
The warning light, the audible signal
and the display stop after approximate-
ly 90 seconds and return until the driver
fastens his seat belt.
If the seat belt is unfastened
while the
vehicle is moving , you are alerted by
the same warnings. Storing after use
Rear side seat belts
1. Pass the seat belt under the support
A located on each rear side pillar,
2. Insert the tongue in the slot B of the
support.
Rear buckles
Store the buckles in the locations A
and B provided for this purpose in
the rear seat cushion.
Front passenger’s seat belt
When the ignition is switched on, this
warning light comes on the centre con-
sole panel.
It is accompanied by an audible signal
for a few seconds if the passenger has
not fastened his seat belt.
If the seat belt is unfastened
while the
vehicle is moving , you are alerted by
the same warnings.
Page 116 of 221

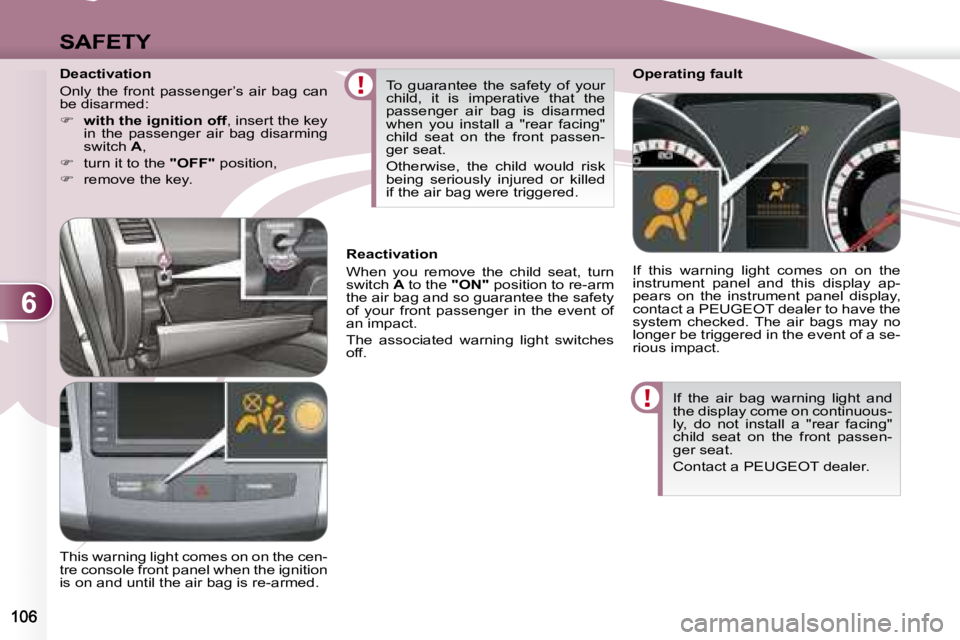

6
SAFETY
If the air bag warning light and
the display come on continuous-
ly, do not install a "rear facing"
child seat on the front passen-
ger seat.
Contact a PEUGEOT dealer.
Operating fault
If this warning light comes on on the
instrument panel and this display ap-
pears on the instrument panel display,
contact a PEUGEOT dealer to have the
system checked. The air bags may no
longer be triggered in the event of a se-
rious impact.
To guarantee the safety of your
child, it is imperative that the
passenger air bag is disarmed
when you install a "rear facing"
child seat on the front passen-
ger seat.
Otherwise, the child would risk
being seriously injured or killed
if the air bag were triggered.
This warning light comes on on the cen-
tre console front panel when the ignition
is on and until the air bag is re-armed. Reactivation
When you remove the child seat, turn
switch
A to the "ON" position to re-arm
the air bag and so guarantee the safety
of your front passenger in the event of
an impact.
The associated warning light switches
off.
Deactivation
Only the front passenger’s air bag can
be disarmed:
with the ignition off , insert the key
in the passenger air bag disarming
switch A ,
turn it to the "OFF" position,
remove the key.
