1
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 (refer to
the "Distance recorders"
section).
Distance recorder (A and B)
INFORMATION ON THE INFORMATION ON THE
INSTRUMENT PANEL DISPLAY
D a t a d i s p l a y s
With the ignition on, press the
INFO
button, located on the fascia to the right
of the instrument panel, to display the
various information displays in succes-
sion:
- the distance recorder A,
- the distance recorder B,
- the service indicator,
- the coolant temperature,
- the range,
- the trip computer,
- the setting menu.
This displays the distance
and the number of months
remaining before the next
service to be carried out in
accordance with the manu-
facturer’s servicing sched-
ule (refer to the "Service
indicator" section).
Service indicator
When the engine is run-
ning, this indicates the
temperature of the cool-
ant (refer to the "Coolant
temperature indicator"
section).
C o o l a n t t e m p e r a t u r e When the engine is run-
ning, this indicates the
number of miles (kilo-
metres) which can still
be travelled with the fuel
remaining in the tank in
relation to the average
consumption over the
last few miles (kilometres) travelled (re-
fer to the "Range" section).
Range
This indicates the aver-
age consumption, the
average speed and the
current consumption (re-
fer to the "Trip computer"
section).
T r i p c o m p u t e r
When the vehicle is sta-
t i o n a r y , this allows the
user to change the follow-
ing parameters (refer to
the "Function parameters"
section):
- the display language,
- the temperature dis- play unit,
- the fuel consumption unit,
- the option to reinitialise the average consumption and the average speed,
- the break (rest) reminder display in- terval.
Setting menu
Page 27 of 221
1
i
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the tem-
perature of the coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool be-
fore topping up the level. The
cooling system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank in relation to the av-
erage consumption over
the last few miles/kilo-
metres travelled.
RANGE RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Contact a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief, resulting in
a reduction in the current con-
sumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the bat-
tery, the previous consumption
data is lost and the value dis-
played will be different from that
displayed before the battery was
disconnected. The distance dis-
played must be considered an
approximate indication.
Page 29 of 221
1
i
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1 of the
display and the trip dis-
tance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total dis-
tance travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is run-
ning, this indicates the tem-
perature of the coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
I t i s i m p e r a t i v e t h a t y o u s t o p y o u r
v e h i c l e s a f e l y .
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool be-
fore topping up the level. The
cooling system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank in relation to the av-
erage consumption over
the last few miles/kilo-
metres travelled.
RANGE RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Contact a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief, resulting in
a reduction in the current con-
sumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect the bat-
tery, the previous consumption
data is lost and the value dis-
played will be different from that
displayed before the battery was
disconnected. The distance dis-
played must be considered an
approximate indication.
Page 31 of 221
1
i
i
INSTRUMENTS and CONTROLS
System which provides current infor-
mation about the route travelled.
TRIP COMPUTER Average
c o n s u m p t i o n
(l/100 km or km/l or
m p g )
T h i s i s t h e a v e r a g e q u a n -
tity of fuel consumed
since the last zero reset.
T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change in the style of
driving or the relief resulting in
a reduction in the current con-
sumption.
A v e r a g e s p e e d
( k m / h o r m p h )
This is the average
speed calculated since
the last zero reset. R e s e t t i n g t h e i n f o r m a t i o n t o z e r o
When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.
Automatic
If the ignition remains in the
"ACC" (Ac-
cessories) position for at least 4 hours,
the average consumption value is reset
to zero automatically.
If dashes "---" are displayed for
long periods in place of the digits
while driving, contact a PEUGEOT
dealer.
Current
c o n s u m p t i o n
(l/100 km or km/l or
m p g )
This is the average
q u a n t i t y o f f u e l c o n -
sumed during the last
few seconds of driving.
D a t a d i s p l a y s
With the ignition on, press the
INFO but-
ton on the fascia, to the right of the instru-
ment panel, several times in succession
to display the different information:
- the average consumption,
- the average speed,
- the current consumption. W h e n t h e r e q u i r e d i n f o r m a t i o n i s d i s -
played, press the
INFO button for more
than two seconds.
Page 32 of 221
1
i
i
INSTRUMENTS and CONTROLS
When the vehicle is
s t a t i o n a r y , it allows the
user to change the fol-
lowing parameters:
- the choice of the reini- tialisation of the aver-
age consumption and
average speed,
- the fuel consumption unit,
- the temperature display unit,
- the display language,
- activation/deactivation of the INFO
button sound,
- the break (rest) reminder display in- terval,
-
restore the manufacturer’s parameters.
FUNCTION PARAMETERS FUNCTION PARAMETERS
System which provides access to cer-
tain function parameters.
In order to change the settings, it
is essential that you stop the ve-
hicle and switch on the ignition.
Apply the handbrake and place
the gear lever in neutral.
When the vehicle is moving ,
the functions setting display is
not displayed when you press
the INFO button.
With the ignition on , press the INFO
button on the fascia, to the right of the
instrument panel, several times in suc-
cession until the "SETTING MENU"
screen is displayed. O p e r a t i o n
press and hold the INFO button for
a few seconds to display the menus
screen. Press and hold the
INFO button
for a few seconds to return to
the previous screen.
When the menus screen is dis-
played, if no operation is carried
out within 15 seconds, the func-
tion parameters screen is dis-
played.
on the menus screen, press the
INFO button to select a function
from the list:
MENU
1/2
:
- 1 - 2 (choice of the reinitialisation of
the average consumption and aver-
age speed),
- UNIT (choice of the fuel consump-
tion units),
- choice of the t e m p e r a t u r e d i s p l a y
unit ,
- LANGUAGE (choice of the display
language),
MENU
2 / 2 :
- a/b (choice of displaying a different
language on the instrument panel
display and the navigation display),
- a c t i v a t i o n / d e a c t i v a t i o n o f t h e
INFO button sound ,
- ALERT (changing of the "BREAK
ADVISED" break reminder display
interval),
- REINITIALISE (restore the manu-
facturer’s parameters). C h o i c e o f t h e r e i n i t i a l i s a t i o n o f
t h e a v e r a g e c o n s u m p t i o n a n d
a v e r a g e s p e e d
You can choose between two average
consumption and average speed reini-
tialisation modes:
- automatic reinitialisation
(choice 1) ,
- manual reinitialisation (choice 2) .
On the menus screen:
press the INFO button to select:
press and hold the INFO button for a
few seconds to switch in succession
from reinitialisation mode 1
(automatic)
to reinitialisation mode 2 (manual) .
T h e m o d e s e l e c t e d i s c o n fi r m e d .
Page 33 of 221
1
i
i
INSTRUMENTS and CONTROLS

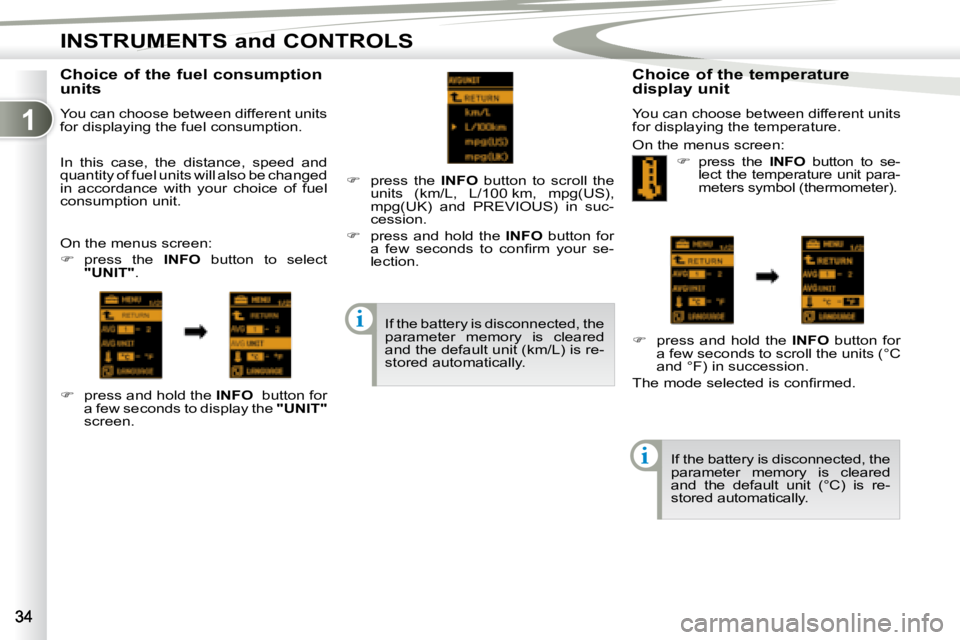

C h o i c e o f t h e f u e l c o n s u m p t i o n
units
You can choose between different units
for displaying the fuel consumption.
On the menus screen:
press the INFO button to select
"UNIT" .
press and hold the INFO button for
a few seconds to display the "UNIT"
screen.
press the INFO button to scroll the
units (km/L, L/100 km, mpg(US),
mpg(UK) and PREVIOUS) in suc-
cession.
press and hold the INFO button for
a f e w s e c o n d s t o c o n fi r m y o u r s e -
lection.
In this case, the distance, speed and
q u a n t i t y o f f u e l u n i t s w i l l a l s o b e c h a n g e d
in accordance with your choice of fuel
consumption unit.
If the battery is disconnected, the
parameter memory is cleared
and the default unit (km/L) is re-
stored automatically. C h o i c e o f t h e t e m p e r a t u r e
d i s p l a y u n i t
You can choose between different units
for displaying the temperature.
On the menus screen:
press the INFO button to se-
lect the temperature unit para-
meters symbol (thermometer).
press and hold the INFO button for
a few seconds to scroll the units (°C
and °F) in succession.
T h e m o d e s e l e c t e d i s c o n fi r m e d .
If the battery is disconnected, the
parameter memory is cleared
and the default unit (°C) is re-
stored automatically.
Page 35 of 221
1
i
INSTRUMENTS and CONTROLS

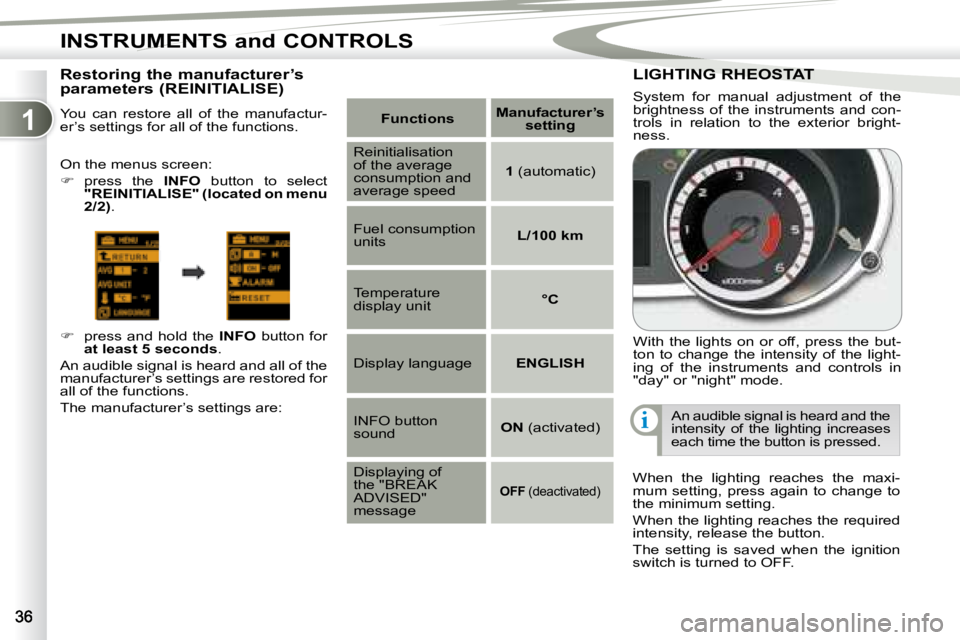

R e s t o r i n g t h e m a n u f a c t u r e r ’ s
p a r a m e t e r s ( R E I N I T I A L I S E )
You can restore all of the manufactur-
er’s settings for all of the functions.
On the menus screen:
press the INFO button to select
"REINITIALISE" (located on menu
2/2) .
press and hold the INFO button for
at least 5 seconds .
An audible signal is heard and all of the
manufacturer’s settings are restored for
all of the functions.
The manufacturer’s settings are: LIGHTING RHEOSTAT LIGHTING RHEOSTAT
With the lights on or off, press the but-
ton to change the intensity of the light-
ing of the instruments and controls in
"day" or "night" mode.
When the lighting reaches the maxi-
mum setting, press again to change to
the minimum setting.
W h e n t h e l i g h t i n g r e a c h e s t h e r e q u i r e d
intensity, release the button.
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and the
intensity of the lighting increases
each time the button is pressed.
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior bright-
ness.
Functions
M a n u f a c t u r e r ’ s
setting
Reinitialisation
of the average
consumption and
average speed
1 (automatic)
Fuel consumption
units
L/100 km
Temperature
display unit
°C
Display language ENGLISH
INFO button
sound
ON (activated)
Displaying of
the "BREAK
ADVISED"
message
OFF (deactivated)
Page 36 of 221
1
i
INSTRUMENTS and CONTROLS
R e s t o r i n g t h e m a n u f a c t u r e r ’ s
p a r a m e t e r s ( R E I N I T I A L I S E )
You can restore all of the manufactur-
er’s settings for all of the functions.
On the menus screen:
press the INFO button to select
"REINITIALISE" (located on menu
2/2) .
press and hold the INFO button for
at least 5 seconds .
An audible signal is heard and all of the
manufacturer’s settings are restored for
all of the functions.
The manufacturer’s settings are: LIGHTING RHEOSTAT LIGHTING RHEOSTAT
With the lights on or off, press the but-
ton to change the intensity of the light-
ing of the instruments and controls in
"day" or "night" mode.
When the lighting reaches the maxi-
mum setting, press again to change to
the minimum setting.
W h e n t h e l i g h t i n g r e a c h e s t h e r e q u i r e d
intensity, release the button.
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and the
intensity of the lighting increases
each time the button is pressed.
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior bright-
ness.
Functions
M a n u f a c t u r e r ’ s
setting
Reinitialisation
of the average
consumption and
average speed
1 (automatic)
Fuel consumption
units
L/100 km
Temperature
display unit
°C
Display language ENGLISH
INFO button
sound
ON (activated)
Displaying of
the "BREAK
ADVISED"
message
OFF (deactivated)
