Page 127 of 221
8
CHECKS
Bonnet strut

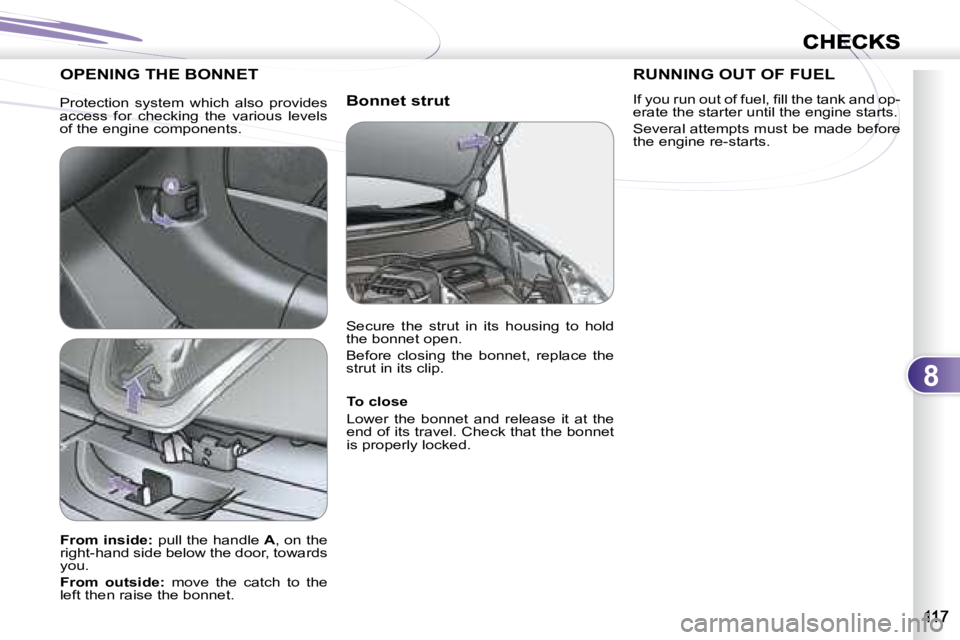

OPENING THE BONNET
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.
From inside: pull the handle A , on the
right-hand side below the door, towards
you.
From outside: move the catch to the
left then raise the bonnet. Secure the strut in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
strut in its clip.
RUNNING OUT OF FUEL
I f y o u r u n o u t o f f u e l , fi l l t h e t a n k a n d o p -
erate the starter until the engine starts.
Several attempts must be made before
the engine re-starts.
Protection system which also provides
access for checking the various levels
of the engine components.
Page 144 of 221
9
i
i
PRACTICAL INFORMATION
CHANGING A FUSE CHANGING
Access to the tools
T h e e x t r a c t i o n p l i e r s a r e i n s t a l l e d i n t h e
e n g i n e c o m p a r t m e n t f u s e b o x .
To gain access to them:
Open the bonnet (refer to the "Ac-
cess" section),
Press on the hook A and release
the catch,
Remove the cover completely,
Remove the pliers B . PEUGEOT will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying the malfunctions result-
ing from the installation of acces-
sories not supplied and not rec-
ommended by PEUGEOT and
not installed in accordance with
its instructions, in particular when
the consumption of all of the ad-
ditional equipment connected
e x c e e d s 1 0 m i l l i a m p e r e s . Your vehicle's electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT
dealer.
Changing a fuse
Before changing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its location.
Always replace the faulty fuse with
a fuse of the same rating.
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the top and the ta-
bles below. Correct
Incorrect
The spare fuses are located on
the engine compartment fuse
b o x c o v e r .
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure in the corresponding function.
Page 147 of 221
9
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e c o m p a r t m e n t n e a r t h e
battery (left-hand side).
Access to the fuses
Open the bonnet (refer to the "Access" section),
Press on the hook A to release the catch,
Remove the cover completely,
Change the fuse (refer to the corresponding paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e c o v e r c a r e f u l l y t o
g u a r a n t e e t h e s e a l i n g o f t h e f u s e b o x .
Fuse N° Rating Functions
1 15 A Front fog lamps.
2 - Not used.
3 - Not used.
4 10 A Horn.
5 - Not used.
6 20 A Headlamp wash.
7 10 A Air conditioning.
8 - Not used.
9 - Not used.
10 15 A Demisting, wipers.
11 - Not used.
12 - Not used.
13 - Not used.
14 10 A Left-hand main beam headlamp.
15 10 A Right-hand main beam headlamp.
16 20 A L e f t - h a n d d i p p e d h e a d l a m p ( x e n o n ) .
17 20 A R i g h t - h a n d d i p p e d h e a d l a m p ( x e n o n ) .
18 10 A Left-hand dipped headlamp,
manual and automatic headlamp
adjustment.
19 10 A Right-hand dipped headlamp.
20 - Not used.
21 - Not used.
Page 149 of 221
9
i
PRACTICAL INFORMATION
The battery A is located under the bon-
net on the left.
To gain access to it:
open the bonnet using the interior
l e v e r , t h e n t h e e x t e r i o r l e v e r ,
secure the bonnet strut.

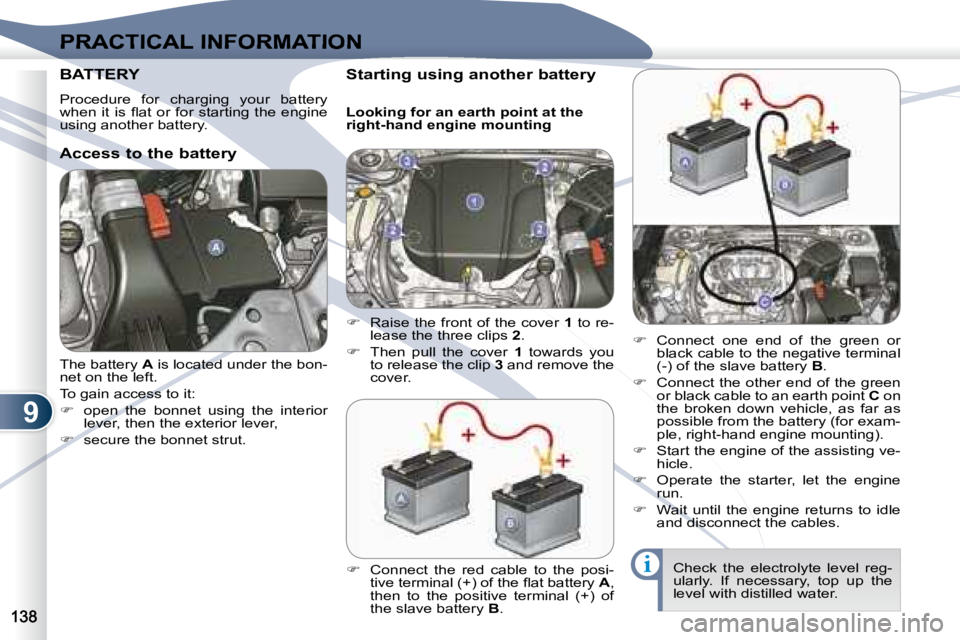

BATTER BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B .
Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle, as far as
p o s s i b l e f r o m t h e b a t t e r y ( f o r e x a m -
ple, right-hand engine mounting).
Start the engine of the assisting ve-
hicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Raise the front of the cover 1 to re-
lease the three clips 2 .
Then pull the cover 1 towards you
to release the clip 3 and remove the
cover.
Check the electrolyte level reg-
ularly. If necessary, top up the
level with distilled water.
Starting using another battery
Looking for an earth point at the
right-hand engine mounting
