2007.5 Citroen C3 DAG Owner's Manual

II
55

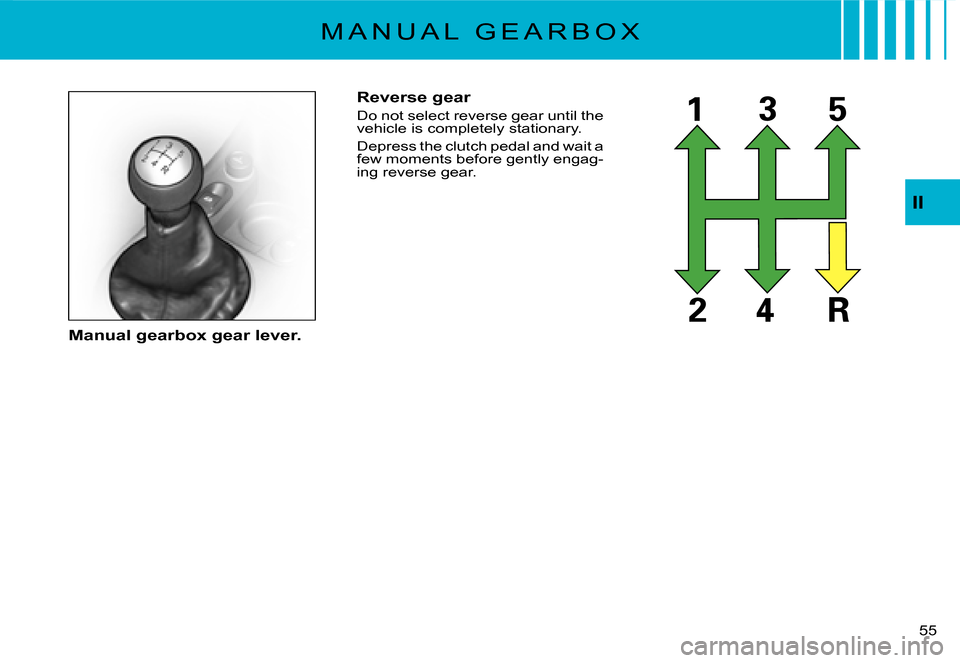

Reverse gear
Do not select reverse gear until the vehicle is completely stationary.
Depress the clutch pedal and wait a few moments before gently engag-ing reverse gear.
Manual gearbox gear lever.
M A N U A L G E A R B O X

A
B
II
56
A U T O M A T I C G E A R B O X
Automatic gear selection leverParking (Position P).
Reverse gear (Position R).Neutral (Position N).
The automatic gearbox offers you:
Operation in automatic auto-active mode, adapting automatically to your style of driving (Position D).Operation in sequential mode, with manual gear changing (Position M).Operation in Sport or Snow automatic mode (Position Dand by pressing on button Aor B).

II
57
The engine can only be started when the lever is at position P or N.
A safety device ensures that start-ing is impossible in the other posi-tions.
After starting the engine, with selector on P, depress the brake pedal then shift the selector to D, R or M:D for automatic mode.
R for reverse gear.
M to change to manual mode.
The change from position D (driv-ing in automatic mode) to posi-tion M (driving in sequential mode) or vice versa can be made at any time.

II
58
A U T O M A T I C G E A R B O X
Automatic forward drive
Sequential forward drive
The gearbox always selects the gear best adapted to the following param-eters:Style of driving.
Road profi le.
Vehicle load.
The gearbox then functions in auto-adaptive mode, without any action on your part.
For certain manoeuvres (for example overtaking), it is possible to ob tain maximum acceleration by pressing hard down on the accelerator pedal , which may trigger automatic changedown to a lower gear.
Remarks:During braking, the gearbox may kick down automatically in order to offer an effective engine brake.
If you suddenly lift your foot off the accelerator, the gearbox will guard your safety by not changing up again.

A
B
II
59
A U T O M A T I C G E A R B O X
Operation in SPORT or SNOW automatic mode
Automatic gearbox salection lever on D:Press on button A to select the SPORT driving mode.Press on button B to select the SNOW driving mode.Press again on the button to select NORMAL driving mode.
---
Flashing of the warning lamp for the position requested signals that this position has not yet been reached. When the warning lamp is permanent, the position is confi rmed .
If there is an operating fault:A sharp hesitation may be felt when you select R for reverse gear.
The gearbox is stuck in a gear.
Do not exceed 100 km / h.
Consult a CITROËN dealer as soon as possible.

2
11II
60
E L E C T R O N I C G E A R B O X S Y S T E M
G E N E R A L
The Electronic Gearbox System gives you the choice of two driving modes:Automatic mode.
Manual mode with two control possibilities: The controls under the steer-ing wheel 1 and the selection lever 2 on the central console.
Selection lever for Electronic gearbox operating mode:Automatic operation with the gear lever 2 in position A.
Remark: Instant manual mode activates whenever you action one of the controls under the steering wheel 1.
Manual operation with the gear lever 2 in position M.

II
61
E L E C T R O N I C G E A R B O X S Y S T E M
G E N E R A L
Starting the vehicleApply the brake pedal. The lever should be in position N. Switch-ing on the ignition will in any case return you to position N(neutral).
Check the gear engaged on the instrument panel.
As required, select 1 gear or reverse gear (the engine must be at idle).Release the handbrake.
Lift your foot from the brake pedal and accelerate.

II
62
E L E C T R O N I C G E A R B O X S Y S T E M
G E N E R A L
Vehicle stationary, engine running
If the vehicle is stationary for a long time with the engine running, then the gearbox changes automatically to neu-tral.
Stopping the engine
Before switching the engine off, you must choose:To leave the vehicle in neutral ; for that, place the lever in position N.To leave the vehicle with a gear engaged (1st or 2nd or Rse); for that, place the gear lever in the respective posi-tion. In this case, the vehicle cannot be moved.
In all cases it is essential to apply the parking brake.
It is possible within a limited time to re-engage a gear, even if the engine is switched off.
Before any operation in the engine compartment, check that the gearbox is in neutral and that the parking brake is applied.
Acceleration
The accelerator pedal may have an end-of-travel switch. If so, to obtain extra acceleration you can action this switch by pressing the pedal hard down.
Starting on a gradient
If starting on a gradient, accelerate gradually while releasing the handbrake.
If you have had to stop on a gradient, you are recommended no t to use the accelerator to maintain the vehicle’s position.
