2007.5 Citroen C3 DAG Owner's Manual

122
III
94
I N T E R I O R L I G H T I N G
1. Interior lamps
Move the control 1 to the 3 following positions.
Automatic lighting of the interior lampsOn entering the vehicle:
They come on as soon as the vehicle is unlocked or a door is opened.They go out 30 seconds after the doors are closed or when ignition is switched on.
On vacating the vehicle:They come on as soon as the ignition key is removed (timed for 30 seconds), or when a door is opened.
They go out 30 seconds after all the doors have been closed or immediately after the vehicle has been locked.
2. Spotlamps
A press on one of the buttons 2 switches the corresponding spotlamp on or off.
These do not work if the ignition is off or in economy mode.

III
95
I N T E R I O R C O M F O R T
Lower glovebox
To open, pull the handle and lower the lid.
It comprises a storage area for vehicle documents.
Front seat drawers
To open, lift then pull towards the front.
Boot storage
Straps anchored to the boot aper-ture are provided for the securing of a wide variety of objects (e.g. doctor’s bag, warning triangle, oil container etc).
Further items can be stowed in the storage area fi tted into the right hand side of the load area.
WARNING
WARNING: As a safety measure, the glovebox must remain shut when the vehicle is in motion.

III

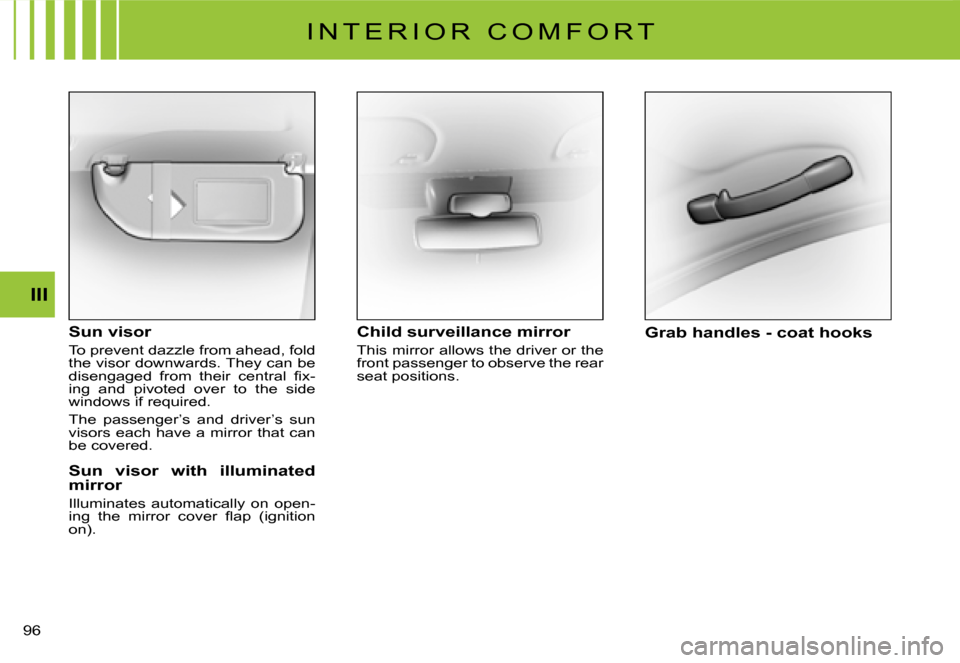

96
I N T E R I O R C O M F O R T
Sun visor
To prevent dazzle from ahead, fold the visor downwards. They can be disengaged from their central fi x-ing and pivoted over to the side windows if required.
The passenger’s and driver’s sun visors each have a mirror that can be covered.
Sun visor with illuminated mirror
Illuminates automatically on open-ing the mirror cover fl ap (ignition on).
Child surveillance mirror
This mirror allows the driver or the front passenger to observe the rear seat positions.
Grab handles - coat hooks

III
97
I N T E R I O R C O M F O R T
Cigar-lighter
These only work when the ignition is switched on.
Push in and wait a few moments. The cigar lighter will release auto-matically.
Ashtray
A movable ashtray can occupy the cupholder locations on the central console.
Aircraft- style tray
Located on the rear of the front seat backrests.Note: Do not place any hard or heavy item on the shelf. It could become a dangerous projectile in the event of sudden braking or a collision.

21
1
12
4
4
3
III
98
M O D U B O A R D S H E L F
The Moduboard shelf, located at the rear of the benchseat backrests, ena-bles the bootspace to be variously confi gured.
A - Shelf stowed vertically against the benchseat backrests.
Removing the parcel shelfHold it with one hand.
Unlock by pressing on the controls 1.Tilt the Moduboard shelf (still folded) towards you.
Release it from its mountings.
Handle the shelf without forcing the joints that link the various sections.Note: It is possible to fold the central retaining tab 2 between the seat back-rests.
Fitting the shelf in placeunfold the central retaining tab 2 (the presence of this tab is essential for supporting weight).
present the shelf (folded) in a position tilted towards the mountings.lock it in the stowed position.
Locking the shelffold it.lock by engaging it in the controls 1.

3
III
99
For long and bulky loads with the Moduboard shelf fully deployed.
With a few simple actions in the rear of the vehicle it is possible to create a fl at load area stretching from the boot aperture to the front seat backrests, rear benchseat backrests folded.
The boot can be divided into com-partments depending on require-ments:B- To protect fragile objects,.C- To accommodate a long and bulky load,.D- To take a long and bulky load as well as fragile objects,.E- To take a long object and still retain 2 rear seats and two- thirds of the boot,.F- To separate a fragile object from a long object.
M O D U B O A R D S H E L F

III
100
S U N R O O F
Electric sun roof
The sun roof can be slid back over the rear panel so that all the space vertically above the front occupants is open to the elements.
A defl ector moves into position automatically when the sun roof is opened.
Turn the control to the left to slide the sun roof (9 opening positions).
It is controlled electrically and sequentially, by a rotary switch with nine open-ing positions located on the roof lining between the two front sun visors.
An anti- pinch device stops the sun roof from sliding shut if it meets an obstacle, in which case it reopens.
Interior blinds
These can be positioned manually whether the sun roof is open or closed.
When the sun roof is opened, the front blind deploys automatically.
It is not possible to close the front blind with the roof open.
Warning
The fi tting of an “Accessory” sun roof is prohibited if you r vehicle has curtain airbags.

III
101
S U N R O O F
PAY ESPECIAL ATTENTION TO WHERE CHILDREN ARE WHEN OPERATING THE SUN ROOF
Always remove the ignition key when leaving the vehicle, even if for a short time. When the driver actions the sun roof control, he should fi rst make sure that passengers are not obstructing the closing of the sun roof.
In the event of anything being caught by the sun roof clos ing, you must reverse the roof movement. To do that, reverse the position of the control concerned.
The driver should ensure that passengers use the sun roof correctly.
If the sun roof opens randomly when it should be closing, set the control to closing and keep it pressed until the sun roof is closed fully.
Warning: During this manœuvre, the anti-pinch does not operate.
In the event of a malfunction, consult a CITROËN dealerNote: At very high speeds: a long press on the control is necessary to close the sun roof.
