2007.5 Citroen C3 DAG Owner's Manual

TEL
37
USING THE KEYPADEach press on one of the but tons of the keypad W lets you :Selec t a name c ommenc ing with the letter chosen, either in the directory or in the SIM card.Scroll down the characters, until you reach the one you need.[1] 1 or space with a short press in text entry (SMS)[2] 2 or A B C 2 or a b c 2[3] 3 or D E F 3 or d e f 3[4] 4 or G H I 4 or g h i 4[5] 5 or J K L or j k l 5[6] 6 or M N O 6 or m n o 6[7] 7 or P Q R S 7 or p q r s 7[8] 8 or T U V 8 or t u v 8[9] 9 or W X Y Z 9 or w x y z 9[0] In text entry (SMS)Short press : Space then 0Long press : Space In diallingShort press : 0Long press : +[#] In diallingShort press : #[*] In text entry (SMS)S h o r t p r e s s : D e l et i o n of t h e l a st characterLong press : Progressive deletion of the complete line In diallingShort press : *L o n g p r e s s : D e l e t i o n o f t h e l a s t character

TEL 1
38T E L E P H O N E A N D T E L E M A T I C S E R V I C E S
CALL A NUMBERTo call a number, carry out one of the fol-lowing actions :Select “Call” in the menu Telephone and telematic ser vices, then compose the number using the keyboard W.Press on button D to start the dialling, or select the function “OK”.Say “Call” then the voice label from a fi le that includes a telephone number.Use the current directory.A long press on control 5 at the steering wheel brings up a contextual menu with the calls list, the current director y and the voicemail.With Telephone and Telematic Services displayed, press on but ton G to have access to the calls list.

TEL 2
39
NaviDrive Ser vices, for access to the list of telematic services from CITROËN , for access to the to the
(e.g. Customer Service, choice of a des-tination, fuel consumption monitoring, spor t, current affairs, fi nance, weather, horoscope, travel, games, etc.) depending on availability.Messages received, messages relating to the benefi ts of your specifi c Ser vice Contract.
EMERGENCY CALLIn the absenc e of a subsc r iption to the CITROËN Emergency ser vice, the In the absenc e of a subsc r iption the abV but-ton is conf igured for making calls to the number 112, this being a standard number reserved by the European GSM network for emergency calls.For this call, a valid SIM card must be present, permitting the sending and receiv-ing of telephone calls and SMS messages. You also need to be in an area that has GSM coverage.
T WIN SIM CARDFor better peace of mind, offers of twin SIM c ards (available in some c ountr ies from certain service operators) give you two SIM cards for a standard price, a single number and single messaging. Calls arrive as prior-ity on your principal line. In the absence of a reply, calls are transferred automatically to the equipment that is using the second SIM card.

TEL 3TEL 4TEL 4. b
40T E L E P H O N E A N D T E L E M A T I C S E R V I C E S
TELEPHONE FUNCTIONSThis menu gives you access to the following functions :Network, to select the network search mode and to view the net works avail-able.Length of calls, to consult the call length counters and the reset to zero.Managing the SIM card, for modifying the PIN code and deleting the list of calls and text messages (SMS).Call options, for c onf iguring c alls by whether or not you withhold your number, for hanging up automatically after X rings, for defi ning ring tones and callback for SMS and for deleting the calls log.

41T E L E P H O N E A N D T E L E M A T I C S E R V I C E S
Note :SMS messages that have been stored or deferred can be consulted at any time.To access them, press on button P, select “Telephone and Telematic Ser vices” then the function “SMS text-messages” and validate the function “Reading of SMS messages received”. Then move in the list to be able to select and validate the message you wish to read. The number of SMS messages unread is indicated.If the voice synthesiser function is active, as soon as the message is displayed, it will be read out by the voice synthesiser.

CFG 2CFGCFG 1

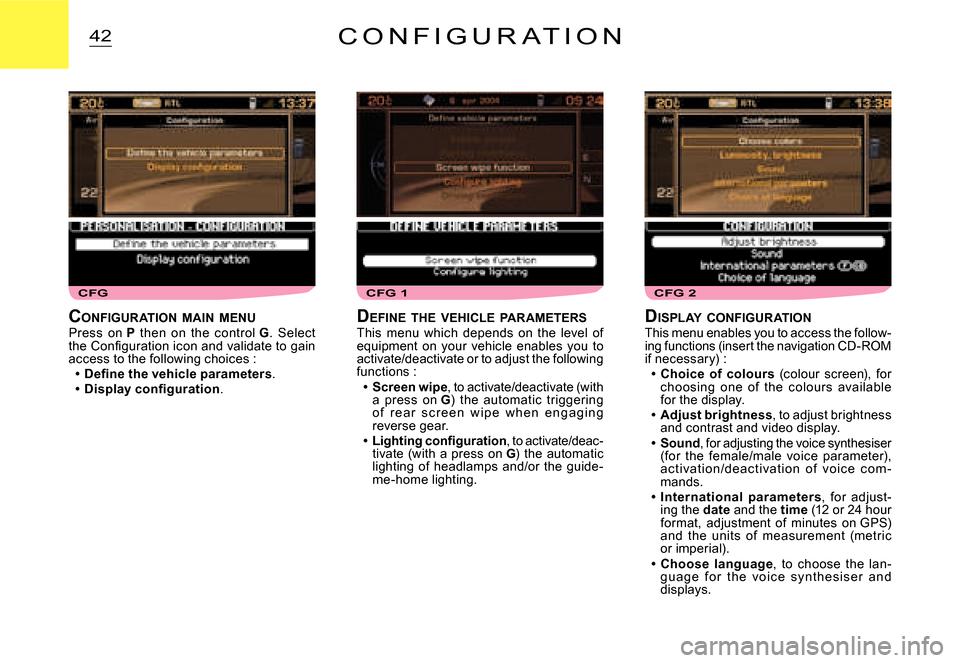

42C O N F I G U R A T I O N
DISPLAY CONFIGURATIONThis menu enables you to access the follow-ing functions (insert the navigation CD-ROM if necessary) :Choice of colours (colour screen), for choosing one of the colours available for the display.Adjust brightness, to adjust brightness and contrast and video display.Sound, for adjusting the voice synthesiser (for the female/male voice parameter), ac tivation /deac tivation of voic e c om -mands.International parameters, for adjust-ing the date and the time (12 or 24 hour format, adjustment of minutes on GPS) and the units of measurement (metric or imperial).Choose language, to choose the lan-guag e f o r t h e vo i c e sy nt h e s i s e r an d displays.

43M A P
MO D E “ S E L E C T I O N – MO V E O N MAP ”This mode enables you :To move on the map in all four directions : N o r t h, S o u t h, E a s t a n d We s t , u s i n g buttons H, I, M and N. The movement can be speeded up by keeping the appropriate button pressed down.To select a point on the map by moving the lat ter in order, af ter a press on G, to be guided towards this point, to have information on it, or to memorise it.
Remarks :In this mode, the zoom is also available and the map is always full screen, oriented to North.In this mode, a validation on the control Gdisplays the Map contextual menu.In this mode, the symbol for the nearest Centre of Interest is displayed.

CAR
44M A P
MAP MAIN MENUPress on P then use control G to select the Map icon and validate to have access to the following choices :Move the map, to change to the mode “Select - Move on map”.Orient the map, to orient the map either to North or to the direction in which the vehicle is moving.Centre around the vehicle, to recentre the map on the vehicle if it no longer appears on the map.Details of the map, for selecting the points of interest to be displayed using symbols on the map (see next page).M e m o r i s e t h e c u r r e n t p o s i t i o n, to display the panel for entering a label for recording the vehicle's current position in a fi le in the current directory.
