2007.5 Citroen C3 DAG Owner's Manual

2
8
5
3
9
6
714III
86
A U T O M A T I C A I R C O N D I T I O N I N G
1. Automatic operation
This is the normal operating mode for the system.
A press on this button, confi rmed by “AUTO” on the display, assures auto-matic control of:The air fl ow.
The cabin temperature. The air distribution.
Air recirculation.
Air conditioning.
To revert to manual mode, press again on the button.

III
87
A U T O M A T I C A I R C O N D I T I O N I N G
Manual recalling of one or more functions
One or more functions can be adjusted manually, while still retaining the other functions in automatic mode.
The function display “AUTO” then goes out.
4. Air conditioning
Press the control located on the control panel.
A symbol appears on the display (system active).
To prevent misting inside the vehicle in cold or humid weather, you are advised to use the AUTO mode.
Press on the control on the dashboard to activate or deactivate the production of cold air.
Air conditioning is then obtained from the mixing of hot air with cold air, using the air blower temperature adjustment 3.
5. Air recirculation
By pressing the control, the entry of air from outside is closed off and the sym-bol appears on the display.
This position is useful for excluding undesirable odours or fumes coming from outside. It should be cancelled as soon as possible in order to permit renewal of air in the cabin and to prevent misting.
For this, press the “AUTO” button or press again on the air recycling button.
6. Air distribution
Press on the button to scroll through the displays of air fl ow to:
Windscreen.
Central and lateral air vents. Windscreen and passenger footwells.
Windscreen and passenger footwells.
Passenger footwells.
(Air vents closed).
Central and lateral air vents.
Central and lateral air vents and passen-ger footwells.
Note: In AUTO position the air distribution displayed is that chosen by the system.

III
88
A U T O M A T I C A I R C O N D I T I O N I N G
To increase it.
To decrease it.
The level of air fl ow is indicated on the display by the progressive fi lling of the fan blades (seven possible adjustment positions).
Note: If you place the air blower on position 0, the sys-tem is deactivated (the display disappears).
Note: In AUTO position the air fl ow displayed is that chosen by the system.
7. Air fl ow
Heater blower control. Press button:
8. Demisting - Defrosting
While it is operating, the warning lamp lights and the symbol appears on the display.
This control is for rapid deicing or demist-ing of the windscreen and side windows. It automati-cally triggers the air conditioning, optimising air fl ow and air distribution for the continued comfort of the vehicle occupants.
To stop it, press again either on the button 8 or on the button “AUTO”.
9. Demisting - deicing of the rear screen
Press AUTO to return the system to its automatic function.

5
2
4
1
3
III
89

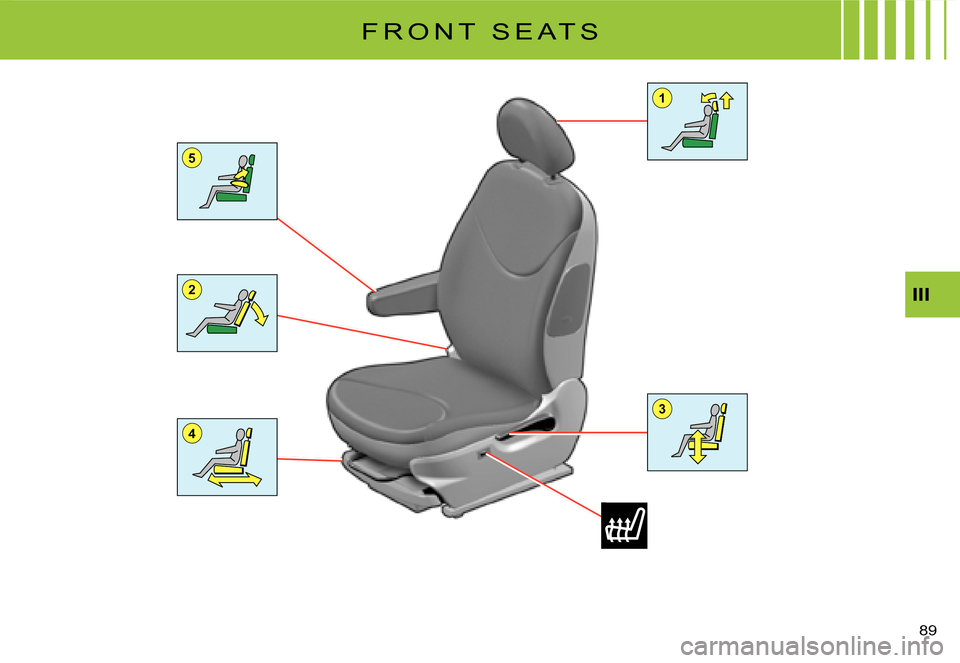

F R O N T S E A T S

1
5
4
3
2III
90
F R O N T S E A T S
Manual adjustments
Head restraint
To fi t it, slide it in.
To lower it, press on the tab.
Adjustment is correct when the top of the head restraint is level with the top of the head.
It is also tilt-adjustable.
To remove it, bring it to the high position. Lift the tab with the aid of a coin and pull.
Backrest angle
Use the control to adjust the backrest angle.
It is possible to recline the backrest to an angle of 45° by tilting it until it locks. Press the control to unlock.
Heated seats
The front seats can be heated indi-vidually. Use the controls located at the side of the seats, and select one of the three heating levels:
0: Off.
1: Slight heat.
2: Medium heat.
3: Maximum heat.
The seat temperature adjusts auto-matically.Note: The heated seats only oper-ate when the engine is running.
Seat height and rake adjustment
Raise the control and place the seat in the desired positio n.
Reach
Lift the control bar and adjust to the desired position.
Armrest
To place it in the vertical position: Lift it from its position of use until it locks.Note: To remove the armrest:Press the control located on its axis of rotation.
Pull the armrest to remove.

III
91
Rear head restraints
The rear head restraints have two positions:A stowed position for when the seat is not occupied.A deployed position to provide passenger safety, by raising them to their locking point.
To raise them, pull them upwards to their maximum height, pressing the unlocking button.

A
III
92
A I R B A G S
In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a “r ear-facing” child seat there. Otherwise the child risks being killed or serio usly injured should the airbag deploy.
Front passenger's airbag deactivation
In order to be able to use a rear-facing child seat in the front passenger's seat position, it is imperative to deactivate the passenger's airbag.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the “OFF” position, the passenger's airbag is deactivated.
The front passenger's airbag deactivation warning lamp, in th e instrument panel, lights up when you switch on the ignition.
Reactivating the front passenger's airbag
Do not forget to reactivate the function.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the “ON” position, the airbag is activated.
The warning lamp in the instrument panel lights up for a f ew seconds when you switch on the ignition.

III
93
C H I L D R E S T R A I N T S
ISOFIX anchoring points and the ISOFIX fastening system
The lateral rear seats of your vehi-cle are each equipped with regu-lation ISOFIX anchoring points. These consist of 2 rings located between the backrest and the vehi-cle seat, approx. 28 cm apart.
ISOFIX child seats are equipped with 2 latches which are eay to attach to these rings. This fi xing system is intended for children weighing up to 18 kg.
Incorrect installation of a child seat in a vehicle compromises protec-tion of the child in the event of a col-lision. The ISOFIX system enables you to minimise the risks posed by incorrect fi tting. The ISOFIX fas-tening system gives you a conven-ient, strong and reliable fi tting for a child seat in your vehicle.
The ISOFIX child seat that is approved and supplied by the CITROËN network is the approved and supplied by approved KIDDY Isofi x child seat (1).
It can be installed “rear-facing” from birth to 13 kg and “forward-facing” from 9 to 18 kg.
Advice on installing your KIDDY Isofi x child seat:In the “forward facing” position, the vehicle’s corresponding front seat should be adjusted between the furthest forward and the medium fore/aft position, with the backrest upright.
If “rear-facing”, the shell of the child seat should be in contact with the backrest of the vehicle front seat.
Child seats secured by means of the vehicle seat belt
In conformity with Directive 2000/3, the table tells you to what extent each of the seat positions in your vehicle may take a child seat tha t is secured by means of the vehicle seat belt and approved as “Universal” as a f unction of the weight of the child.
