2007.5 Citroen C2 DAG Owner's Manual

B
A
50
II
W I P E R S
Check that the windscreen and rear wipers can operate freely when for example a bicycle-carrier is fi tted, or in freezing conditions.
Remove any accumulation of snow at the base of the windsc reen.
Changing the wiper blades
If you have to replace them, the wiper blades have to be parked in the maintenance position. For this, switch off the ignition and then within one minute move the wiper control stalk. The wipers stand up in a vertical position.
After replacement, switch on the ignition and move the wiper control stalk so that the wipers resume their normal position.
A. Windscreen wash
To operate the windscreen wash, pull the wiper stalk towards you.
The screen wash is accompanied by a timed wipe of the windscreen, the headlamp wash also activates if the dipped beams are on.
B. Rear screen wipe
First notch
Off.
Second notch
Intermittent rear wipe.
Third notch
Timed rear wash/wipe.
Automatic wipe
When the windscreen wipers are operational and reverse gear is engaged.
Activation/deactivation of this func-tion is possible in the menu “Per-sonalisation/Confi guration” in the “Main menu”.
Deactivation may be necessary when a bicycle-carrier is installed on the tailgate.

II

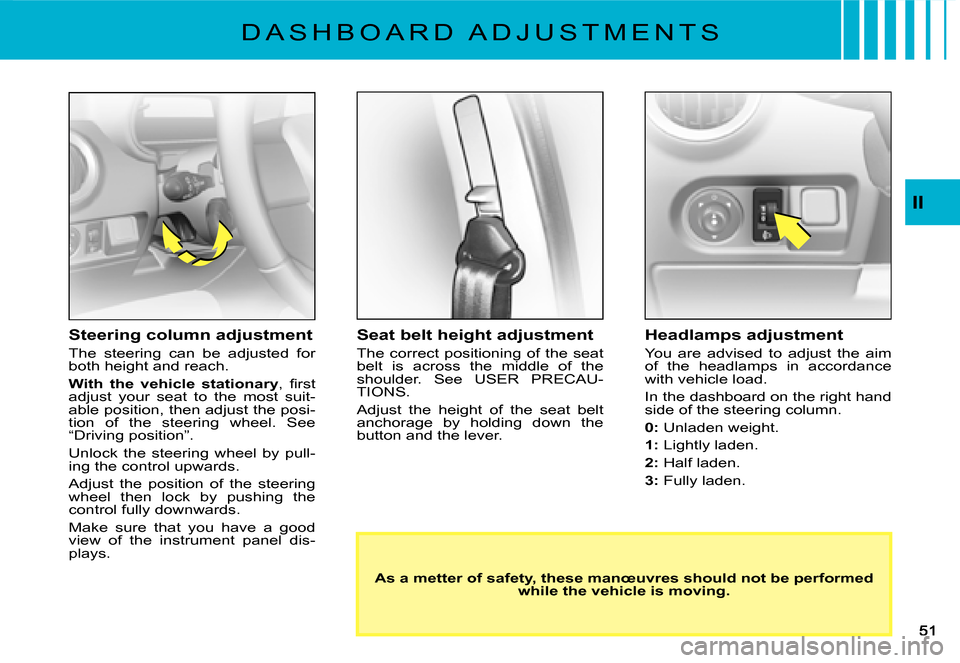

D A S H B O A R D A D J U S T M E N T S
Seat belt height adjustment
The correct positioning of the seat belt is across the middle of the shoulder. See USER PRECAU-TIONS.
Adjust the height of the seat belt anchorage by holding down the button and the lever.
Headlamps adjustment
You are advised to adjust the aim of the headlamps in accordance with vehicle load.
In the dashboard on the right hand side of the steering column.
0: Unladen weight.
1: Lightly laden.
2: Half laden.
3: Fully laden.
As a metter of safety, these manœuvres should not be performed while the vehicle is moving.
Steering column adjustment
The steering can be adjusted for both height and reach.
With the vehicle stationary, fi rst adjust your seat to the most suit-able position, then adjust the posi-tion of the steering wheel. See “Driving position”.
Unlock the steering wheel by pull-ing the control upwards.
Adjust the position of the steering wheel then lock by pushing the control fully downwards.
Make sure that you have a good view of the instrument panel dis-plays.

1
3
2
52
II
R E A R V I E W M I R R O R S
Electric exterior rear view mirrors
Your vehicle is equipped with elec-tric door mirrors.
Set the position of the selected door mirror:1. Left hand door mirror.2. Right hand door mirror.
Move the control in the four direc-tions to set the position.
The defrosting of the exterior rear view mirrors is linked to the electri-cal demisting of the rear window.
Fold-back of door mirrors
When the vehicle is parked, the door mirrors can be folded back either manually or electrically.
Turn the control to position 3 for electric foldback of the rear view mirrors.
Quit position 3 to deploy the rear view mirrors.
The end of the glass in the exte-rior rear view mirrors is aspherical, so as to enlarge the lateral fi eld of vision.
Objects observed in the aspherical part of the rear view mirrors are in reality closer than they appear.
You must take this into account in order to be properly aware of the distances involved.
Interior rear view mirror
The lever on the lower edge ena-bles you to place the rear view mir-ror in either of two positions:
Day position: the lever is not vis-ible.
Night position (anti-dazzle): the lever is visible.

53
II
Electric operation
The switches on the console allow the vehicle’s electric windows to be controlled from the driver’s posi-tion.
Sequential control on driver's side
An action on the control to the fi rst notch causes a window movement which stops as soon as the control is released.
An action on the control to the second notch causes the window to close or open completely, a fur-ther press on the control stops the movement.Note: The window controls also operate for a limited time after you have switched off the ignition.
ALWAYS PAY ATTENTION TO WHERE CHILDREN ARE WHEN OPENING OR CLOSING THE WINDOWS
Always remove the ignition key when leaving the vehicle, even if for a short time.
If there is an obstruction when operating a window, you must immedi-ately reverse the window movement. To do that, reverse th e position of the control concerned.
If the driver is operating the electric window controls for passengers, he or she should ensure that no passenger is obstructing th e window from closing.
The driver must ensure that the electric windows are use d properly by passengers.
Anti-pinch on driver's window
An anti-pinch device stops the window from rising. If it meets a n obstacle, it goes back down.
After a battery disconnection or if there has been a malfun ction, you have to re-initialise the anti-pinch function:Use the control to fully open the window, then reclose. It will rise only a few centimetres.
Press again on the control until the window closes fully.
During this operation, the anti-pinch protection does not w ork.
Manual operation
Turn the handle to raise or lower the window.


W I N D O W S

54
II
Reverse gear
Do not select reverse gear until the vehicle is completely stationary.
Depress the clutch pedal and wait a few moments before gently engag-ing reverse gear.
Manual gearbox gear lever.
M A N U A L G E A R B O X

2
11
55
II
E L E C T R O N I C G E A R B O X S Y S T E M
G E N E R A L
The Electronic Gearbox System gives you the choice of two driving modes:Automatic mode.
Manual mode with two control possibilities: The controls under the steer-ing wheel 1 and the selection lever 2 on the central console.
Selection lever for Electronic gearbox operating mode:Automatic operation with the gear lever 2 in position A.
Remark: Instant manual mode activates whenever you action one of the controls under the steering wheel 1.
Manual operation with the gear lever 2 in position M.




Dashboard displayThe gear engaged and the mode “AUTO” are displayed on the instrument panel, even if the ignition is switched off, when for example a door is opened.
The foot-on-brake warning lamp fl ashes to indicate the neces-sity to press the brake pedal, in order to start the engine or to engage reverse gear.


With the ignition switched on, simultaneous fl ashing of th e warning lamps “ ” and “AUTO ” indicates a fault, contact a CITROËN dealer as soon as possible.CITROËN dealer as soon as possible.CITROËN dealer as soon as possible.CITROËN dealer as soon as possible.CITROËN dealer as soon as possible.

56
II
E L E C T R O N I C G E A R B O X S Y S T E M
G E N E R A L
Starting the vehicleApply the brake pedal. The lever should be in position N. Switch-ing on the ignition will in any case return you to position N(neutral).Check the gear engaged on the instrument panel.
As required, select 1 gear or reverse gear (the engine must be at idle).
Release the handbrake.Lift your foot from the brake pedal and accelerate.





Using the Electronic Gearbox System
Neutral
While the vehicle is moving, do not select this position, even momen-tarily.
Reverse gear
Engaging reverse gear R:
Only the lever permits you to engage reverse gear.
Only place the lever in position R if the vehicle is stationary, foot on the brake.
Automatic mode
Manual forward drive
Selector position for manual gear changing:Push the lever to change up a gear.
Pull the lever to change down a gear.


The engine can only be started, and reverse gear can only be engaged, if the brake pedal is pressed.
The foot-on-brake warning lamp fl ashes on the displ ay for approx. 5 seconds to indicate the necessity to press the brake pedal in order to start the vehicle or engage reverse g ear.

57
II
E L E C T R O N I C G E A R B O X S Y S T E M
G E N E R A L
Vehicle stationary, engine running
If the vehicle is stationary for a long time with the engine running, then the gearbox changes automat ically to neutral.
Stopping the engine
Before switching the engine off, you must choose:To leave the vehicle in neutral ; for that, place the leve r in position N.
To leave the vehicle with a gear engaged (1st or 2nd or Rse); for that, place the gear lever in the respective posi-tion. In this case, the vehicle cannot be moved.
In all cases it is essential to apply the parking brake.
It is possible within a limited time to re-engage a gear, even if the engine is switched off.
Before any operation in the engine compartment, check that the gearbox is in neutral and that the parking brake is applied.
Acceleration
The accelerator pedal may have an end-of-travel switch. If so, to obtain extra acceleration you can action this switch by pressing the pedal hard down.
Starting on a gradient
If starting on a gradient, accelerate gradually while releasing the handbrake.
If you have had to stop on a gradient, you are recommended no t to use the accelerator to maintain the vehicle’s position.


In the event of prolonged slipping of the clutch, the driver is alerted by the vehicle vibrating. It is necessary to use the brakes to hold the vehicle.
