Page 25 of 191
B
2 9
II

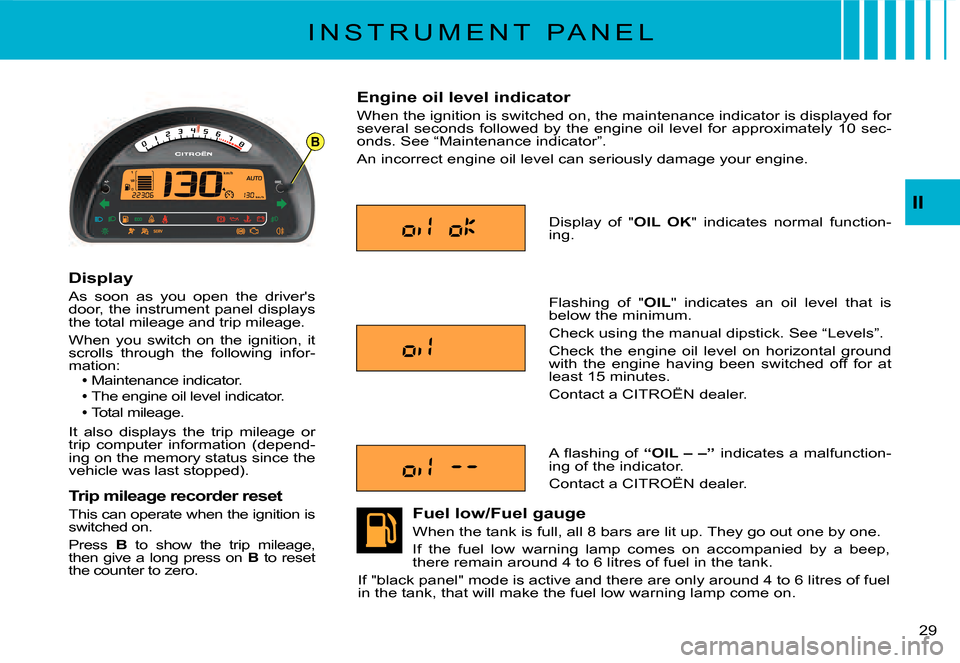

I N S T R U M E N T P A N E L
Display
As soon as you open the driver's door, the instrument panel displays the total mileage and trip mileage.
When you switch on the ignition, it scrolls through the following infor-mation:Maintenance indicator.
The engine oil level indicator.
Total mileage.
It also displays the trip mileage or trip computer information (depend-ing on the memory status since the vehicle was last stopped).
Trip mileage recorder reset
This can operate when the ignition is switched on.
Press B to show the trip mileage, then give a long press on B to reset the counter to zero.
Engine oil level indicator
When the ignition is switched on, the maintenance indicator is displayed for s e v e r a l s e c o n d s f o l l o w e d b y t h e e n g i n e o i l l e v e l f o r a p p r o x i m a t e l y 1 0 s e c -onds. See “Maintenance indicator”.
An incorrect engine oil level can seriously damage your engine.
Fuel low/Fuel gauge
W h e n t h e t a n k i s f u l l , a l l 8 b a r s a r e l i t u p . T h e y g o o u t o n e b y o n e .
If the fuel low warning lamp comes on accompanied by a beep, t h e r e r e m a i n a r o u n d 4 t o 6 l i t r e s o f f u e l i n t h e t a n k .
I f " b l a c k p a n e l " m o d e i s a c t i v e a n d t h e r e a r e o n l y a r o u n d 4 t o 6 l i t r e s o f f u e l in the tank, that will make the fuel low warning lamp come on.
Flashing of "OIL" indicates an oil level that is below the minimum.
Check using the manual dipstick. See “Levels”.
Check the engine oil level on horizontal ground with the engine having been switched off for at l e a s t 1 5 m i n u t e s .
Contact a CITROËN dealer.
A fl a s h i n g o f “OIL – –” indicates a malfunction-ing of the indicator.
Contact a CITROËN dealer.
Display of "OIL OK" indicates normal function-ing.
Page 26 of 191
BCD
AF
E
IJHG
2 8
II
I N S T R U M E N T P A N E L
D I E S E L V E R S I O N
A. Control:Lighting rheostatNight driving (Black panel)B. Fuel gaugeC. Rev counterDuring the running-in period, see “Running-in”.
D. Red zone of rev counter telling you of the need to change to a higher gear.Sport version: The warning lamp lights up in orange, then in red.
--
E. Electronic Gearbox System displayF. Control:Trip mileage recorder resetG. Display:Cruise contol / speed limiterTrip mileage recorderTrip computer
-
---
H. Display of warning lamps I. Speed indicator J. Display:Maintenance indicatorEngine oil level indicatorTotal mileage recorder
---
Page 27 of 191
B
2 9
II
I N S T R U M E N T P A N E L
Display
As soon as you open the driver's door, the instrument panel displays the total mileage and trip mileage.
When you switch on the ignition, it scrolls through the following infor-mation:Maintenance indicator.
The engine oil level indicator.
Total mileage.
It also displays the trip mileage or trip computer information (depend-ing on the memory status since the vehicle was last stopped).
Trip mileage recorder reset
This can operate when the ignition is switched on.
Press B to show the trip mileage, then give a long press on B to reset the counter to zero.
Engine oil level indicator
When the ignition is switched on, the maintenance indicator is displayed for s e v e r a l s e c o n d s f o l l o w e d b y t h e e n g i n e o i l l e v e l f o r a p p r o x i m a t e l y 1 0 s e c -onds. See “Maintenance indicator”.
An incorrect engine oil level can seriously damage your engine.
Fuel low/Fuel gauge
W h e n t h e t a n k i s f u l l , a l l 8 b a r s a r e l i t u p . T h e y g o o u t o n e b y o n e .
If the fuel low warning lamp comes on accompanied by a beep, t h e r e r e m a i n a r o u n d 4 t o 6 l i t r e s o f f u e l i n t h e t a n k .
I f " b l a c k p a n e l " m o d e i s a c t i v e a n d t h e r e a r e o n l y a r o u n d 4 t o 6 l i t r e s o f f u e l in the tank, that will make the fuel low warning lamp come on.
Flashing of "OIL" indicates an oil level that is below the minimum.
Check using the manual dipstick. See “Levels”.
Check the engine oil level on horizontal ground with the engine having been switched off for at l e a s t 1 5 m i n u t e s .
Contact a CITROËN dealer.
A fl a s h i n g o f “OIL – –” indicates a malfunction-ing of the indicator.
Contact a CITROËN dealer.
Display of "OIL OK" indicates normal function-ing.
Page 28 of 191
B
2 9
II
I N S T R U M E N T P A N E L
Display
As soon as you open the driver's door, the instrument panel displays the total mileage and trip mileage.
When you switch on the ignition, it scrolls through the following infor-mation:Maintenance indicator.
The engine oil level indicator.
Total mileage.
It also displays the trip mileage or trip computer information (depend-ing on the memory status since the vehicle was last stopped).
Trip mileage recorder reset
This can operate when the ignition is switched on.
Press B to show the trip mileage, then give a long press on B to reset the counter to zero.
Engine oil level indicator
When the ignition is switched on, the maintenance indicator is displayed for s e v e r a l s e c o n d s f o l l o w e d b y t h e e n g i n e o i l l e v e l f o r a p p r o x i m a t e l y 1 0 s e c -onds. See “Maintenance indicator”.
An incorrect engine oil level can seriously damage your engine.
Fuel low/Fuel gauge
W h e n t h e t a n k i s f u l l , a l l 8 b a r s a r e l i t u p . T h e y g o o u t o n e b y o n e .
If the fuel low warning lamp comes on accompanied by a beep, t h e r e r e m a i n a r o u n d 4 t o 6 l i t r e s o f f u e l i n t h e t a n k .
I f " b l a c k p a n e l " m o d e i s a c t i v e a n d t h e r e a r e o n l y a r o u n d 4 t o 6 l i t r e s o f f u e l in the tank, that will make the fuel low warning lamp come on.
Flashing of "OIL" indicates an oil level that is below the minimum.
Check using the manual dipstick. See “Levels”.
Check the engine oil level on horizontal ground with the engine having been switched off for at l e a s t 1 5 m i n u t e s .
Contact a CITROËN dealer.
A fl a s h i n g o f “OIL – –” indicates a malfunction-ing of the indicator.
Contact a CITROËN dealer.
Display of "OIL OK" indicates normal function-ing.
Page 29 of 191
3 0
II
W A R N I N G L A M P S
These warning lamps may be accompanied by a message and/or a sound signal
Engine oil pressure
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the oil pressure is low.
It is essential to stop the vehi-cle.
Contact a CITROËN dealer.
Coolant temperature warning lamp
It comes on for a few sec-onds each time you switch on the ignition.
If this warning lamp comes on, engine running, it tells you that the coolant temperature is rising abnormally.
It is essential to stop the vehi-cle.
Check the coolant level.
See “Levels”.
If the level is satisfactory, consult a CITROËN dealer.If the level is satisfactorythe level
Battery charge
This warning lamp should go out when the engine is running.
If it remains permanently on, con-tact a CITROËN dealer.If it remains permanently remains permanently
Warning lamp for park- i n g b r a k e , b r a k e fl u i d level and braking dis-tribution malfunction
With the engine running, the light-ing of this warning lamp indicates that the parking brake is on or not properly released, that the brake fl u i d l e v e l i s l o w o r t h a t t h e b r a k i n g system is malfunctioning.
If the warning lamp remains on even after you have released the parking brake, stop immediately and contact a CITROËN dealer.parking brake, stop immediately stop immediately
Driver's seat belt not fastened
This lamp comes on if the LH seat belt is not fastened when the ignition is switched on and while the vehicle is moving at u p t o a p p r o x . 2 0 k m / h ( 1 2 m p h ) . Above this speed, the warning l a m p fl a s h e s , a c c o m p a n i e d b y a s o u n d s i g n a l f o r a r o u n d 1 2 0 s e c -onds. Then it remains on.
SERVICE
This warning lamp remains on for a seri-ous fault. Consult a CITROËN dealer as soon as pos-sible.
This warning lamp remains on only for a short time for faults that are minor. Contact a CITROËN dealer if necessary.
To learn the origin of the corre-sponding alert, refer to the log of alerts (See chapter “Displays Aand C” to chapter “Multifunction displays” or your NaviDrive hand-book).
Fuel low
It comes on for a few sec-onds each time you switch on the ignition.
If the fuel low warning lamp comes on, there remain approx. 4 to 6litres of fuel in the tank.
Depollution system
It remains on until you start the engine.
I f t h i s w a r n i n g l a m p fl a s h e s or lights up while you are driving, this indicates a problem with the depollution system.
Consult a CITROËN dealer as soon as possible.
Page 30 of 191
3 1
II
ESP
Operating
It comes on for a few sec-onds each time you switch on the ignition.
While the ESP system is active, t h e w a r n i n g l a m p fl a s h e s .
For a malfunction
When the vehicle is moving, the lighting of this warning lamp indi-cates a system malfunction.
Contact a CITROËN dealer.
Function deactivated
The warning lamp remains con-tinuously on.
Front passenger's air-bag deactivation
See “Airbags”.
I t i s t e s t e d b r i e fl y o n s t a r t -ing.
Airbag fault
See “Airbags”.
I t i s t e s t e d b r i e fl y o n s t a r t -ing.
W A R N I N G L A M P S
ABS system
The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds.
If it does not go out, there could be a system malfunction.
See “Brakes”.
Diesel engine pre-heating
See method for starting the engine.
See “Driving”.
Left hand direction indicator
See “Signalling”.
Right hand direction indicator
See “Signalling”.
Foot on brake (Elec-tronic Gearbox Sys-tem)
T h e fl a s h i n g o f t h i s w a r n -ing lamp in the instrument panel indicates the need to apply the brake pedal in order to start the engine or engage reverse gear.
Stop & Start
The lighting of this warn-ing lamp indicates that the engine is in shutdown mode.
Sidelamps
See “Signalling”.
Front foglamps
See “Signalling”.
Dipped beams
See “Signalling”.
Foglamps (rear)
See “Signalling”.
Main beams
See “Signalling”.
If the hazard lamps are activated, this means that the direction indica- t o r s fl a s h o n b o t h s i d e s a t t h e s a m e t i m e .
Page 31 of 191
3 2
II
M A I N T E N A N C E I N D I C A T O R
It informs you when the next routine service is due in accordance with the vehicle servicing schedule in the Maintenance Guide. This information is dependent on two p arameters: the mileage covered, and the time elapsed since the last visit.
Operation
On switching on the ignition, the maintenance indicator spanner appears in the display for several seconds. The mileage recorder display indicates how many miles remain to be travelled before the next service is due (in thousands and hundreds of miles).
Example: there remain up to the next service:
A few seconds after this, the engine oil level indicator is displayed, then the total mileage recorder resumes its normal role.
Operation if the distance to the next service is less than 1 000 km (600 miles)
Each time you switch on the igni- t i o n a n d f o r 5 s e c o n d s , t h e s p a n - n e r a n d t h e d i s t a n c e fl a s h .
Example: there remain up to the n e x t s e r v i c e : 5 0 0 k m ( 3 0 0 m i l e s ) . On switching on the ignition and for 5 s e c o n d s , t h e i n s t r u m e n t p a n e l indicates:
A few seconds after this, the engine oil level indicator is displayed, then the total mileage recorder resumes its normal role and the mainte-nance symbol remains lit up. This is a warning to you that a service must be carried out at the earliest opportunity.
Operation if the service interval has been passed
Each time you switch on the igni-tion, the maintenance symbol and the distance covered (preceded by a minus) beyond the recom- m e n d e d i n t e r v a l fl a s h .
Example: You have exceeded t h e s e r v i c e i n t e r v a l b y 3 0 0 k m ( 3 0 0 m i l e s ) .
The routine service on your vehi-cle needs to be carried as soon as possible.
A few seconds after this, the engine oil level indicator is displayed, then the total mileage recorder resumes its normal role and the mainte-nance symbol remains lit up.
Page 32 of 191
AB
D
C
3 3
II
I N S T R U M E N T P A N E L L I G H T I N G –
B L A C K P A N E L
Lighting rheostat
The dimmer is active when the lamps are on and affects:The instrument panel: Rev counter, fuel level display.
The display screen.
The air conditioning control panel.
Selection of mode and brightness is done by pressing the dimmer button A on the instrument panel.
Night driving (headlamps on)
4 l e v e l s o f b r i g h t n e s s + 1 l e v e l f o r Black panel.
Adjustment is by successive presses on button A in the follow-ing cycle:
l e v e l 4 W l e v e l 3 W l e v e l 2 W level 1 W Black panel.
This function is to give you the best possible visual conditions for driv-ing at night.
In black panel mode, the following information only will be displayed temporarily, should you request it or in the event of an alert:The warning lamps in zone C(bottom area of the instrument panel) will come on in the event of an alert: e.g. fuel low, coolant temperature.
The direction indicator warning lamps.The speed indicator.
The gear engaged.The mileage recorder each time you press button B.
The automatic air conditioning display each time you press one of the buttons.
The trip computer information.
Night driving T h e fi r s t p r e s s o n b u t t o n D“DARK” places the display on standby. Only the time and the temperature remain visible at the top of the screen.
A second press on D switches the screen and the instrument panel off (black panel) with the exception of information con-cerning for example:The speed indicator.The gearbox.Cruise control / Speed limiter if this has been activated.Note: Timed lighting of func-tions if you:
Press any of the display con-trols.Select Radio-CD.Operate any of the air condi-tioning controls.Note: All the displays come on if there is an alert.A third press on D returns you to normal lighting.
---
-
--
