2007.5 Citroen C2 DAG Owner's Manual

B
ADC
I
FE
G
H
128
VI
D I M E N S I O N S
( I N M E T R E S )
A2,315
B3,666
C0,760
D0,591
E1,439
F1,439
G1,659
H1,461
I1,898

A
H
D
C
G
E
FB

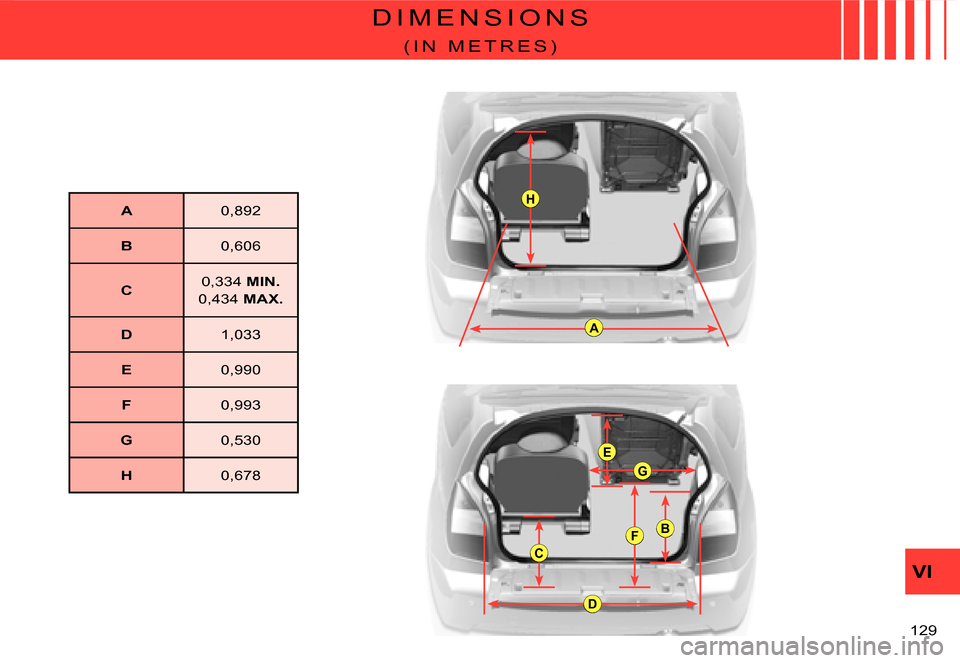

129
VI
D I M E N S I O N S
( I N M E T R E S )
A0,892
B0,606
C0,334 MIN.
0,434 MAX.
D1,033
E0,990
F0,993
G0,530
H0,678

A
A
D
B
C
130
VI
V E H I C L E I D E N T I F I C A T I O N
Self-adhesive manufacturer’s plateA. On the LH door aperture, above the striker plate.1. EU type approval number.2. Vehicle identifi cation No. (VIN).3. Gross vehicle weight.4. Gross train weight.5. Maximum weight on front axle.6. Maximum weight on rear axle.B. Body serial numberC. Factory serial no. under the windscreenD. Paint colour codeTyre referenceTyre pressures
The vehicle type and the identifi cation number are also indicated on the registration document.
All CITROËN original replacement parts are available exclusively w ithin the dealer network.
For your safety and in order to remain within the terms of the guarantee, you are advised to use only CITROËN replacement parts.For your safety and in order to remain within the terms of order to remain

ABCDEFGHIJK
NPMROQL
1
4
6
2
3
5S
R D S A U D I O C O M P A C T D I S C S Y S T E M
W I T H C D C H A N G E R

2
AOn / Off.Volume adjust.
BCD eject.
CCD aper ture.
DSOURCESelection of sound source (Radio, CD, CD changer).
EBAND/AST
Shor t press : Selection of frequency bands and memor y banks.Long press : Automatic pre-set function (Autostore).
FCall-up of audio adjustments :Sound ambiences, bass, treble, loudness, fade, balance, speed-sensitive volume.
GLIST
Radio source :Short press : Display of the list of radio stations available (30 maximum).Long press : Update of list of stations.CD source : Display of list of tracks of the CD.

ABCDEFGHIJK
NPMROQL
1
4
6
2
3
5S
R D S A U D I O C O M P A C T D I S C S Y S T E M
W I T H C D C H A N G E R

3
1
Radio source :Scrolling of pre-set stations.Within a menu, selection of a choice.CD changer source :Selection of CD.

4
ON / O FFWith the key in Drive position M, press on control A to switch the radio on or off.
Note :If the radio was on the last time you switched of f the ignition, it will resume automatically when you switch on the ignition again. You will not have to press on control A.After switching off the ignition, you can still operate the audio system even without the ignition key being present. Simply press on button A. The system will turn itself off after approx.30minutes.
ANTI -THEFT SYSTEMThis radio is c oded in such a way as to function only on your par ticular vehicle. It would be unusable if installed on any other vehicle.
Note :T he ant i - t hef t system i s auto m at i c an d requires no action on your part.
