2007.5 Citroen C2 DAG Owner's Manual

4
3
52
1
120
V

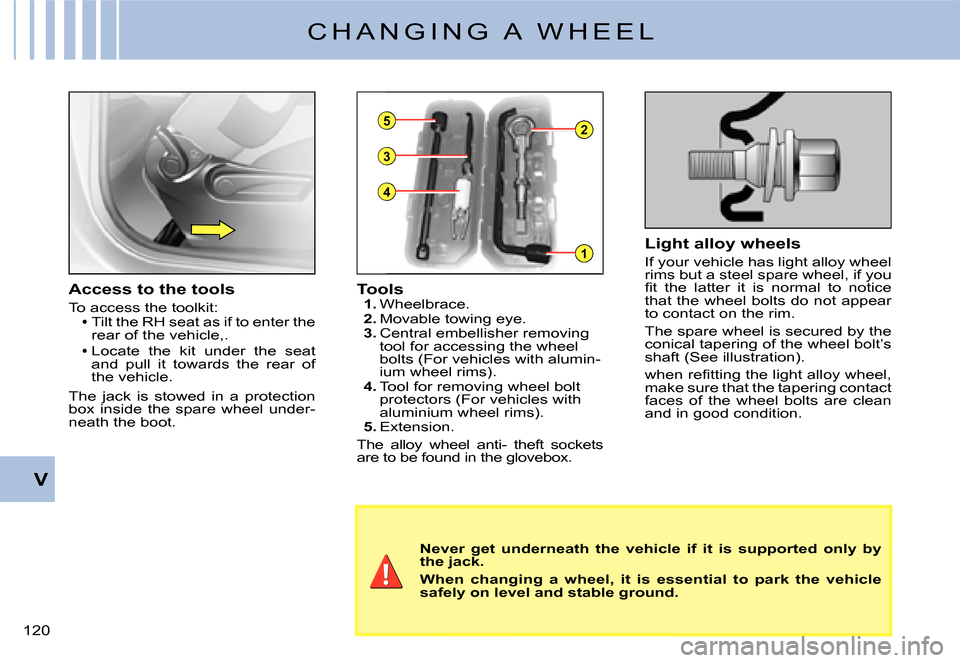

C H A N G I N G A W H E E L
Never get underneath the vehicle if it is supported only by the jack.
When changing a wheel, it is essential to park the vehicle safely on level and stable ground.
Access to the tools
To access the toolkit:Tilt the RH seat as if to enter the rear of the vehicle,.
Locate the kit under the seat and pull it towards the rear of the vehicle.
The jack is stowed in a protection box inside the spare wheel under-neath the boot.


Tools1. Wheelbrace.2. Movable towing eye.3. Central embellisher removing tool for accessing the wheel bolts (For vehicles with alumin-ium wheel rims).4. Tool for removing wheel bolt protectors (For vehicles with aluminium wheel rims).5. Extension.
The alloy wheel anti- theft sockets are to be found in the glovebox.
Light alloy wheels
If your vehicle has light alloy wheel rims but a steel spare wheel, if you fi t the latter it is normal to notice that the wheel bolts do not appear to contact on the rim.
The spare wheel is secured by the conical tapering of the wheel bolt’s shaft (See illustration).
when refi tting the light alloy wheel, make sure that the tapering contact faces of the wheel bolts are clean and in good condition.

A
121
V
C H A N G I N G A W H E E L
The jack is specifi c to your vehicle, do not use it for any other purposes.
With a spare wheel, drive cautiously.
Access to the spare wheel
Open the lower tailgate.
Remove the blank A with the aid of the ignition key, to insert the exten-sion for the wheelbrace.
Slacken the spare wheel carrier screw.
Lift the carrier to release the retain-ing hook, then disengage it.
To reposition the spare wheel
Having repositioned the jack and its handle in its protection box in the wheel, slide the wheel into the carrier.
Lift the carrier to secure it in the safety hook.
Retighten the screw from inside the boot compartment.
Stow the wheelbrace and exten-sion.
Reposition the blank A.
Tyre pressures
This is indicated on the label on the front door pillar. See “Vehicle iden-tifi cation” and “User Precautions”.
ADVICE
The wheel bolts are specifi c to the type of wheel.
If the type of wheel is changed, check with your CITROËN dealer If the type of wheel is changed, wheel is changed,
that the wheel bolts are compatible with the new wheels.

122
V
C H A N G I N G A W H E E L
Removal1. Park the vehicle on stable, fi rm ground that is not slippery. Apply the parking brake.Switch off the ignition and engage fi rst gear or reverse gear, depending on any slope.2. Position the jack at one of the four jacking-points provided on the sub-frame close to the wheels. Using the handle, unwind the jack until it reaches the ground.3. To unclip the wheel embellisher, pull using the end of the wheelbrace as a lever in one of the apertures.For vehicles with aluminium wheel rims:With a central embellisher, remove the embellisher, using the tool, to access the bolts.With visible wheel bolts, remove the chromed bolt protectors, usi ng the tool, before slackening the bolts.4. Continue to extend the jack until the wheel is a few centimetres off the ground.5. Undo the other bolts, remove the wheel.
-
-
Refi tting1. Fit the wheel on the hub, using the centring guide.2. Screw in the bolts but do not fully tighten them, remove the wheel centring guide in order to screw in the last bolt.3. Lower the jack and remove it.4. Tighten the wheel bolts, using the wheelbrace.5. Refi t the embellisher, taking care to accommodate the tyre valve . Then pressing all round its circumference.6. Have the original wheel repaired and refi tted as soon as possible.7. Make sure that the tyre is at the correct pressure (see "Vehicle Ident ifi cation" and "User Precautions") and have the wheel balancing checked.
Dimension of the spare wheel
If your spare wheel has dimensions different from those of the normal vehicle wheels (identifi ed by a label), it is imperative to use the spare wheel only temporarily, to drive with caution, not to exceed 80 km/h (50 mph) and to have the tyre repaired and the normal wheel refi tted as soon as po ssible.

123
V
Because the aerosol is pressurised, do not expose it to temperatures higher than 50°C.
After provisionally repairing a tyre using the repair aerosol, you are advised not to drive at over 80km/h.
If your vehicle has no spare wheel, a repair aerosol is to be found in the boot.
Using the repair aerosol
See also the user instructions on the aerosol.Remove, if possible, the object which has caused the punc-ture.
Orient the wheel so that the valve is at ten o’clock or two o’clock.Shake the aerosol vigorously (in cold weather warm it in your hands for a few minutes).
With one hand hold the valve connector clear of the rim hole, with the other hand press the end of the aerosol nozzle fi rmly onto the connector, keeping it in the line of the valve.Firmly maintain the pressure for one minute.
Rapidly remove the aerosol and immediately drive for around six miles.
Reinfl ate the tyre and check its condition after some ten hours.
After using the repair aerosol, you should have the condition of the tyre, as well as its infl ation pressure, inspected.







P U N C T U R E
Advice - Recommendations
A punctured tyre should always be removed from the rim and thoroughly examined for dam-age before attempting any repair. When a repair is possible, it should be carried out as soon as possible to prevent further damage to the tyre.
Tyre repair should be carried out by a tyre specialist who will assume responsibility for the repair.Note:The towing eye is stowed either in the repair aerosol box or in the tool kit.
If there are two repair aerosols, this means that you need to use both of them for the temporary repair of the tyre.



124
V
T O W I N G – L I F T I N G
Towing with wheels on the ground
Towing eye fi xings are located at the front and at the rear of the vehicle.
To access them:Carefully lift the access cover.
Release it by pressing on the lower part.
A lug keeps the cover attached to the bumper, so that it do es not become lost.
The ignition key must be in position M to retain steering.
Use a bar with attachments to the towing eyes as above.


Movable towing eye
The towing ring is detachable and can be fi tted either at the front or at the rear of the vehicle. It is stowed in the toolkit which is to be found either under one of the front seats or in the repair aerosol kit located in the boot.
When the engine is not running, the steering and the bra king are no longer assisted.
If you are towing another vehicle, the latter must be free-wheeling (gearbox in neutral).
ADVICE
Towing at low speed over a very short distance is authorised in exceptional cases depending on the regulations in force.
Otherwise, it is necessary to have your vehicle transported on a recovery truck.
TOWING REQUIREMENTS
Place the selector on position N (neutral).

125
VI
F U E L C O N S U M P T I O N
( I N L I T R E S / 1 0 0 K M ( M I L E S P E R G A L L O N ) )
These consumption fi gures are established according to Directive 80/1268/CEE. Fuel consumption can vary depend-ing on style of driving, traffi c conditions, weather conditions, vehicle load, how the vehicle has been maintained and on use of accessories.
Engine type1.1i61 hp1.4i75 hp1.4i75 hp1.4i 16V90 hp1.6i 16V110 hp1.6i 16V125 hpHDi 70HDi 701.6 HDi 110 hp FAP
SaloonEntrepriseBVMBVMBVMPBVMP
Stop & StartBVMPBVMBVMBVMPBVM
UrbanCO2 emissions (g/km)
7.5(37.7)178
7.9(35.8)190
7.5(37.7)181
6.8(41.5)162
8.3(34.0)199
9.3(30.4)223
5.3(53.3)141
4.9(57.6)130
5.7(49.6)151
Extra urbanCO2 emissions (g/km)
4.8(58.9)114
4.9(57.6)117
4.8(58.9)116
4.8(58.9)116
5.2(54.3)124
5.4(52.3)129
3.7(76.3)96
3.8(74.3)99
3.7(76.3)98
CombinedCO2 emissions (g/km)
5.8(48.7)138
6.0(47.1)143
5.8(48.7)138
5.6(50.4)133
6.3(44.8)151
6.9(40.9)163
4.3(65.7)113
4.2(67.3)111
4.4(64.2)119
The fuel consumption fi gures quoted are correct at time of goi ng to press.
BVM: Manual gearbox.
BVMP: Electronic Gearbox System.
FAP: Diesel particulate fi lter system.

126
VI
G E N E R A L
Saloon
Engine type1.1iBVM1.4iBVM1.4iBVMP1.4i 16V90 hpBVMP
1.6i 16V110 hpBVMP
1.6i 16V125 hpBVM
Fuel tank capacityApproximately 41 litres
Fuels to be usedUnleaded petrol RON 95 - RON 98
Turning circle between walls (in metres)9.69.6

127
VI
G E N E R A L
SaloonEntreprise
HDi 70BVMHDi 70BVMP1.6 HDi 110 hpBVM FAP
HDi 70BVM1.1iBVM
Approximately 41 litres
Diesel fuelUnleaded petrolRON 95 - RON 98
9.6
