2006 TOYOTA YARIS Owners Manual

2902006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS73506
2. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
PS73507
3. Install the rubber cover as shown and fit it securely on the boss. Plug
in the connector.
Make sure the rubber cover fits securely
on the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer. If either the left or right front fog, front
side marker lights or LED type high
mounted stoplight burns out, contact your
Toyota dealer.
NOTICE
Do not try to replace the front fog or
front side marker lights by yourself.
You may damage the vehicle.
—Front fog, front side marker
lights and LED type high
mounted stoplight

2912006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
—Parking lights
PS73522
PS73509
—Front turn signal lights
PS73523
PS73513
—Sid e tu rn sig n al lig h t s
PS73514
Front of
vehicle
PS73515

2922006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

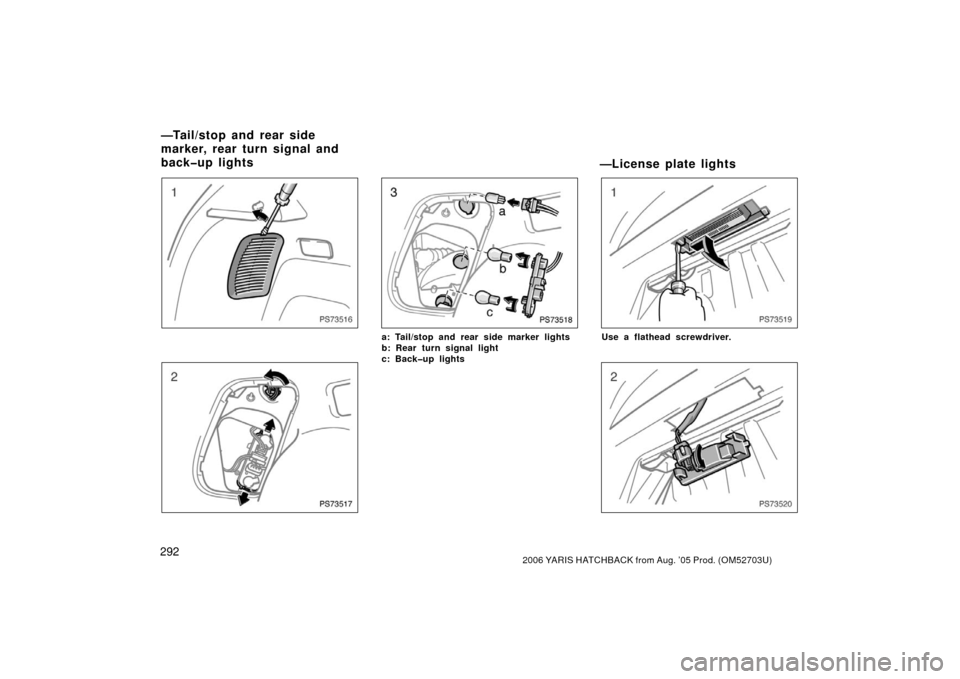

PS73516
PS73517
PS73518
a: Tail/stop and rear side marker lights
b: Rear turn signal light
c: Backup lights
—License plate lights
PS73519
Use a flathead screwdriver.
PS73520
—Tail/stop and rear side
marker, rear turn signal and
backup lights

2932006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

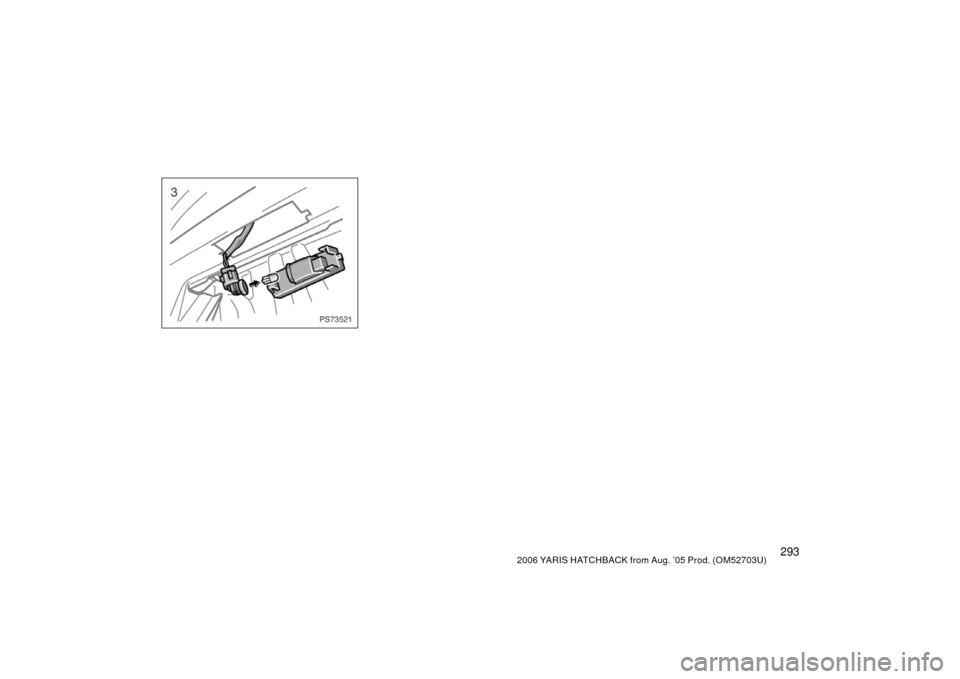

PS73521

2942006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

2952006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
SPECIFICATIONS
Specifications
Dimensions and weights296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 299
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 300
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

2962006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Dimensions and weights
Overall length mm (in.) 3825 (150.6)
Overall width mm (in.) 1695 (66.7)
Overall height mm (in.) 1530 (60.2)
Wheelbase mm (in.) 2460 (96.9)
Front tread mm (in.) 1480 (58.3)
∗1
1470 (57.9)∗2
Rear tread mm (in.) 1470 (57.9)∗1
1460 (57.5)∗2
Vehicle capacity weight
(occupants + luggage)
kg (lb.) 383 (845)
Towing capacity
∗ 3
(trailer + cargo weight) kg (lb.) 318 (700)
∗1: With P175/65R14 81S tires∗2: With P185/60R15 84T tires∗3: For Canada only
Engine
Model:
1.5 L 4 −cylinder (1NZ− FE)
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 75.0  84.7 (2.95  3.33)
Displacement, cm
3 (cu. in.):
1497 (91.3)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 42 (11.1, 9.2)

2972006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm(in.): 1.1 (0.043)
Drive belt tension measured with Boroughs
drive belt tension gauge No. BT −33− 73F
(used belt), lbf:
Generator belt 100 20
ENGINE LUBRICATION
Oil capacity (drain and ref ill), L (qt., Imp.
qt.): With filter 3.7 (3.9, 3.3)
Without filter 3.4 (3.6, 3.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and viscos-
ity. Oil grade:
ILSAC multigrade engine oil
Please contact your Toyota dealer for fur-
ther details.
Recommended oil viscosity:
SAE 5W −30
OIL008
Outside temperature
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
Manual transmission 4.8 (5.1, 4.2)
Automatic transmission 4.7 (5.0, 4.1)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life Cool-
ant” or similar high quality ethylene gly-
col based non −silicate, non− amine, non−
nitrite, and non −borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
