2006 TOYOTA YARIS Owners Manual

2422006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS41523
(c) Towing with sliding typetruck
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
—Emergency towing
PS41524
Front
PS41525
Rear
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If a towing service is not available in
an emergency, your vehicle may be
temporarily towed by a cable or chain
secured to either the emergency towing
eyelet on the front of the vehicle or to
the right emergency towing eyelet un-
der the rear of the vehicle. Use extreme
caution when towing vehicles.
Vehicles with an automatic transmis-
sion, use only the front towing eyelet
when towing your vehicle.
To install the front towing eyelet, see
“—Installing front towing eyelet” on page
243 in this Section.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
 Vehicles with an automatic trans-
mission, never tow a vehicle from
the rear with four wheels on the
ground. This may cause serious
damage to the transmission.

2432006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hard−surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicles. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing eyelets and towing cable or
chain. The eyelets and towing cable
or chain may break and cause serious
injury or damage.
NOTICE
 Use only a cable or chain specifi-
cally intended for use in towing ve-
hicles. Securely fasten the cable or
chain to the towing eyelet provided.
 Do not use the left rear eyelet. It is
not designed for towing.
Before towing, release the parking brake
and put the transmission in neutral (manu-
al) or “N” (automatic). The key must be
in “ACC” (engine off) or “ON” (engine run-
ning).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
PS41526
1. Remove the front towing eyelet cover
on the front bumper, using a flathead
screwdriver which is wrapped with a
cloth.
—Installing front towing eyelet

2442006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

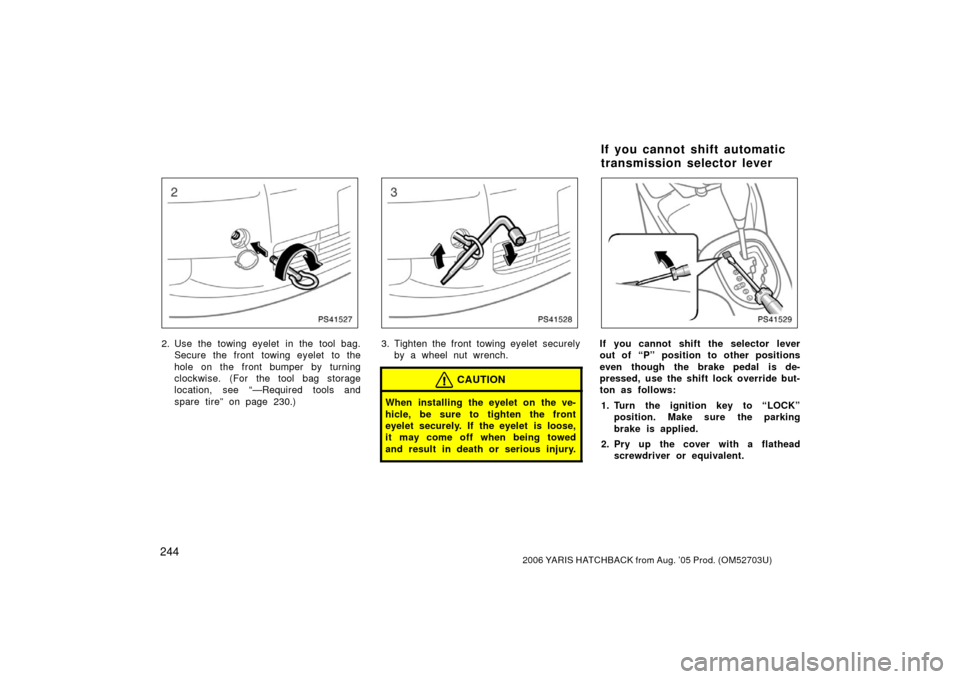

PS41527
2. Use the towing eyelet in the tool bag.Secure the front towing eyelet to the
hole on the front bumper by turning
clockwise. (For the tool bag storage
location, see “—Required tools and
spare tire” on page 230.)
PS41528
3. Tighten the front towing eyelet securelyby a wheel nut wrench.
CAUTION
When installing the eyelet on the ve-
hicle, be sure to tighten the front
eyelet securely. If the eyelet is loose,
it may come off when being towed
and result in death or serious injury.
PS41529
If you cannot shift the selector lever
out of “P” position to other positions
even though the brake pedal is de-
pressed, use the shift lock override but-
ton as follows:
1. Turn the ignition key to “LOCK” position. Make sure the parking
brake is applied.
2. Pry up the cover with a flathead screwdriver or equivalent.
If you cannot shift automatic
transmission selector lever

2452006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS41530
3. Insert your finger into the hole topush down the shift lock override
button. You can shift out of “P”
position only while pushing the but-
ton.
4. Shift into “N” position.
5. Insert the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible.
If you lose your keys
You can purchase a new key at your
Toyota dealer if you can give them the
key number. If your vehicle is equipped
with the engine immobilizer system, the
dealer will also need your master key.
Vehicles with engine immobilizer sys-
tem—Even if you lose only one key, con-
tact your Toyota dealer to make a new
key. If you lose all your master keys, you
cannot make new keys; the whole engine
immobilizer system must be replaced.
See the suggestion given in “Keys” on
page 10 in Section 1 −2.
You can use the wireless remote control
system with the new key. Contact your
Toyota dealer for detailed information.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Toyota
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass.

2462006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

2472006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
CORROSION PREVENTION AND
APPEARANCE CARE
Corrosion prevention and appearance care
Protecting your Toyota from corrosion248
. . . . . . . . . . . . . . . . . . . . . . . . .
Washing and waxing your Toyota 249
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the interior 251
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 5

2482006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Toyota, through its diligent research, de-
sign and use of the most advanced
technology available, helps prevent corro-
sion and provides you with the finest qual-
ity vehicle construction. Now, it is up to
you. Proper care of your Toyota can help
ensure long −term corrosion prevention.
The most common causes of corrosion
to your vehicle are:
The accumulation of road salt, dirt and
moisture in hard −to −reach areas under
the vehicle.
Chipping of paint, or undercoating
caused by minor accidents or by
stones and gravel.
Care is especially important if you live
in particular areas or operate your ve-
hicle under certain environmental condi-
tions:
Road salt or dust control chemicals will
accelerate corrosion, as will the pres-
ence of salt in the air near the sea −
coast or in areas of industrial pollution.
High humidity accelerates corrosion es-
pecially when temperatures range just
above the freezing point.
Wetness or dampness to certain parts
of your vehicle for an extended period
of time, may cause corrosion even
though other parts of the vehicle may
be dry.
High ambient temperatures can cause
corrosion to those components of the
vehicle which do not dry quickly due to
lack of proper ventilation.
The above signifies the necessity to keep
your vehicle, particularly the underside, as
clean as possible and to repair any dam-
age to paint or protective coatings as
soon as possible.
To help prevent corrosion on your
Toyota, follow these guidelines:
Wash your vehicle frequently. It is, of
course, necessary to keep your vehicle
clean by regular washing, but to prevent
corrosion, the following points should be
observed:
If you drive on salted roads in the
winter or if you live near the ocean,
you should hose off the undercarriage
at least once a month to minimize cor-
rosion.
High pressure water or steam is effec-
tive for cleaning the vehicle’s underside
and wheel housings. Pay particular
attention to these areas as it is difficult
to see all the mud and dirt. It will do
more harm than good to simply wet the
mud and debris without removing. The
lower edge of doors, rocker panels and
frame members have drain holes which
should not be allowed to clog with dirt
as trapped water in these areas can
cause corrosion.
Wash the underside of the vehicle thor-
oughly when winter is over.
See “Washing and waxing your Toyota” for
more tips.
Check the condition of your vehicle’s
paint and trim. If you find any chips or
scratches in the paint, touch them up im-
mediately to prevent corrosion from start-
ing. If the chips or scratches have gone
through the bare metal, have a qualified
body shop make the repair.
Protecting your Toyota from
corrosion

2492006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Check the interior of your vehicle. Wa-
ter and dirt can accumulate under the
floor mats and could cause corrosion. Oc-
casionally check under the mats to make
sure the area is dry. Be particularly care-
ful when transporting chemicals, cleans-
ers, fertilizers, salt, etc.; these should be
transported in proper containers. If a spill
or leak should occur, immediately clean
and dry the area.
Use mud shields on your wheels. If you
drive on salted or gravel roads, mud
shields help protect your vehicle. Full −size
shields, which come as near to the ground
as possible, are the best. We recommend
that the fittings and the area where the
shields are installed be treated to resist
corrosion. Your Toyota dealer will be
happy to assist in supplying and installing
the shields if they are recommended for
your area.
Keep your vehicle in a well ventilated
garage or a roofed place. Do not park
your vehicle in a damp, poorly venti-
lated garage. If you wash your vehicle in
the garage, or if you drive it covered with
water or snow, your garage may be so
damp as to cause corrosion. Even if your
garage is heated, a wet vehicle can cor-
rode if the ventilation is poor. Washing your Toyota
Keep your vehicle clean by regular
washing.
The following cases may cause weakness
to the paint or corrosion to the body and
parts. Wash your vehicle as soon as pos-
sible.
When driving in a coastal area
When driving on a road sprinkled with
antifreeze
When exposed to coal tar, tree sap,
bird droppings and carcass of an insect
When driving in areas where there is
a lot of smoke, soot, dust, iron dust or
chemical substances
When the vehicle becomes remarkably
dirty with dust and mud
Handwashing your Toyota
Work in the shade and wait until the
vehicle body is not warm to the touch.
CAUTION
When cleaning under floor or chas-
sis, be careful not to injure your
hands.
Exhaust gases cause the exhaust
pipe to become quite hot. When
washing the vehicle, be careful not
to touch the pipe until it has cooled
sufficiently, as touching a hot ex-
haust pipe can cause burns.
NOTICE
When the front wiper arms need to be
lifted away from the windshield to
wash the vehicle, raise the arm on
the driver side first. Conversely, when
returning the wipers to their original
positions, fold down the arm on the
front passenger side first. Failure to
perform the operations in the correct
order results in damage.
Washing and waxing your
To y o t a
