2006 TOYOTA YARIS Owners Manual

822006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
The “AIRBAG OFF” indicator light should
be illuminated when the ignition key is in
the “ON” position and the child is in the
child restraint system after following these
procedures. The “AIRBAG OFF” indicator
light indicates the SRS front passenger
airbag and side airbag on the passenger
side will not deploy. If the “AIRBAG ON”
indicator light is illuminated, do the follow-
ing procedure:1. Turn the ignition off.
2. Remove the child restraint system.
3. When reinstalling a child restraint sys- tem, make sure the seatback does not
press the child restraint system into
the seat cushion. If this occurs, adjust
the seatback angle slightly.
4. Then make sure the head restraint is not pressing the child restraint system
into the seat cushion. If this occurs,
raise the head restraint.
5. Turn the ignition on again. The “AIRBAG OFF” indicator light should
be illuminated. If the “AIRBAG ON” indica-
tor light is illuminated when the ignition
key is turned to the “ON” position, then
the SRS front passenger airbag and side
airbag on the passenger side may deploy
in an accident. Do not drive the vehicle
in this condition. Remove the child re-
straint system and contact your Toyota
dealer.
CAUTION
Never install a rearfacing child
restraint system on the front
passenger seat. A forwardfacing
child restraint system should only
be installed on the front passenger
seat when unavoidable. If you must
install the child restraint system on
the front passenger seat, put the
seat in its most rearward position,
and install the forwardfacing child
restraint system in the proper
order. Otherwise, the front
passenger occupant classification
system cannot detect the presence
of the child restraint system and
the front passenger airbag and side
airbag on the front passenger seat
could deploy.
PS13561
CAUTION
Split seat: When installing a rear
facing child restraint system in the
rear seat, move the rear seat to the
rearmost lock position to prevent
the child restraint system from in-
terfering with the front seat. Other-
wise, the child restraint system may
not be properly secured. In the
event of an accident, this may
cause death or serious injury.

832006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

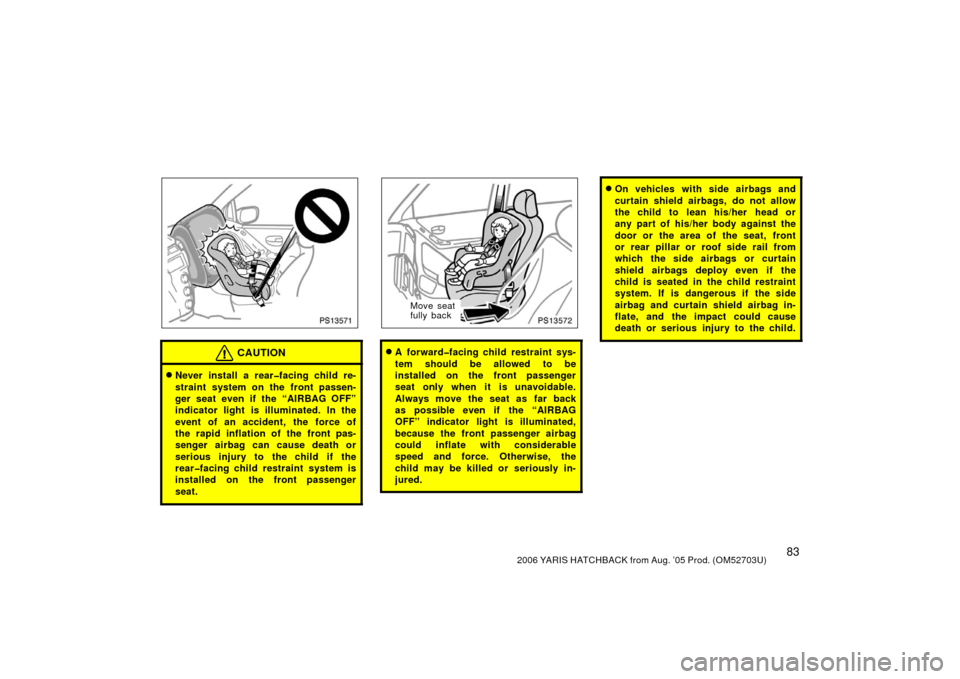

PS13571
CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIRBAG OFF”
indicator light is illuminated. In the
event of an accident, the force of
the rapid inflation of the front pas-
senger airbag can cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
PS13572
Move seat
fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIRBAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. If is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.

842006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

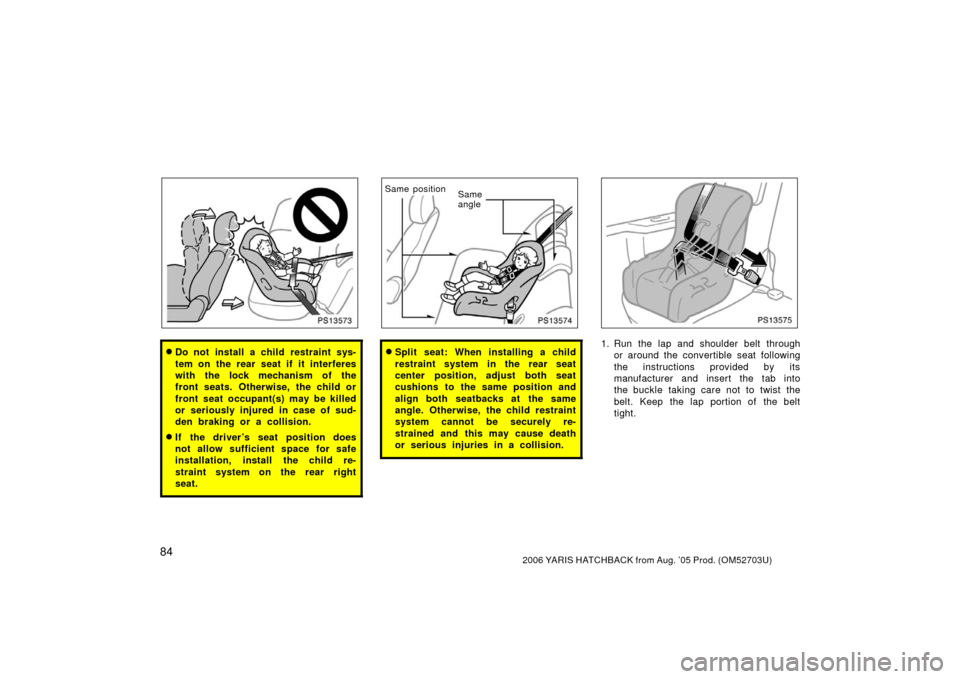

PS13573
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
PS13574
Same
angleSame position
Split seat: When installing a child
restraint system in the rear seat
center position, adjust both seat
cushions to the same position and
align both seatbacks at the same
angle. Otherwise, the child restraint
system cannot be securely re-
strained and this may cause death
or serious injuries in a collision.
PS13575
1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.

852006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

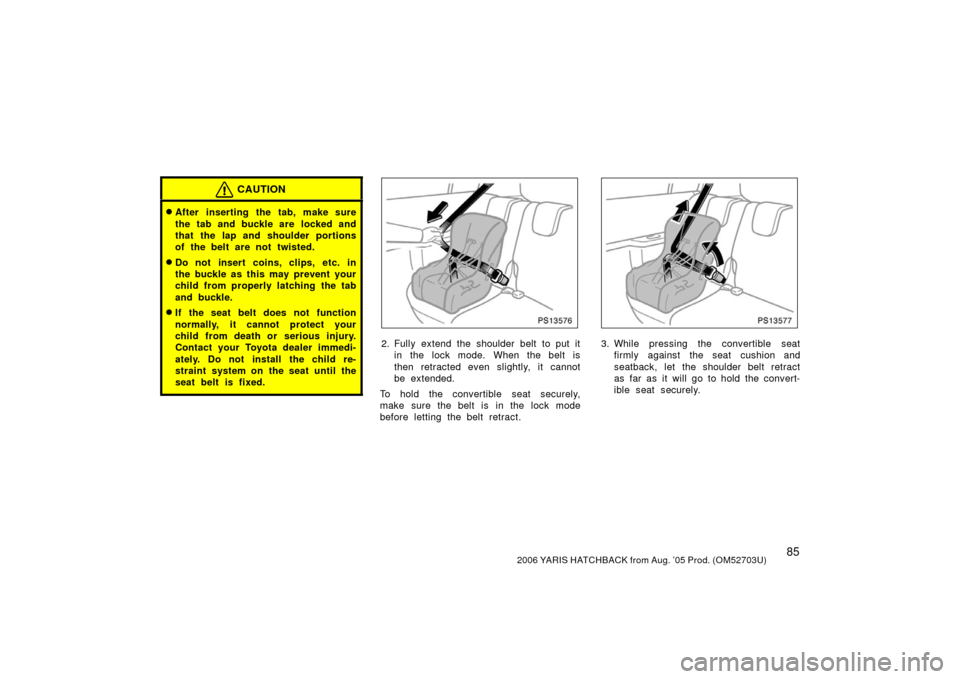

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child re-
straint system on the seat until the
seat belt is fixed.
PS13576
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
PS13577
3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.

862006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

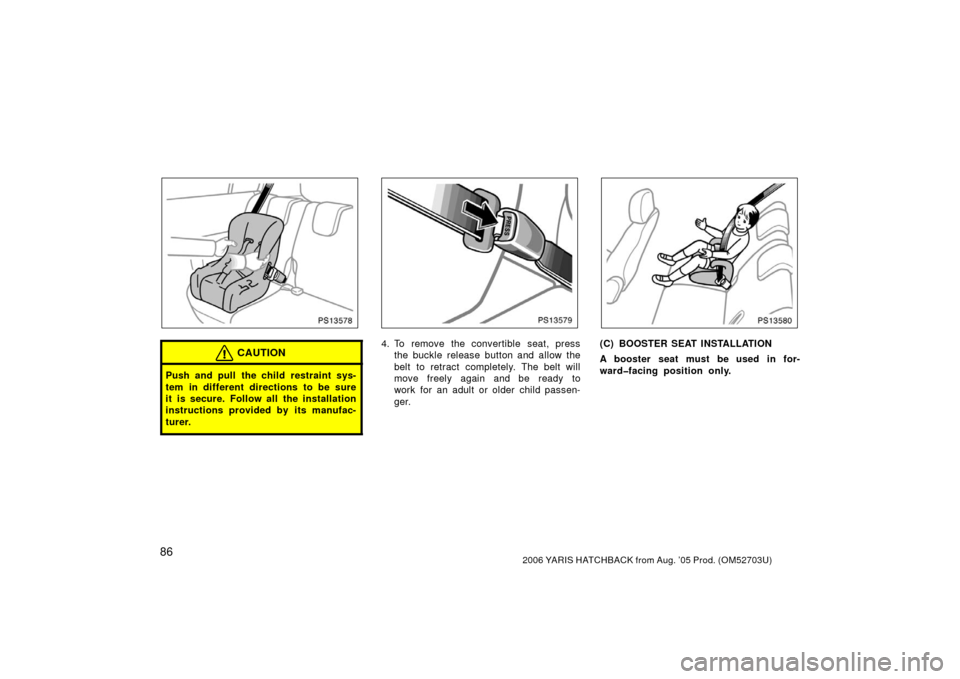

PS13578
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
PS13579
4. To remove the convertible seat, pressthe buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
PS13580
(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.

872006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS13581
Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIRBAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.
PS13582
Same
angleSame position
When installing a child restraint
system in the rear seat center posi-
tion, adjust both seat cushions to
the same position and align both
seatbacks at the same angle. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.

882006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS13583
1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 42 in this Section for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child re-
straint system on the seat until the
seat belt is fixed.

892006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

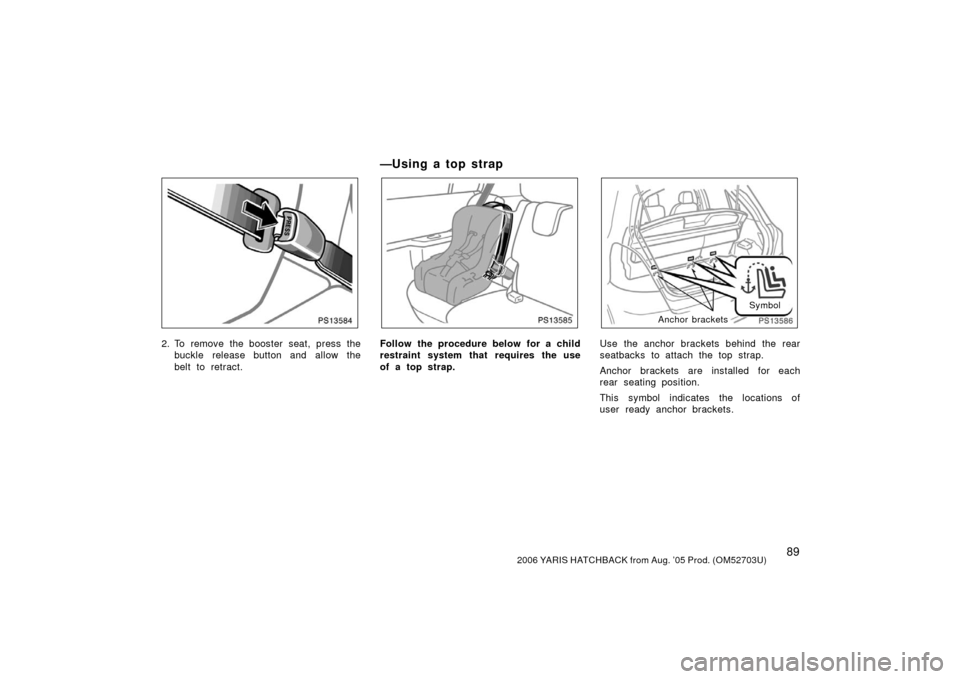

PS13584
2. To remove the booster seat, press thebuckle release button and allow the
belt to retract.
—U sin g a to p st rap
PS13585
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
PS13586
Symbol
Anchor brackets
Use the anchor brackets behind the rear
seatbacks to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of
user ready anchor brackets.
