“ABS” warning light
This light comes on when the ignition key
is turned to the “ON” position. If the anti−
lock brake system works properly, the
light turns off after a few seconds. There-
after, if the system malfunctions, the light
comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate,
but the brake system still operates con-
ventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If either of the following conditions oc-
curs, this indicates a malfunction some-
where in the components monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or remains on.
The light comes on while you are driv-
ing. A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.

1872006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
The electric power steering system, us-
ing an electric motor, assists the turn-
ing of the steering wheel.
In the following cases, you may feel the
steering becomes heavy. But it is not
a malfunction.
When maneuvering or turning frequently
over a long time
The power steering effect will be re-
duced to prevent the system from over-
heating. Avoid turning the steering
wheel, or stop the vehicle and turn the
ignition key to “ACC” or “LOCK”. The
system will become cool in about 10
minutes.
NOTICE
Frequent maneuvering and turning
over a long time may cause damage
to the system in which the mecha-
nism prevents overheating of the elec-
tric power steering system.
When the battery is discharged
Check the battery’s condition. If
necessary, recharge or replace the
battery. For details, see “Checking
battery condition” on page 284 in
Section 7 −3. In the following case, you may feel the
steering becoming heavy. Then, after 5
minutes or more, the electric power
steering system warning light comes
on. But it is not a malfunction.
When racing the engine for 30 seconds
or more with the vehicle stopped
The normal power steering effect will
be obtained and the warning light will
go off when you start driving.
INFORMATION
When the steering wheel is turned, a
motor operating sound (whining
sound) may be heard. This occurs
when the power steering motor works
and is not defective.
SZ21004
Electric power steering system warning
light
The light comes on when the ignition key
is turned to the “ON” position. If the elec-
tric power steering system warning light
works properly, the light turns off after a
few seconds. If the system has malfunc-
tions, the light comes on again.
If the following conditions occur, this
indicates a malfunction somewhere in
the parts monitored by the warning
light system. Contact your Toyota deal-
er as soon as possible to service the
vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on.
Electric power steering system

1882006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
The light stays on while you are driv-
ing.
The warning light turning on while racing
the engine for a long time may not indi-
cate malfunction. To turn off the light, re-
start the engine and start driving.
CAUTION
If the electric power steering system
warning light comes on, take your ve-
hicle to Toyota dealer as soon as
possible. In this case, more effort is
required for the steering wheel to
turn than usual. Grip the steering
wheel firmly when driving.
Brake pad wear limit indicators
PS21502
The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
replacement is required.
If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Toyota
dealer as soon as possible. Expensive ro-
tor damage can result if the pads are not
replaced when necessary.
PS21503
The vehicle identification number (VIN)
is the legal identifier for your vehicle.
This number is on the left top of the
instrument panel, and can be seen
through the windshield from outside.
This is the primary identification number
for your Toyota. It is used in registering
the ownership of your vehicle.
Your Toyota’s identification—
—Vehicle identification
number

1892006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS21504

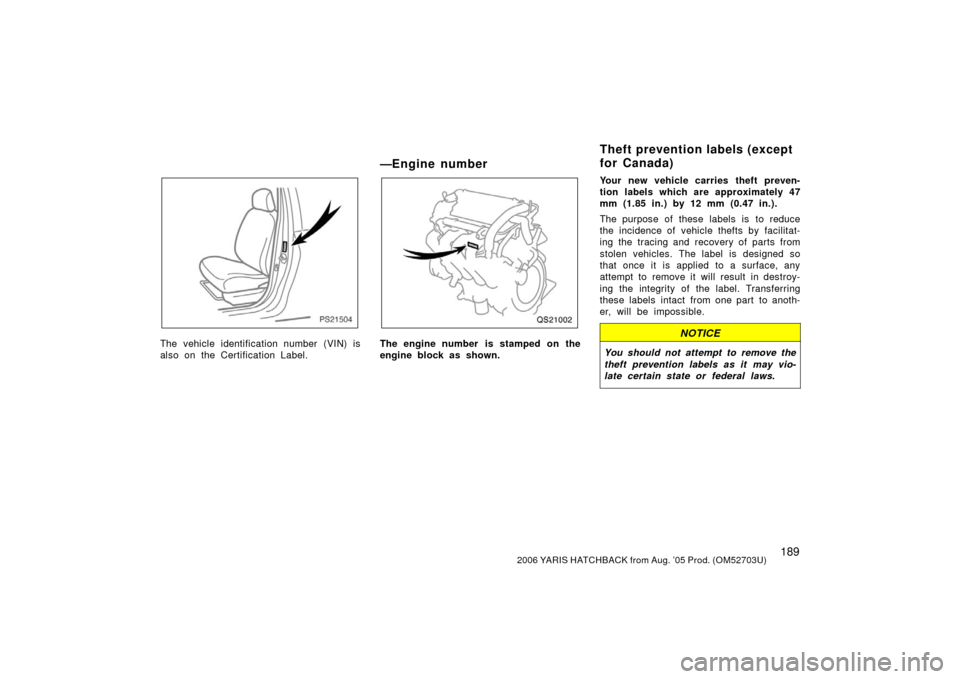

The vehicle identification number (VIN) is
also on the Certification Label.
—Engine number
QS21002
The engine number is stamped on the
engine block as shown.Your new vehicle carries theft preven-
tion labels which are approximately 47
mm (1.85 in.) by 12 mm (0.47 in.).
The purpose of these labels is to reduce
the incidence of vehicle thefts by facilitat-
ing the tracing and recovery of parts from
stolen vehicles. The label is designed so
that once it is applied to a surface, any
attempt to remove it will result in destroy-
ing the integrity of the label. Transferring
these labels intact from one part to anoth-
er, will be impossible.NOTICE
You should not attempt to remove the
theft prevention labels as it may vio-
late certain state or federal laws.
Theft prevention labels (except
for Canada)

1902006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Suspension and chassis
CAUTION
Do not modify the suspension/chassis
with lift kits, spacers, springs, etc. It
can cause dangerous vehicle handling
characteristics, resulting in loss of
control.

1912006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

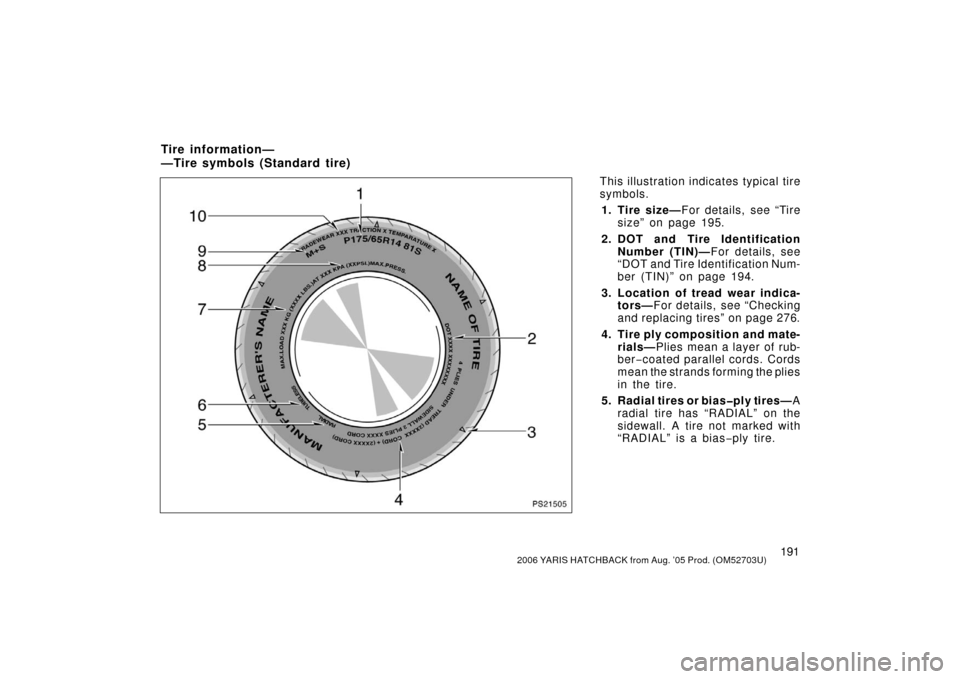

This illustration indicates typical tire
symbols.1. Tire size— For details, see “Tire
size” on page 195.
2. DOT and Tire Identification Number (TIN)— For details, see
“DOT and Tire Identification Num-
ber (TIN)” on page 194.
3. Location of tread wear indica- tors— For details, see “Checking
and replacing tires” on page 276.
4. Tire ply composition and mate- rials— Plies mean a layer of rub-
ber −coated parallel cords. Cords
mean the strands forming the plies
in the tire.
5. Radial tires or biasply tires— A
radial tire has “RADIAL” on the
sidewall. A tire not marked with
“RADIAL” is a bias −ply tir e.
Tire information—
—Tire symbols (Standard tire)
PS21505

1922006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
6. “TUBELESS” or “TUBETYPE”— A tubeless tire does not
have a tube inside the tire and air
is directly filled in the tire. A tube
type tire has a tube inside the tire
and the tube maintains the air
pressure.
7. Load limit at maximum cold tire inflation pressure— For details,
see “Checking and replacing tires”
on page 276.
8. Maximum cold tire inflation pressure— This means the pres-
sure to which a tire may be in-
flated. For recommended cold tire
inflation pressure, see “Tires” on
page 299.
9. Summer tire or all season tire— An all season tire has “M+S”
on the sidewall. The tire not
marked with “M+S” is a summer
tire. For details, see “Types of
tires” on page 204.
10.Uniform tire quality grading— For details, see “Uniform tire quali-
ty grading” that follows.

1932006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

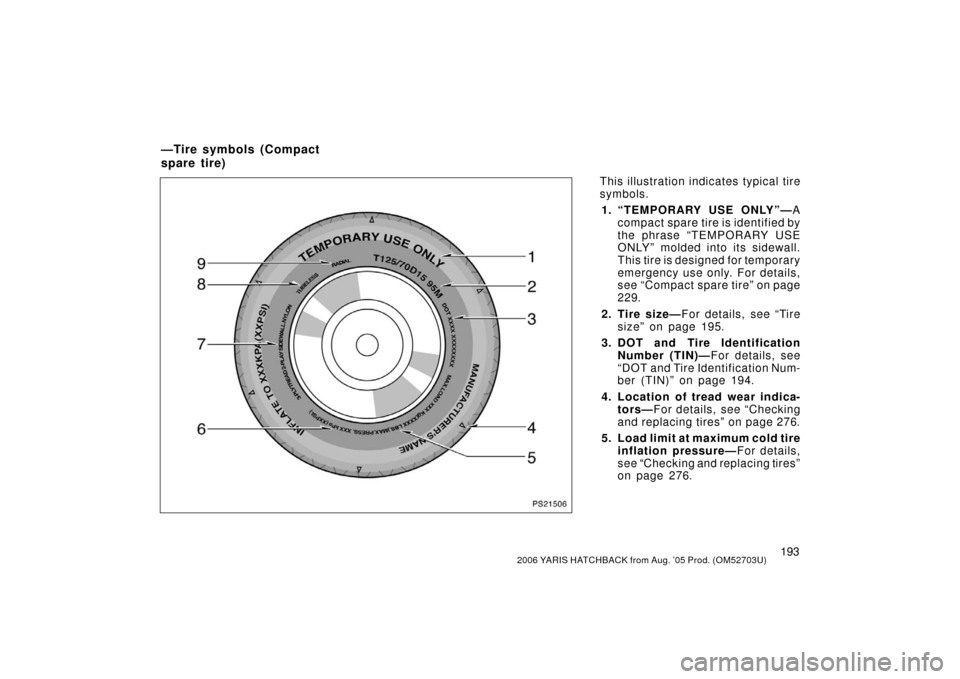

This illustration indicates typical tire
symbols.1. “TEMPORARY USE ONLY”— A
compact spare tire is identified by
the phrase “TEMPORARY USE
ONLY” molded into its sidewall.
This tire is designed for temporary
emergency use only. For details,
see “Compact spare tire” on page
229.
2. Tire size— For details, see “Tire
size” on page 195.
3. DOT and Tire Identification Number (TIN)— For details, see
“DOT and Tire Identification Num-
ber (TIN)” on page 194.
4. Location of tread wear indica- tors— For details, see “Checking
and replacing tires” on page 276.
5. Load limit at maximum cold tire inflation pressure— For details,
see “Checking and replacing tires”
on page 276.
—Tire symbols (Compact
spare tire)
PS21506
