2006 TOYOTA PRIUS Owners Manual

449
Precautions for useof hybrid vehicle
The vehicle has both high voltage
DC and AC systems as well as a
12volt system. DC and AC high
voltage are both very dangerous
and can cause death or serious inju-
ry, severe burns and electric shock.
In order to avoid personal in-
juries, do not touch the high
voltage cables (orange col-
ored) and their connectors.
Follow the caution labels at-
tached to the high voltage
parts.
Do not remove or replace the
high voltage parts such as
the inverter unit (located in
the engine compartment), hy-
brid battery (located behind
rear seat), etc.
Do not touch the service plug
located in the left side trim
of the luggage compartment
without hybrid system techni-
cal training. (See “Precau-
tions for use” on page 14 in
Section 12.) This component
is provided to disable the
high voltage system in case
of servicing at a Toyota deal-
er.

450CAUTION

451
If an accident occurs
Pull your vehicle off the road,
push the “P” position switch,
stop the hybrid system and if
the key is inserted into key
slot, remove it.
In order to avoid personal in-
juries, do not touch any high
voltage wirings and their con-
nectors, and high voltage
parts (inverter unit, hybrid
battery, etc.).
If some exposed electric
wires are protruding inside or
outside of your vehicle, an
electric shock may occur.
Never touch the electric
wires.
If fluid leaks or gets in some
parts of the vehicle, never
touch it because it may be
electrolyte (strong alkali) from
the hybrid battery. If it gets
into your skin or eyes, wash
off immediately with a large
amount of water, if possible,
boric acid solution, and get
immediate medical attention
in order to help avoid serious
injury.
If a vehicle fire occurs, extin-
guish it using a fire extin-
guisher for the exclusive use
on electric fires. Or, use a
large amount of water to pre-
vent flammable gas from be-
ing generated from the batter-
ies.
If your vehicle needs to be
towed, do it with the front
wheels raised. For details on
towing, see “If your vehicle
needs to be towed” on page
372 in Section 5.

452

453
CAUTION

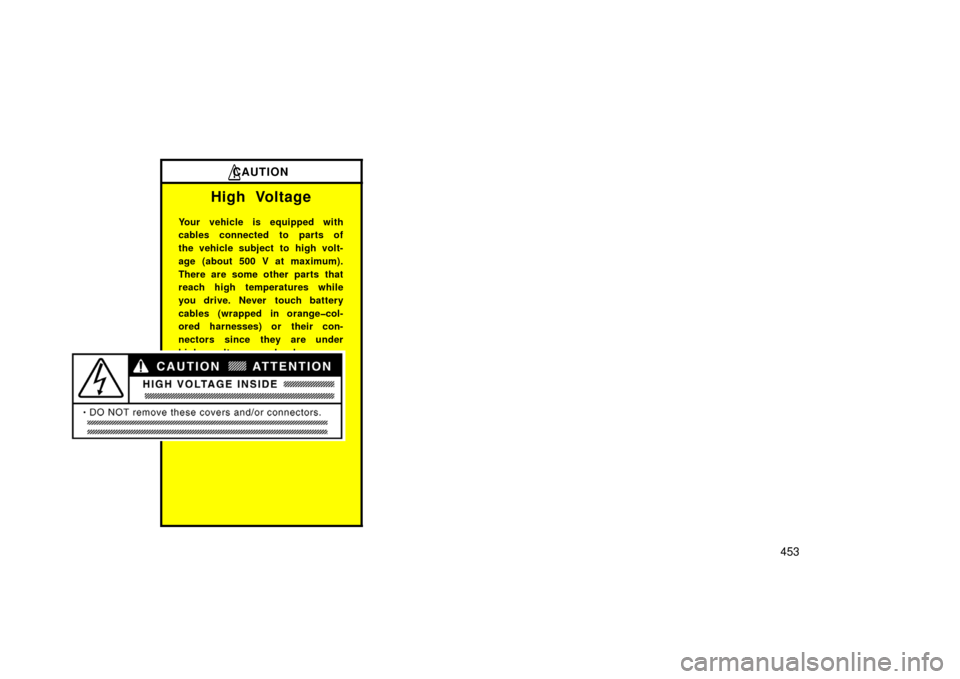

High Voltage
Your vehicle is equipped with
cables connected to parts of
the vehicle subject to high volt-
age (about 500 V at maximum).
There are some other parts that
reach high temperatures while
you drive. Never touch battery
cables (wrapped in orangecol-
ored harnesses) or their con-
nectors since they are under
high voltage and dangerous.
Caution labels are applied to
these parts to identify them.
Carefully observe the instruc-
tions on these caution labels.
00p001

454

2
Publication No. OM47520U
Part No. 01999-47520
Printed in Japan 01−0511 −00
U 5Quick index
 If a service reminder indicator or warning buzzer comes on 125 . . .
 If your vehicle will not start 356 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If your vehicle overheats 360 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
 If you have a flat tire 361 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
 If your vehicle needs to be towed 372 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Tips for driving during break-in period 318 . . . . . . . . . . . . . . . . . . . . . . . . . .
 How to start the hybrid system 348 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 General maintenance 387 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91)
or higher.
See page 318 for detailed information.
Fuel tank capacity:
45 L (11.9 gal., 9.9 lmp.gal.)
See page 320 for detailed information.
Engine oil:
ILSAC multigrade engine oil is recommended.
See page 401 for detailed information.
Tire information: See pages 405 through 412.
Tire inflation pressure: See page 429.
