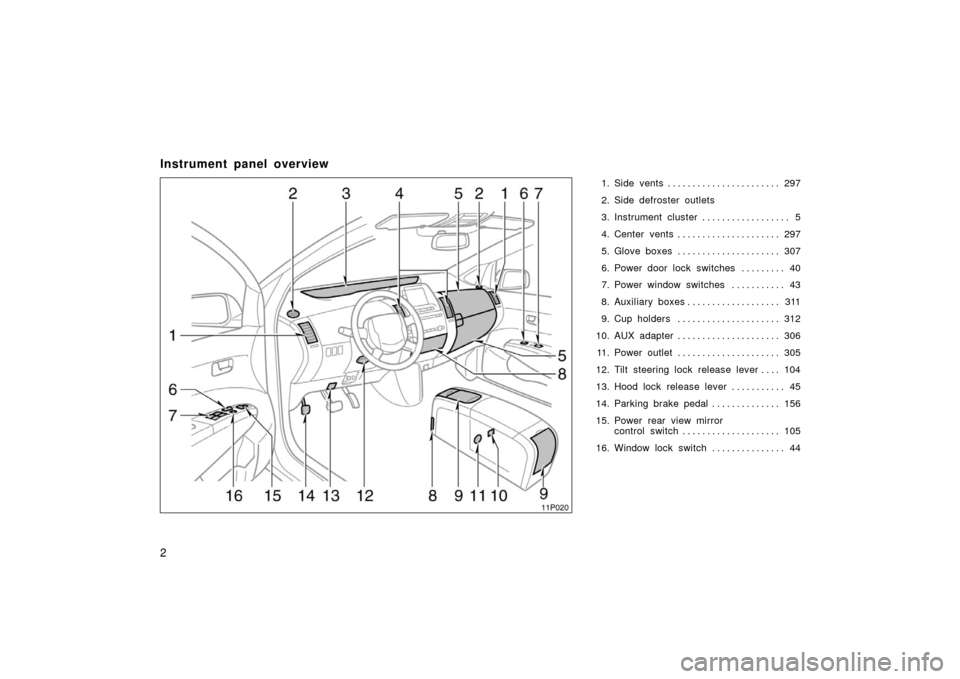

Instrument panel overview
1. Side vents297
. . . . . . . . . . . . . . . . . . . . . . .
2. Side defroster outlets
3. Instrument cluster 5
. . . . . . . . . . . . . . . . . .
4. Center vents 297
. . . . . . . . . . . . . . . . . . . . .
5. Glove boxes 307
. . . . . . . . . . . . . . . . . . . . .
6. Power door lock switches 40
. . . . . . . . .
7. Power window switches 43
. . . . . . . . . . .
8. Auxiliary boxes 311
. . . . . . . . . . . . . . . . . . .
9. Cup holders 312
. . . . . . . . . . . . . . . . . . . . .
10. AUX adapter 306
. . . . . . . . . . . . . . . . . . . . .
11. Power outlet 305
. . . . . . . . . . . . . . . . . . . . .
12. Tilt steering lock release lever 104 . . . .
13. Hood lock release lever 45
. . . . . . . . . . .
14. Parking brake pedal 156
. . . . . . . . . . . . . .
15. Power rear view mirror control switch 105
. . . . . . . . . . . . . . . . . . . .
16. Window lock switch 44
. . . . . . . . . . . . . . .
11p020

7
or
Hybrid vehicle immobilizer / Theft deterrent
system indicator light
Tail light indicator light Shift position indicator light
∗ 4
Driving ready light
Automatic air conditioner indicator light
Recirculate mode indicator light
Smart entry and start system warning light
∗ 5
Windshield air flow indicator light
Slip indicator light
Headlight high beam indicator light
Headlight indicator light Turn signal indicator lights
Cruise control indicator light∗3
Hybrid system warning light∗2
Automatic head light leveling system
warning light∗2
Electric power steering system warning light∗2
Front passenger occupant classification
indicator light
Rear window and outside rear view mirror
defoggers indicator light

103
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel104
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Outside rear view mirrorss 104
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti −glare inside rear view mirror 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 107
. . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 2– 3

104
22p058f
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and push
the lever up to lock the steering wheel
in position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
When you move the steering wheel, an
electrical motor noise may be heard. This
is the power steering motor noise, and is
not a malfunction.
22p059a
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
When you touch the rear window defogger
switch, the heater panels in the outside
rear view mirrors will quickly clear the
mirror surface. (See “Rear window and
outside rear view mirror defoggers” on
page 118.)
Tilt steering wheelOutside rear view mirrors—

105
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
Since the mirror surfaces can get
hot, keep your hands off them when
the defogger switch is on.
22p138a
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
The mirrors can be adjusted when the
hybrid system is in “ACC” or “IG −ON”
mode.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

106
—Folding rear view mirrors
22p066a
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
22p061a
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from headlights of the
vehicle behind you during night driving,
operate the lever on the lower edge of
the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Antiglare inside rear view
mirror

107
22p235
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the hybrid system is in the “IG−ON”
mode, the inside rear view mirror always
turns on in the automatic function mode.
The green indicator illuminates to show
you that the function is on. In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off the automatic function, push
the “
” switch.
To turn on the automatic function again,
push the “
| ” switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
22p214a
To ensure correct functioning of an
antiglare mirror sensor located on the
back side of the mirror, do not touch
or cover the sensor with your finger or
a piece of cloth, etc.
Auto antiglare inside rear
view mirror

109
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasherss 11 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Instrument panel light control 11 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior lights 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Personal lights 11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Luggage compartment light 11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key slot lights 11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Windshield wipers and washer 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers 11 8
. . . . . . . . . . .
SECTION 2– 4
