2006 TOYOTA PRIUS EV button

3
1. Headlight and turn signal switches 110 . . . . . . . . . . . . . . . . . . . . . . . . .
2. Wiper and washer switches 117 . . . . . . .
3. “POWER” switch 139 . . . . . . . . . . . . . . . . .
4. Clock 302 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. Multi −information display or
navigation system including
multi −information display
(For the navigation system,
see the separate “Navigation
System Owner ’s Manual”.) 160 . . . . . . . .
6. Emergency flasher switch 114 . . . . . . . . .
7. Trip meter reset button 123 . . . . . . . . . . .
8. Km/h or MPH button 124 . . . . . . . . . . . . .
9. Audio system 242 . . . . . . . . . . . . . . . . . . . .
10. Power outlet 305 . . . . . . . . . . . . . . . . . . . . .
11. “P” position switch 144 . . . . . . . . . . . . . . .
12. Electronic shift lever (R, N, D, B) 144 . . . . . . . . . . . . . . . . . . . . .
13. Key slot 138 . . . . . . . . . . . . . . . . . . . . . . . . .
14. Cruise control switch 157 . . . . . . . . . . . . .
15. Tire pressure warning system reset switch 150 . . . . . . . . . . . . . . . . . . . . .
16. Smart entry and start system cancel switch 34 . . . . . . . . . . . . . . . . . . . . .
11p019

24
For vehicles sold in Canada
This device complies with RSS−210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
21p120a
1. Locking and unlocking
2. Starting the hybrid system
By carrying a smart key, you can lock
and unlock the doors and start the hy-
brid system.
For locking the doors, see “Locking the
doors with smart function” on page 30.
For unlocking the doors, see “Unlocking
the door(s) with smart function” on page
31. For starting the hybrid system, see
“Push button start system” on page 138.
If the smart key battery is discharged, the
smart function cannot be used. Use the
mechanical key attached to the smart key
by inserting it in the driver’s door keyhole
to lock or unlock door. To start the hybrid
system, insert the smart key into the key
slot. In order to activate the smart func-
tion, the battery should be replaced. For
details, see “—Replacing battery” on page
38.
You can deactivate the smart function by
using the cancel switch. In this case, all
the smart function will be deactivated. For
details, see “Deactivating the smart func-
tion” on page 34.
Smart entry and start system

28
(f) The smart key was brought outsidethe vehicle.
When a door other than the driver ’s door
is opened or closed with the hybrid sys-
tem not to be turned off, it is determined
that the smart key is not in the vehicle.
Inside alarm: One beep
Outside alarm: 3 beeps
Warning light: On (g) Preventing the key from being
locked inside the vehicle
When you close the door with the hybrid
system off but with the smart key left in
the vehicle, and attempt to lock all the
doors using smart locking function, it is
determined that the smart key is in the
vehicle.
Outside alarm: One beep (sounds for 2
seconds)
INFORMATION
 This function may not operate when
the smart key is left on the instru-
ment panel, luggage cover, floor or
in the glove box.
 The function may operate if the
smart key is brought outside but it
is very close to the door window or
door handle.
(h) Low smart key battery
When the hybrid system is turned to
“ACC” or “OFF” about 20 minutes after
the hybrid system is turned on or to “IG −
ON”, it is determined that the smart key
battery voltage is low.
Inside alarm: One beep (i) Outside of effective range
When the “POWER” switch is pressed, it
is determined that the smart key is not in
the vehicle.
Inside alarm: One beep
Warning light: On (for 5 seconds)
(j) Open door warning
When you attempt to lock all the doors
using smart locking function with the hy-
brid system turned off but with any door
open.
Outside alarm: One beep (sounds for 10
seconds)
Alarms will be turned off by either of
the following operations:
Closing all the doors
Pressing the unlock button on the
smart key

30
21p128
Side door
21p139
Back door
LOCKING THE DOORS WITH SMART
FUNCTION
The smart entry and start system will
lock the doors without being inserted
into the door keyhole.
When you exit the vehicle carrying the
smart key and push the lock button on the
outside front door handle or back door
with all the doors closed, all the doors will
be locked provided that the electronic
code in the key corresponds to the regis-
tered ID code for the vehicle.
At this time, you will hear one beep and
the turn signal lights flash once. However,
when you push the lock button on the
outside front door handle or back door
with any door not closed securely, a beep
sounds for 10 seconds.
NOTICE
If the key is in the vehicle, do not
perform door locking operation, or
you might lock your keys inside the
vehicle.
INFORMATION
The rear doors are not equipped
with smart function.
When locking the doors, be sure to
push the lock button on the outside
front door handle or back door
slowly and surely. If you push the
button quickly, the doors may not
lock.
When opening or closing a door, do
not touch the lock button on the
outside door handle or back door. If
you push the button, an alarm
sounds 10 seconds.
When a wireless remote control is
used to lock the doors and a smart
key is left in the effective range of
the smart function in the vehicle,
the doors cannot be unlocked using
the smart function. In this case, use
the wireless remote function to un-
lock the doors.
You cannot activate smart unlocking
functions within 3 seconds after the
smart locking function is activated.

32
When you take hold of the handle
or push the back door opener to
unlock the door(s), be sure to con-
firm that the door(s) have been un-
locked. If the two beeps and the
turn signal lights flash twice, the
doors are unlocked. At this time,
you can pull the outside door han-
dle or push the back door opener to
open the door. If you quickly move
closer to the vehicle or pull the out-
side door handle or push the back
door opener quickly, the doors
might not unlock. If you cannot
open the door by pulling the out-
side door handle or pushing the
back door at this time, push back
the outside door handle to the origi-
nal position or release your hand
from the back door and then try
again.
If you bring the smart key very
close to the outside door handle or
the back door opener, the doors
might not lock.
If another person who is not carry-
ing a smart key takes hold of an
outside door handle or push the
back door opener when you are
within the effective range of the
smart function, the door(s) may not
unlock.
If a large amount of water is ap-
plied to the outside door handle or
the back door during heavy rain or
a car wash, and someone carrying a
smart key is near the vehicle, the
door(s) might be unlocked. However,
if the outside front door handle is
not pulled out or back door opener
not pushed, the doors will lock au-
tomatically after about 30 seconds.
To ensure the unlocking door(s),
perform unlocking operation within
3 seconds after getting close to the
vehicle (about 1 m or 3 ft. from the
front doors or back door). If it
takes longer than that, unlocking
function may not be enabled.
CHANGING THE DOORS TO BE UN-
LOCKED
Each time you push the lock button
together with the panic button on the
smart key for about 5 seconds with the
hybrid system off, the setting for door
unlocking will change as follows:
1. Driver ’s door unlocking mode: If you
perform smart unlocking operation on
the driver’s door, it will unlock. Per-
forming unlocking operation on the
front passenger ’s door or back door
will unlock all the doors. When the
system switches to this m ode, one
beep sounds inside the vehicle and two
beeps sound three times.
2. All doors unlocking mode: Performing
smart unlocking operation on either
front door or back door will unlock all
the doors. When the system switches
to this mode, one beep sounds inside
the vehicle and two beeps sound twice.
3. Single door unlocking mode: The
driver ’s door or back door on which
you perform smart unlocking operation
will unlock. However, performing un-
locking operation on the front passen-
ger’s door will unlock all the doors.
When the system switches to this
mode, one beep sounds inside the ve-
hicle and two beeps sound once.

33
INFORMATION
When changing the mode, be sure
to push both lock and panic but-
tons firmly, or panic alarm may be
activated.
 This operation will not change the
wireless remote control unlocking
function.
 In the single or driver’s door un-
locking mode, if you get into the
vehicle from the driver’s door carry-
ing the smart key, all the smart un-
locking controls activated by the
smart key will be stopped for secu-
rity. If you get out of the vehicle
from the driver’s door carrying the
smart key and get out of the effec-
tive range of the smart function,
unlocking control by the smart key
will be possible. However, unlocking
control may not be carried out for
5 seconds after you get out from
the vehicle. In this case, operate
unlock control again after 5 sec-
onds.
BATTERY POWER SAVING
When doors are locked, the smart entry
and start system transmits electromagnetic
waves to the outside of the vehicle at
regular intervals. For this reason, the ve-
hicle battery will be discharged if the ve-
hicle is left for a long time. If the key is
left within the effective range of the smart
function outside of the vehicle, the key
and the vehicle transmit electromagnetic
waves periodically. If these conditions con-
tinue for a long time, the battery in the
key and vehicle will be discharged.
To prevent the batteries from being dis-
charged, the smart function is automatical-
ly deactivated in the following conditions:
If there is no response from the key
for more than 14 days
If the key is left within the effective
range of the smart function outside of
the vehicle for more than 10 minutes To reactivate the smart function, perform
any of the following:
(a) Press the lock button on the outside front door handle or back door while
carrying the smart key.
(b) Perform a wireless remote control op- eration.
(c) Insert and turn the mechanical key in the keyhole of the driver’s door.

56

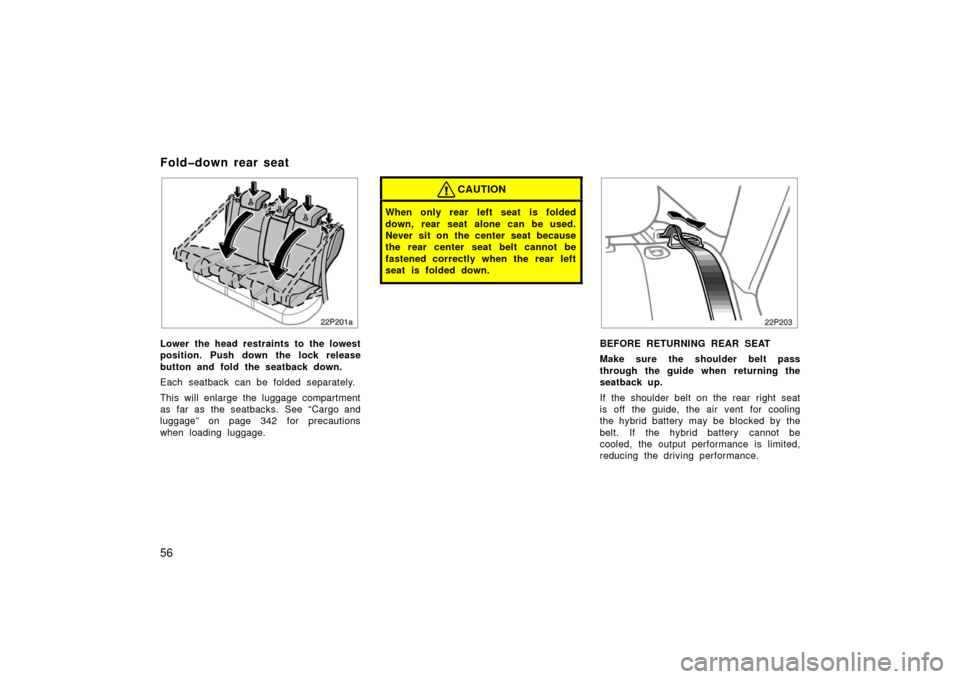

Lower the head restraints to the lowest
position. Push down the lock release
button and fold the seatback down.
Each seatback can be folded separately.
This will enlarge the luggage compartment
as far as the seatbacks. See “Cargo and
luggage” on page 342 for precautions
when loading luggage.
CAUTION
When only rear left seat is folded
down, rear seat alone can be used.
Never sit on the center seat because
the rear center seat belt cannot be
fastened correctly when the rear left
seat is folded down.
22p203
BEFORE RETURNING REAR SEAT
Make sure the shoulder belt pass
through the guide when returning the
seatback up.
If the shoulder belt on the rear right seat
is off the guide, the air vent for cooling
the hybrid battery may be blocked by the
belt. If the hybrid battery cannot be
cooled, the output performance is limited,
reducing the driving performance.
Folddown rear seat

57

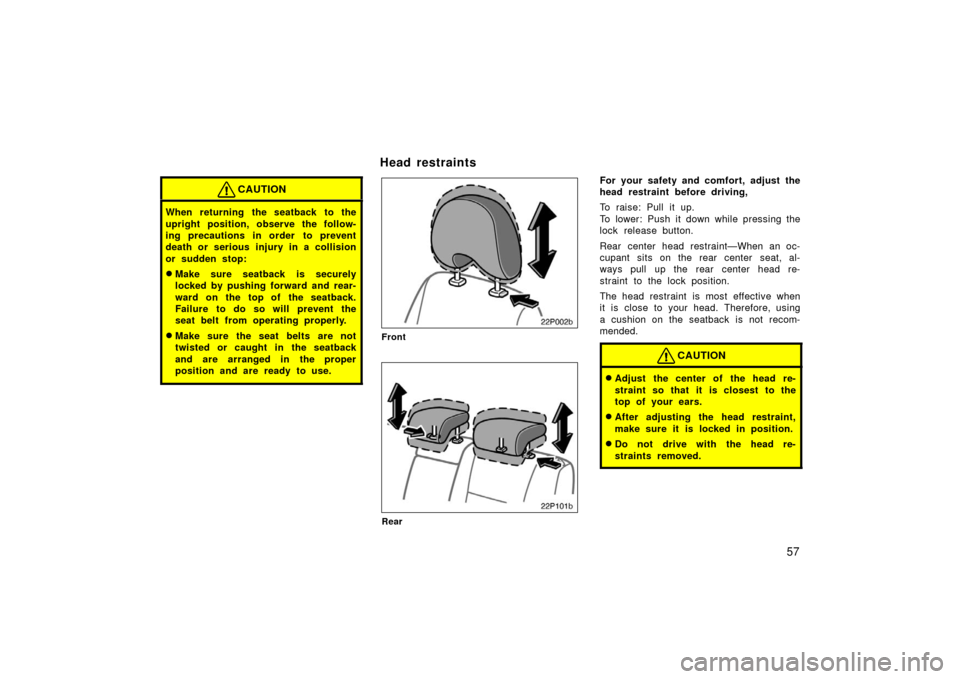

CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
death or serious injury in a collision
or sudden stop:
Make sure seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in the proper
position and are ready to use.
22p002b
Front
22p101b
Rear
For your safety and comfort, adjust the
head restraint before driving,
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Rear center head restraint—When an oc-
cupant sits on the rear center seat, al-
ways pull up the rear center head re-
straint to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Head restraints
