2006 TOYOTA PRIUS service indicator

5
1. Service reminder indicators and indicator lights 125, 132 . . . . . . . . . .
2. Speedometer
3. Fuel gauge 122 . . . . . . . . . . . . . . . . . . . . . .
4. Odometer and trip meter 123 . . . . . . . . .

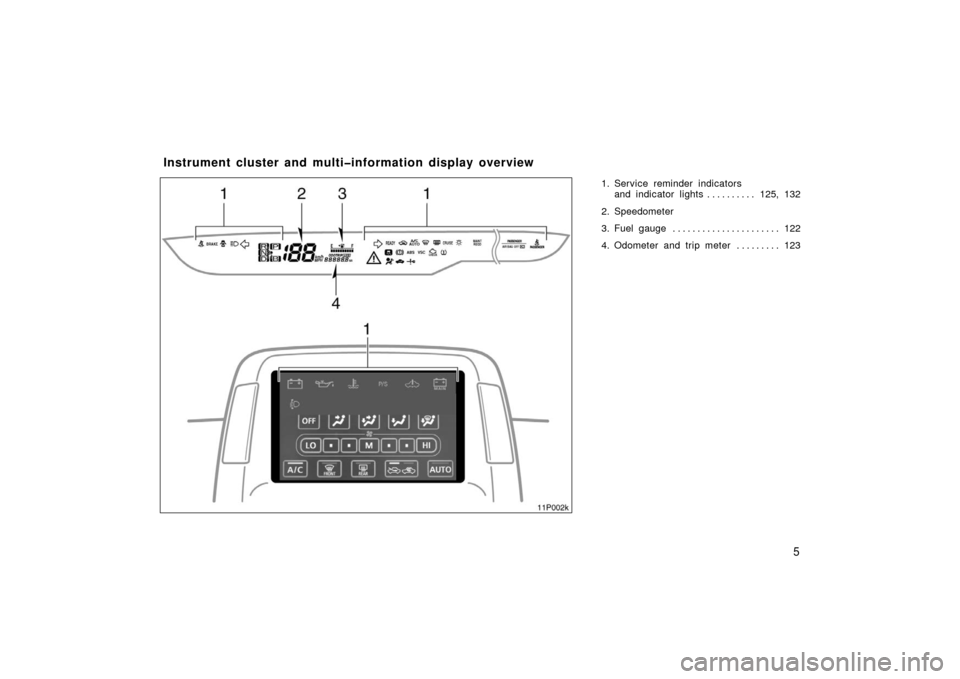

Instrument cluster and multiinformation display overview
11p002k

65
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.
When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non−toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or open
the seat belt pretensioner assemblies,
airbag sensor or surrounding area or
wiring. Failure to follow these instruc-
tions may prevent the seat belt pre-
tensioners from activating correctly,
cause sudden operation of the system
or disable the system, which could
result in death or serious injury. Con-
sult your Toyota dealer about any re-
pair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can in-
terfere with proper operation of the
seat belt pretensioners in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
22p010a
This indicator comes on when the “IG
ON” mode is enabled. It goes off after
about 6 seconds. This means the seat
belt pretensioners are operating proper-
ly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors,
driver ’s seat position sensor, driver ’s seat
belt buckle switch, front passenger occu-
pant classification system and indicator
light, front passenger ’s seat belt buckle
switch, seat belt pretensioner assemblies,
interconnecting wiring and power sources.
(For details, see “Service reminder indica-
tors and warning buzzers” on page 125.)

72

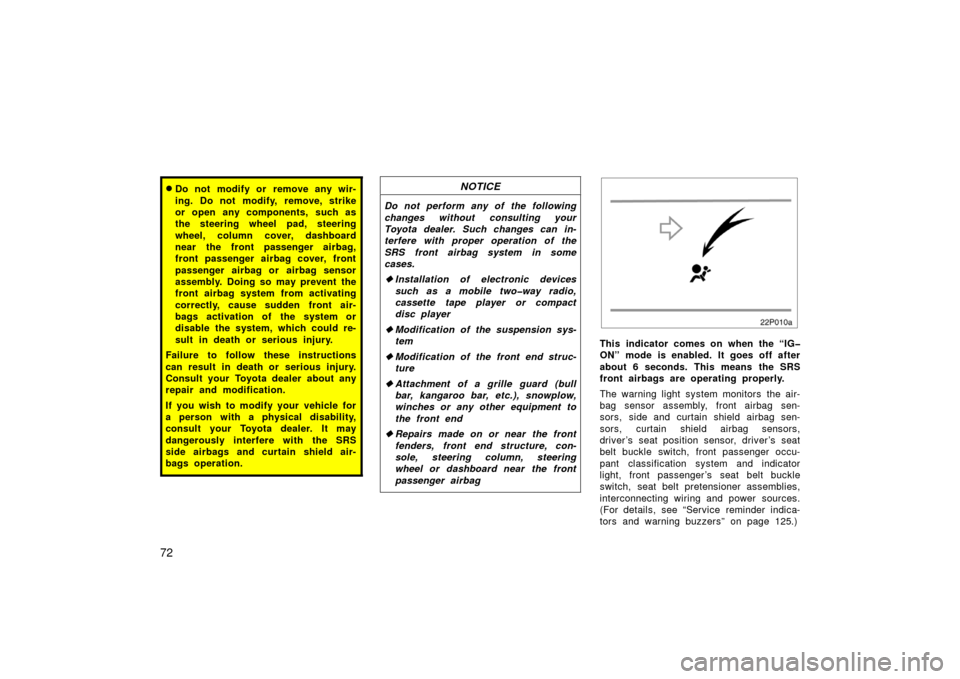

Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components, such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag or airbag sensor
assembly. Doing so may prevent the
front airbag system from activating
correctly, cause sudden front air-
bags activation of the system or
disable the system, which could re-
sult in death or serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with a physical disability,
consult your Toyota dealer. It may
dangerously interfere with the SRS
side airbags and curtain shield air-
bags operation.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can in-
terfere with proper operation of the
SRS front airbag system in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
22p010a
This indicator comes on when the “IG
ON” mode is enabled. It goes off after
about 6 seconds. This means the SRS
front airbags are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors,
driver ’s seat position sensor, driver ’s seat
belt buckle switch, front passenger occu-
pant classification system and indicator
light, front passenger ’s seat belt buckle
switch, seat belt pretensioner assemblies,
interconnecting wiring and power sources.
(For details, see “Service reminder indica-
tors and warning buzzers” on page 125.)

80
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole or front seat
22p010a
This indicator comes on when the “IG
ON” mode is enabled. It goes off after
about 6 seconds. This means the SRS
side airbags and curtain shield airbags
are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors,
driver ’s seat position sensor, driver ’s seat
belt buckle switch, front passenger ’s seat
belt buckle switch, seat belt pretensioner
assemblies, interconnecting wiring and
power sources. (For details, see “Service
reminder indicators and warning buzzers”
on page 125.) If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
“IG
−ON” mode is enabled or remains
on for more than 6 seconds.
The light comes on while driving.

121
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Odometer and two trip meterss 123
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Km/h or MPH button 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Service reminder indicators and warning buzzers 125
. . . . . . . . . . . . . .
SECTION 2– 5

125
If the indicator or buzzer comes on...Do this.
(a)
or
(red indicator and buzzer)If parking brake is off, stop immediately and contact Toyota dealer.
(yellow indicator)
Take vehicle to Toyota dealer. If red brake system warning light is also on, stop imme-
diately and contact Toyota dealer.
(b)
(indicator and buzzer)
Fasten driver ’s seat belt.
(c)
(indicator and buzzer)
Fasten front passenger ’s seat belt.
(d)orTake vehicle to Toyota dealer.
(e)See multi −information display.
(f)orTake vehicle to Toyota dealer. If red brake system warning light is also on, stop imme-
diately and contact Toyota dealer.
If any warning comes on, the hybrid system may not start by pu shing the “POWER” switch. In that case, push it once again.
Service reminder indicators and warning buzzers

128
Any of the following conditions may oc-
cur, but do not indicate the malfunc-
tion:
The yellow warning light may stay on
for about 60 seconds after the hybrid
system is started. It is normal if it
turns off after a while.
Depressing the brake pedal repeatedly
may turn on the red warning light and
buzzer. It is normal if the light turns off
and the buzzer stops sounding after a
few seconds.
You may hear a small sound in the
engine compartment after the hybrid
system is started or the brake pedal is
depressed repeatedly. This is a pump
pulsating sound of the brake system,
and it is not a malfunction.
You may hear a motor sound in the
engine compartment when the brake
pedal is depressed with the hybrid sys-
tem off.
The brake pedal stroke may be short
when you press the “POWER” switch
with the brake pedal depressed. (b) Driver’s Seat Belt Reminder Light
and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the “IG −ON” mode is enabled, the
reminder light flashes and the buzzer
sounds if the driver ’s seat belt is not fas-
tened. Unless the driver fastens the belt,
the light continues flashing and the buzzer
sounds 4 to 8 seconds.
If the vehicle speed rises above 20 km/h
(12 mph) without the belt fastened, a
buzzer sounds.
(c) Front Passenger ’s Seat Belt Reminder Light and Buzzer
This light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the “IG −ON” mode is enabled, the
reminder light flashes if a passenger sits
in the front passenger seat and does not
fasten the seat belt. Unless the front pas-
senger fastens the belt, the light continues
flashing.
If the vehicle speed rises above 20 km/h
(12 mph) without the belt fastened, a
buzzer sounds. If luggage or other load is placed on the
front passenger seat, depending on its
weight, causing the reminder light to flash
and buzzer to sound.
(d) Malfunction Indicator Lamp
This lamp comes on when the “IGON”
mode is enabled and goes off after the
hybrid system starts. This means that
the warning light system is operating
properly.
If the lamp remains on or the lamp
comes on while driving, first check the
following:
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
This case is a temporary malfunction. The
malfunction indicator lamp will go off after
taking several driving trips.
If the lamp does not go off even after
several trips, contact your Toyota deal-
er as soon as possible.
There is a problem somewhere in the
engine, hybrid system, throttle control
system or warning light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.

129
Emissions inspection and maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Toyota
dealer to check your vehicle’s emission
control system and OBD (On−Board Diag-
nostics) system before taking your vehicle
for the inspection.
For details, see “Emissions inspection and
maintenance (I/M) programs” on page 390.
(e) Master Warning Light
()
If the master warning light comes on, the
warning light for the faulty system is high-
lighted or the message such as “Please
press “P” to engage Park.” and “The bat-
teries will not be charged if the transaxle
is in Neutral N.” appears on the multi −in-
formation display. (See “Service reminder
indicators and warning buzzers— —Multi −
information display” on page 132 or “Pre-
cautions for use” on page 14 or “Fuel
gauge” on page 122 for instructions.) (f) “ABS” Warning Light
The light comes on when the “IG
−ON”
mode is enabled. If the anti −lock brake
system and the brake assist system work
properly, the light turns off after the
“READY” light comes on. Thereafter if the
system malfunctions, the light comes on
again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate,
but the brake system still operates con-
ventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate
but the brake assist system still operates.
In this case, the wheels could lock up
during a sudden braking or braking on
slippery road surfaces.
If any of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible so
service the vehicle.
The light does not come on when the
“IG −ON” mode is enabled, or the light
remains on after the “READY” light
comes on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the red brake system
warning light, immediately stop your
vehicle at a safe place and contact
your Toyota dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
Any of the following conditions may oc-
cur, but does not indicate the malfunc-
tion:
The light may stay on for about 60
seconds after the hybrid system is
started. It is normal if it turns off after
a whi l e.
