2006 TOYOTA PRIUS stop start

10
Toyota hybrid system combines a gaso-
line engine and electric motor power to
improve the fuel economy and minimize
the emissions as well as to provide
better power performance than the ordi-
nary gasolinepowered vehicles.
Depending on the driving condition, the
vehicle runs on the best combination of;
Gasoline engine power
Electric motor power generated by
the gasoline engine
Electric motor power of the hybrid
battery
Furthermore, the energy is efficiently used
in the following ways:
When stopping the vehicle, the gaso-
line engine is automatically stopped.
When applying the brakes or decelerat-
ing, electricity is converted from the
turning force of the wheels and stored
in the hybrid battery. (This is called
regenerative brake.)
Since the battery is charged by the
gasoline engine as needed, it does not
require charging from an outside
source like an electric vehicle. Basic operations are described below. Be-
sides, Toyota hybrid system performs vari-
ous controls depending on the operating
condition: The “Energy Monitor” screen
tells you which power is used currently.

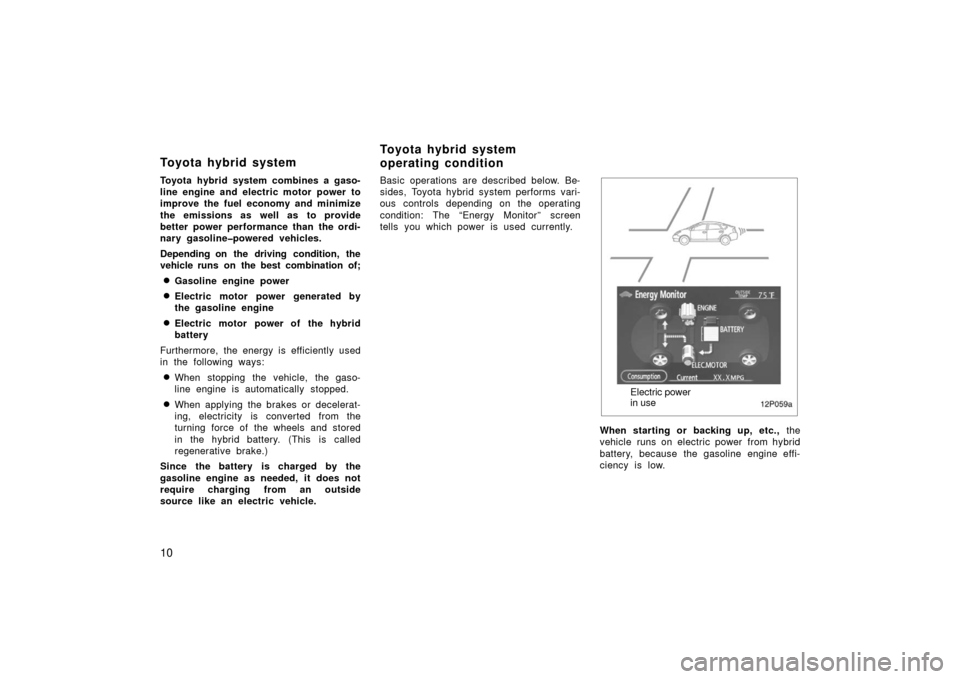

12p059a
Electric
power
in use
When starting or backing up, etc., the
vehicle runs on electric power from hybrid
battery, because the gasoline engine effi-
ciency is low.
Toyota hybrid system Toyota hybrid system
operating condition

12
12p063a

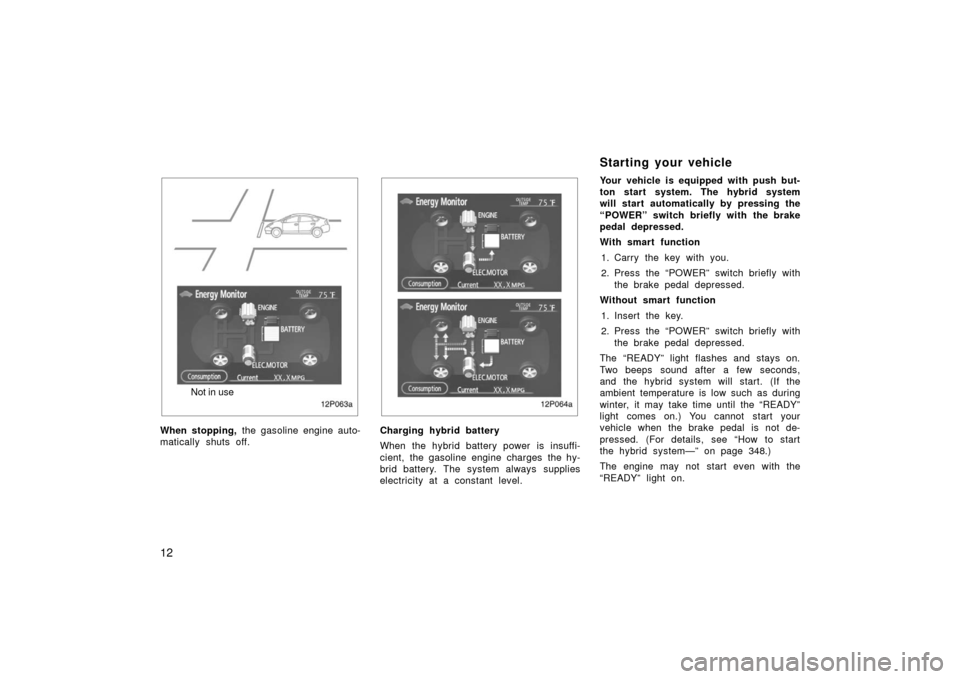

Not in use
When stopping, the gasoline engine auto-
matically shuts off.
12p064a
Charging hybrid battery
When the hybrid battery power is insuffi-
cient, the gasoline engine charges the hy-
brid battery. The system always supplies
electricity at a constant level. Your vehicle is equipped with push but-
ton start system. The hybrid system
will start automatically by pressing the
“POWER” switch briefly with the brake
pedal depressed.
With smart function
1. Carry the key with you.
2. Press the “POWER” switch briefly with the brake pedal depressed.
Without smart function
1. Insert the key.
2. Press the “POWER” switch briefly with the brake pedal depressed.
The “READY” light flashes and stays on.
Two beeps sound after a few seconds,
and the hybrid system will start. (If the
ambient temperature is low such as during
winter, it may take time until the “READY”
light comes on.) You cannot start your
vehicle when the brake pedal is not de-
pressed. (For details, see “How to start
the hybrid system—” on page 348.)
The engine may not start even with the
“READY” light on.
Starting your vehicle

13
Drive your vehicle with a smooth accel-
eration and deceleration.
While driving, energy is recovered
through the regenerative brake as the
vehicle decelerates. However, for more
efficient use, do not accelerate or de-
celerate your vehicle more than neces-
sary.
Avoid abrupt acceleration and decelera-
tion.
The remaining capacity of the hybrid
battery can be confirmed on the energy
monitor screen of the multi−information
display. See “Information” on page 166
for details. Gradual or non −abrupt ac-
celeration or deceleration will more ef-
fectively use the benefits of an electric
motor without having to use gasoline
engine power. When parking, be sure to put the hy-
brid transaxle in “P”. While driving, use
the hybrid transaxle in “D”.
In “N”, the gasoline engine operates
but electricity cannot be generated. The
battery will be discharged requiring un-
necessary engine power to recharge.
The hybrid system automatically re-
charges the hybrid battery when the
remaining battery power is reduced.
However, the charging is not available
if the hybrid transaxle is “N”.
INFORMATION:
The gasoline engine starts and stops
automatically. (It stops during a low
load driving, deceleration or when the
vehicle is stopped.)
If the “READY” light remains on, you
can start your vehicle using the electric
motor even with the gasoline engine
stopped.
The gasoline engine may not stop auto-
matically in the following conditions:

During gasoline engine warmup
 During hybrid battery charging
 During low or high hybrid battery
temperature
For efficient use of your
vehicle

15

As the vehicle runs with both the gaso-
line engine and electric motor, you may
hear a motor sound coming from the
engine compartment.
When the hybrid system is started or
stopped, you may hear a sound coming
from the hybrid battery in the luggage
compartment. However, this does not
indicate any trouble.
If the “READY” light is on, you can
start even though the gasoline engine
may be off.
When you shift the shift lever to “B”
and release it to its original position
and your foot from the accelerator ped-
al, engine braking will be applied. How-
ever, during high speed driving you
may feel that deceleration by engine
braking is less than that of ordinary
vehicle.
Be sure to put the hybrid transaxle in
“P” when parking.
In “N”, the hybrid battery assembly is not
charged, even if the gasoline engine is
operating. You cannot run your vehicle if
the hybrid transaxle is left in “N” for a
long time because the hybrid battery as-
sembly will be discharged. When you leave your vehicle, apply the
parking brake to put the hybrid trans-
axle in “P” and be sure to carry the
key with you and lock all the doors.
If you leave the hybrid system in “ACC”
or “IG
−ON”, the hybrid system may not
start because the 12 volt battery will be
discharged.
If the vehicle is parked for a long time,
the hybrid battery will discharge gradually.
To keep the hybrid battery in good condi-
tion, drive the vehicle at least once every
several months for at least 30 minutes or
ten miles. If the hybrid battery becomes
fully discharged and the vehicle will not
start even with a jump −start to the 12 volt
battery, contact your Toyota dealer.
CAUTION
When you leave your vehicle, be
sure to shut off the hybrid system.
Be sure to put the hybrid transaxle
in “P” because the vehicle can start
with the “READY” light on and the
engine stopped (no engine sound
and vibration). When the “READY”
light is on, if you leave your ve-
hicle in shift position other than
“P” and “N”, the vehicle will creep
and start abruptly with the accelera-
tor pedal being depressed by mis-
take. This may cause death or seri-
ous injury.

33
INFORMATION
When changing the mode, be sure
to push both lock and panic but-
tons firmly, or panic alarm may be
activated.
 This operation will not change the
wireless remote control unlocking
function.
 In the single or driver’s door un-
locking mode, if you get into the
vehicle from the driver’s door carry-
ing the smart key, all the smart un-
locking controls activated by the
smart key will be stopped for secu-
rity. If you get out of the vehicle
from the driver’s door carrying the
smart key and get out of the effec-
tive range of the smart function,
unlocking control by the smart key
will be possible. However, unlocking
control may not be carried out for
5 seconds after you get out from
the vehicle. In this case, operate
unlock control again after 5 sec-
onds.
BATTERY POWER SAVING
When doors are locked, the smart entry
and start system transmits electromagnetic
waves to the outside of the vehicle at
regular intervals. For this reason, the ve-
hicle battery will be discharged if the ve-
hicle is left for a long time. If the key is
left within the effective range of the smart
function outside of the vehicle, the key
and the vehicle transmit electromagnetic
waves periodically. If these conditions con-
tinue for a long time, the battery in the
key and vehicle will be discharged.
To prevent the batteries from being dis-
charged, the smart function is automatical-
ly deactivated in the following conditions:
If there is no response from the key
for more than 14 days
If the key is left within the effective
range of the smart function outside of
the vehicle for more than 10 minutes To reactivate the smart function, perform
any of the following:
(a) Press the lock button on the outside front door handle or back door while
carrying the smart key.
(b) Perform a wireless remote control op- eration.
(c) Insert and turn the mechanical key in the keyhole of the driver’s door.

47
21p007b
SETTING THE SYSTEM
When the key is inserted into the key
slot:1. Remove the key.
In case of the smart entry and start
system: 1. Stop the hybrid system and open the driver ’s door.
The indicator light will start flashing. (See
“Hybrid vehicle immobilizer system” on
page 21 for details.) 2. Have all passengers get out of the vehicle.
3. Close and lock all the doors and hood. The indicator light will come on when all
the doors and hood are closed and
locked.
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the doors is unlocked or if
the hood is forcibly opened without the
mechanical key, wireless remote control
transmitter or smart function.
If the battery terminal is disconnected
and then reconnected.
The indicator light will come on when the
system is activated. If any of the doors are unlocked without
the mechanical key, wireless remote con-
trol transmitter or smart function and the
key is not in the key slot, all the doors
will be automatically locked again.
After 1 minute, the alarm will automatically
stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the hybrid system to “IG
−ON”.
Unlock any of the doors with the me-
chanical key, wireless remote control
transmitter or smart function.
If the 12 volt battery becomes discharged
due to the vehicle being unused for a long
time, etc., when the battery is recharged
or replaced, the system will sound the
alarm. If this happens, immediately stop
the alarm.

48
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned two ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle.
TESTING THE SYSTEM1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
mechanical key, wireless remote control
transmitter or smart function. Be sure
to wait until the indicator light goes off
or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the back
door, also check that the system is
activated when the 12 volt battery ter-
minal is disconnected and then recon-
nected. When testing the hood, release
the lock with the hood lock release
lever and raise the hood.
If the system does not work properly,
have it checked by your Toyota dealer.
21p117
This indicates that the fuel filler door
is on the left side of your vehicle.
21p030e
1. To open the fuel filler door, pull the lever up.
When refueling, turn off the hybrid
system.
Fuel tank cap

111
When the headlight switch is turned to the
first or second clickstop, the brightness of
the instrument cluster will be reduced
slightly unless the instrument panel light
control dial is turned fully on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the hy-
brid system is not running.
Daytime running light system
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the hybrid system started, even with the
light switch in the “OFF” position.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
To turn off the daytime running light sys-
tem, twist the knob to the position 2 or
position 3 with the headlights on or turn
the hybrid system off.
23p109b

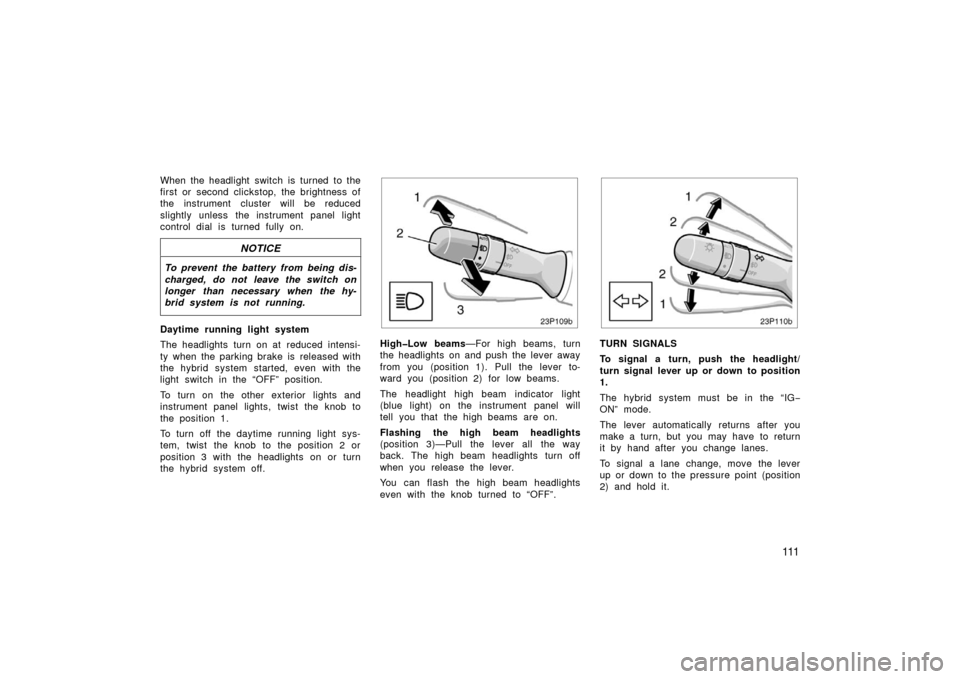

HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
even with the knob turned to “OFF”.
23p110b
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The hybrid system must be in the “IG −
ON” mode.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
