2006 TOYOTA PRIUS Owners Manual

313

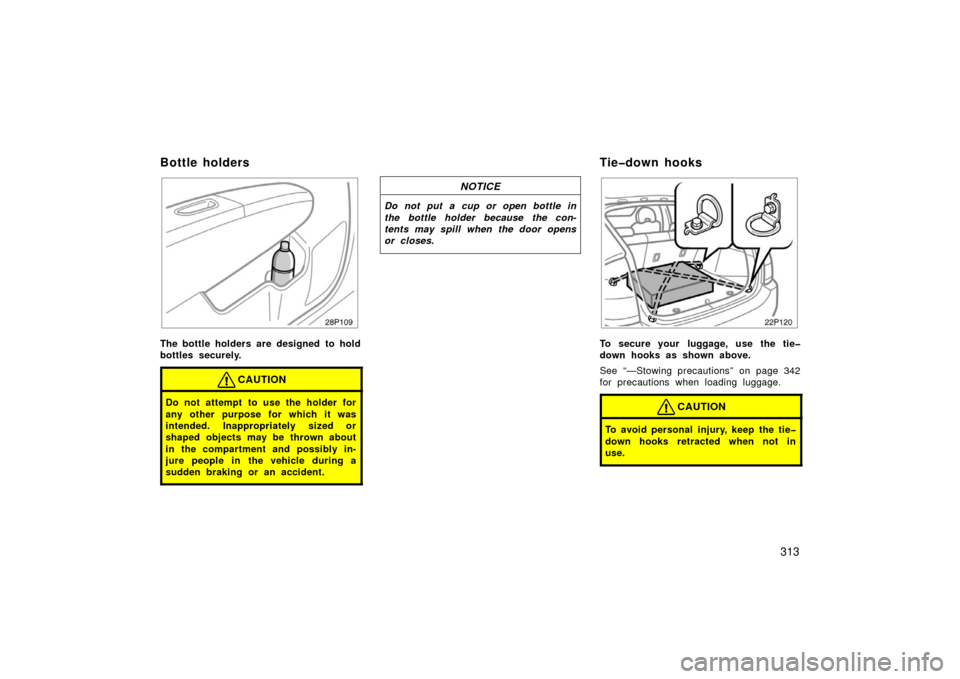

28p109
The bottle holders are designed to hold
bottles securely.
CAUTION
Do not attempt to use the holder for
any other purpose for which it was
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jure people in the vehicle during a
sudden braking or an accident.
NOTICE
Do not put a cup or open bottle in
the bottle holder because the con-
tents may spill when the door opens
or closes.
22p120
To secure your luggage, use the tie
down hooks as shown above.
See “—Stowing precautions” on page 342
for precautions when loading luggage.
CAUTION
To avoid personal injury, keep the tie
down hooks retracted when not in
use.
Bottle holdersTiedown hooks

314

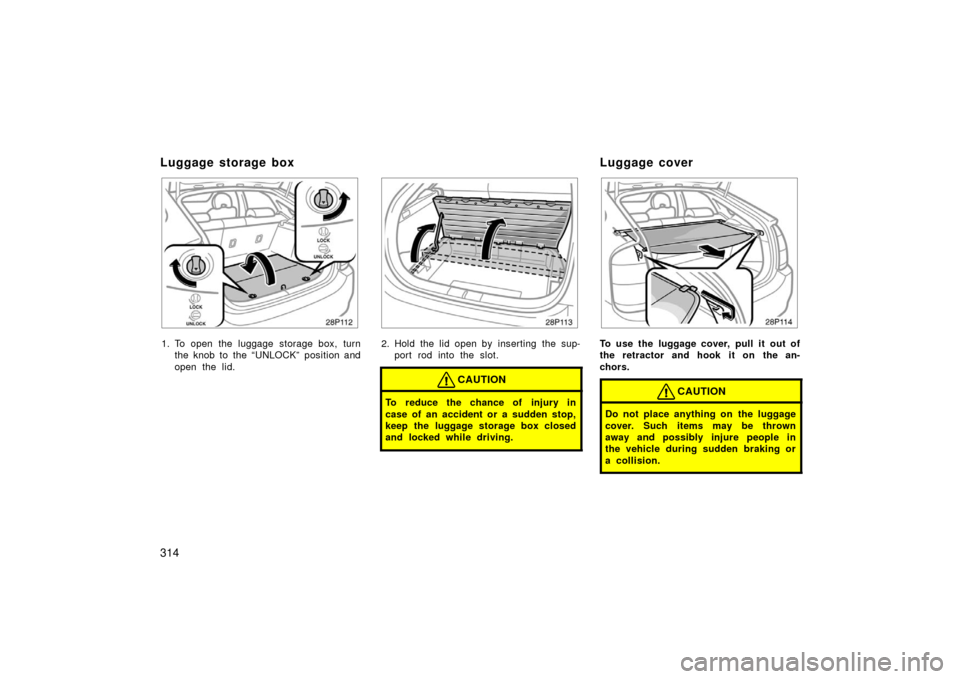

28p112a
1. To open the luggage storage box, turnthe knob to the “UNLOCK” position and
open the lid.
28p113a
2. Hold the lid open by inserting the sup-port rod into the slot.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
keep the luggage storage box closed
and locked while driving.
28p114
To use the luggage cover, pull it out of
the retractor and hook it on the an-
chors.
CAUTION
Do not place anything on the luggage
cover. Such items may be thrown
away and possibly injure people in
the vehicle during sudden braking or
a collision.
Luggage storage box Luggage cover

315

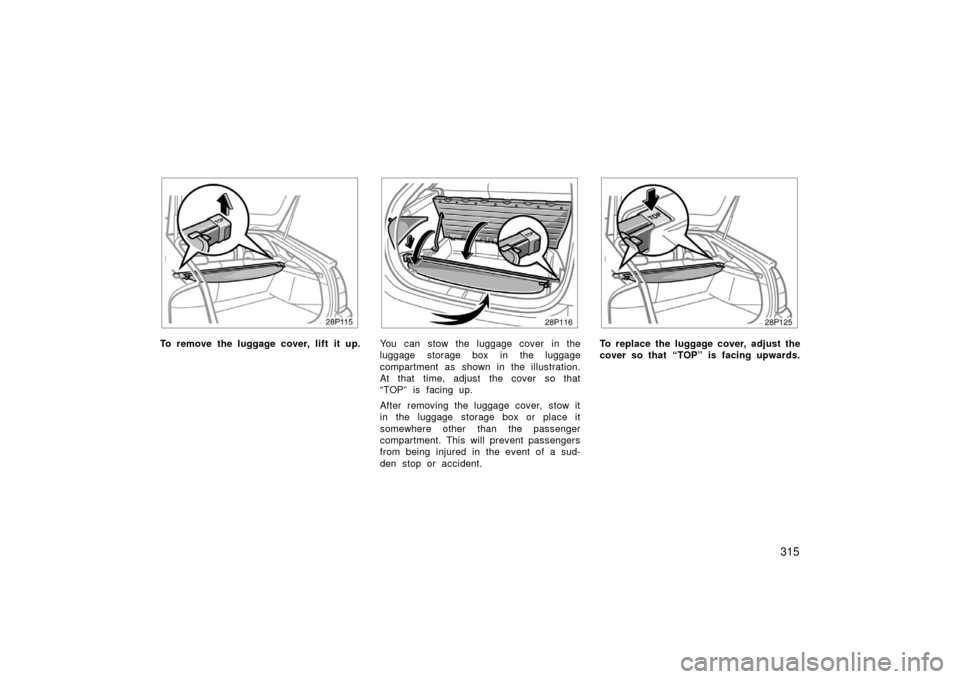

28p115
To remove the luggage cover, lift it up.
28p116a
You can stow the luggage cover in the
luggage storage box in the luggage
compartment as shown in the illustration.
At that time, adjust the cover so that
“TOP” is facing up.
After removing the luggage cover, stow it
in the luggage storage box or place it
somewhere other than the passenger
compartment. This will prevent passengers
from being injured in the event of a sud-
den stop or accident.
28p125
To replace the luggage cover, adjust the
cover so that “TOP” is facing upwards.

316

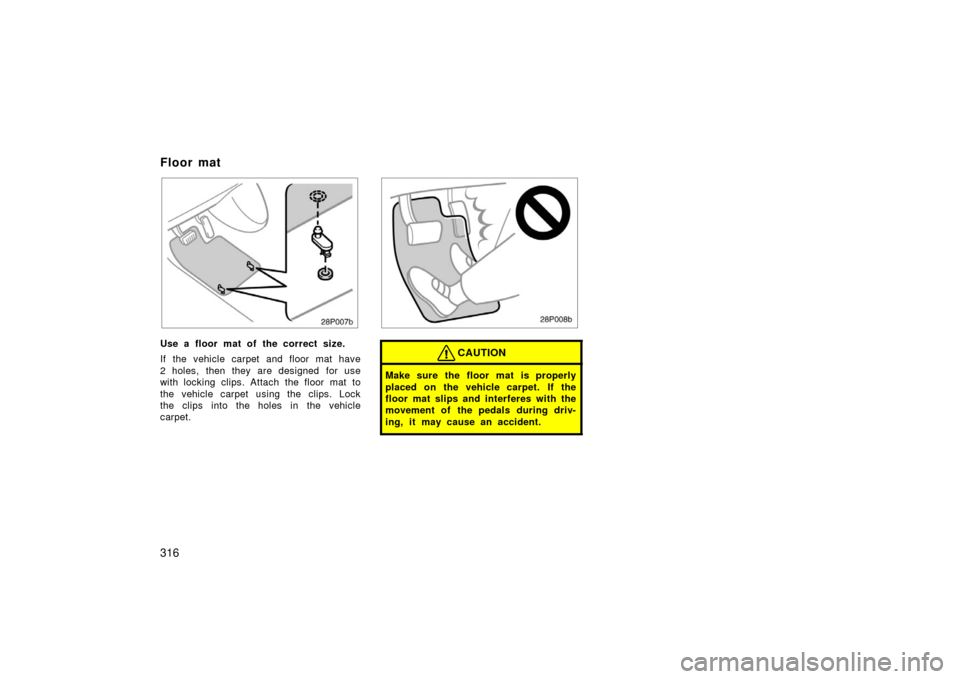

28p007b
Use a floor mat of the correct size.
If the vehicle carpet and floor mat have
2 holes, then they are designed for use
with locking clips. Attach the floor mat to
the vehicle carpet using the clips. Lock
the clips into the holes in the vehicle
carpet.
28p008b
CAUTION
Make sure the floor mat is properly
placed on the vehicle carpet. If the
floor mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
Floor mat

317
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Break−in period 318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Fuel 318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel pump shut −off systemm 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three −way catalytic converters 321
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 322
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 322
. . . . . . . . . . . . . . . . . . . . . . . . . .
Coolant heat storage system 324
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium −tipped spark plugs 324
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 325
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Electric power steering system 329
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake pad wear limit indicators 329
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Toyota’s identification 330
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Tire information 332
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Vehicle load limits 342
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Cargo and luggage 342
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Types of tires 345
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 3

318
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break−in. But following a few simple tips
for the first 1000 km (600 miles) can add
to the future economy and long life of
your vehicle:
Avoid full −throttle acceleration when
starting and driving.
Avoid racing the hybrid engine.
Try to avoid hard stops during the first
300 km (200 miles). FUEL TYPE
Your vehicle must use only unleaded
gasoline.
To help prevent gas station mixups, your
Toyota has a smaller fuel tank opening.
The special nozzle on pumps with un-
leaded fuel will fit it, but the larger stan-
dard nozzle on pumps with leaded gas will
not.
At a minimum, the gasoline you use
should meet the specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5
−M93
in Canada.
NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the three
way catalytic converter to lose its ef-
fectiveness and the emission control
system to function improperly. Also,
this can increase maintenance costs.
OCTANE RATING
Select unleaded gasoline with an Oc-
tane Rating of 87 (Research Octane
Number 91) or higher. Use of unleaded fuel with an octane num-
ber or rating lower than stated above will
cause persistent heavy knocking. If se-
vere, this will lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, occasionally, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is normal
and there is no need for concern.
GASOLINE CONTAINING DETERGENT
ADDITIVES
Toyota recommends the use of gasoline
that contains detergent additives to
avoid buildup of engine deposits.
However, all gasoline sold in the U.S.
contains detergent additives to keep clean
and/or clean intake systems.
Breakin period
Fuel

319
QUALITY GASOLINE
Automotive manufacturers in the U.S.,
Europe and Japan have developed a
specification for quality fuel named
WorldWide Fuel Charter (WWFC) that
is expected to be applied world wide.
The WWFC consists of four categories
that depend on required emission le-
vels. In the U.S., category 4 has been
adopted. The WWFC improves air quali-
ty by providing for better emissions in
vehicle fleets, and customer satisfaction
through better vehicle performance.
CLEANER BURNING GASOLINE
Cleaner burning gasoline, including re-
formulated gasoline that contains oxy-
genates such as ethanol or MTBE is
available in many areas.
Toyota recommends the use of cleaner
burning gasoline and appropriately blended
reformulated gasoline. These types of gas-
oline provide excellent vehicle perfor-
mance, reduce vehicle emissions, and im-
prove air quality.OXYGENATES IN GASOLINE
Toyota allows the use of oxygenate
blended gasoline where the oxygenate
content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your
Toyota, be sure that it has an octane
rating no lower than 87.
Toyota does not recommend the use of
gasoline containing methanol.
GASOLINE CONTAINING MMT
Some gasoline contain an octane en-
hancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of
gasoline that contains MMT. If fuel con-
taining MMT is used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Toyota dealer for ser-
vice.
GASOLINE QUALITY
In a very few cases, you may experience
driveability problems caused by the partic-
ular gasoline that you are using. If you
continue to have unacceptable driveability,
try changing gasoline brands. If this does
not rectify your problem, then consult your
Toyota dealer.
NOTICE

Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
 If drivability problems are encoun-
tered (poor hot starting, vaporizing,
engine knock, etc.), discontinue its
use.
 Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.

320
FUEL TANK CAPACITY45 L (11.9 gal., 9.9 lmp.gal.)
The given fuel tank capacity is measured
on EPA/CARB ORVR testing condition
which is approved for nominal capacity
measurement condition.
The fuel tank capacity is decreased at low
ambient temperature. (decreased by about
5 L (1.3 gal., 1.1 lmp.gal.) at −10 C
(14 F).)
Fuel pump shutoff system
The fuel pump shut −off system stops sup-
plying fuel to the engine to minimize the
risk of fuel leakage when the engine stalls
or an airbag inflates upon collision. To
restart the hybrid system after the fuel
pump shut −off system activates, press the
“POWER” switch to the “OFF” mode and
start it.
CAUTION
Inspect the ground under the vehicle
before restarting the hybrid system. If
you find that liquid has leaked onto
the ground, the fuel system has been
damaged and it is in need of repair.
In this case, do not restart the hybrid
system.
If you plan to drive your Toyota in
another country...
First , comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).
Operation in foreign
countries
