2006 TOYOTA PRIUS Owners Manual

257

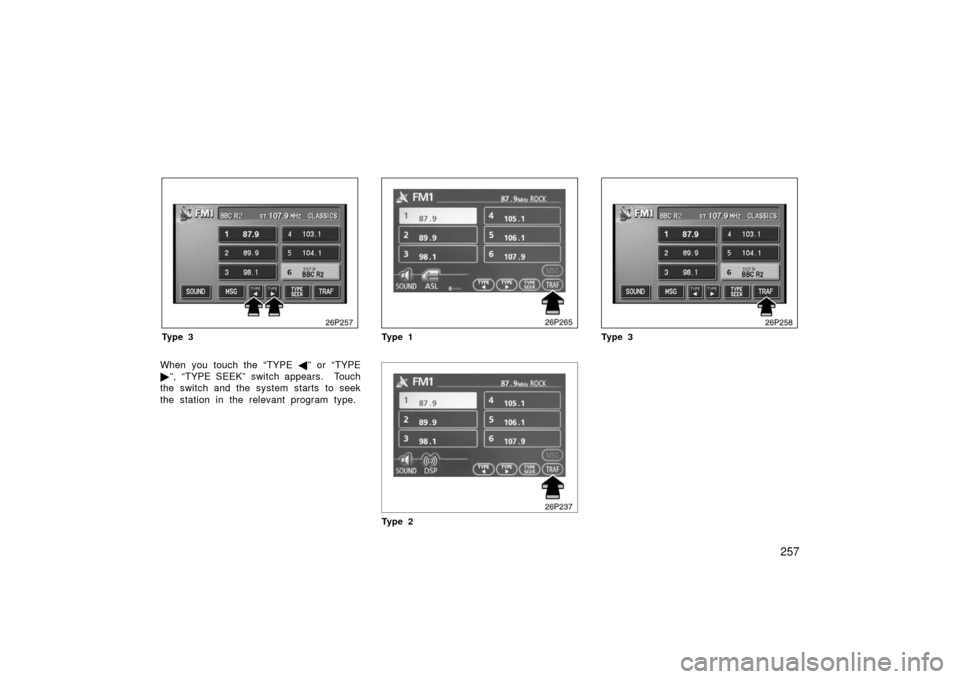

26p257
Ty p e 3
When you touch the “TYPE ” or “TYPE
 ”, “TYPE SEEK” switch appears. Touch
the switch and the system starts to seek
the station in the relevant program type.
26p265
Ty p e 1
Ty p e 2
26p258
Ty p e 3

258
(2) Traffic program:A station that regularly broadcasts traf-
fic information is automatically located.
When you touch the “TRAF” switch,
“TRAF SEEK” appears on the display and
the radio will start seeking any traffic pro-
gram station.
If any traffic program station is not found,
“NOTHING” appears and the previous
mode returns.
If the traffic program station is found, the
name for traffic program station is dis-
played and “TRAF” is lit for a while until
traffic announcement is received.
26p266
Ty p e 1
Ty p e 2
26p259
Ty p e 3

259
(3) Radio textIf the system receives a radio text from
RDS station, “MSG” appears on the dis-
play. Touch the “MSG” switch, and a text
message is displayed on the screen.
26p267
Ty p e 1
Ty p e 2
26p145b
Ty p e 3
In case a text message is not accepted
in a screen, you can touch the “MSG”
switch and hold it to display the rest of
the message.
When the system can show the station
name, “RDS” appears on the display.
Each time you touch the “MSG” switch,
indication on the display changes from the
band to the station name, a radio text in
this order. After six seconds passes, indi-
cation returns to the band.

260
To listen to a satellite radio broadcast in
your vehicle, an additional genuine Toyota
satellite receiver and ant enna must be
purchased and installed, and the subscrip-
tion to the XM satellite radio is necessary.
(a) How to subscribe to an XM satellite radio
An XM satellite radio is a t uner designed
exclusively to receive broadcasts provided
under a separate subscription. Availability
is limited to the 48 contiguous states.
How to subscribe:
You must enter into a separate service
agreement with the XM radio in order to
receive satellite br oadcast programming in
the vehicle. Additional activation and ser-
vice subscription fees apply that are not
included in the purchase price of the ve-
hicle and optional digital satellite tuner.
For complete information on subscription
rates and terms, or to subscribe to the
XM radio, visit XM on the web at
www.xmradio.com
or call an XM’s Listener
Care at (800) 852− 9696. The XM radio
is solely responsible for the quality, avail-
ability and content of the satellite radio
services provided, which are subject to
the terms and conditions of the XM radio
customer service agreement. Customers should have their radio ID
ready; the radio ID can be found by se-
lecting the “channel 000” on the radio.
For details, see the “Displaying the radio
ID” that follows.
All fees and programming are the respon-
sibility of the XM satellite radio and are
subject to change.
Satellite tuner
technology notice:
Toyota satellite radio tuners are awarded
Type Approval Certificates from XM Satel-
lite Radio Inc. on “October 14, 2004” as
proof of compatibility with the services of-
fered by the XM satellite radio.
(b) Displaying the radio ID
Each XM tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM service or when reporting a
problem.
If you select the “CH 000” using the
“TUNE·FILE” knob, the ID code of 8 al-
phanumeric characters appears. If you
select another channel, display of the ID
code is canceled. The channel (000) al-
ternates the display between the radio ID
and the specific radio ID code.
(c) Listening to the satellite radio
Push the “AM·SAT” button to choose a
SAT channel.
“AM”, “SAT1”, “SAT2” or “SAT3” appears
on the display.
Radio operation (XM satellite
radio broadcast)
(Type 1 only)

261
26P197
Turn this knob to select the next or pre-
vious channel.
If you turn continuously, you can rapidly
scroll forward or down through the chan-
nels.
26p213b
(d) Presetting a channel1. Tune in the desired channel.
2. Touch one of the channel selector switches (16) and hold it until a
beep is heard. This sets the chan-
nel to the switch and the frequency
appears on the switch.
Each switch can store three SAT chan-
nels. To change the preset channel to a
different one, follow the same procedure.
The preset channel memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse. (e) Selecting a channel
Tune in the desired channel using one of
the following methods.
Preset tuning:
Touch the switch (1 −6) for
the channel you want. The switch (1 −6) is
highlighted in green.
Manual tuning within the channel cate-
gory: Turn the “TUNE·FILE” knob. The
radio will step up or down the channel.
Manual tuning within the current chan-
nel category: Push the “SEEK·TRACK”
button on either side. The radio will step
up or down the channel within the current
channel category. Touch the “TYPE SEEK”
switch. The radio will step up the channel
within the current channel category.

262
To scan the currently selected channel
category: Touch the “TYPE SCAN” switch
or push the “SCAN” button briefly.
“SCAN” appears on the display. The ra-
dio will find the next channel in the same
channel category, stay there for a few
seconds, and then scan again. To select
a channel, touch the “TYPE SCAN” switch
or push the “SCAN” button a second time. To scan the preset channels:
Push the
“SCAN” button and hold it until you hear
a beep. “P.SCAN” appears on the display.
The radio will find the next preset chan-
nel, stay there for a few seconds, and
then move to the next preset channel. To
select a channel, push the “SCAN” button
a second time.(f) Channel category
Touch either “TYPE
” or “TYPE ”
switch to switch to the next or previous
category.

263
26p216c
(g) Displaying the title and name
When you touch the “TEXT” switch, the
song/program title and the artist name/fea-
ture are displayed.
Up to 32 alphanumeric characters can be
displayed. (Some information will not be
fully displayed.)

264
(h) If the satellite radio tuner malfunctions
When problems occur with the XM tuner, a message will appear on the display. Referring to the table below to identify the problem,
take the suggested corrective action.
ANTENNAThe XM antenna is not connected. Check whether the XM antenna cable is att\
ached securely.
A short− circuit occurs in the antenna or the surrounding antenna cable. See a T\
oyota certified dealer.
UPDATING
You have not subscribed to the XM satellite radio. The radio is being up\
dated with the latest encryption
code. Contact the XM satellite radio for subscription information. Whe\
n a contact is canceled, you can
choose the “CH000” and all free −to− air channels.
The premium channel you selected is not authorized. Wait for about 2 seconds until the radio returns to
the previous channel or “CH001”. If it does not change automatica\
lly, select another channel. If you want
to listen to the premium channel, contact the XM satellite radio.
NO SIGNALThe XM signal is too weak at the current location. Wait until your vehicle reaches a location with a stron-
ger signal.
LOADINGThe unit is acquiring audio or program information. Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any programming. Select an\
other channel.
−−−−−There is no song/program title or artist name/feature associated with th\
e channel at that time. No action
needed.
−−−The channel you selected is no longer available. Wait for about 2 seconds until the radio returns to the
previous channel or “CH001”. If it does not change automatically, select another channel.
The XM Listener Care Center is also available on the phone, please call (800) 852 −9696 during the following hours:
Monday – Saturday: 7 a.m. – 1 a.m. Sunday: 12 p.m – 12 a.m.
