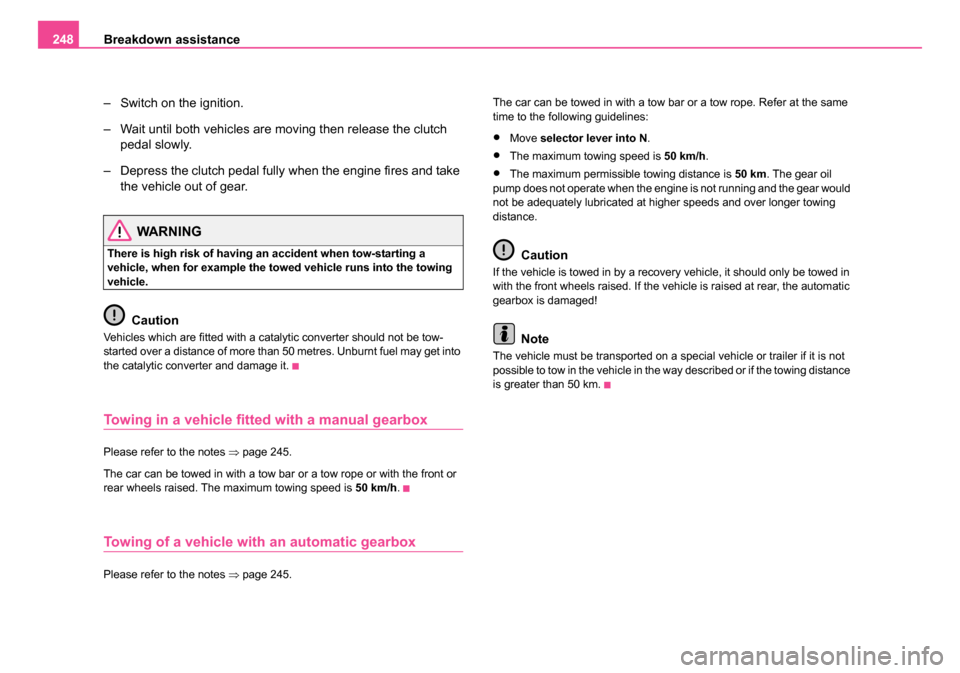

2006 SKODA ROOMSTER Owner's Manual

Breakdown assistance
248
– Switch on the ignition.
– Wait until both vehicles are moving then release the clutch pedal slowly.
– Depress the clutch pedal fully when the engine fires and take the vehicle out of gear.
WARNING
There is high risk of having an accident when tow-starting a
vehicle, when for example the towed vehicle runs into the towing
vehicle.
Caution
Vehicles which are fitted with a catalytic converter should not be tow-
started over a distance of more than 50 metres. Unburnt fuel may get into
the catalytic converter and damage it.
Towing in a vehicle fitted with a manual gearbox
Please refer to the notes ⇒page 245.
The car can be towed in with a tow bar or a tow rope or with the front or
rear wheels raised. The maximum towing speed is 50 km/h.
Towing of a vehicle with an automatic gearbox
Please refer to the notes ⇒page 245. The car can be towed in with a tow bar or a tow rope. Refer at the same
time to the following guidelines:
•Move
selector lever into N .
•The maximum towing speed is 50 km/h.
•The maximum permissible towing distance is 50 km. The gear oil
pump does not operate when the engine is not running and the gear would
not be adequately lubricated at higher speeds and over longer towing
distance.
Caution
If the vehicle is towed in by a recovery vehicle, it should only be towed in
with the front wheels raised. If the vehicle is raised at rear, the automatic
gearbox is damaged!
Note
The vehicle must be transported on a special vehicle or trailer if it is not
possible to tow in the vehicle in the way described or if the towing distance
is greater than 50 km.
NKO 20 A05.book Page 248 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs249
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Fuses and light bulbs
Electric fuses
Replacing fuses in the dash panel
Defect fuses must be replaced.
Individual electrical circuits are protected by fuses. The fuses are
located on the left side of the dash panel behind the safety cover.
– Switch the ignition off and also the electrical component
affected.
– Carefully swivel the cover in the direction of arrow and pull it out ⇒fig. 178 . – Find out which fuse belongs to the component which is not
operating ⇒page 250, “Fuse assignment in the dash panel”.
– Take the plastic clip out of its fixture in the fuse cover, insert it onto the respective fuse and pull out this fuse.
– Defect fuses can be detected by their melted metal strips. Replace the defect fuse by a new fuse of the same ampere
number.
– Insert the fuse cover into the dash panel in such a way that the guide lugs are guided into the openings of the dash panel and
then lock them by pressing.
We recommend that you carry the box of replacement fuses with you
which was delivered in your vehicle. You can obtain replacement fuses7)
from a Škoda Service Partner.
Colour coding of fuses
Fig. 178 Bottom side
of the dash panel: fuse
cover
7)Replacement fuses are, on the other hand, part of the basic equipping of the ve-
hicle in some countries.
ColourMaximum amperage
light brown5
brown7,5
red10
blue15
NKO 20 A05.book Page 249 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs
250
Caution
•Never attempt to “repair” fuses and also do not replace them with a
fuse of a higher amperage - risk of fire! This may also cause damage at
another part of the electrical system.
•Have the electrical system checked as quickly as possible by a
specialist garage if a newly inserted fuse blows again after a short time.
Note
We recommend that you have these fuses replaced by a specialist
garage.
Fuse assignment in the dash panel
Certain electrical components are only standard on certain vehicle model
versions or only suppliable as optional equipment for certain models.
yellow20
white25
green30
ColourMaximum amperage
No.Power consumerAmperes
1Power steering5
2Instrument cluster, headlight range adjustment5
3Engine control unit - Petrol engine5
4ABS control unit5
5Petrol engine: Brake light switch, cruise control sys-
tem5
6Not assigned
7Engine control unit 1.2 ltr. engine15
8Injection valves - 1.4 ltr.; 1.6 ltr.10
Fig. 179 Schematic
representation of fuse
carrier
NKO 20 A05.book Page 250 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs251
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
9Operating controls for the heating, control unit for air
conditioning system, parking aid, control unit for cor-
nering lights5
10PCV valve7,5
11Electrically adjustable rear mirror, power windows7,5
12Reversing light10
13Engine control unit (for vehicles with automatic gear-
box)10
14Motor for cornering lights10
15Navigation PDA5
16Not assigned
17Left parking light, licence plate light5
18Right parking light5
19Radio, central control unit5
20Instrument cluster, steering angle sender, ESP5
21Brake lights10
22Operating controls for the heating, control unit for air
conditioning system, parking aid, mobile phone7,5
23Lighting interior, storage compartment and luggage
compartment10
24Tailgate lock10
25Seat heaters20
26Heatable windscreen washing nozzles, windscreen
cleaning system15
27Not assigned
No.Power consumerAmperes
28Petrol engine: AKF valve, petrol engine: Control flap10
29Injection - 1.2 ltr. engine10
30Fuel pump - petrol engine15
31Lambda probe10
32Diesel engine: Switch for brake light and clutch
pedal, cruise control system, fuel pump relay and
glow plug system relay5
33Engine control unit - diesel engine30
34Engine control unit 1.4 ltr.; 1.6 ltr. engine30
Fuel pump - diesel engine15
35Not assigned
36Main beam15/5
37Rear fog light7,5
38Fog lights10
39Blower25
40Rear window wiper10
41Not assigned
42Rear window heater25
43Horn20
44Front window wiper20
45Central control unit for convenience system15
46Engine control unit 1.4 ltr.; 1.6 ltr. petrol engine5
47Cigarette lighter, power socket in the luggage com-
partmenta)15
No.Power consumerAmperes
NKO 20 A05.book Page 251 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs
252
Replaces fuses at the battery
– Open the positive terminal cover (+) ⇒fig. 180 .
48Vehicle voltage control unit5
49Turn signals15
50Radio, Telephone preinstallation, Multi-functional
module10
51Electrical power window (at the front and rear on the
left)25
52Electrical power window (at the front and rear on the
right)25
53Not assigned
54Anti-theft alarm system15
55Not assigned
56Headlight cleaning system25
57Low beam on the left15
58Low beam on the right15
a)If the engine is switched off already one electrical component which is connected
can discharge the battery.
No.Power consumerAmperes
Fig. 180 The battery:
Opening of the positive
terminal cover.
Fig. 181 The battery:
fuse cover
NKO 20 A05.book Page 252 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs253
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Press the interlocks of the fuse covers ⇒page 252,
fig. 181 and open the covers.
– Press simultaneouly the interlocks of the fuse cover and push out the cover in the direction of the arrow.
– Find out which fuse belongs to the component which is not operating ⇒page 253, “Fuse assignment at battery”.
– Defect fuses can be detected by their melted metal strips. Replace the defect fuse by a new fuse of the same ampere
number.
Caution
•Never attempt to “repair” fuses and also do not replace them with a
fuse of a higher amperage - risk of fire! This may also cause damage at
another part of the electrical system.
•Have the electrical system checked as quickly as possible by a
specialist garage if a newly inserted fuse blows again after a short time.
Note
•We recommend that you have these fuses replaced by a specialist
garage.
•Some vehicles are only fitted with the cover ⇒page 252,
fig. 181 .
Fuse assignment at battery
Certain electrical components are only standard on certain vehicle model
versions or only suppliable as optional equipment for certain models.
AA
AB
AB
No.Power consumerAmperes
1Dynamo175
2Interior11 0
3The radiator fan40
4ABS or TCS or ESP40
5Power steering50
6Glow plugs50
7ABS or TCS or ESP25
8The radiator fan30
9The air conditioning system5
Fig. 182 Schematic
representation of fuse
assignment at battery
NKO 20 A05.book Page 253 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs
254
Bulbs
Replacing bulbs
The relevant lamp must always be switched off before a light bulb is
replaced.
Do not take hold of the glass bulb with naked fingers (even the smallest
amount of dirt reduces the working life of the light bulb). Use a clean cloth,
serviette or something similar.
Defect light bulbs should only be replaced with light bulbs of the same
type. The designation is located on the light socket or the glass bulb.
Changing certain bulbs is not something which you can do yourself, but
requires to be done by a specialist. Other parts of the vehicle must be
removed in order to change the light bulbs. This applies, in particular, to
bulbs which can only be reached from the engine compartment.
We therefore recommend that you have any bulbs changed by a Škoda
Service Partner or, in exceptional cases, by calling on other professional
assistance.
Please note that the engine compartment is a hazardous area
⇒ page 210, “Working in the engine compartment”. We recommend that you carry the set of light bulbs with you which was
delivered in your vehicle. Replacement light bulbs
8) are available at a
Škoda Service Partner.
The set of light bulbs can be stowed in the locable box in the spare wheel.
Overview of bulbs10Engine control unit15
11Central control unit5
12Automatic gearbox5
No.Power consumerAmperes
8)Replacement light bulbs are, on the other hand, part of the basic equipping of the
vehicle in some countries.
Front headlightReflectorModule
Low beam and main
beamH4H7
Parking lightsW5W
Turn signalsPY21W
Fog lightsHB4
Fog lights with turning
lightH8
Rear light unitBulb
Reversing lightP21W
Turn signalsPY21W
Brake lightsP21W
Fog lightsP21W
Parking lights2 x W5W
NKO 20 A05.book Page 254 Wednesday, June 21, 2006 1:42 PM

Fuses and light bulbs255
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•Bulbs H7 and H4 are pressurised and may burst when changing
the bulb - risk of injury!
•It is recommended to wear gloves and eye protection when
changing a light bulb.
Note
This Owner's Manual only describes the replacement of bulbs where it is
assumed that no major complications will arise. Other light bulbs should
be changed by your specialist garage.
Front headlight
– Open the bonnet.
OthersBulb
Side turn signal lightsWY5W
Licence plate lightC5W
3rd brake lightLED
Interior lighting front / rearC10W
Reading lightsW5W
Luggage compartment lightW5W
Storage compartment light - front pas-
senger sideW5W
Fig. 183 Front head-
light: Installing the light
bulbs
Fig. 184 Removing the
activated charcoal filter
system
NKO 20 A05.book Page 255 Wednesday, June 21, 2006 1:42 PM
