Transporting children safely
168

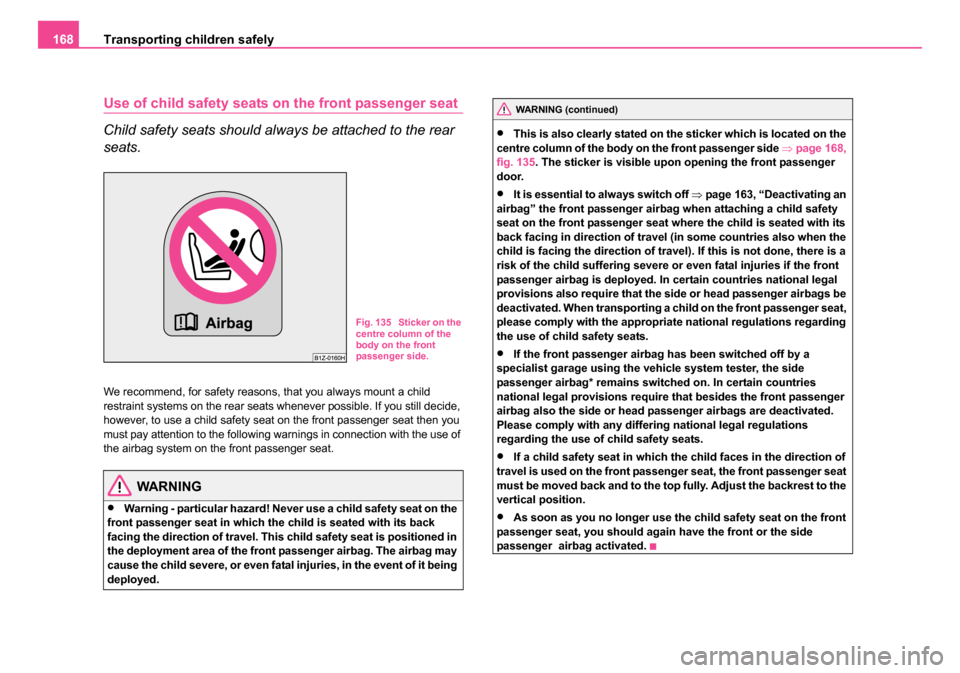

Use of child safety seats on the front passenger seat
Child safety seats should always be attached to the rear
seats.
We recommend, for safety reasons, that you always mount a child
restraint systems on the rear seats whenever possible. If you still decide,
however, to use a child safety seat on the front passenger seat then you
must pay attention to the following warnings in connection with the use of
the airbag system on the front passenger seat.
WARNING
•Warning - particular hazard! Never use a child safety seat on the
front passenger seat in which the child is seated with its back
facing the direction of travel. This child safety seat is positioned in
the deployment area of the front passenger airbag. The airbag may
cause the child severe, or even fatal injuries, in the event of it being
deployed.
•This is also clearly stated on the sticker which is located on the
centre column of the body on the front passenger side ⇒page 168,
fig. 135 . The sticker is visible upon opening the front passenger
door.
•It is essential to always switch off ⇒page 163, “Deactivating an
airbag” the front passenger airbag when attaching a child safety
seat on the front passenger seat where the child is seated with its
back facing in direction of travel (in some countries also when the
child is facing the direction of travel). If this is not done, there is a
risk of the child suffering severe or even fatal injuries if the front
passenger airbag is deployed. In certain countries national legal
provisions also require that the side or head passenger airbags be
deactivated. When transporting a child on the front passenger seat,
please comply with the appropriat e national regulations regarding
the use of child safety seats.
•If the front passenger airbag has been switched off by a
specialist garage using the vehicle system tester, the side
passenger airbag* remains switched on. In certain countries
national legal provisions require that besides the front passenger
airbag also the side or head passenger airbags are deactivated.
Please comply with any differ ing national legal regulations
regarding the use of child safety seats.
•If a child safety seat in which the child faces in the direction of
travel is used on the front passenger seat, the front passenger seat
must be moved back and to the top fully. Adjust the backrest to the
vertical position.
•As soon as you no longer use the child safety seat on the front
passenger seat, you should again have the front or the side
passenger airbag activated.
Fig. 135 Sticker on the
centre column of the
body on the front
passenger side.
WARNING (continued)
NKO 20 A05.book Page 168 Wednesday, June 21, 2006 1:42 PM

Transporting children safely 169
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Child safety and Side airbag*
Children must never be seated in the deployment area of
the side airbags and head airbags.Side airbags* offer the vehicle occupants enhanced protection in the
event of a collision from the side.
The side airbags are inflated in fractions of a second in order to be able to
provide this protection ⇒page 159, “Function of the side airbags”.
An airbag inflating develops such a strong force that an occupant who has
not adopted a correct seated position may suffer injuries. Also exposed
objects which are located within the area of the side airbag can cause inju-
ries.
This applies particularly to children if they are not transported in
accordance with legal requirements.
The child is protected when seated in a child safety seat matching its age.
Adequate room is available between the child and the deployment area of
the side airbag and head airbag. The airbag offers optimal protection.
WARNING
•It is essential to always switch off ⇒page 163 the front
passenger airbag when attaching a child safety seat on the front
passenger seat where the child is seated with its back facing in
direction of travel (in some countries also when the child is facing
the direction of travel). If this is not done, there is a risk of the child
suffering severe or even fatal injuries if the front passenger airbag
is deployed. In certain countries national legal provisions also
require that the side or head passenger airbags be deactivated.
When transporting a child on the front passenger seat, please
comply with the appropriate national regulations regarding the use
of child safety seats.
•When transporting a child on the front passenger seat, please
comply with the appropriate national regulations regarding the use
of child safety seats.
•Children must never be seated with their head in the deploy-
ment area of the side airbag - risk of injury!
Fig. 136 Seated posi-
tion of an unprotected
child at risk from side
airbag
Fig. 137 Child properly
protected by safety
seat
NKO 20 A05.book Page 169 Wednesday, June 21, 2006 1:42 PM

Transporting children safely
170
•Do not place any objects within the deployment area of the side
airbag - risk of injury!

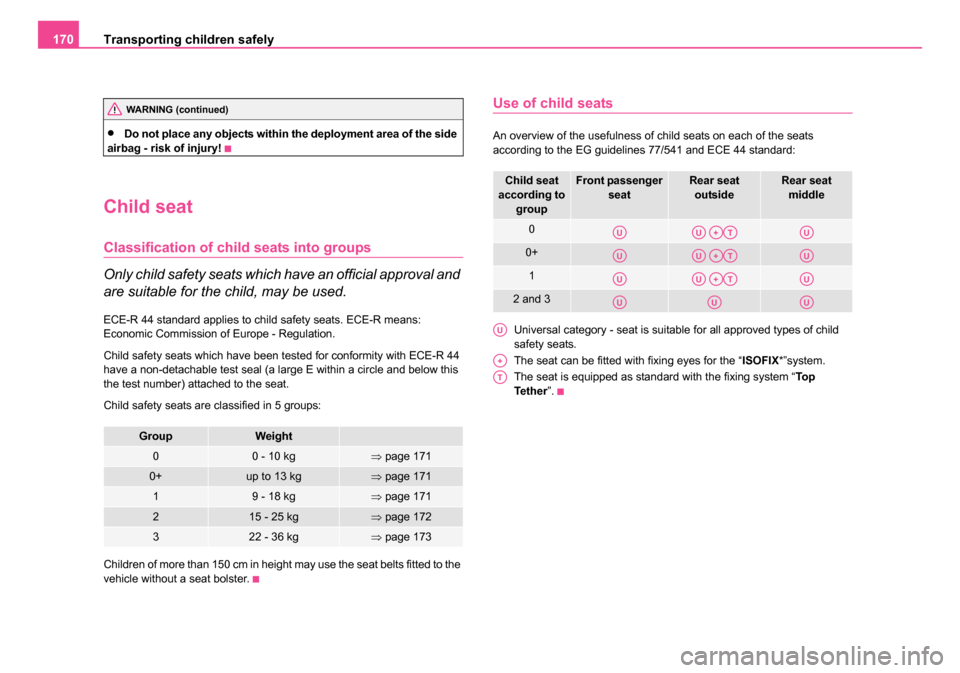

Child seat
Classification of child seats into groups
Only child safety seats which have an official approval and
are suitable for the child, may be used.
ECE-R 44 standard applies to child safety seats. ECE-R means:
Economic Commission of Europe - Regulation.
Child safety seats which have been tested for conformity with ECE-R 44
have a non-detachable test seal (a large E within a circle and below this
the test number) attached to the seat.
Child safety seats are classified in 5 groups:
Children of more than 150 cm in height may use the seat belts fitted to the
vehicle without a seat bolster.
Use of child seats
An overview of the usefulness of child seats on each of the seats
according to the EG guidelines 77/541 and ECE 44 standard:
Universal category - seat is suitable for all approved types of child
safety seats.
The seat can be fitted with fixing eyes for the “ ISOFIX*”system.
The seat is equipped as standard with the fixing system “ Top
Te t h e r ”.
GroupWeight
00 - 10 kg⇒page 171
0+up to 13 kg⇒page 171
19 - 18 kg⇒page 171
215 - 25 kg⇒page 172
322 - 36 kg⇒page 173
WARNING (continued)
Child seat
according to
groupFront passenger seatRear seatoutsideRear seat middle
0
0+
1
2 and 3
AUAUA+ATAU
AUAUA+ATAU
AUAUA+ATAU
AUAUAU
AU
A+
AT
NKO 20 A05.book Page 170 Wednesday, June 21, 2006 1:42 PM

Transporting children safely 171
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Child seats of group 0/0+
The optimal solution for babies of up to about 9 months old weighing up
to 10 kg or babies up to about 18 months old weighing up to 13 kg is a
child safety seat which is fastened in the opposite direction of travel
⇒fig. 138 .
Child seats in which the child is facing with its back towards the
direction of travel should not be used on the front passenger seat
when the vehicle is fitted with a front passenger airbag ⇒ page 168,
“Use of child safety seats on the front passenger seat”.
WARNING
•It is essential to always switch off the front passenger airbag
(airbags) at a specialist garage or with the switch for front
passenger airbag(s)* when attaching in exceptional circumstances
a child safety seat on the front passenger seat where the child is
seated with its back facing in direction of travel (in some countries
also when the child is facing the direction of travel) ⇒page 164.
•In certain countries national legal provisions require that
besides the front passenger airbag also the side or head passenger
airbags are deactivated. Please comply with any differing national
legal regulations regarding the use of child safety seats.
•If this is not done, a child seated on the front passenger seat
may suffer severe or even fatal injuries if the front passenger airbag
or airbags are deployed.
•You should have the front passenger airbag (or airbags) reacti-
vated just as soon as you no longer use a child safety seat on the
front passenger seat.
Child safety seats in Group 1
Child seats in Group 1 are for babies and small children up to 4 years of
age with a weight of between 9 and 18 kilograms. It is best for children in
Fig. 138 Child seats of
group 0/0+
WARNING (continued)
Fig. 139 Child seat
with padded table in
Group 1 installed on
rear seat bench facing
the direction of travel
NKO 20 A05.book Page 171 Wednesday, June 21, 2006 1:42 PM

Transporting children safely
172
the lower range of this group, to use a child seat which allows the child to
sit with its back to the direction of travel. It is best for children in the upper
range of the Group 0+, to use a child seat which allows the child to sit
⇒ fig. 139 in the direction of travel.
Child seats in which th e child is facing with its back towards the
direction of travel should not be used on the front passenger seat
when the vehicle is fitted with a front passenger airbag ⇒ page 168,
“Use of child safety seats on the front passenger seat”.
WARNING
•It is essential to always switch off the front passenger airbag
(airbags) at a specialist garage or with the switch for front
passenger airbag(s)* when attaching in exceptional circumstances
a child safety seat on the front passenger seat where the child is
seated with its back facing in direction of travel (in some countries
also when the child is facing the direction of travel) ⇒page 164.
•In certain countries national legal provisions require that
besides the front passenger airbag also the side or head passenger
airbags are deactivated. Please comply with any differing national
legal regulations regarding the use of child safety seats.
•If this is not done, a child seated on the front passenger seat
may suffer severe or even fatal injuries if the front passenger airbag
or airbags are deployed.
•You should have the front passenger airbag (or airbags) reacti-
vated just as soon as you no longer use a child safety seat on the
front passenger seat.

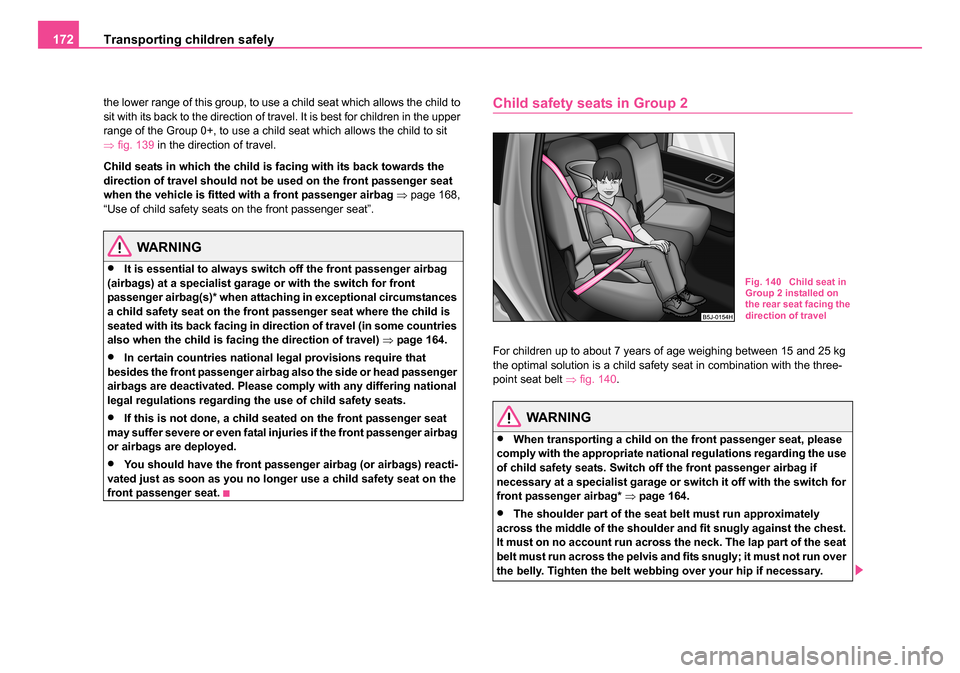

Child safety seats in Group 2
For children up to about 7 years of age weighing between 15 and 25 kg
the optimal solution is a child safety seat in combination with the three-
point seat belt ⇒fig. 140 .
WARNING
•When transporting a child on the front passenger seat, please
comply with the appropriate national regulations regarding the use
of child safety seats. Switch off the front passenger airbag if
necessary at a specialist garage or switch it off with the switch for
front passenger airbag* ⇒page 164.
•The shoulder part of the seat belt must run approximately
across the middle of the shoulder and fit snugly against the chest.
It must on no account run across the neck. The lap part of the seat
belt must run across the pelvis and fits snugly; it must not run over
the belly. Tighten the belt webbing over your hip if necessary.
Fig. 140 Child seat in
Group 2 installed on
the rear seat facing the
direction of travel
NKO 20 A05.book Page 172 Wednesday, June 21, 2006 1:42 PM

Transporting children safely 173
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•Please comply with any differin g national legal regulations
regarding the use of child safety seats.
Child safety seats in Group 3
For children of about 7 years of age weighing between 22 and 36 kg and
of a height of less than 150 cm, the optimal solution is a child safety seat
(seat bolster) in combination with the three-point seat belt ⇒fig. 141 .
Children of more than 150 cm in height may use the seat belts fitted to the
vehicle without a seat bolster.
WARNING
•When transporting a child on the front passenger seat, please
comply with the appropriate nation al regulations regarding the use of child safety seats. Switch off the front passenger airbag if
necessary at a specialist garage or switch it off with the switch for
front passenger airbag*
⇒page 164.
•The shoulder part of the seat belt must run approximately
across the middle of the shoulder and fit snugly against the chest.
It must on no account run across the neck. The lap part of the seat
belt must run across the pelvis and fits snugly; it must not run over
the belly. Tighten the belt webbing over your hip if necessary.
•Please comply with any differ ing national legal regulations
regarding the use of child safety seats.
WARNING (continued)
Fig. 141 Child seat in
Group 3 installed on
the rear seat facing the
direction of travel
WARNING (continued)
NKO 20 A05.book Page 173 Wednesday, June 21, 2006 1:42 PM

Transporting children safely
174

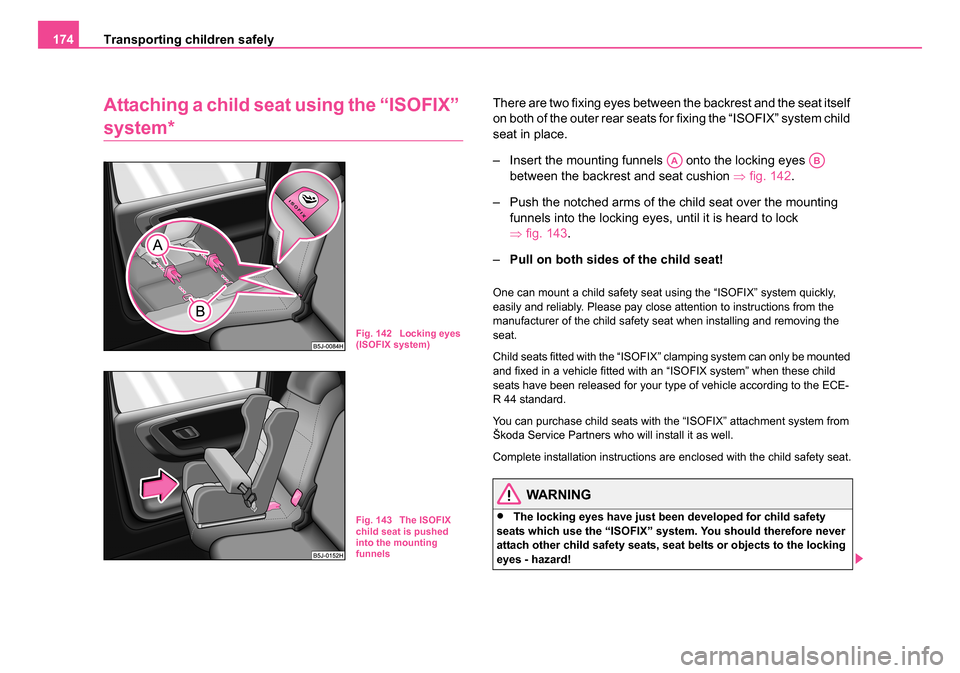

Attaching a child seat using the “ISOFIX”
system*
There are two fixing eyes between the backrest and the seat itself
on both of the outer rear seats for fixing the “ISOFIX” system child
seat in place.
– Insert the mounting funnels onto the locking eyes
between the backrest and seat cushion ⇒fig. 142 .
– Push the notched arms of the child seat over the mounting funnels into the locking eyes, until it is heard to lock
⇒fig. 143 .
– Pull on both sides of the child seat!
One can mount a child safety seat using the “ISOFIX” system quickly,
easily and reliably. Please pay close attention to instructions from the
manufacturer of the child safety seat when installing and removing the
seat.
Child seats fitted with the “ISOFIX” clamping system can only be mounted
and fixed in a vehicle fitted with an “ISOFIX system” when these child
seats have been released for your type of vehicle according to the ECE-
R 44 standard.
You can purchase child seats with the “ISOFIX” attachment system from
Škoda Service Partners who will install it as well.
Complete installation instructions are enclosed with the child safety seat.
WARNING
•The locking eyes have just been developed for child safety
seats which use the “ISOFIX” system. You should therefore never
attach other child safety seats, seat belts or objects to the locking
eyes - hazard!
Fig. 142 Locking eyes
(ISOFIX system)
Fig. 143 The ISOFIX
child seat is pushed
into the mounting
funnels
AAAB
NKO 20 A05.book Page 174 Wednesday, June 21, 2006 1:42 PM

Transporting children safely 175
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•Ask a Škoda Service Partner whether a child seat which you
bought for another vehicle is recommended for use in a Škoda
before using an “ISOFIX” system.
•Certain child seats which use the “ISOFIX” system can be
attached with standard three-point seat belts. Please pay close
attention to instructions from the manufacturer of the child safety
seat when installing and removing the seat.
Note
•Child seats which use the “ISOFIX” system are currently available for
children weighing up to about 18 kg. This corresponds to an age range up
to 4 years.
•The child seats can also be fitted with the “Top Tether” system
⇒ page 175.
Attaching child seat using the “Top
Tether” system
The rear exterior seats are equipped as standard with the attach-
ment system “Top Tether” ⇒fig. 144 behind the backrest for
enhancing the child safety. Always perform the installation and
removal as stated in the instructions from the manufacturer of the
child seat.
WARNING
•Attach the child seats with the “Top Tether” system only to the
points provided for this purpose ⇒fig. 144 .
•On no account should you equi p your vehicle, e.g. mount
screws or other anchorage points.
•Pay attention to the important safety information regarding the
use of child seats ⇒page 166.
WARNING (continued)
Fig. 144 Rear seat:
To p Te t h e r
NKO 20 A05.book Page 175 Wednesday, June 21, 2006 1:42 PM
