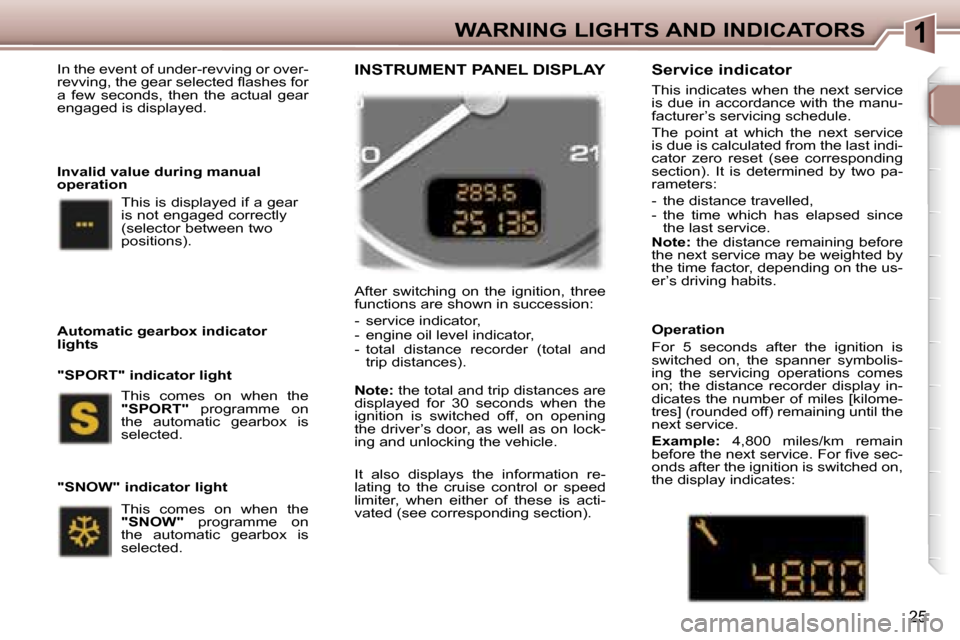

1WARNING LIGHTS AND INDICATORS
25
In the event of under-revving or over-
revving, the gear selected flashes for
a few seconds, then the actual gear
engaged is displayed. This comes on when the
"SPORT" programme on
the automatic gearbox is
selected.
This comes on when the
"SNOW" programme on
the automatic gearbox is
selected.
Automatic gearbox indicator
lights
"SNOW" indicator light This is displayed if a gear
is not engaged correctly
(selector between two
positions).
"SPORT" indicator light
Invalid value during manual
operation
After switching on the ignition, three
functions are shown in succession:
- service indicator,
- engine oil level indicator,
- total distance recorder (total and trip distances).
Note: the total and trip distances are
displayed for 30 seconds when the
ignition is switched off, on opening
the driver’s door, as well as on lock-
ing and unlocking the vehicle.
It also displays the information re-
lating to the cruise control or speed
limiter, when either of these is acti-
vated (see corresponding section).Service indicator
This indicates when the next service
is due in accordance with the manu-
facturer’s servicing schedule.
The point at which the next service
is due is calculated from the last indi-
cator zero reset (see corresponding
section). It is determined by two pa-
rameters:
- the distance travelled,
- the time which has elapsed since the last service.
Note: the distance remaining before
the next service may be weighted by
the time factor, depending on the us-
er’s driving habits.
Operation
For 5 seconds after the ignition is
switched on, the spanner symbolis-
ing the servicing operations comes
on; the distance recorder display in-
dicates the number of miles [kilome-
tres] (rounded off) remaining until the
next service.
Example: 4,800 miles/km remain
before the next service. For five sec-
onds after the ignition is switched on,
the display indicates:
INSTRUMENT PANEL DISPLAY

1WARNING LIGHTS AND INDICATORS
25
In the event of under-revving or over-
revving, the gear selected flashes for
a few seconds, then the actual gear
engaged is displayed. This comes on when the
"SPORT" programme on
the automatic gearbox is
selected.
This comes on when the
"SNOW" programme on
the automatic gearbox is
selected.
Automatic gearbox indicator
lights
"SNOW" indicator light This is displayed if a gear
is not engaged correctly
(selector between two
positions).
"SPORT" indicator light
Invalid value during manual
operation
After switching on the ignition, three
functions are shown in succession:
- service indicator,
- engine oil level indicator,
- total distance recorder (total and trip distances).
Note: the total and trip distances are
displayed for 30 seconds when the
ignition is switched off, on opening
the driver’s door, as well as on lock-
ing and unlocking the vehicle.
It also displays the information re-
lating to the cruise control or speed
limiter, when either of these is acti-
vated (see corresponding section).Service indicator
This indicates when the next service
is due in accordance with the manu-
facturer’s servicing schedule.
The point at which the next service
is due is calculated from the last indi-
cator zero reset (see corresponding
section). It is determined by two pa-
rameters:
- the distance travelled,
- the time which has elapsed since the last service.
Note: the distance remaining before
the next service may be weighted by
the time factor, depending on the us-
er’s driving habits.
Operation
For 5 seconds after the ignition is
switched on, the spanner symbolis-
ing the servicing operations comes
on; the distance recorder display in-
dicates the number of miles [kilome-
tres] (rounded off) remaining until the
next service.
Example: 4,800 miles/km remain
before the next service. For five sec-
onds after the ignition is switched on,
the display indicates:
INSTRUMENT PANEL DISPLAY

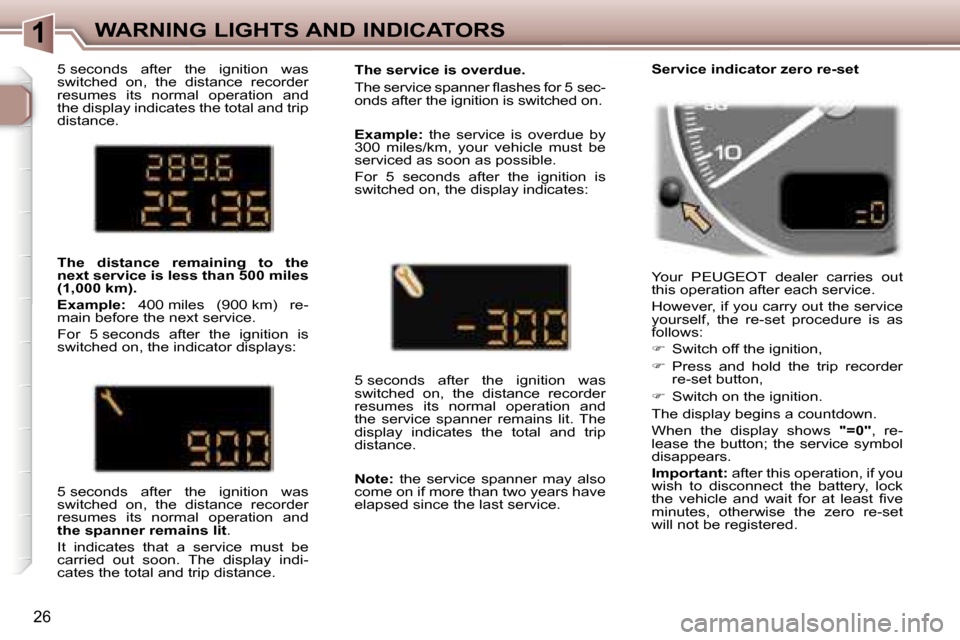

1WARNING LIGHTS AND INDICATORS
26
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the display indicates the total and trip
distance.Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
 Switch off the ignition,
 Press and hold the trip recorder
re-set button,
 Switch on the ignition.
The display begins a countdown.
When the display shows "=0", re-
lease the button; the service symbol
disappears.
Important: after this operation, if you
wish to disconnect the battery, lock
the vehicle and wait for at least five
minutes, otherwise the zero re-set
will not be registered.
The service is overdue.
The service spanner flashes for 5 sec-
onds after the ignition is switched on.
Example:
the service is overdue by
300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the service spanner remains lit. The
display indicates the total and trip
distance.
Note: the service spanner may also
come on if more than two years have
elapsed since the last service.
The distance remaining to the
next service is less than 500 miles
(1,000 km).
Example:
400 miles (900 km) re-
main before the next service.
For 5 seconds after the ignition is
switched on, the indicator displays:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the spanner remains lit .
It indicates that a service must be
carried out soon. The display indi-
cates the total and trip distance. Service indicator zero re-set

1WARNING LIGHTS AND INDICATORS
26
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the display indicates the total and trip
distance.Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
 Switch off the ignition,
 Press and hold the trip recorder
re-set button,
 Switch on the ignition.
The display begins a countdown.
When the display shows "=0", re-
lease the button; the service symbol
disappears.
Important: after this operation, if you
wish to disconnect the battery, lock
the vehicle and wait for at least five
minutes, otherwise the zero re-set
will not be registered.
The service is overdue.
The service spanner flashes for 5 sec-
onds after the ignition is switched on.
Example:
the service is overdue by
300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the service spanner remains lit. The
display indicates the total and trip
distance.
Note: the service spanner may also
come on if more than two years have
elapsed since the last service.
The distance remaining to the
next service is less than 500 miles
(1,000 km).
Example:
400 miles (900 km) re-
main before the next service.
For 5 seconds after the ignition is
switched on, the indicator displays:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the spanner remains lit .
It indicates that a service must be
carried out soon. The display indi-
cates the total and trip distance. Service indicator zero re-set

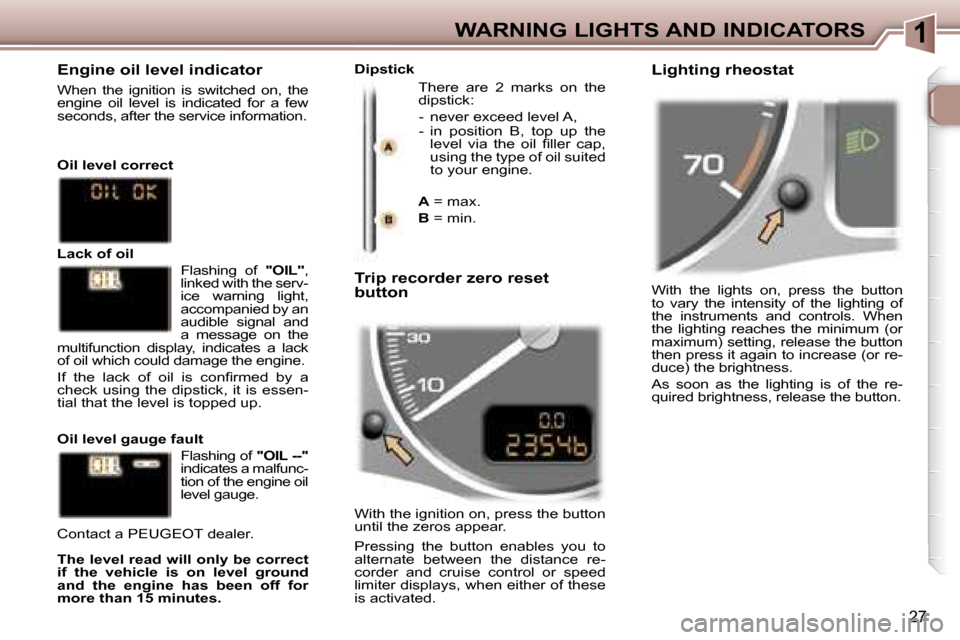

1WARNING LIGHTS AND INDICATORS
27
With the lights on, press the button
to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum (or
maximum) setting, release the button
then press it again to increase (or re-
duce) the brightness.
As soon as the lighting is of the re-
quired brightness, release the button.
With the ignition on, press the button
until the zeros appear.
Pressing the button enables you to
alternate between the distance re-
corder and cruise control or speed
limiter displays, when either of these
is activated.
Engine oil level indicator
When the ignition is switched on, the
engine oil level is indicated for a few
seconds, after the service information.
Oil level correct
Oil level gauge fault Flashing of "OIL --"
indicates a malfunc-
tion of the engine oil
level gauge.
Contact a PEUGEOT dealer.
The level read will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes. Flashing of
"OIL",
linked with the serv-
ice warning light,
accompanied by an
audible signal and
a message on the
multifunction display, indicates a lack
of oil which could damage the engine.
If the lack of oil is confirmed by a
check using the dipstick, it is essen-
tial that the level is topped up.
Lack of oil Dipstick
There are 2 marks on the
dipstick:- never exceed level A,
- in position B, top up the level via the oil filler cap,
using the type of oil suited
to your engine.
A = max.
B = min.
Trip recorder zero reset
button Lighting rheostat

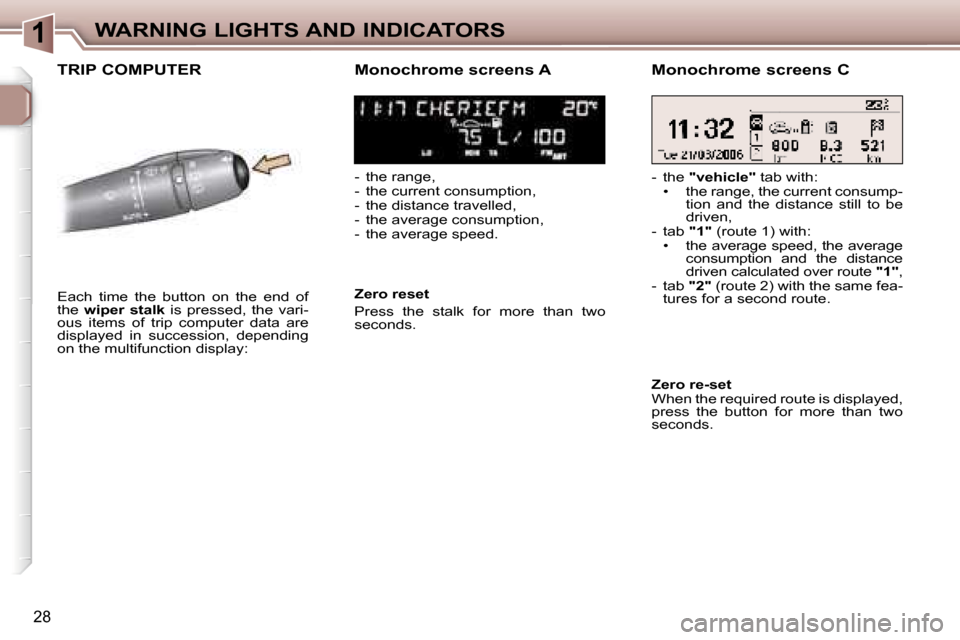

1WARNING LIGHTS AND INDICATORS
28
TRIP COMPUTERMonochrome screens A
- the range,
- the current consumption,
- the distance travelled,
- the average consumption,
- the average speed.
Each time the button on the end of
the wiper stalk is pressed, the vari-
ous items of trip computer data are
displayed in succession, depending
on the multifunction display: Zero reset
Press the stalk for more than two
seconds.
Monochrome screens C
- the
"vehicle" tab with:
• the range, the current consump- tion and the distance still to be
driven,
- tab "1" (route 1) with:
• the average speed, the average consumption and the distance
driven calculated over route "1",
- tab "2" (route 2) with the same fea-
tures for a second route.
Zero re-set
When the required route is displayed,
press the button for more than two
seconds.

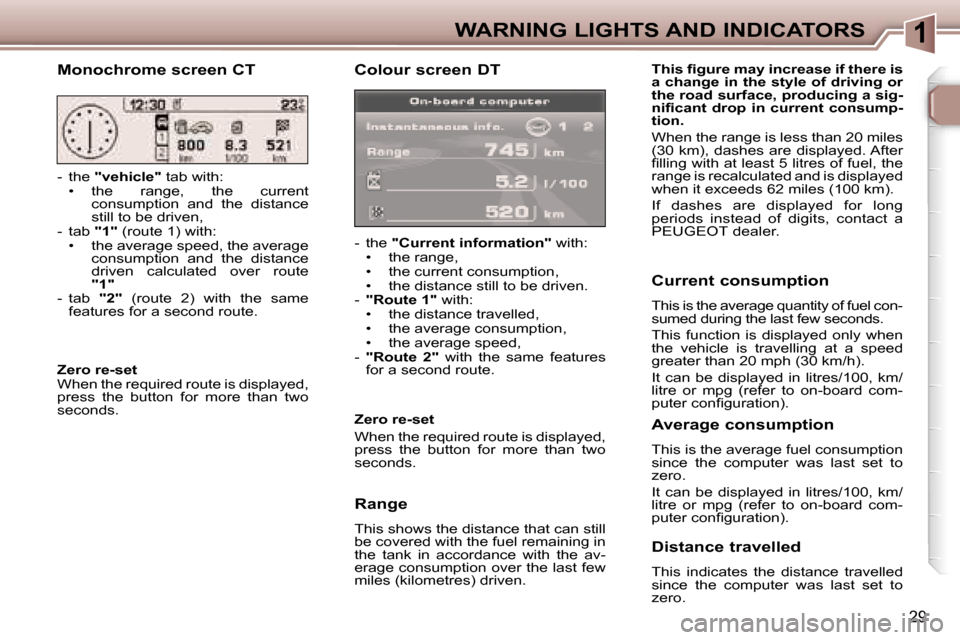

1WARNING LIGHTS AND INDICATORS
29
Colour screen DT
- the "Current information" with:
• the range,
• the current consumption,
• the distance still to be driven.
- "Route 1" with:
• the distance travelled,
• the average consumption,
• the average speed,
- "Route 2" with the same features
for a second route.
Monochrome screen CT
- the "vehicle" tab with:
• the range, the current consumption and the distance
still to be driven,
- tab "1" (route 1) with:
• the average speed, the average consumption and the distance
driven calculated over route
"1"
- tab "2" (route 2) with the same
features for a second route.
Zero re-set
When the required route is displayed,
press the button for more than two
seconds. Zero re-set
When the required route is displayed,
press the button for more than two
seconds.This figure may increase if there is
a change in the style of driving or
the road surface, producing a sig-
nificant drop in current consump-
tion.
When the range is less than 20 miles
(30 km), dashes are displayed. After
filling with at least 5 litres of fuel, the
range is recalculated and is displayed
when it exceeds 62 miles (100 km).
If dashes are displayed for long
periods instead of digits, contact a
PEUGEOT dealer.
Current consumption
This is the average quantity of fuel con-
sumed during the last few seconds.
This function is displayed only when
the vehicle is travelling at a speed
greater than 20 mph (30 km/h).
It can be displayed in litres/100, km/
litre or mpg (refer to on-board com-
puter configuration).
Average consumption
This is the average fuel consumption
since the computer was last set to
zero.
It can be displayed in litres/100, km/
litre or mpg (refer to on-board com-
puter configuration).
Distance travelled
This indicates the distance travelled
since the computer was last set to
zero.
Range
This shows the distance that can still
be covered with the fuel remaining in
the tank in accordance with the av-
erage consumption over the last few
miles (kilometres) driven.

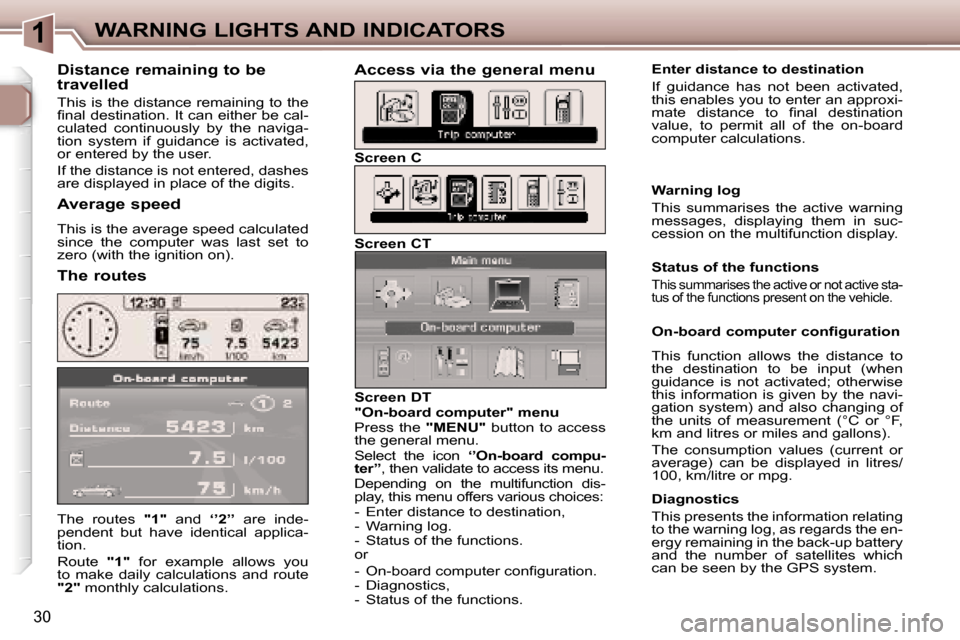

1WARNING LIGHTS AND INDICATORS
30
The routes "1" and ‘’2’’ are inde-
pendent but have identical applica-
tion.
Route "1" for example allows you
to make daily calculations and route
"2" monthly calculations.
Distance remaining to be
travelled
This is the distance remaining to the
final destination. It can either be cal-
culated continuously by the naviga-
tion system if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Average speed
This is the average speed calculated
since the computer was last set to
zero (with the ignition on).
The routes Access via the general menu
Screen C
Screen CT
Screen DT
"On-board computer" menu
Press the
"MENU" button to access
the general menu.
Select the icon ‘’On-board compu-
ter’’ , then validate to access its menu.
Depending on the multifunction dis-
play, this menu offers various choices:
- Enter distance to destination,
- Warning log.
- Status of the functions.
or
- On-board computer configuration.
- Diagnostics,
- Status of the functions. Enter distance to destination
If guidance has not been activated,
this enables you to enter an approxi-
mate distance to final destination
value, to permit all of the on-board
computer calculations.
Warning log
This summarises the active warning
messages, displaying them in suc-
cession on the multifunction display.
Status of the functions
This summarises the active or not active sta-
tus of the functions present on the vehicle.
On-board computer configuration
This function allows the distance to
the destination to be input (when
guidance is not activated; otherwise
this information is given by the navi-
gation system) and also changing of
the units of measurement (°C or °F,
km and litres or miles and gallons).
The consumption values (current or
average) can be displayed in litres/
100, km/litre or mpg.
Diagnostics
This presents the information relating
to the warning log, as regards the en-
ergy remaining in the back-up battery
and the number of satellites which
can be seen by the GPS system.
