11TECHNICAL DATA
136

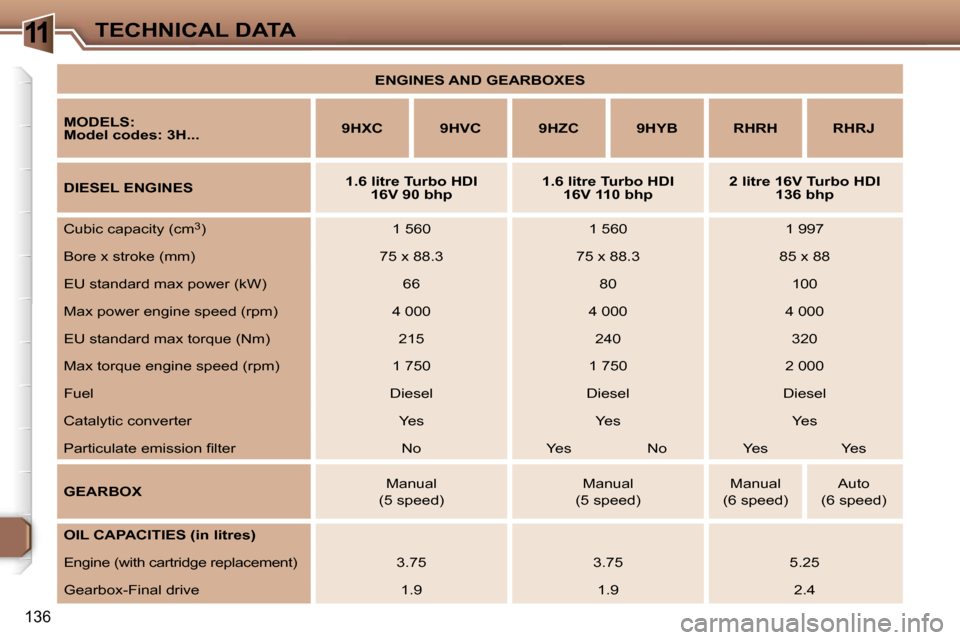

ENGINES AND GEARBOXES
MODELS:
Model codes: 3H... 9HXC 9HVC 9HZC 9HYB RHRH RHRJ
DIESEL ENGINES 1.6 litre Turbo HDI
16V 90 bhp 1.6 litre Turbo HDI
16V 110 bhp 2 litre 16V Turbo HDI
136 bhp
Cubic capacity (cm
3) 1 560 1 560 1 997
Bore x stroke (mm) 75 x 88.3 75 x 88.3 85 x 88
EU standard max power (kW) 66 80 100
Max power engine speed (rpm) 4 000 4 000 4 000
EU standard max torque (Nm) 215 240 320
Max torque engine speed (rpm) 1 750 1 750 2 000
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Particulate emission filter No Yes No Yes Yes
GEARBOX Manual
(5 speed) Manual
(5 speed) Manual
(6 speed) Auto
(6 speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 3.75 3.75 5.25
Gearbox-Final drive 1.9 1.9 2.4

11TECHNICAL DATA
137
The consumption values presented here correspond to the values communicated at the time of printing. The consumption
values were established in accordance with EC Directive 80/1268 (as amended). They may vary in relation to the style of driv-
ing, driving conditions, weather conditions, the vehicle loa d, the maintenance of the vehicle and the use of the accesso ries.

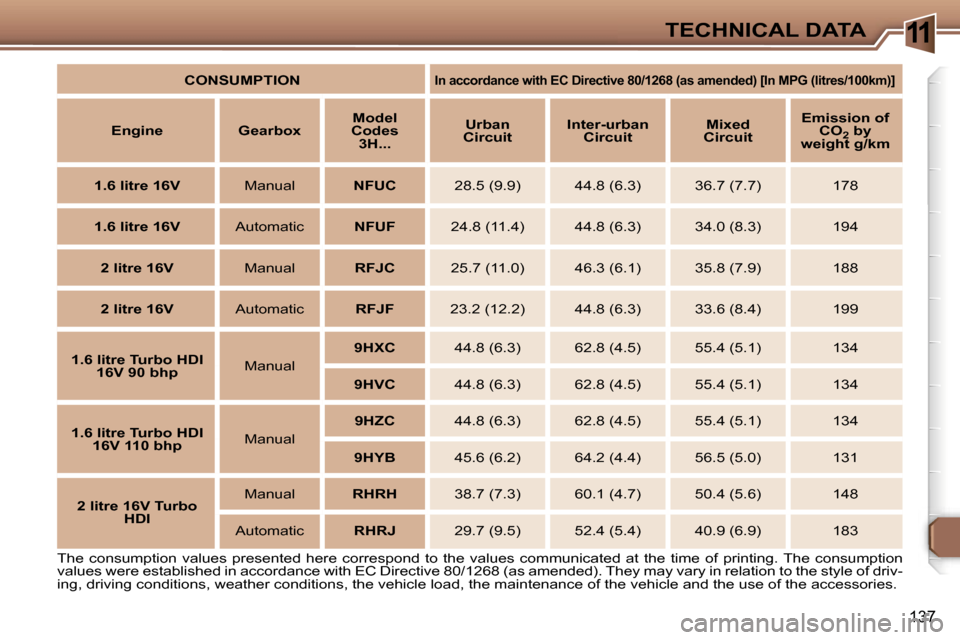

CONSUMPTION
In accordance with EC Directive 80/1268 (as amended
) [In MPG (litres/100km)]
Engine GearboxModel
Codes 3H... Urban
Circuit Inter-urban
Circuit Mixed
Circuit Emission of
CO2 by
weight g/km
1.6 litre 16V ManualNFUC28.5 (9.9) 44.8 (6.3) 36.7 (7.7) 178
1.6 litre 16V AutomaticNFUF24.8 (11.4) 44.8 (6.3) 34.0 (8.3) 194
2 litre 16V ManualRFJC25.7 (11.0) 46.3 (6.1) 35.8 (7.9) 188
2 litre 16V AutomaticRFJF23.2 (12.2) 44.8 (6.3) 33.6 (8.4) 199
1.6 litre Turbo HDI 16V 90 bhp Manual9HXC
44.8 (6.3) 62.8 (4.5) 55.4 (5.1) 134
9HVC 44.8 (6.3) 62.8 (4.5) 55.4 (5.1) 134
1.6 litre Turbo HDI 16V 110 bhp Manual9HZC
44.8 (6.3) 62.8 (4.5) 55.4 (5.1) 134
9HYB 45.6 (6.2) 64.2 (4.4) 56.5 (5.0) 131
2 litre 16V Turbo HDI Manual
RHRH38.7 (7.3) 60.1 (4.7) 50.4 (5.6) 148
Automatic RHRJ29.7 (9.5) 52.4 (5.4) 40.9 (6.9) 183

11TECHNICAL DATA
138

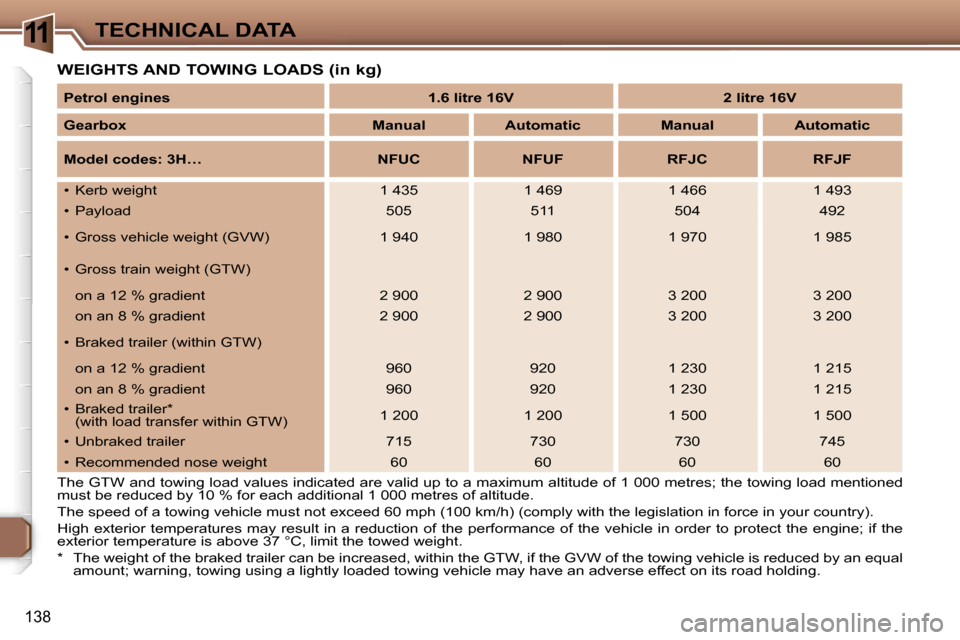

WEIGHTS AND TOWING LOADS (in kg)
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentio ned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/ h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction of the perfo rmance of the vehicle in order to protect the engine; if the
exterior temperature is above 37 °C, limit the towed weight.
* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by a n equal
amount; warning, towing using a lightly loaded towing ve hicle may have an adverse effect on its road holding.
Petrol engines
1.6 litre 16V 2 litre 16V
Gearbox Manual Automatic Manual Automatic
Model codes: 3H… NFUC NFUF RFJC RFJF
• Kerb weight 1 435 1 469 1 466 1 493
• Payload 505 511 504 492
• Gross vehicle weight (GVW) 1 940 1 980 1 970 1 985
• Gross train weight (GTW)
on a 12 % gradient 2 900 2 900 3 200 3 200
on an 8 % gradient 2 900 2 900 3 200 3 200
• Braked trailer (within GTW)
on a 12 % gradient 960 920 1 230 1 215
on an 8 % gradient 960 920 1 230 1 215
• Braked trailer* (with load transfer within GTW) 1 200 1 200 1 500 1 500
• Unbraked trailer 715 730 730 745
• Recommended nose weight 60 60 60 60

11TECHNICAL DATA
139
WEIGHTS AND TOWING LOADS (in kg)
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentio ned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/ h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction of the perfo rmance of the vehicle in order to protect the engine; if the
exterior temperature is above 37 °C, limit the towed weight.
* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by a n equal
amount; warning, towing using a lightly loaded towing ve hicle may have an adverse effect on its road holding.
Diesel engines
1.6 litre Turbo HDI
16V 90 bhp 1.6 litre Turbo HDI
16V 110 bhp 2 litre 16V Turbo HDI
Gearbox Manual Manual Manual Automatic
Model codes: 3H... 9HXC 9HVC 9HZC 9HYB RHRH RHRJ
• Kerb weight 1 469 1 492 1 492 1 483 1 575 1 606
• Payload 501 508 508 517 505 509
• Gross vehicle weight (GVW) 1 970 2 000 2 000 2 000 2 080 2 115
• Gross train weight (GTW)
on a 12 % gradient 3 130 3 130 3 130 3 130 3 450 3 450
on an 8 % gradient 3 130 3 130 3 130 3 130 3 450 3 450
• Braked trailer (within GTW)
on a 12 % gradient 1 160 1 300 1 130 1 130 1 370 1 335
on an 8 % gradient 1 160 1 300 1 130 1 130 1 370 1 335
• Braked trailer* (with load transfer within GTW) 1 300 1 300 1 300 1 300 1 500 1 500
• Unbraked trailer 730 745 745 740 750 750
• Recommended nose weight 60 60 60 60 60 60

11TECHNICAL DATA
140

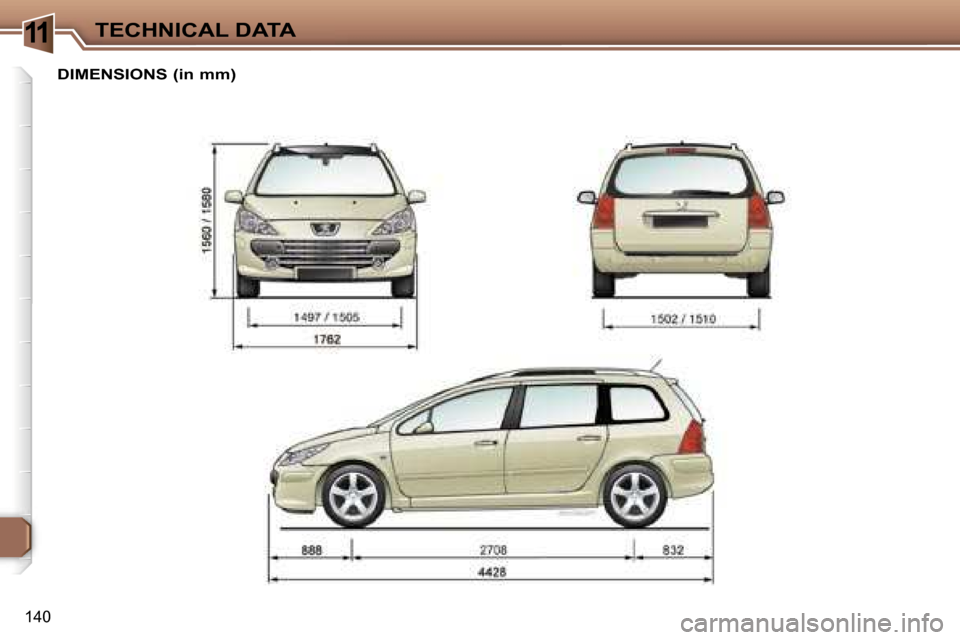

DIMENSIONS (in mm)

11TECHNICAL DATA
141

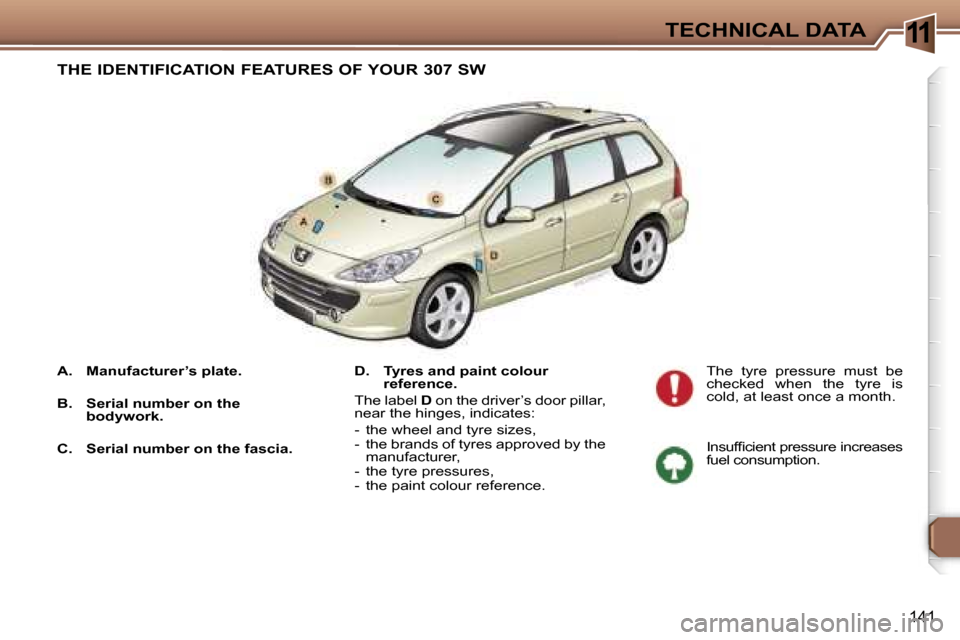

A. Manufacturer’s plate.
B. Serial number on the bodywork.
C. Serial number on the fascia. D. Tyres and paint colour
reference.
The label D on the driver’s door pillar,
near the hinges, indicates:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures,
- the paint colour reference. The tyre pressure must be
checked when the tyre is
cold, at least once a month.
Insufficient pressure increases
fuel consumption.
THE IDENTIFICATION FEATURES OF YOUR 307 SW

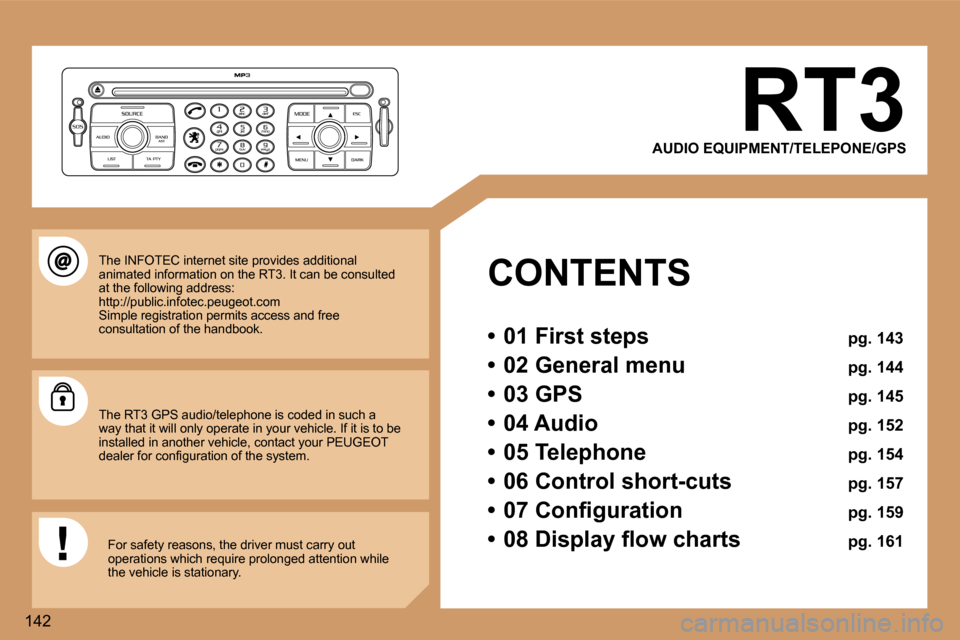

142RT3
AUDIO EQUIPMENT/TELEPONE/GPS
CONTENTS
• 01 First steps pg. 143
• 02 General menu pg. 144
• 03 GPS pg. 145
• 04 Audio pg. 152
• 05 Telephone pg. 154
• 06 Control short-cuts pg. 157
• 07 Configuration pg. 159
• 08 Display flow charts pg. 161
The INFOTEC internet site provides additional
animated information on the RT3. It can be consulte
d
at the following address:
http://public.infotec.peugeot.com
Simple registration permits access and free
consultation of the handbook.
The RT3 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If i t is to be
installed in another vehicle, contact your PEUGEOT
dealer for configuration of the system.
For safety reasons, the driver must carry out
operations which require prolonged attention while
the vehicle is stationary.

143

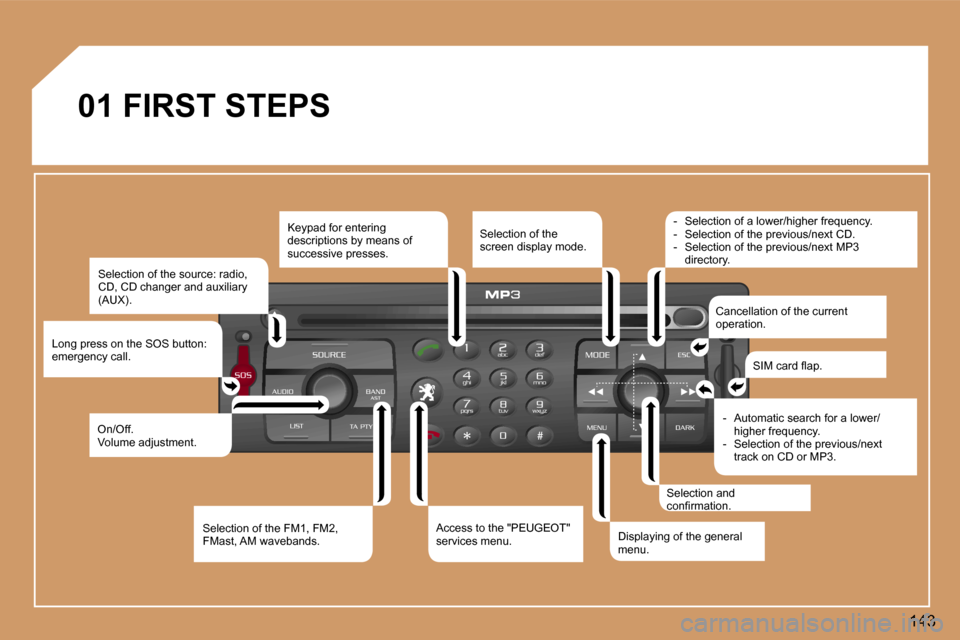

01 FIRST STEPS
Selection of the source: radio,
CD, CD changer and auxiliary
(AUX).
Long press on the SOS button:
emergency call.
On/Off.
Volume adjustment.
Selection of the FM1, FM2,
FMast, AM wavebands.Keypad for entering
descriptions by means of
successive presses.
Access to the "PEUGEOT"
services menu. Displaying of the general
menu.SIM card flap.
Cancellation of the current
operation.
- Selection of a lower/higher frequency.
- Selection of the previous/next CD.
- Selection of the previous/next MP3
directory.
- Automatic search for a lower/higher frequency.
- Selection of the previous/next track on CD or MP3.
Selection and
confirmation.
Selection of the
screen display mode.
