10PRACTICAL INFORMATION
121
1. Dipped beam headlamps (H1-55 W or xenon bulb).
WARNING: RISK OF ELECTROCU-
TION
Xenon bulbs must be changed by a
PEUGEOT dealer.
2. Main beam headlamps (H7-55 W).
 Remove the protective cover cor-
responding to the faulty bulb.
 Disconnect the connector.
 Press the end of each securing
clip. Change the bulb.
When fitting the new bulb, ensure that the direction notches are po-
sitioned correctly and the secur-
ing clips are fixed properly. 
Reconnect the connector.
 Refit the protective cover.

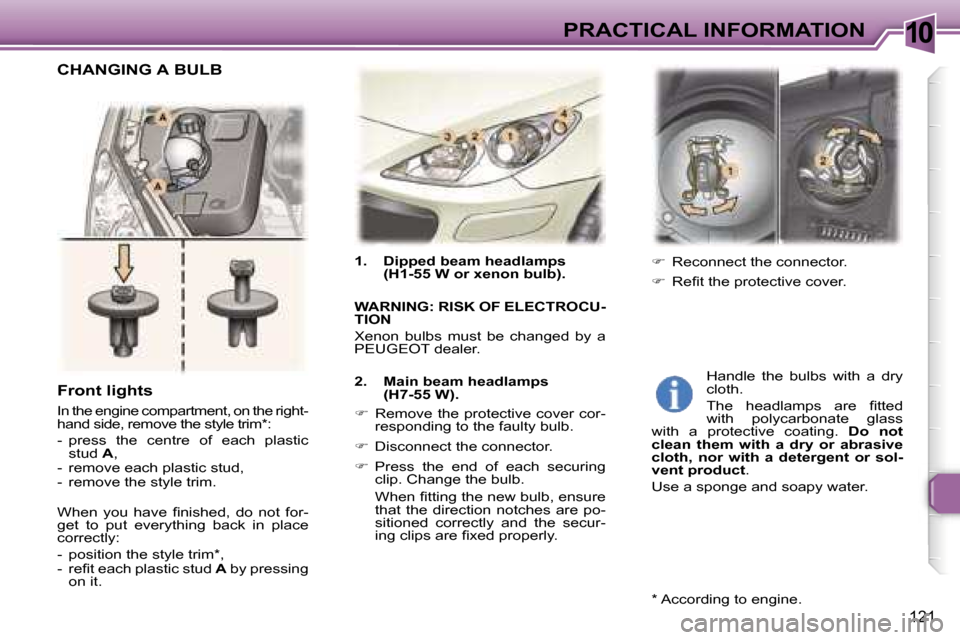

Front lights
In the engine compartment, on the right-
hand side, remove the style trim*:
- press the centre of each plastic
stud A,
- remove each plastic stud,
- remove the style trim.
When you have finished, do not for-
get to put everything back in place
correctly:
- position the style trim*,
- refit each plastic stud A by pressing
on it.
* According to engine.Handle the bulbs with a dry
cloth.
The headlamps are fitted
with polycarbonate glass
with a protective coating. Do not
clean them with a dry or abrasive
cloth, nor with a detergent or sol-
vent product .
Use a sponge and soapy water.
CHANGING A BULB

10PRACTICAL INFORMATION
122

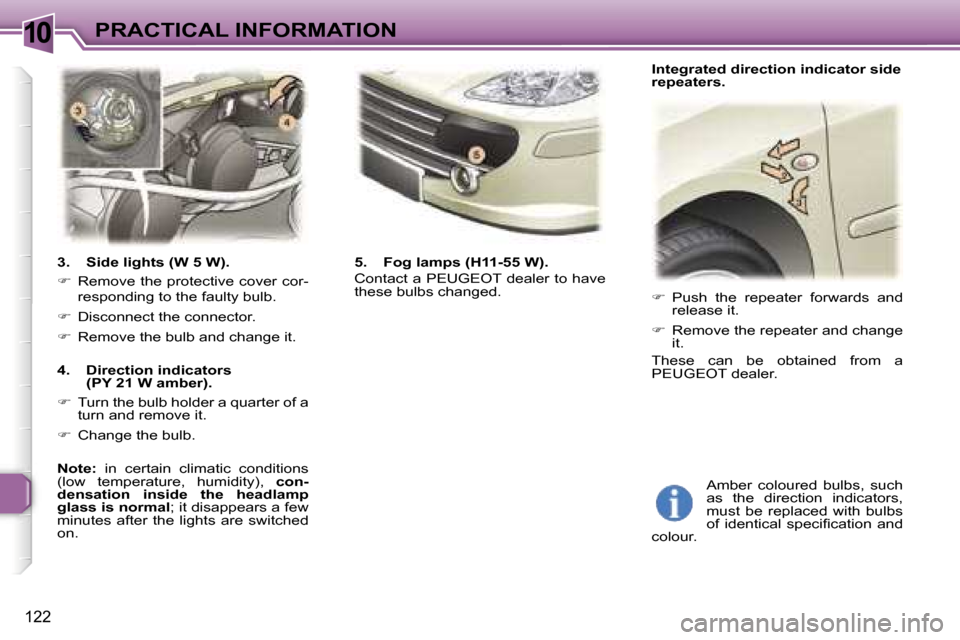

3. Side lights (W 5 W).
 Remove the protective cover cor-
responding to the faulty bulb.
 Disconnect the connector.
 Remove the bulb and change it.
4. Direction indicators (PY 21 W amber).
 Turn the bulb holder a quarter of a
turn and remove it.
 Change the bulb.
Note: in certain climatic conditions
(low temperature, humidity), con-
densation inside the headlamp
glass is normal ; it disappears a few
minutes after the lights are switched
on. 5. Fog lamps (H11-55 W).
Contact a PEUGEOT dealer to have
these bulbs changed.
 Push the repeater forwards and
release it.
 Remove the repeater and change
it.
These can be obtained from a
PEUGEOT dealer.
Amber coloured bulbs, such
as the direction indicators,
must be replaced with bulbs
of identical specification and
colour.
Integrated direction indicator side
repeaters.

10PRACTICAL INFORMATION
123
1. Brake lights (P 21 W).
2. Side lights (x 2) (R 5 W).
3. Direction indicators (P 21 W).
4. Reversing light (P 21 W),right side.
Fog lamp (P 21 W), left side.
These 6 bulbs are changed by re-
moving the light:
 Remove the corresponding boot
side trim to access the light,
 Remove the light fixing nut inside
the boot,
 Remove the light fixing nut out-
side the boot,
 Remove the light,
 Unclip the harness, 
Remove the bulb holder pressing
on the tabs A,
 Change the faulty bulb.
Note: if necessary, use the wheel-
brace to remove the nuts.
When refitting, take care to position
the bulb holder and the light correctly. 
Remove the tailgate upper trim
carefully by unclipping it on either
side, perpendicular to its direction
of engagement.
 Insert a screwdriver into the two
outer holes B to press on the two
tabs C.
 Push the light unit outwards while
maintaining the pressure on the
tabs.
 Pull the light unit outwards while
tilting it.
 Change the faulty bulb.
 When refitting, ensure that the
light unit tabs are engaged cor-
rectly and that the tailgate upper
trim has been put back in place
correctly.
Number plate lights (W 5 W)
 Insert a thin screwdriver into one
of the external holes of the lens.
 Push it outwards to unclip it.
 Remove the lens.
 Change the faulty bulb.
Third brake light:
4 W 5 W bulbs.
Rear lights

10PRACTICAL INFORMATION
124

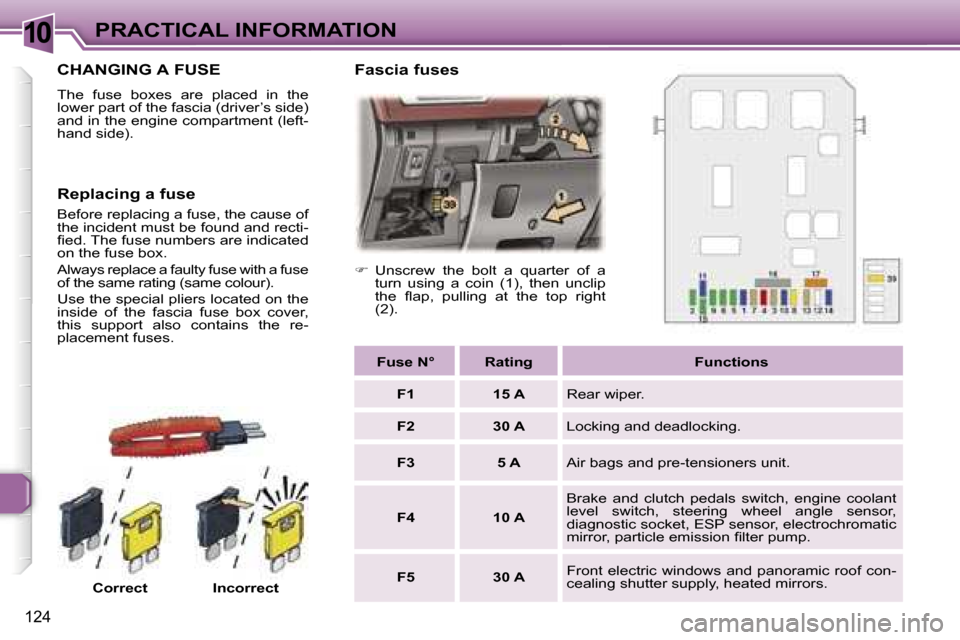

CHANGING A FUSE
The fuse boxes are placed in the
lower part of the fascia (driver’s side)
and in the engine compartment (left-
hand side).Correct Incorrect 
Unscrew the bolt a quarter of a
turn using a coin (1), then unclip
the flap, pulling at the top right
(2).
Fuse N° Rating Functions F1 15 A Rear wiper.
F2 30 A Locking and deadlocking.
F3 5 A Air bags and pre-tensioners unit.
F4 10 A Brake and clutch pedals switch, engine coolant
level switch, steering wheel angle sensor,
diagnostic socket, ESP sensor, electrochromatic
mirror, particle emission filter pump.
F5 30 A Front electric windows and panoramic roof con-
cealing shutter supply, heated mirrors.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fied. The fuse numbers are indicated
on the fuse box.
Always replace a faulty fuse with a fuse
of the same rating (same colour).
Use the special pliers located on the
inside of the fascia fuse box cover,
this support also contains the re-
placement fuses.
Fascia fuses

10PRACTICAL INFORMATION
126

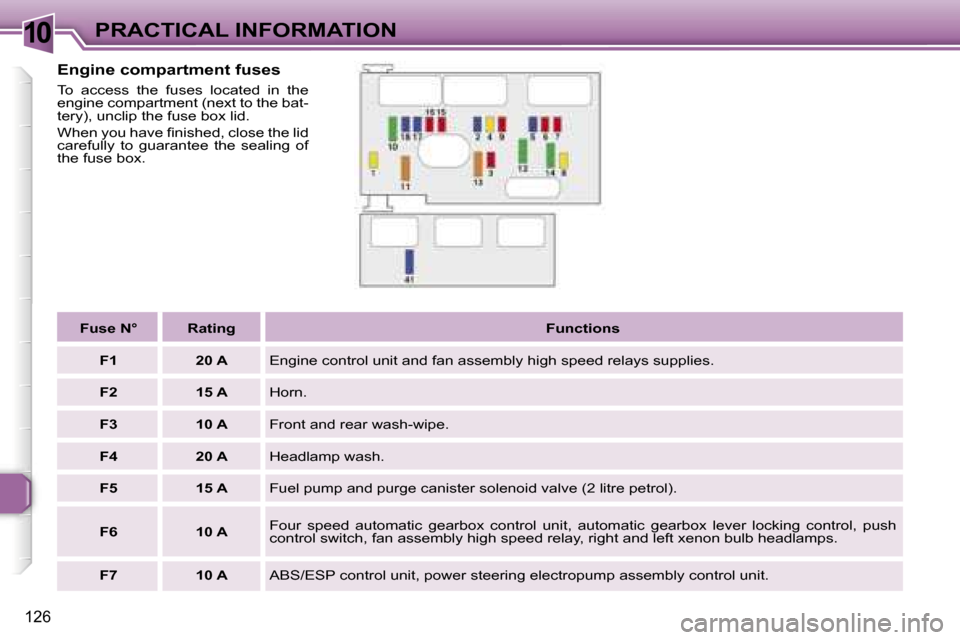

Engine compartment fuses
To access the fuses located in the
engine compartment (next to the bat-
tery), unclip the fuse box lid.
When you have finished, close the lid
carefully to guarantee the sealing of
the fuse box.Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly high speed relays supplies.
F2 15 A Horn.
F3 10 A Front and rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Fuel pump and purge canister solenoid valve (2 litre petrol).
F6 10 A Four speed automatic gearbox control unit, automatic gearbox le
ver locking control, push
control switch, fan assembly high speed relay, right and left xenon bulb headlamps.
F7 10 A ABS/ESP control unit, power steering electropump assembly control uni t.

10PRACTICAL INFORMATION
127

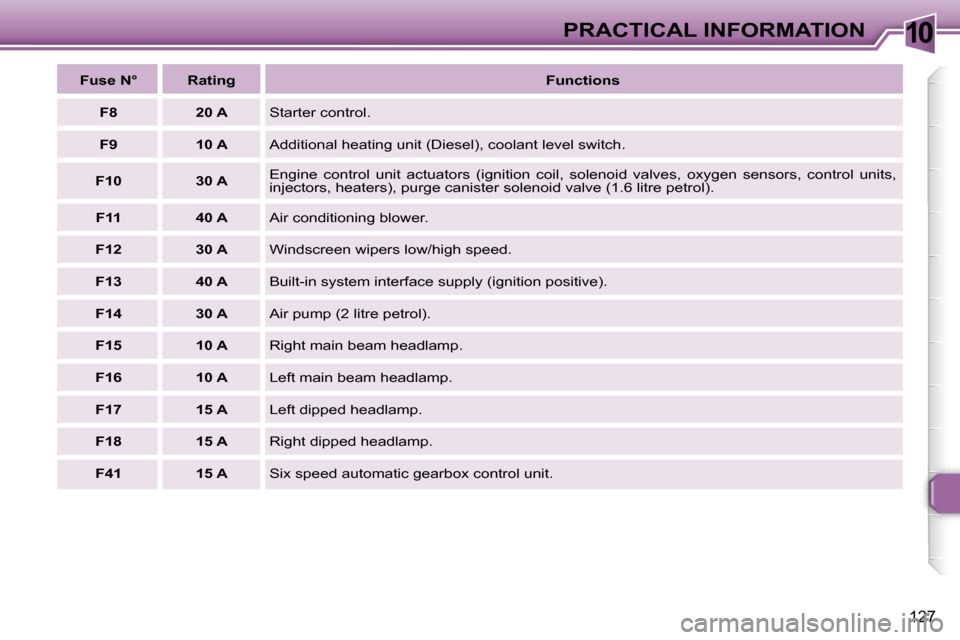

Fuse N° RatingFunctions
F8 20 A Starter control.
F9 10 A Additional heating unit (Diesel), coolant level switch.
F10 30 A Engine control unit actuators (ignition coil, solenoid valves,
oxygen sensors, control units,
injectors, heaters), purge canister solenoid valve (1.6 litre petro l).
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers low/high speed.
F13 40 A Built-in system interface supply (ignition positive).
F14 30 A Air pump (2 litre petrol).
F15 10 A Right main beam headlamp.
F16 10 A Left main beam headlamp.
F17 15 A Left dipped headlamp.
F18 15 A Right dipped headlamp.
F41 15 A Six speed automatic gearbox control unit.

10PRACTICAL INFORMATION
128
The electrical system of your vehicle is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on you r vehicle, contact a PEUGEOT dealer.
PEUGEOT will not accept responsibility for the cost incurred in rep airing your vehicle or for rectifying the malfunctions
resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in
accordance with its instructions, in particular where the equipme nt in question consumes more than 10 milliamperes.
Fuse N° Rating
Functions
MF1* 30 A
200 W fan assembly.
50 A 400 W and 460 W fan assembly.
MF2* 30 A ABS/ESP pump.
MF3* 30 A Electrovannes ABS/ESP.
MF4* 80 A Built-in systems interface supply.
MF5* 80 A Built-in systems interface supply.
MF6* 80 A Passenger compartment fuse box.
MF8* 70 A Power steering electropump assembly.
* The maxi-fuses provide additional protection for the electri cal systems. All work must be carried out by a PEUGEOT
dealer.

10PRACTICAL INFORMATION
124
CHANGING A FUSE
The fuse boxes are placed in the
lower part of the fascia (driver’s side)
and in the engine compartment (left-
hand side).Correct Incorrect 
Unscrew the bolt a quarter of a
turn using a coin (1), then unclip
the flap, pulling at the top right
(2).
Fuse N° Rating Functions F1 15 A Rear wiper.
F2 30 A Locking and deadlocking.
F3 5 A Air bags and pre-tensioners unit.
F4 10 A Brake and clutch pedals switch, engine coolant
level switch, steering wheel angle sensor,
diagnostic socket, ESP sensor, electrochromatic
mirror, particle emission filter pump.
F5 30 A Front electric windows and panoramic roof con-
cealing shutter supply, heated mirrors.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fied. The fuse numbers are indicated
on the fuse box.
Always replace a faulty fuse with a fuse
of the same rating (same colour).
Use the special pliers located on the
inside of the fascia fuse box cover,
this support also contains the re-
placement fuses.
Fascia fuses
