2006 Peugeot 307 SW Dag Owner's Manual

12

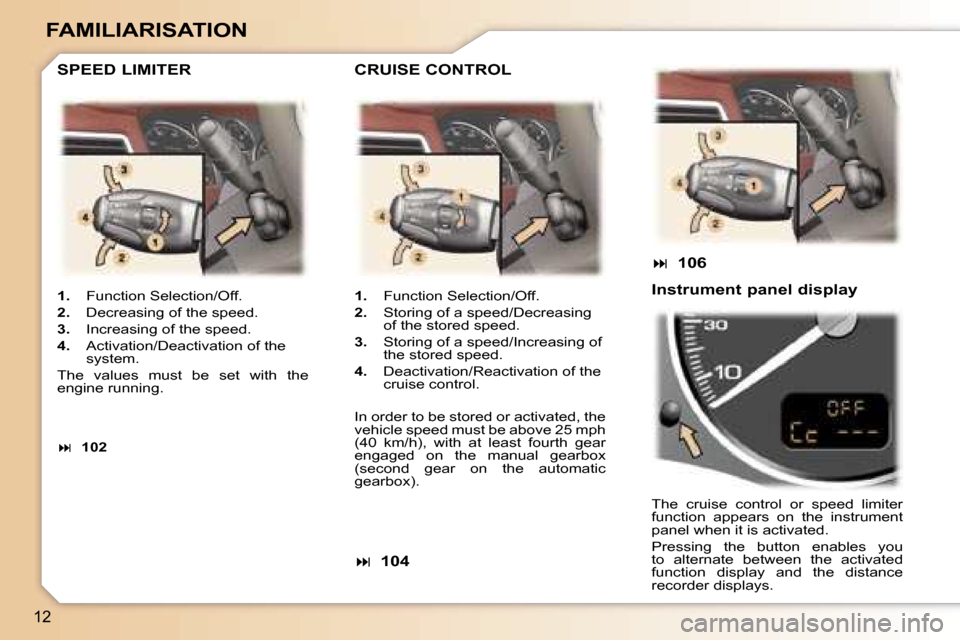

FAMILIARISATION
1. Function Selection/Off.
2. Decreasing of the speed.
3. Increasing of the speed.
4. Activation/Deactivation of the
system.
The values must be set with the
engine running.
CRUISE CONTROL
 102
 104 
106
The cruise control or speed limiter
function appears on the instrument
panel when it is activated.
Pressing the button enables you
to alternate between the activated
function display and the distance
recorder displays.
SPEED LIMITER
1. Function Selection/Off.
2. Storing of a speed/Decreasing
of the stored speed.
3. Storing of a speed/Increasing of
the stored speed.
4. Deactivation/Reactivation of the
cruise control.
In order to be stored or activated, the
vehicle speed must be above 25 mph
(40 km/h), with at least fourth gear
engaged on the manual gearbox
(second gear on the automatic
gearbox).Instrument panel display

13
FAMILIARISATION

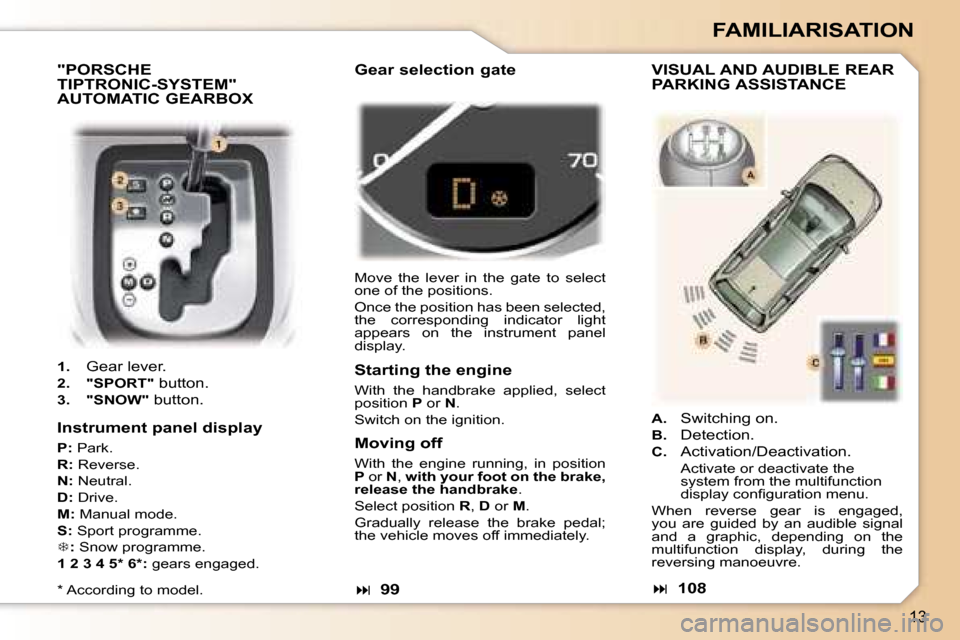

"PORSCHE
TIPTRONIC-SYSTEM"
AUTOMATIC GEARBOX
1. Gear lever.
2. "SPORT" button.
3. "SNOW" button. 99
Move the lever in the gate to select
one of the positions.
Once the position has been selected,
the corresponding indicator light
appears on the instrument panel
display.
A.
Switching on.
B. Detection.
C. Activation/Deactivation.

Activate or deactivate the
system from the multifunction
display configuration menu.
When reverse gear is engaged,
you are guided by an audible signal
and a graphic, depending on the
multifunction display, during the
reversing manoeuvre.
 108
Gear selection gate VISUAL AND AUDIBLE REAR
PARKING ASSISTANCE
Instrument panel display
P: Park.
R: Reverse.
N: Neutral.
D: Drive.
M: Manual mode.
S: Sport programme.
 : Snow programme.
1 2 3 4 5* 6*: gears engaged.
Starting the engine
With the handbrake applied, select
position P or N.
Switch on the ignition.
Moving off
With the engine running, in position P or N, with your foot on the brake,
release the handbrake .
Select position R, D or M.
Gradually release the brake pedal;
the vehicle moves off immediately.
* According to model.

14
FAMILIARISATION

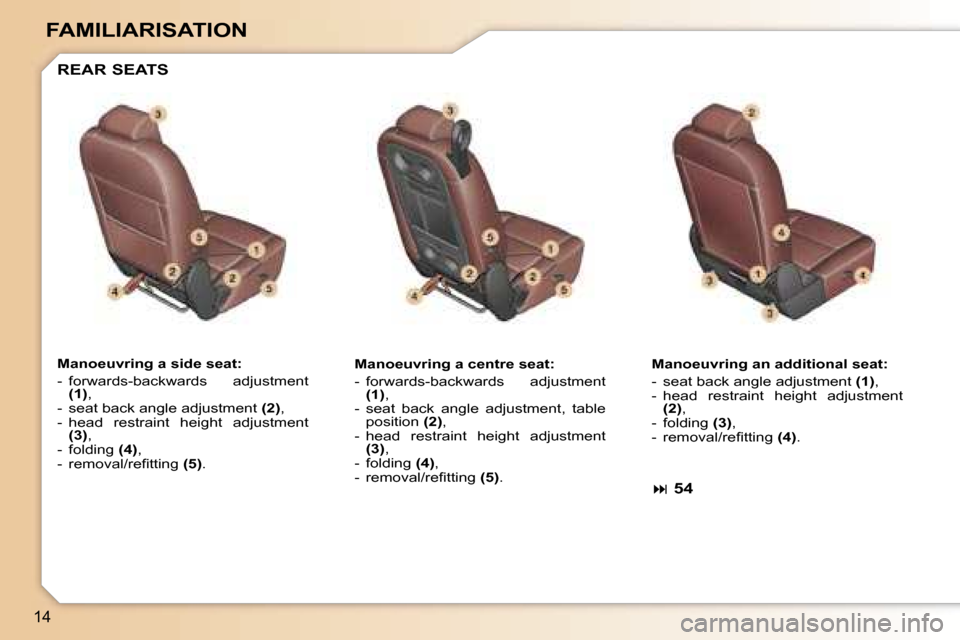

Manoeuvring a side seat:
- forwards-backwards adjustment (1) ,
- seat back angle adjustment (2),
- head restraint height adjustment (3) ,
- folding (4),
- removal/refitting (5). Manoeuvring a centre seat:
- forwards-backwards adjustment
(1) ,
- seat back angle adjustment, table position (2),
- head restraint height adjustment (3) ,
- folding (4),
- removal/refitting (5). Manoeuvring an additional seat:
- seat back angle adjustment
(1),
- head restraint height adjustment (2) ,
- folding (3),
- removal/refitting (4).
 54
REAR SEATS

15
FAMILIARISATION

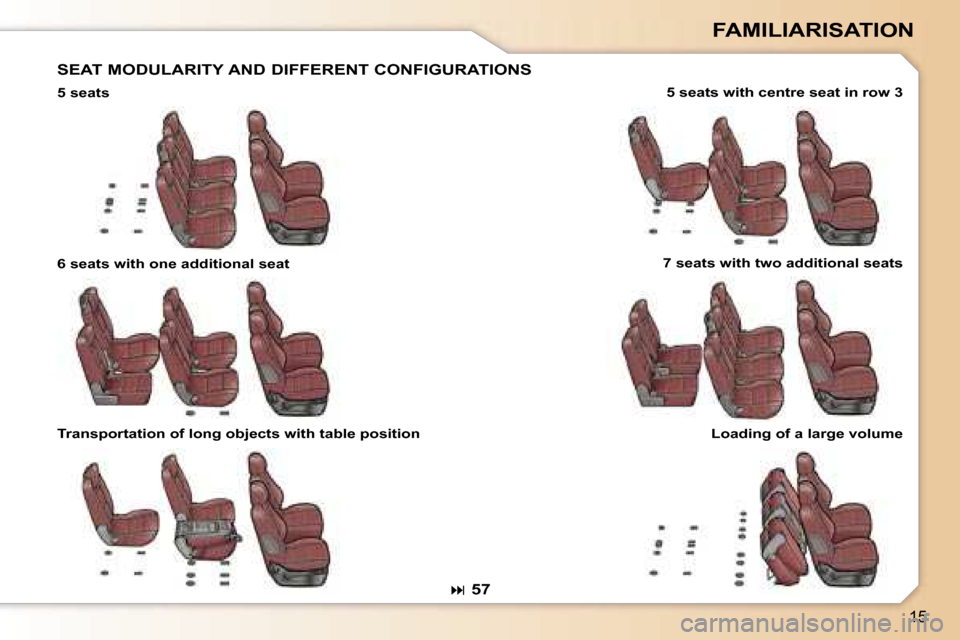

SEAT MODULARITY AND DIFFERENT CONFIGURATIONS
5 seats5 seats with centre seat in row 3
6 seats with one additional seat 7 seats with two additional seats
Transportation of long objects with table position Loading of a large volume
 57

16
FAMILIARISATION

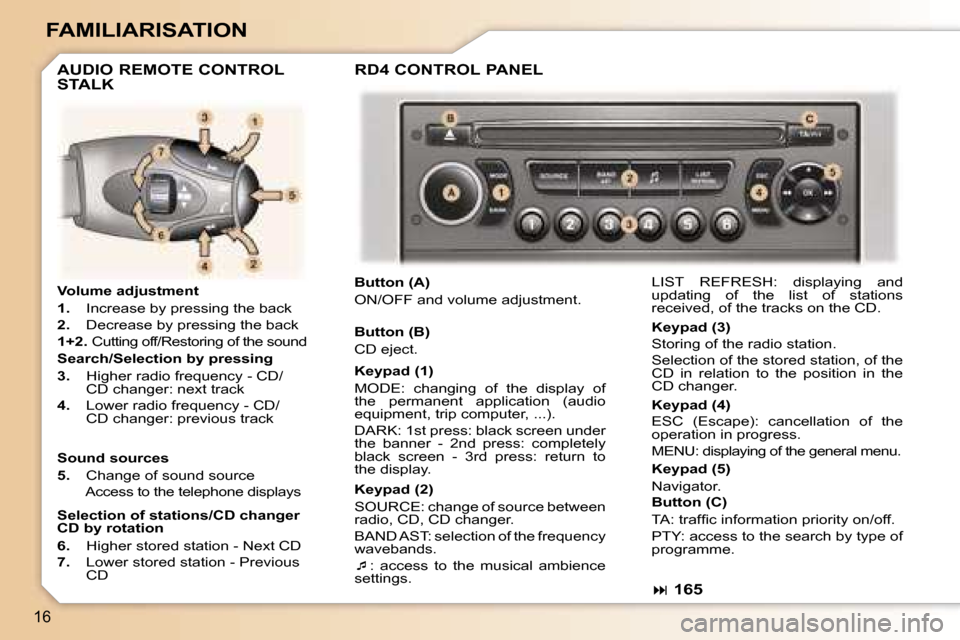

Volume adjustment
1. Increase by pressing the back
2. Decrease by pressing the back
1+2. Cutting off/Restoring of the sound LIST REFRESH: displaying and
updating of the list of stations
received, of the tracks on the CD.
RD4 CONTROL PANEL
Button (A)
ON/OFF and volume adjustment.
AUDIO REMOTE CONTROL
STALK
Search/Selection by pressing
3.
Higher radio frequency - CD/
CD changer: next track
4. Lower radio frequency - CD/
CD changer: previous track
Sound sources
5. Change of sound source
Access to the telephone displays
Selection of stations/CD changer
CD by rotation
6. Higher stored station - Next CD
7. Lower stored station - Previous
CD Button (B)
CD eject.
Keypad (1)
MODE: changing of the display of
the permanent application (audio
equipment, trip computer, ...).
DARK: 1st press: black screen under
the banner - 2nd press: completely
black screen - 3rd press: return to
the display.
Keypad (2)
SOURCE: change of source between
radio, CD, CD changer.
BAND AST: selection of the frequency
wavebands. 
: access to the musical ambience
settings. Keypad (3)
Storing of the radio station.
Selection of the stored station, of the
CD in relation to the position in the
CD changer.
Keypad (4)
ESC (Escape): cancellation of the
operation in progress.
MENU: displaying of the general menu.
Keypad (5)
Navigator.
Button (C)
TA: traffic information priority on/off.
PTY: access to the search by type of
programme.

165

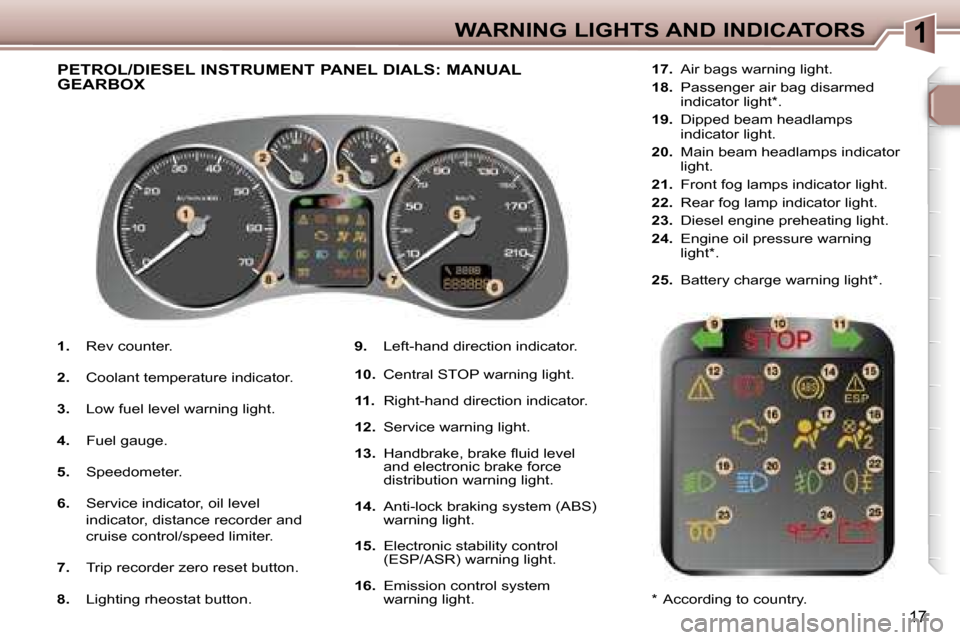

1WARNING LIGHTS AND INDICATORS
17
1. Rev counter.
2. Coolant temperature indicator.
3. Low fuel level warning light.
4. Fuel gauge.
5. Speedometer.
6. Service indicator, oil level
indicator, distance recorder and
cruise control/speed limiter.
7. Trip recorder zero reset button.
8. Lighting rheostat button. 9.
Left-hand direction indicator.
10. Central STOP warning light.
11. Right-hand direction indicator.
12. Service warning light.
13. Handbrake, brake fluid level
and electronic brake force
distribution warning light.
14. Anti-lock braking system (ABS)
warning light.
15. Electronic stability control
(ESP/ASR) warning light.
16. Emission control system
warning light. 17.
Air bags warning light.
18. Passenger air bag disarmed
indicator light*.
19. Dipped beam headlamps
indicator light.
20. Main beam headlamps indicator
light.
21. Front fog lamps indicator light.
22. Rear fog lamp indicator light.
23. Diesel engine preheating light.
24. Engine oil pressure warning
light*.
25. Battery charge warning light*.
PETROL/DIESEL INSTRUMENT PANEL DIALS: MANUAL
GEARBOX
* According to country.

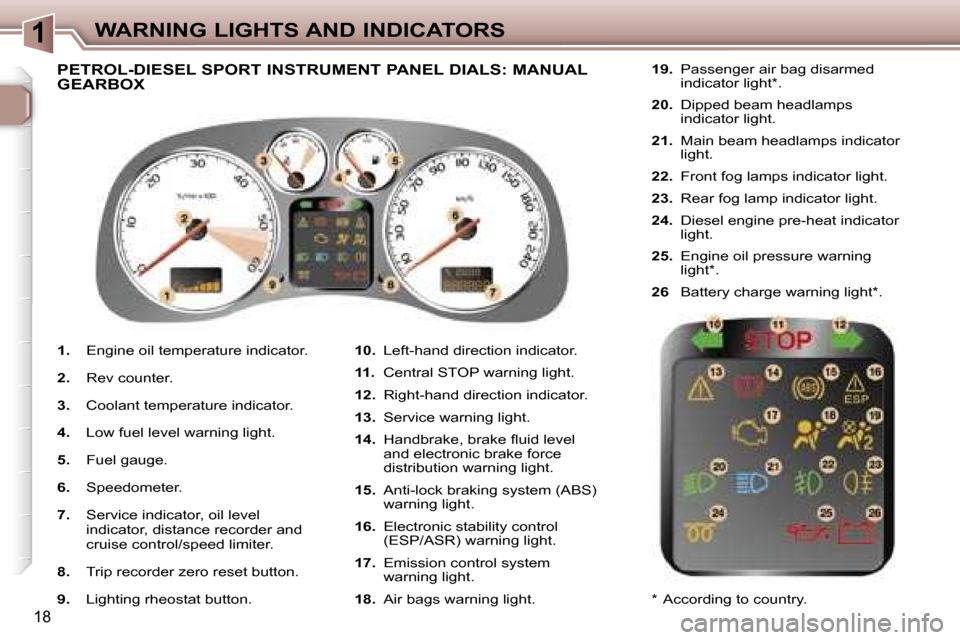

1WARNING LIGHTS AND INDICATORS
18
1. Engine oil temperature indicator.
2. Rev counter.
3. Coolant temperature indicator.
4. Low fuel level warning light.
5. Fuel gauge.
6. Speedometer.
7. Service indicator, oil level
indicator, distance recorder and
cruise control/speed limiter.
8. Trip recorder zero reset button.
9. Lighting rheostat button. 10.
Left-hand direction indicator.
11. Central STOP warning light.
12. Right-hand direction indicator.
13. Service warning light.
14. Handbrake, brake fluid level
and electronic brake force
distribution warning light.
15. Anti-lock braking system (ABS)
warning light.
16. Electronic stability control
(ESP/ASR) warning light.
17. Emission control system
warning light.
18. Air bags warning light. 19.
Passenger air bag disarmed
indicator light*.
20. Dipped beam headlamps
indicator light.
21. Main beam headlamps indicator
light.
22. Front fog lamps indicator light.
23. Rear fog lamp indicator light.
24. Diesel engine pre-heat indicator
light.
25. Engine oil pressure warning
light*.
26 Battery charge warning light*.
PETROL-DIESEL SPORT INSTRUMENT PANEL DIALS: MANUAL
GEARBOX
* According to country.

1WARNING LIGHTS AND INDICATORS
19
1. Rev counter.
2. Coolant temperature indicator.
3. Low fuel level warning light.
4. Fuel gauge.
5. Speedometer.
6. Service indicator, oil level
indicator, distance recorder and
cruise control/speed limiter.
7. Trip recorder zero reset button.
8. Lighting rheostat button. 9.
Snow programme indicator light.
10. Sport programme indicator light.
11. Gear lever position indicator.
12. Left-hand direction indicator.
13. Central STOP warning light.
14. Right-hand direction indicator.
15. Service warning light.
16. Handbrake, brake fluid level
and electronic brake force
distribution warning light.
17. Anti-lock braking system (ABS)
warning light. 18.
Electronic stability control
(ESP/ASR) warning light.
19. Emission control system
warning light.
20. Air bags warning light.
21. Passenger air bag disarmed
indicator light*.
22. Dipped beam headlamps
indicator light.
23. Main beam headlamps indicator
light.
24. Front fog lamps indicator light.
25. Rear fog lamp indicator light.
26. Engine oil pressure warning
light*.
27. Battery charge warning light*.
PETROL INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX
* According to country.
